Table of contents
1 General.................................................................................................................... 4
1.1 Copyright © YASKAWA Europe GmbH............................................................ 4
1.2 About this manual............................................................................................. 5
1.3 Safety information............................................................................................. 6
2 Assembly and installation guidelines.................................................................. 7
2.1 Safety information for users.............................................................................. 7
2.2 Installation dimensions..................................................................................... 8
2.3 Installation at the profile rail.............................................................................. 9
2.4 Cabling............................................................................................................ 11
2.5 Installation guidelines..................................................................................... 12
2.6 General data................................................................................................... 14
2.6.1 Use in difficult operating conditions............................................................. 15
3 Power supply PS 307 .......................................................................................... 16
3.1 Safety Information.......................................................................................... 16
3.2 System overview............................................................................................ 17
3.3 PS 307-1BA00................................................................................................ 18
3.3.1 Technical data.............................................................................................. 21
3.4 PS 307-1EA00................................................................................................ 23
3.4.1 Technical data.............................................................................................. 27
3.5 PS 307-1KA00................................................................................................ 29
3.5.1 Technical data.............................................................................................. 33
System 300S Table of contents
HB130 | PS | 307-1xA00 | en | 18-02 3
1 General
1.1 Copyright © YASKAWA Europe GmbH
This document contains proprietary information of Yaskawa and is not to be disclosed or
used except in accordance with applicable agreements.
This material is protected by copyright laws. It may not be reproduced, distributed, or
altered in any fashion by any entity (either internal or external to Yaskawa) except in
accordance with applicable agreements, contracts or licensing, without the express
written consent of Yaskawa and the business management owner of the material.
For permission to reproduce or distribute, please contact: YASKAWA Europe GmbH,
European Headquarters, Hauptstraße 185, 65760 Eschborn, Germany
Tel.: +49 6196 569 300
Fax.: +49 6196 569 398
Email: [email protected]
Internet: www.yaskawa.eu.com
Every effort has been made to ensure that the information contained in
this document was complete and accurate at the time of publishing. Nev-
ertheless, the authors retain the right to modify the information.
This customer document describes all the hardware units and functions
known at the present time. Descriptions may be included for units which
are not present at the customer site. The exact scope of delivery is
described in the respective purchase contract.
Hereby, YASKAWA Europe GmbH declares that the products and systems are in compli-
ance with the essential requirements and other relevant provisions. Conformity is indi-
cated by the CE marking affixed to the product.
For more information regarding CE marking and Declaration of Conformity (DoC), please
contact your local representative of YASKAWA Europe GmbH.
VIPA, SLIO, System 100V, System 200V, System 300V, System 300S, System 400V,
System 500S and Commander Compact are registered trademarks of YASKAWA Europe
GmbH.
SPEED7 is a registered trademark of YASKAWA Europe GmbH.
SIMATIC, STEP, SINEC, TIA Portal, S7-300, S7-400 and S7-1500 are registered trade-
marks of Siemens AG.
Microsoft and Windows are registered trademarks of Microsoft Inc., USA.
Portable Document Format (PDF) and Postscript are registered trademarks of Adobe
Systems, Inc.
All other trademarks, logos and service or product marks specified herein are owned by
their respective companies.
Contact your local representative of YASKAWA Europe GmbH if you have errors or ques-
tions regarding the content of this document. You can reach YASKAWA Europe GmbH via
the following contact:
Email: [email protected]
All Rights Reserved
EC conformity declaration
Conformity Information
Trademarks
Document support
System 300S
General
Copyright © YASKAWA Europe GmbH
HB130 | PS | 307-1xA00 | en | 18-02 4
Contact your local representative of YASKAWA Europe GmbH if you encounter problems
or have questions regarding the product. If such a location is not available, you can reach
the Yaskawa customer service via the following contact:
YASKAWA Europe GmbH,
European Headquarters, Hauptstraße 185, 65760 Eschborn, Germany
Tel.: +49 6196 569 500 (hotline)
Email: [email protected]
1.2 About this manual
This manual describes the power supplys for the System 300 from Yaskawa. It contains a
description of the construction, usage and technical data.
Product Order number as of HW state
PS 307 307-1xA00 01
The manual is targeted at users who have a background in automation technology.
The manual consists of chapters. Every chapter provides a self-contained description of a
specific topic.
The following guides are available in the manual:
nAn overall table of contents at the beginning of the manual
nReferences with page numbers
The manual is available in:
nprinted form, on paper
nin electronic form as PDF-file (Adobe Acrobat Reader)
Important passages in the text are highlighted by following icons and headings:
DANGER!
Immediate or likely danger. Personal injury is possible.
CAUTION!
Damages to property is likely if these warnings are not heeded.
Supplementary information and useful tips.
Technical support
Objective and contents
Target audience
Structure of the manual
Guide to the document
Availability
Icons Headings
System 300S General
About this manual
HB130 | PS | 307-1xA00 | en | 18-02 5
1.3 Safety information
The system is constructed and produced for:
ncommunication and process control
ngeneral control and automation tasks
nindustrial applications
noperation within the environmental conditions specified in the technical data
ninstallation into a cubicle
DANGER!
This device is not certified for applications in
– in explosive environments (EX-zone)
The manual must be available to all personnel in the
nproject design department
ninstallation department
ncommissioning
noperation
CAUTION!
The following conditions must be met before using or commis-
sioning the components described in this manual:
– Hardware modifications to the process control system should only be
carried out when the system has been disconnected from power!
– Installation and hardware modifications only by properly trained per-
sonnel.
– The national rules and regulations of the respective country must be
satisfied (installation, safety, EMC ...)
National rules and regulations apply to the disposal of the unit!
Applications conforming
with specifications
Documentation
Disposal
System 300S
General
Safety information
HB130 | PS | 307-1xA00 | en | 18-02 6
2 Assembly and installation guidelines
2.1 Safety information for users
The modules make use of highly integrated components in MOS-Technology. These com-
ponents are extremely sensitive to over-voltages that can occur during electrostatic dis-
charges. The following symbol is attached to modules that can be destroyed by electro-
static discharges.
The Symbol is located on the module, the module rack or on packing material and it indi-
cates the presence of electrostatic sensitive equipment. It is possible that electrostatic
sensitive equipment is destroyed by energies and voltages that are far less than the
human threshold of perception. These voltages can occur where persons do not dis-
charge themselves before handling electrostatic sensitive modules and they can damage
components thereby, causing the module to become inoperable or unusable. Modules
that have been damaged by electrostatic discharges can fail after a temperature change,
mechanical shock or changes in the electrical load. Only the consequent implementation
of protection devices and meticulous attention to the applicable rules and regulations for
handling the respective equipment can prevent failures of electrostatic sensitive modules.
Modules must be shipped in the original packing material.
When you are conducting measurements on electrostatic sensitive modules you should
take the following precautions:
nFloating instruments must be discharged before use.
nInstruments must be grounded.
Modifying electrostatic sensitive modules you should only use soldering irons with
grounded tips.
CAUTION!
Personnel and instruments should be grounded when working on electro-
static sensitive modules.
Handling of electrostatic
sensitive modules
Shipping of modules
Measurements and altera-
tions on electrostatic sen-
sitive modules
System 300S Assembly and installation guidelines
Safety information for users
HB130 | PS | 307-1xA00 | en | 18-02 7
2.2 Installation dimensions
n1tier width (WxHxD) in mm: 40 x 125 x 120
n1tier width (WxHxD) in mm: 80 x 125 x 120
n1tier width (WxHxD) in mm: 120 x 125 x 120
Dimensions Basic
enclosure
Dimensions
Installation dimensions
System 300S
Assembly and installation guidelines
Installation dimensions
HB130 | PS | 307-1xA00 | en | 18-02 8
2.3 Installation at the profile rail
The single modules are directly installed on a profile rail and connected via the backplane
bus connector. Before installing the modules you have to clip the backplane bus con-
nector to the module from the backside. The backplane bus connector is delivered
together with the peripheral modules.
Order number A B C
390-1AB60 160 140 10
390-1AE80 482 466 8.3
390-1AF30 530 500 15
390-1AJ30 830 800 15
390-9BC00* 2000 Drillings only left 15
*) Unit pack: 10 pieces
Measures in mm
For the communication between the modules the System 300S uses a backplane bus
connector. Backplane bus connectors are included in the delivering of the peripheral
modules and are clipped at the module from the backside before installing it to the profile
rail.
General
Profile rail
Bus connector
System 300S Assembly and installation guidelines
Installation at the profile rail
HB130 | PS | 307-1xA00 | en | 18-02 9

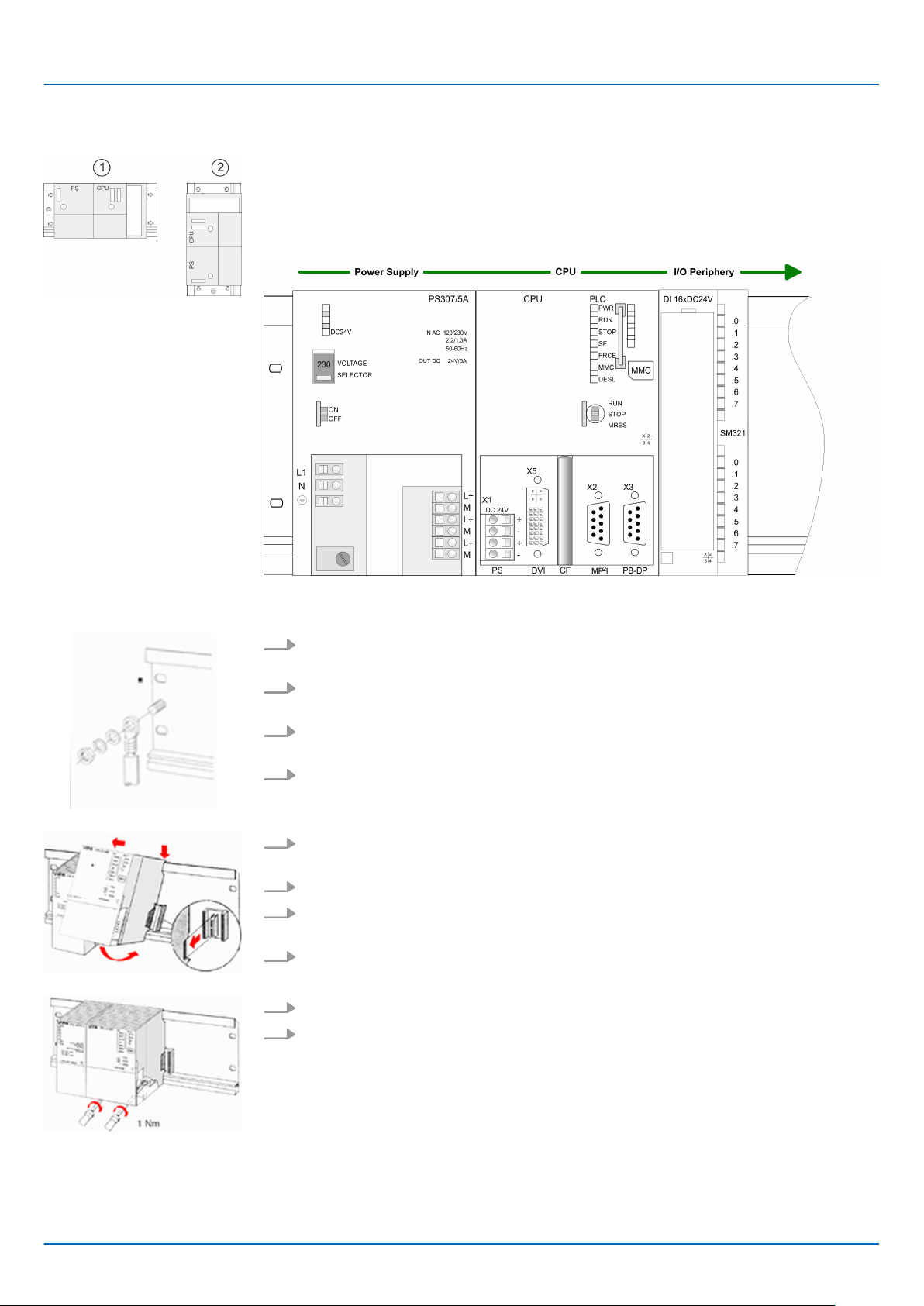

Please regard the allowed environment temperatures:
1 horizontal assembly: from 0 to 60°C
2 vertical assembly: from 0 to 40°C
The horizontal structure always starts at the left side with the power supply and the CPU,
then you plug-in the peripheral modules beside to the right. You may plug-in maximum 32
peripheral modules to the CPU.
If you do not deploy SPEED-Bus modules, the assembly happens with the following
approach:
1. Bolt the profile rail with the background (screw size: M6), so that you still have min-
imum 65mm space above and 40mm below the profile rail.
2. If the background is a grounded metal or device plate, please look for a low-impe-
dance connection between profile rail and background.
3. Connect the profile rail with the protected earth conductor. For this purpose there is
a bolt with M6-thread.
4. The minimum cross-section of the cable to the protected earth conductor has to be
10mm2.
5. Stick the power supply to the profile rail and pull it to the left side to the grounding
bolt of the profile rail.
6. Fix the power supply by screwing.
7. Take a backplane bus connector and click it at the CPU from the backside like
shown in the picture.
8. Stick the CPU to the profile rail right from the power supply and pull it to the power
supply.
9. Click the CPU downwards and bolt it like shown.
10. Repeat this procedure with the peripheral modules, by clicking a backplane bus
connector, stick the module right from the modules you've already fixed, click it
downwards and connect it with the backplane bus connector of the last module and
bolt it.
Assembly possibilities
Approach
System 300S
Assembly and installation guidelines
Installation at the profile rail
HB130 | PS | 307-1xA00 | en | 18-02 10
Other manuals for VIPA System 300S
3
Table of contents
Other YASKAWA Power Supply manuals
