Yard Works 060-2288-0 User manual

model number 060-2288-0 | contact us: 1.866.523.5218

IMPORTANT:

Read and follow all safety rules and operating

instructions before using this product.

Instruction

Manual

Electric Grass Trimmer

model no. 060-2288-0 | contact us: 1.866.523.5218

Table of Contents

Motor: 4 A

Feed: Automatic dual line

Speed: 9000 RPM (no load)

Cutting path: 12” (30.5 cm)

Line diameter: 0.065” (1.65 mm)

Weight: 5 lb 3 oz (2.4 kg)

TECHNICAL DATA 2

KNOW YOUR TRIMMER 3

SYMBOLS 4

SAFETY INFORMATION 5

ELECTRICAL INFORMATION 7

EXPLODED VIEW 10

PARTS LIST 11

ASSEMBLY 13

OPERATION 18

MAINTENAINCE 22

TROUBLESHOOTING 23

WARRANTY 24

Specifications

model no. 060-2288-0 | contact us: 1.866.523.5218 model no. 060-2288-0 | contact us: 1.866.523.5218

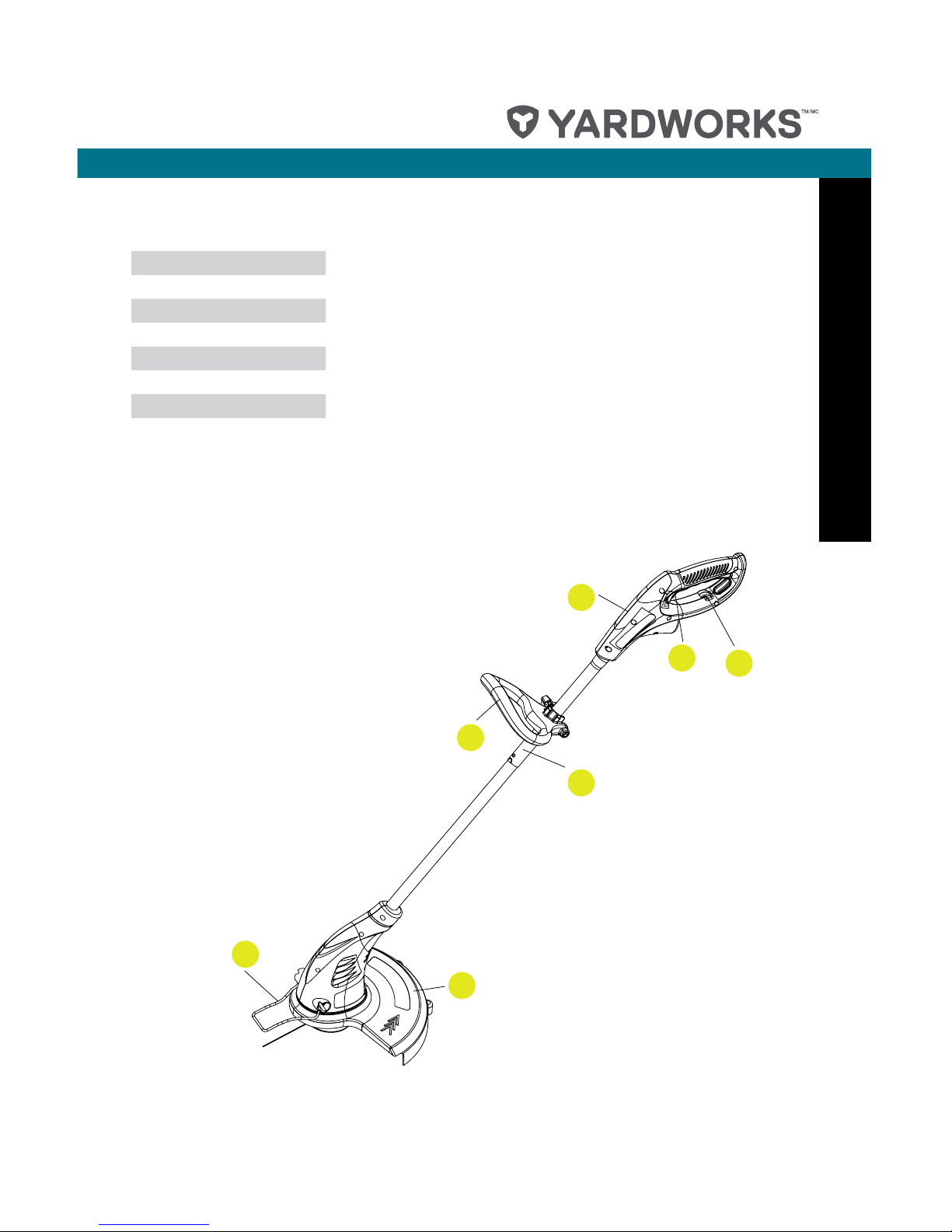

Know Your Grass Trimmer

1. Cord retainer

2. Rear handle

3. Switch trigger

4. Split boom

5. Front handle

6. Grass deflector

7. Edger guide

Symbols

model no. 060-2288-0 | contact us: 1.866.523.5218

Some of the following symbols may be used on this product. Please study them and learn their

meaning. Proper interpretation of these symbols will allow you to operate the product better and

safer.

Symbol Name Designation/Explanation

Safety Alert Indicates a potential personal injury hazard.

Read Operator’s Manual

To reduce the risk of injury, user must read and

understand operator’s manual before using this

product.

Eye and Ear Protection Always wear eye protection with side shields marked

to comply with ANSI Z87.1.

Wet Conditions Alert Do not expose to rain or use in damp locations.

Keep Bystanders Away Keep all bystanders at least 50’ (15 m) away.

Ricochet Thrown objects can ricochet and result in personal

injury or property damage.

No Blade Do not install or use any type of blade on a product

displaying this symbol.

Direct Current Type or a characteristic of current

No Load Speed Rotation speed, at no load

.../min Per Minute Revolutions, strokes, surface speed, orbits etc., per

minute

vVolts Voltage

Hz Hertz Frequency (cycles per second)

min Minutes Time

Class II construction Double-insulated construction

model no. 060-2288-0 | contact us: 1.866.523.5218

Safety Information

WARNING: To avoid mistakes that could cause serious

injury, do not plug in the grass trimmer until the following

steps have been read and understood.

GENERAL SAFETY RULES

Safety is a combination of common sense, staying alert and knowing how to use your grass

trimmer.

• READ and become familiar with this entire instruction manual. LEARN about the tool’s

applications, limitations and possible hazards.

• AVOID DANGEROUS CONDITIONS. DO NOT use in wet or damp areas or expose to rain.

• DO NOT use in the presence of flammable liquids or gases.

• KEEP BYSTANDERS AT A SAFE DISTANCE. NEVER allow children near the tool.

• DRESS FOR SAFETY. DO NOT wear loose clothing, gloves, neckties, or jewellery (rings,

watches, etc.) when operating the tool. Loose clothing can get caught and draw you into

moving parts.

• ALWAYS WEAR EYE PROTECTION.

• ALWAYS remove the extension cord plug from the electrical outlet when making

adjustments, changing parts or cleaning.

• AVOID ACCIDENTAL START-UP. Make sure the power switch is in the OFF position

before plugging in the extension cord.

• TREAT the extension cord with care. Do not use it to carry the tool. Keep cord away from

heat, oil, sharp edges, or moving parts. Replace damaged cords immediately; they may

create a shock or fire hazard.

• NEVER LEAVE A RUNNING TOOL UNATTENDED. Turn the power switch to OFF. Do not

leave the tool until it has come to a complete stop.

• DO NOT OVERREACH. Keep proper footing and balance at all times.

• MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good working order.

• CHECK FOR DAMAGED PARTS. Check for alignment of moving parts, binding, breakage

or any other conditions that may affect the tool’s operation. Any part that is damaged

should be properly repaired or replaced before use.

model no. 060-2288-0 | contact us: 1.866.523.5218

Safety Information

• KEEP THE HANDLE DRY, CLEAN AND FREE OF OIL AND GREASE. Always use

a clean cloth when cleaning. Do not use solvents, brake fluids, gasoline, or other

petroleum products to clean the tool, because they may damage plastic parts.

• Use only flexible, non-metallic line recommended by the manufacturer. Never use

wire, wire rope, and the like, as it can cause serious injury.

• Polarized Appliance Connections

• To reduce the risk of electric shock, this appliance has a polarized plug (one blade

is wider than the other) and will require the use of a polarized extension cord. The

appliance plug will fit into a polarized extension cord only one way. If the plug does

not fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain

a correct polarized extension cord. A polarized extension cord will require the use of

a polarized wall outlet. This plug will fit into the polarized wall outlet only one way. If

the plug does not fit fully into the wall outlet, reverse the plug. If the plug still does not

fit, contact a qualified electrician to install the proper wall outlet. Do not change the

equipment plug, extension cord receptacle, or extension cord plug in any way.

ALWAYS WEAR EYE PROTECTION.

A grass trimmer can throw foreign objects into

your eyes, which could cause permanent eye

damage. ALWAYS wear safety goggles (not

glasses). Ordinary eye glasses have only impact-

resistant lenses—they are NOT safety goggles.

model no. 060-2288-0 | contact us: 1.866.523.5218 model no. 060-2288-0 | contact us: 1.866.523.5218

Safety Information

SPECIFIC SAFETY RULES FOR GRASS TRIMMER

• IF YOU ARE NOT thoroughly familiar with using the grass trimmer, obtain advice from a

qualified person.

• MAKE SURE wiring codes and recommended electrical connections are observed. The

grass trimmer is double insulated.When servicing, use only identical replacement parts.

• DO NOT grasp the exposed cutting line when picking up or holding the grass trimmer.

• AVOID UNINTENTIONAL STARTING. Don’t carry the plugged-in grass trimmer with your

finger on the switch. Make sure the switch is in the OFF position when plugging in the

grass trimmer.

• DO NOT FORCE THE GRASS TRIMMER. It will do the job better and with less likelihood

of injury when used at the pace for which it was designed.

• The grass trimmer should be stored indoors in a dry, high, or locked location, out of

children’s reach, when not in use.

• MAKE all adjustments with the switch in the OFF position and the grass trimmer

disconnected from the power source.

• ALWAYS use accessories provided or recommended by the grass trimmer’s manufacturer.

• KEEP guards in place and in working order. Keep hands and feet away from cutting line.

• WHEN LENGTHENING A NEW CUTTING LINE, be careful of the sharp line cutter on the

guard.

• KEEP VENTILATION OPENINGS clear of debris.

• Before using the grass trimmer, remove any stones, sticks, debris or objects that could

become entangled or ejected by the grass trimmer.

WARNING: Never reach under the grass trimmer (cutting line

area) until it has completely stopped. The grass trimmer’s

cutting line will continue to rotate for a few seconds after it

is switched off.

model no. 060-2288-0 | contact us: 1.866.523.5218

DOUBLE INSULATED

This grass trimmer has a plug that looks like the one shown in Fig. A.

The grass trimmer is double insulated to provide a double thickness of insulation between you

and the tool’s electrical system. All exposed metal parts are isolated from the internal metal

motor components with protective insulation.

Electrical Information

WARNING: To avoid electrical hazards, fire hazards, or

damage to the tool, use proper circuit protection. Your grass

trimmer is wired at the factory for 120 v operation. Connect

to a 120 v, 15 a circuit, and use a 15 a time-delayed fuse or

circuit breaker. To avoid shock or fire, if the extension cord

is worn, cut or damaged in any way, replace it immediately.

WARNING: Use only identical replacement parts when

servicing the grass trimmer, to avoid injury.

WARNING: Double insulation does not take the place of

normal safety precautions when operating this tool.

WARNING: TO AVOID ELECTROCUTION:

1. Use only identical replacement parts when servicing a tool

with double insulation. Servicing should be performed by

a qualified technician.

2. Do not use in wet or damp areas or expose to rain.

1) 2-prong plug

2) Properly grounded extension cord

Fig. A

model no. 060-2288-0 | contact us: 1.866.523.5218 model no. 060-2288-0 | contact us: 1.866.523.5218

Electrical Information

CAUTION! ALWAYS MAKE SURE THAT YOUR OUTLET IS PROPERLY GROUNDED. IF

UNCERTAIN, HAVE IT CHECKED BY A CERTIFIED ELECTRICIAN.

USE THE PROPER EXTENSION CORD.Make sure your extension cord is in good condition.

When using an extension cord, be sure to use one heavy enough to carry the current your

product will draw. An undersized cord will cause overheating. The table below shows the

correct size to use depending on cord length and name plate ampere rating. If in doubt, use the

next heavier gauge. The smaller the gauge number, the heavier the cord.

Minimum Gauge for Extension Cords (AWG)

(when using 120 V only)

Ampere Rating Total Length of Cord in Feet (meters)

More Than Not More Than 25’ (7.6 m) 50’ (15 m) 100’ (30.4 m)

0 6 18 16 16

6 10 18 16 14

10 12 16 16 14

12 16 14 12 Not

Recommended

Make sure your extension cord is properly wired and in good electrical condition. Always

replace a damaged extension cord or have it repaired by a qualified person before use. Keep

extension cords away from sharp objects, excessive heat and damp or wet areas.

Use a separate electrical circuit for your tools. This circuit should comprise a wire of at least 18

gauge and should be protected with a 15 A time-delayed fuse. Before connecting the motor to

the power line, make sure the switch is in the OFF position and the electric current is identical

to that stamped on the motor name plate. Running at a lower voltage will damage the motor.

WARNING: This grass trimmer is for outdoor use only. Do

not expose to rain or use in damp locations.

WARNING: Although this tool is double insulated, the

extension cord and receptacle must still be grounded while

in use to protect the operator from electric shock.

model no. 060-2288-0 | contact us: 1.866.523.5218

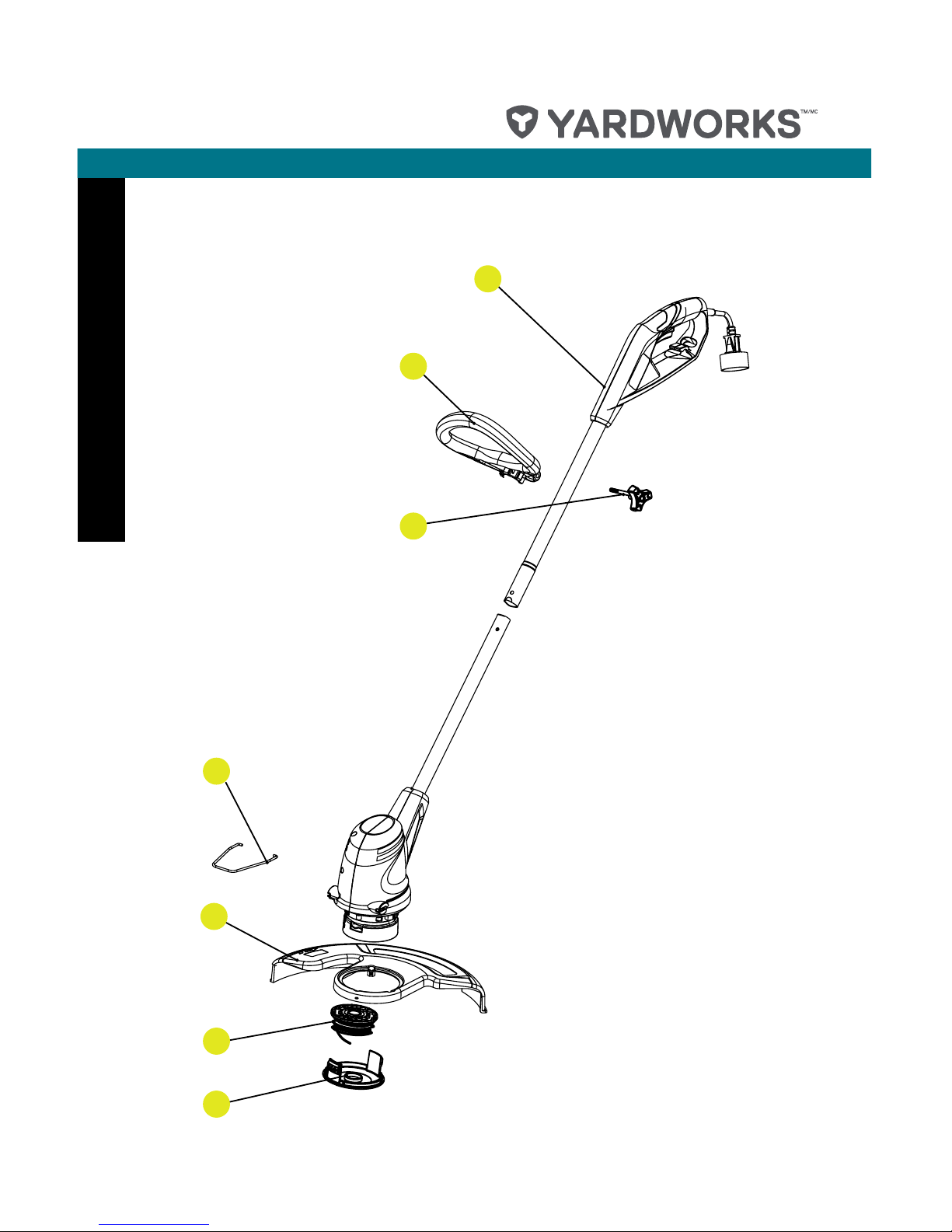

Exploded View
