Yamaha NS-C80 User manual

NS-C80 Natural Sound

Center Speaker System

Thank you for selecting this Yamaha NS-C80 speaker system.

This model is designed mainly to be used as a center speaker system.

PRECAUTIONS

Read these precautions carefully before operating

your speaker.

• When using an amplifier with a rated output power

higher than the music input of the speaker, care

should be taken never to exceed the speaker’s

music input.

• Do not attempt to clean the speaker with chemical

solvents as this might damage the finish. To clean,

wipe with a dry, soft cloth.

• To prevent the enclosure from warping or

discoloring, do not place the speaker where it will

be exposed to direct sunlight or excessive humidity.

• Do not place the speaker where it is liable to be

knocked over or struck by falling objects. Stable

placement will also ensure better sound

performance.

• Placing the speaker on the same shelf or rack as

the turntable can result in feedback.

• Anytime you note distortion, reduce the volume

control on your power amplifier/receiver to a lower

setting. Never allow your power amplifier to be

driven into “clipping”.

• Secure placing is the owner’s responsibility.

YAMAHA shall not be liable to any accident

caused by an improper placing of the speaker.

Notes

• The speaker should be placed so that it is

stabilized (with its wide surface down).

Do not place the speaker on either end or with its

narrow surface down.

• Though this speaker is a magnetic shielding

type, there may be an influence on TV picture

according to the type of TV or the placement of

the speaker. In such a case, place the speaker

apart from the TV so that there is no influence on

TV picture.

PLACING THE SPEAKER

NS-C80

TV set

CONNECTION TO

YOUR AMPLIFIER

BEFORE MAKING CONNECTIONS, MAKE SURE

THAT THE AMPLIFIER IS SWITCHED OFF.

mCONNECTIONS

• Connect the push-type input terminals at the rear of

the speaker to the speaker output terminals of your

amplifier with speaker cables.

• Make sure not to reverse the polarity (+, –). If

connected with reversed polarity, the sound will be

unnatural and lack bass.

Procedures:

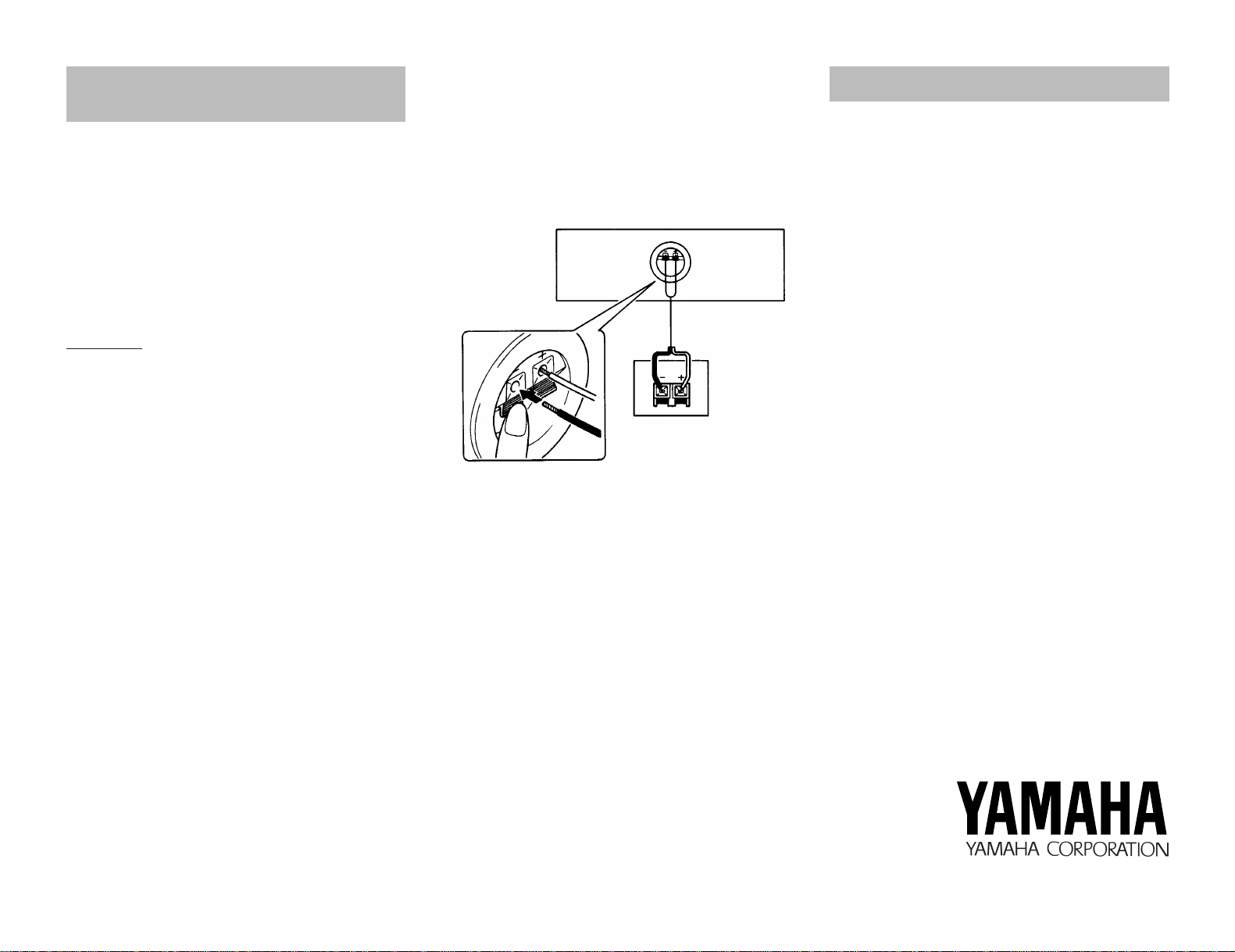

1Press the tab on the terminal down, as shown in

the figure.

2Insert the bare wire end properly into the terminal

hole. [Remove approx. 5 mm (1/4”) insulation

from the speaker cable.]

3Remove your finger from the tab to allow it to lock

snugly on the cable’s wire end.

4Test the security of the connection by tugging

lightly on the cable at the terminal.

Note

Do not let the bare speaker wires touch each other

as this could damage the speaker and/or the

amplifier.

SPECIFICATIONS

Type ....................................Acoustic-suspension type

Magnetic-shielding type (EIAJ)

Speaker Unit ............10 cm cone woofer (JA1065) x 2

2.5 cm balanced dome tweeter (JA05R4) x 1

Crossover ..........................................6 kHz (6 dB/oct)

Input Terminal .............................................Push-type

Nominal Impedance .........................................6 ohms

Frequency Response ..........................80 Hz – 20 kHz

Nominal Input Power ............................................40W

Music Input Power ................................................80W

Sensitivity ...................................................90 dB/w/m

Dimensions (WxHxD)...................445 x 135 x 166 mm

(17-1/2” x 5-5/16” x 6-9/16”)

Weight ...........................................3.3 kg (7 lbs. 4 oz.)

* Specifications subject to change without notice due

to product improvements.

* Care should be taken not to exceed the input power

values noted above.

VQ04130-0 BWWR, BB Printed in Japan

Press tab

NS-C80

Center speaker

output terminals

of the amplifier
