Yamaha SPM-K8 User manual

English Français Deutsch Svenska Italiano Español Nederlands 日本語

SPM-K8

WALL MOUNT BRACKET

SUPPORT MURAL

サウンドプロジェクター壁掛け金具

Installation Manual

Manuel d’installation

Installationsanleitung

Instllationsanvisningar

Manuale d’installazione

Manual de instalación

Installatiehandleiding

取付説明書

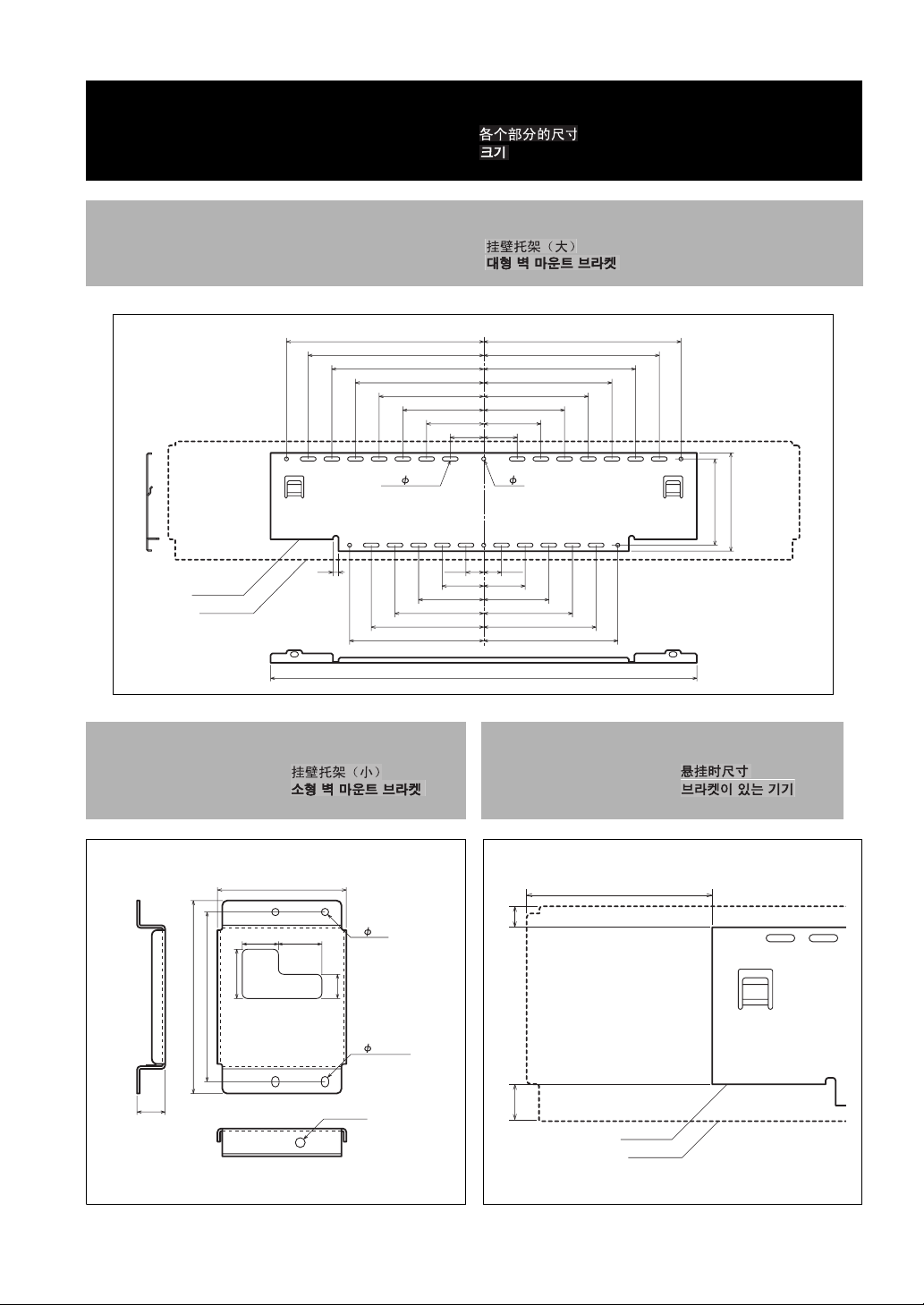

DIMENSIONS

ABMESSUNGEN

MATTSKISSER

DIMENSIONI

DIMENSIONES

AFMETINGEN

各部の寸法

Large wall mount bracket

Grand support mural

Große Wandhalterung

Stort väggmonteringsfäste

Staffa di installazione a muro grande

Soporte de montaje en pared grande

Grote wandbevestigingsbeugel

壁掛け金具（大）

Small wall mount bracket

Petit support mural

Kleine Wandhalterung

Litet väggmonteringsfäste

Staffa di installazione a muro piccola

Soporte de montaje en pared pequeño

Kleine wandbevestigingsbeugel

壁掛け金具（小）

Unit with bracket

Le système avec son support

Einheit mit Halterung

Ljudprojektorn med fästet

Unità con staffa

Unidad con ménsula

Toestel met de beugel

取付時の寸法

YSP-800

SPM-K8

109.3

124.5

540.2

42.5 42.5

6- 524- 5x20

72.5 72.5

102.5 102.5

132.5 132.5

162.5 162.5

192.5 192.5

222.5 222.5

250 250

22.5 22.5

52.5 52.5

82.5 82.5

112.5 112.5

142.5 142.5

170 170 (mm)

1.0kg

M6TAP

2- 4.5x6.5

2- 4.5

22 26

102.9

116.9

16.9

129.9

YSP-800

SPM-K8

15.725.8

(mm) (mm)

0.1kg ×2

English

SPM-K8

E-1

WALL MOUNT BRACKET

SPM-K8

Installation Manual

Thank you very much for purchasing the Wall Mount Bracket SPM-K8. Be sure to read this manual thoroughly before

using this bracket. After you have read this manual, retain it for future reference.

SAFETY INSTRUCTIONS

• Always follow the instructions set forth in this manual when installing the Sound Projector using

this bracket.

Improper or inadequate installation could cause the Sound Projector to fall, resulting in personal injury.

• The installation must be secure enough to bear the weight of the Sound Projector, the wall bracket

and other hardware indefinitely, and must also be secure enough to withstand vibrations.

Improper or inadequate installation could cause the Sound Projector to fall, resulting in personal injury.

• To ensure safety, all screws must be tightened securely.

Loose screws could cause the Sound Projector to fall, resulting in personal injury.

• Make sure to leave adequate ventilation space around the unit to allow heat generated by the

Sound Projector to dissipate.

Failure to provide adequate space around the unit could cause the Sound Projector to overheat internally, resulting in a

fire.

• Never hang from the Sound Projector or the wall bracket.

Hanging from the Sound Projector or the wall bracket could cause the Sound Projector or the wall bracket to fall,

resulting in personal injury.

• Once the Sound Projector is installed, safety checks should be conducted on a regular basis.

If the Sound Projector is used over an extended period of time, screws can become loose and the installation can

become weaker due to the passage of time, vibrations, etc.

When installing the Sound Projector using this bracket, all installation work must be performed by

a qualified contractor or dealer personnel. The customer must never attempt to perform this

installation work. Improper or inadequate installation could cause the Sound Projector to fall,

resulting in personal injury.

ACCESSORIES

E-2

Check that all of the following parts are included.

Prepare more than six sets of commercially available tapping screws (M4, 25 mm or more in length)

and washers in addition to the accessories shown above.

ACCESSORIES

Small wall mount brackets (x2)

Projector mounting screws

(M6 x 16) (x2)

Safety wires (x2)

Length 300mm

Large wall mount bracket (x1)

Projector mounting screws (spare)

(M4 x 10) (x8)

English

INSTALLATION PROCEDURE

E-3

Make sure to leave adequate ventilation space around the unit and follow the instructions below.

In order to secure the unit to the wall, you will need to attach the bracket to the wall first in a manner befitting the

structure and quality of the wall.

Choose a location where the wall can bear the weight of the whole unit.

Before installing the bracket, make sure of the size (see “DIMENSIONS” on the first page of this manual).

Choose a secure wall or beam to fasten the screws. Do not install them into walls made of weak

material that can easily come off, such as mortar or plywood wall panels. Loose screws could cause

the projector to fall, resulting in personal injury.

Detach the metal apparatuses from the rear left and right sides of the Sound Projector.

You need the detached screws in procedure 3. Be careful not to lose them.

INSTALLATION PROCEDURE

1 Attach the large wall mount bracket to the wall.

2 Detach the metal apparatuses from the Sound Projector.

Washer

(commercially

available)

4mm Tapping Screw (commercially available)

In order to secure the unit to the wall, drive four (or more) tapping

screws from the outside through the holes in the wall mount bracket.

Installing into a dry

wall

Installing directly

into a wall, etc.

25mm or more 25mm or more

Beam, etc. Dry wall

Metal

apparatus

Metal

apparatus

Installation example

INSTALLATION PROCEDURE

E-4

Use screws of the metal apparatus (M4) detached in procedure 2 to securely attach the two small wall mount brackets to

the rear left and right sides of the Sound Projector.

If you tighten the screws on the slant, the screw threads in the projector might be broken.

Be careful when using electric tools.

Attach the safety wire to the small wall mount bracket to prevent the Sound Projector from falling.

3 Attach the small wall mount brackets to the Sound Projector.

4 Attach the safety wire.

Detached screw of the

metal apparatus (M4)

Sound Projector

Small wall mount bracket

Rear View

Safety wire

Slip one end

through the loop

at the other end

Repeat the same

procedure for the

other bracket.

Slip the safety wire

between the bracket

and the projector

Attach the brackets to the

rear left and right sides of

the Sound Projector.

INSTALLATION PROCEDURE

E-5

English

Fit the mounting guide hooks of the small wall mount brackets attached to the Sound Projector into the holes on the left

and right sides of the large wall mount bracket and then slide the unit to the right.

Hold the Sound Projector tight with both hands when attaching or removing the Sound Projector to or

from the wall. Holding the Sound projector loosely could cause the Sound projector to fall, resulting in

personal injury.

5 Mount the Sound Projector on the wall.

2Slide the unit to the

right.

Fit the hook into the

hole.

INSTALLATION PROCEDURE

E-6

Align the holes in the large wall mount bracket with the holes in the bottom of the small wall mount brackets, and then

use two of the supplied projector mounting screws (M6 x 16) to secure the unit.

Pass the screws (commercially available) through the loops of the safety wires and then tighten the screws to secure the

safety wires to the wall.

Make sure that the screws are strong enough to bear the weight of the Sound Projector and the brackets in case they fall.

Attach the safety wires tight.

6 Secure the unit.

Bottom View

Sound Projector

Projector mounting

screws (M6)

7 Attach the safety wires to the wall.

Secure the safety wire to

the wall.

Washer

(commercially available)

Secure the safety wire

to the wall.

Screw

(commercially available)

SPM-K8

F-1

Français

SUPPORT MURAL

SPM-K8

Manuel d’installation

Nous vous remercions d’avoir porté votre choix sur le support mural SPM-K8. Veuillez prendre soin de lire attentivement

ce manuel avant d’installer ce support. Conservez-le pour référence ultérieure.

INSTRUCTIONS DE SÉCURITÉ

• Respectez les instructions que contient ce manuel et qui concernent l’installation du projecteur de

son au moyen de ce support mural.

Une erreur d’installation peut provoquer la chute du projecteur de son, entraînant des blessures.

• L’installation doit être en mesure de résister, sans limite de durée, au poids du projecteur de son,

du support mural et de la quincaillerie; elle doit également s’accommoder, le cas échéant, des

vibrations.

Une erreur d’installation peut provoquer la chute du projecteur de son, entraînant des blessures.

• Pour garantir la sécurité, toutes les vis doivent être soigneusement serrées.

Un défaut de serrage peut provoquer la chute du projecteur de son, entraînant des blessures.

• Veillez à ménager un espace suffisant autour le projecteur de son pour que la chaleur qu’il dégage

puisse se dissiper.

Faute de ménager un espace suffisant autour le projecteur de son, il pourrait surchauffer, ce qui est susceptible de

provoquer un incendie.

• Ne vous suspendez pas au projecteur de son, ni au support mural.

En vous suspendant au projecteur de son ou au support, vous pouvez provoquer la chute du projecteur de son ou du

support, entraînant des blessures.

• Après installation du projecteur de son, des vérifications de sécurité doivent être effectuées

périodiquement.

Lorsque le projecteur de son est utilisé pendant une période prolongée, les vis peuvent se desserrer, en raison de

vibrations, etc., rendant l’installation moins sûre.

L’installation du projecteur de son à l’aide de ce support doit être réalisé par un ouvrier compétent

ou un représentant du revendeur. En aucun cas, vous ne devez tenter d’effectuer l’installation par

vous-même. Une erreur d’installation peut provoquer la chute du projecteur de son, entraînant des

blessures.

ACCESSOIRES

F-2

Assurez-vous que les pièces suivantes font partie de la fourniture.

Procurez-vous plus de six jeux de vis du commerce (M4, 25 mm ou plus de longueur) et de rondelles,

en plus des accessoires indiqués ci-dessus.

ACCESSOIRES

Petits supports muraux (x2)

Vis de fixation du système

acoustique (M6 x 16) (x2)

Câbles de sécurité (x2)

Longueur 300 mm

Grands supports muraux (x1)

Vis de fixation du système

acoustique (rechange)

(M4 x 10) (x8)
