Xylem Rule Mate RM500A User manual

Rule Mate

INSTRUCTION MANUAL

Manuel d’utilisation de Rule Mate

Bedienungsanleitung für Rule Mate

Manuale delle istruzioni per Rule Mate

Manual de instrucciones de Rule Mate

Användarhandledning för Rule Mate

Handleiding Rule Mate

Purpose of this manual

The purpose of this manual is to provide necessary information for product installation, operation

and maintenance.

DANGER: Failure to follow this instruction manual may lead to signicant property

damage or may result in serious injury or death.

About safety messages

It is extremely important that you read,understand and follow the safety messages and regulations

carefully before handling the product.They are published to help prevent these hazards:

WARNING:

• The operator must be aware of safety precautions to prevent physical injury.

• Operating, installing or maintaining the unit in any way that is not covered

in this manual could cause death, serious personal injury or damage to the

equipment. This includes any modication to the equipment or use of parts

not provided by Xylem.If there is a question regarding the intended use of

equipment, please contactXylem representative before proceeding.

• Do not change the service application without the approval of a authorized

Xylem representative.

• Personal accidents and health problems

• Damage to the product

• Product malfunction

NOTICE: Save this manual for future reference, and keep it readily available at the

location of the unit.

Safety

Safety terminology and symbols

Hazard Level:

DANGER

WARNING

CAUTION

NOTICE

Indication:

Ahazardoussituation which, if notavoided, will result indeath orseriousinjury.

Ahazardoussituation which, if notavoided, could result indeath orseriousinjury.

Ahazardous situationwhich,ifnotavoided,couldresult inminoror moderateinjury.

Apotentialsituationwhich, if not avoided,could resultin undesirable conditions.

Apracticenot related to personalinjury.

CAUTION: Read this manual carefully before installing, using or servicing this

product. Failure to follow the instructions within this manual could result in explosion,

property damage, severe personal injury and/or death.

ELECTRICAL HAZARD:

Hazard categories can either fall under hazard levels or let specic symbols replace the ordinary

hazard levels symbols. Electrical hazards are indicated by the following specic symbols:

These are examples of other categories that can occur.They fall under the ordinary hazard

levels and may use complementing symbols:

Hazard categories

• Crush hazard

• Cutting hazard

• Arc ash hazard

General safety rules

These are safety rules apply:

• Always keep work area clean

• Pay attention to the risks presented by gas and vapors in the work area.

• Avoid all electrical dangers. Pay attention to the risks of electric shock or arc ash hazards

• Always bear in mind the risk of drowning, electrical accidents and burn injuries

User safety

Safety equipment

Usesafetyequipmentaccordingto the company regulations.Usethis safety equipment withintheworkarea:

Electrical connections

Electrical connections must be made by certied electricians in compliance with all

international, national,state and local regulations.For more information about requirements,

see sections dealing specically with electrical connections.

• Hard hat

• Safety goggles, preferably with side shields

• Protective shoes

• Protective gloves

• Gas mask

• Hearing protection

• First-aid kit

• Safety devices

NOTICE: Never operate a unit unless safety devices are installed.

Precautions before work

Observe these safety precautions before you work with the product or are in connection with the product:

• Provide a suitable barrier around the work area, for example,a guard rail

• Make sure that all safety guards are in place and secure

• Make sure that you have a clear path of retreat

• Make sure that the product cannot roll or fall over and injure people or damage property

The work area

Always keep the station clean

Waste and emissions regulations

Observethesesafetyregulationsregarding waste andemissions:

Wash the skin and eyes

Followtheseprocedures for chemicalsorhazardousfluidsthathave come into contactwithyoureyesorskin:

• Make sure that the lifting equipment is in good condition

• Use a lifting harness,a safety line and a breathing device as required

• Allow all system and pump components to cool before you handle them

• Make sure that the product has been thoroughly cleaned

• Disconnect and lock out power before you service the pump

• Check the explosion risk before you weld or use electric hand tools

• Appropriately dispose of all waste

• Handle and dispose of the processed liquid in compliance with applicable

environmental regulations

• Clean up all spills in accordance with safety and environmental procedures

• Report all environmental emissions to the appropriate authorities

Environmental safety

Electrical installation

For electrical installation recycling requirements, consult your local electric utility

Recycling guidelines

Always follow local laws and regulations regarding recycling

WARNING: Radiation Hazard.Do NOT send the product toXylem if it has been

exposed to any nuclear radiation

Condition

Chemicals or

hazardous uids

in eyes

Chemicals or

hazardous uids

on skin

Action

1. Hold your eyelids apart forcibly with your ngers

2. Rinse the eyes with eyewash or running water for al least 15 minutes

3. Seek medical attention

1. Remove contaminated clothing

2.Wash the skin with soap and water for a least 1 minute

3. Seek medical attention, if necessary

DANGER: This product is not intended for damage control or to deal with ooding result-

ing from hull damage.This product is intended to be used in Bilge Pumping Systems for small

craft with a hull length up to 24 meters,as described within the introduction and scope of ISO

15083. Bilge Pumping Systems, as specied in ISO 15083, are limited to normal amounts of

water in an intact boat due to spray, rain,seepage, spillage, and occasional small amounts of

water shipped from boat movements in heavy weather. Use of product in any other way could

result in ooding, catastrophic damage to craft, serious personal injury, or death.

WARNING: This pump is designed for use with fresh water and salt water ONLY. Use with

any other hazardous, caustic,or corrosive material could result in damage to the pump and

the surrounding environment,possible exposure to hazardous substances and injury.

WARNING: Check the function of all bilge pumps at regular intervals. Clear pump

inlets from debris. If seacocks are tted in the fore and aft peak bulkheads, they shall be

kept closed and shall only be opened to let water drain into the main bilges.

RuleMate Intelligence

RuleMate Bilge pumps have built-in programming that can sense when the pump is running but

not pumping water to protect the pump,vessel, and the vessel’s batteries. If debris fouls the sensor

or the pump becomes air-bound,the pump will stop running and begin to “check” for water every

2 ½ minutes. Once the debris is removed,the pump will revert to its normal operation, turning on

when the water reaches approximately 2 ½” and shutting off at 5/8”.

Our Rule-Mate bilge pumps contain a fail-safe back-up program that measures the amount of

work the motor is performing and the length of time the motor is running. If debris, such as

a wet paper towel or leaves, became lodged against the pump, it could “trick” the pump into

thinking water remained in the bilge which could deplete the vessel’s battery.

If the circuit board senses the motor is running but doing little work (not pumping water) for

longer than fteen seconds, the pump will enter into a cycling mode in the same fashion as the

computerized pumps.The pump will sense water every 2.5 minutes and if it senses water,it will

continue to run until the water has been removed from the bilge.

After the debris is removed,the pump will automatically revert to the level sensing mode.

Rated Flow Open Flow

Output @ 0ft/0m

(0 kPa) GPH (LPH)

Open Flow

Output @ 3.35ft/1m

(10 kPa) GPH (LPH)

Open Flow

Output @ 6.7ft/2m

(20 kPa) GPH (LPH)

Débit nominal

Débit libre

Sortie à 0 pied/0m

(0 kPa) GPH (LPH)

Débit libre

Sortie à 3,35 pieds/1m

(10 kPa) GPH (LPH)

Débit libre

Sortie à 6,7 pieds/2m

(20 kPa) GPH (LPH)

Gemessener

Durchuss

Offener Durchuss

Pumpleistung bei 0m

(0kPa) GPH (LPH)

Offener Durchuss

Pumpleistung bei 1m

(10kPa) GPH (LPH)

Offener Durchuss

Pumpleistung bei 2m

(20kPa) GPH (LPH)

Flusso nominale

Flusso aperto

Uscita @ 0ft/0m

(0 kPa) GPH (LPH)

Flusso aperto

Uscita @ 3,35ft/1m

(10 kPa) GPH (LPH)

Flusso aperto

Uscita @ 6,7ft/2m

(20 kPa) GPH (LPH)

Nominaal debiet

Open debiet

Uitvoer @ 0ft/0m

(0 kPa) GPH (LPH)

Open debiet

Uitvoer @ 3,35ft/1m

(10 kPa) GPH (LPH)

Open debiet

Uitvoer @ 6,7ft/2m

(20 kPa) GPH (LPH)

Nominellt öde

Öppet öde

Effekt @ 0ft/0m

(0 kPa) GPH (LPH)

Öppet öde

Effekt @ 102,11cm/1m

(10 kPa) GPH (LPH)

Öppet öde

Effekt @ 204,22cm/2m

(20 kPa) GPH (LPH)

Caudal Nominal

Caudal Abierto

Salida @ 0 pies/0 m

(0 kPa) GPH (LPH)

Caudal Abierto

Salida @ 3.35 pies/1 m

(10 kPa) GPH (LPH)

Caudal Abierto

Salida @ 6.7 pies/2 m

(20 kPa) GPH (LPH)

500 500 (1892) 360 (1362) 260 (984)

750 750 (2839) 580 (2195) 375 (1419)

1100 1100 (4164) 860 (3255) 550 (2081)

1500 1500 (5678) 1200 (4542) 680 (2574)

2000 2000 (7570) 1620 (6132) 1300 (4921)

Note: Output is based on 10 hour break-in period and at 13.6V (12Vmodels) or 27.2V (24V models).

Note: Les données proviennent d’une période de rodage de 10heures et d’essais à 13,6V (modèles 12V)

ou 27,2V (modèles 24V).

Hinweis: Die Pumpleistung richtet sich nach der zehnstündigen Einlaufzeit und danach, ob 13,6V (12V-

Modelle) oder 27,2V (24V-Modelle) anliegen.

Nota bene: l’uscita è basata su un periodo di rodaggio di 10 ore a 13,6V (modelli a 12V) o 27.2V (modelli a 24V).

Opmerking: De uitvoer is gebaseerd op een inloopperiode van 10 uur en bij 13,6 V (12V-modellen) of 27,2 V

(24V-modellen).

Obs: Uteffekt baseras på en 10 timmar lång inkörsperiod med 13.6V (12V-modeller) eller 27.2V (24V-modeller).

Nota: La salida se basa en un período de reposo de 10 horas y a 13.6V (modelos de 12V) ó 27.2V (modelos de 24V).

GPH (LPH)

G/H (L/H)

G/S (L/S)

G/O (L/O)

G/U (L/U)

G/T (L/T)

G/H (L/H)

Model

Modèle

Modell

Modello

Model

Modell

Modelo

Volts

Volt

Voltios

Amps (Volts)

Amp. (Volts)

Ampere (Volt)

Amp (Volt)

Ampere (volt)

Amperios (Voltios)

Amps (Volts)

Amp. (Volts)

Ampere (Volt)

Amp (Volt)

Ampere (volt)

Amperios (Voltios)

Fuse Size

Taille de fusible

Sicherungsstärke

Dimensione fusibile

Zekering

Säkringsstorlek

Tamaño del fusible

A B C D E F

500 (1890) RM500A 12DC 2.0 (12v) 2.2 (13.6v) 3

500 (1890) RM500A-24 24DC 1.0 (24v) 1.1 (27.2v) 1.5

750 (2839) RM750A 12DC 2.7 (12v) 3.1 (13.6v) 5

750 (2839) RM750A-24 24DC 1.4 (24v) 1.6 (27.2v) 3

1100 (4164) RM1100A 12DC 3.4 (12v) 4.0 (13.6v) 5

1100 (4164) RM1100A-24 24DC 1.7 (24v) 2.0 (27.2v) 3

1500 (5678) RM1500A 12DC 4.8 (12v) 7.0 (13.6v) 7.5

2000 (7571) RM2000A 12DC 8.4 (12v) 12.0(13.6v) 15

2000 (7571) RM2000A-24 24DC 4.0 (24v) 6.0 (27.2v) 7.5

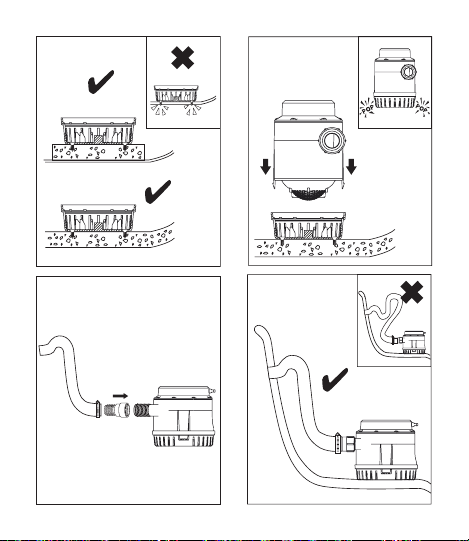

5/8"

(.62cm)

OFF

2.75"

(6.985cm)

.75

(

6.985cm

)

STOP

ARRÊT

STOPP

ALTO

Pump 1500 & 2000 GPH

This manual suits for next models

Table of contents

Languages:

Other Xylem Water Pump manuals

Xylem

Xylem Bell & Gossett 15GDS User manual

Xylem

Xylem Lowara Scuba Series Original instructions

Xylem

Xylem Bell & Gossett ecocirc XL Series User manual

Xylem

Xylem Rule LoPro 2004210 User manual

Xylem

Xylem G&L A-C 9100 Series User manual

Xylem

Xylem Bell & Gossett VSX Series User manual

Xylem

Xylem hydrovar hv 1.1 User manual

Xylem

Xylem LOWARA F 1-2 Manual

Xylem

Xylem Bell & Gossett VSC Series User manual

Xylem

Xylem FLOJET M50 User manual

Xylem

Xylem Flygt Top 50 User manual

Xylem

Xylem DRAINAGE RED JACKET Series Manual

Xylem

Xylem Lowara GHV1 User manual

Xylem

Xylem Goulds Red Jacket Series User manual

Xylem

Xylem Goulds AquaBoost Advanced User manual

Xylem

Xylem Goulds eSV Series Parts list manual

Xylem

Xylem Ai1 Series User manual

Xylem

Xylem Flygt 3102 Series User manual

Xylem

Xylem JABSCO 18670 Series User manual

Xylem

Xylem JABSCO 11810 Series User manual

Xylem

Xylem Bell & Gossett 60 Series User manual

Xylem

Xylem GOULDS e-SVE Series User manual

Xylem

Xylem Goulds 3887 Series Manual

Xylem

Xylem LOWARA Manual

Popular Water Pump manuals by other brands

Neptun

Neptun NPHW 5500 operating instructions

Sensidyne

Sensidyne Gilian BDX-II Operation & service manual

Draper

Draper 47808 instructions

Trolla

Trolla 12820 manual

Sunfab

Sunfab SVH Series installation guide

WilTec

WilTec 50740 Operation manual

Fieldmann

Fieldmann FVC 5015 EK user manual

Everbilt

Everbilt EFSUB5-122HD Use and care guide

Graco

Graco Husky 3300e manual

esotec

esotec 101018 operating manual

moyno

moyno 2000 CC Service manual

Becker

Becker BASIC VASF 2.80/1-0.AC230 operating instructions

Sykes AmeriPumps

Sykes AmeriPumps GP100M Operation and maintenance instructions

DUROMAX

DUROMAX XP WX Series user manual

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 operating instructions

Franklin Electric

Franklin Electric IPS Installation & operation manual

Milton Roy

Milton Roy PRIMEROYAL instruction manual

STA-RITE

STA-RITE ST33APP owner's manual
