Xvive U2 User manual
GUITAR
WIRELESS SYSTEM
Manual
02
This Class B digital apparatus complies with Canadian
ICES-003.
IC Caution: RSS-Gen Issue 4 December 2014"&"CNR-Gen
4e Décembre 2014:
This device complies with IndustryCanadalicence-exempt
RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2)
This device must accept any interference, including
interference
that may cause undesired operation
of the device.
CERTIFICATION
Radio Approvals:
FCC Part 15.249, FCC Part 15 B, RSS-210 (Canada), EN 300
440 (Europe), EN 301.489 (Europe), Japan Radio 2.4 GHz
Band (Japan), MIC ARIB STD-T66 (Japan), California 65, CE.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE
RECEIVED, INCLUDING INTERFERENCE THAT MAY
CAUSEUNDESIRED OPERATION.
Warning: Changes or modications not expressly approved
in writing by Xvive may void the users authority to operate
this equipment.
RF Exposure Statement: This transmitter must not be
co-located or operated in conjunction with any other
antennae or transmitter.
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference
CERTIFICATION
in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and the receiver.
• Connect the equipment into an outlet on a circuit
dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
This Class B digital apparatus complies with Canadian
ICES-003.
03
04
Hereby, SHENZHEN FZONE TECHNOLOGY CO., LTD,
declares that this type of equipment is in compliance with
the essential requirements and other relevant
provisions of Directive 2014/53/EU
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
SAFETY INSTRUCTIONS FOR LITHIUM-ION
RECHARGEABLE BATTERIES
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THE APPLIANCE TO RAIN OR MOISTURE.
If abused or misused, the rechargeable batteries may leak.
In extreme cases, they may even present a risk of
explosion, re, heat, smoke or gas. Xvive does not accept
any liability for damagearising from abuse or misuse.
• Keep away from children.
• Only charge rechargeable batteries with chargers
recommended by Xvive.
• Observe correct polarity.
• Pack/store charged rechargeable batteries so that the
terminals cannot contact each other (danger of shorting
out/re hazard).
• Do not expose to moisture.
• Switch rechargeable battery-powered products o after use.
• Only charge rechargeable batteries at ambient
temperatures between 10°C/50°F and 40°C/104°F.
• When not using rechargeable batteries for extended
periods of time, charge them regularly
(about every three months).
• Do not mutilate or dismantle.
05
INFORMATION ABOUT COLLECTION AND
DISPOSAL OF OLD ITEMS AND
USED BATTERIES
Cd
These symbols on the products, packaging, or on any
documents in the package mean it is incorrect to mix the
used electrical and electronic products and batteries with
general household garbage.
• Do not heat above 60°C/140°F, e.g. do not expose to
sunlight or throw into a re.
• Immediately remove rechargeable batteries from obviously
defective products.
• Do not continue to use defective rechargeable batteries.
• Only use rechargeable batteries specied by Xvive.
• Dispose of rechargeable batteries at special collection
points or return them to your specialist dealer.
• Store the products in a cool and dry place at room
temperature (approx. 20°C/68°F).
• Remove the rechargeable batteries if the products will
not be used for extended periods of time.
To protect our environment, please take old products and
used batteries to proper collection places, and follow your
national legislation and the Directives 2012/19/EU and
2006/66/EC.
To deal with these old products and batteries
properly, please
help to save valuable resources
and prevent any possibility of
side eects on human health and our environment due to
the inappropriate disposal of the old products and used
batteries.
You can contact your local authority for getting more
helpful information on how to dispose the recycling and
collection of the old products and batteries.
[For business users in the European Union]
If you want to discard electrical and electronic item, please
contact your dealer or supplier for further information.
[Information on Disposal in other Countries outside the
European Union]
These symbols are only valid in the European Union.
Please contact your local authorities or dealer for more
information on disposal of old items and used batteries.
06
1. Carefully observe all instructions in the U2 manual
2. Do not to perform service operations beyond those
described in the U2 Manual. Service is required when
the apparatus was damaged in any way, such as:
• liquid was spilled or objects were dropped into the
device,
• the unit was exposed to rain or moisture,
• the unit does not operate normally or signicant
changes in performance occur,
• the unit is dropped or the housing is damaged.
IMPORTANT SAFETY INSTRUCTIONS
PLEASE KEEP THESE INSTRUCTIONS
IN A SAFE PLACE
WARNING: BEFORE USING YOUR XVIVE U2 DIGITAL WIRELESS SYSTEM,
CAREFULLY READ THE OPERATING INSTRUCTIONS.
3. Do not place near heat sources, such as radiators,
heating ducts, or appliances which produce heat.
4. Guard the device against objects or liquids entering
the device. Do not use or store the unit close to water.
5. Clean only with a damp cloth.
6. Only use attachments/accessories specied by the
manufacturer.
7. Prolonged listening at high volume levels may cause
irreparable hearing loss and/or damage. Always be sure
to practice “safe listening.”
07
The Xvive U2 Guitar System features digital wireless
technology that delivers incredible audio quality. It is easy
to set up and extreme reliability for any gigging musician.
It provides the full 20 Hz - 20K Hz frequency response, so
you'll hear your guitar tone in great detail with only 6 ms of
latency. This wireless system operates on the 2.4 GHz ISM
band for crystal-clear transmission and excellent signal
integrity on stage and it covers a range of 70 feet without
any signal dropouts. The lithium-ion batteries help make
the U2 wireless system environmentally friendly and they
last up to 5 hours on a full charge. The housing is made of
durable ABS plastic that can withstand the rigors of
touring and the harshest environments. Thanks to its
simple and compact design, this wireless system is easily
integrated in any pedalboard conguration. Go wireless
with the Xvive U2 system. It will clean up the stage and
give you freedom to move.
U2 Guitar Transmitter 1x
U2 Receiver 1x
USB cable 1x
Manual 1x
PRODUCT INTRODUCTION PACKAGE DETAILS
3. Do not place near heat sources, such as radiators,
heating ducts, or appliances which produce heat.
4. Guard the device against objects or liquids entering
the device. Do not use or store the unit close to water.
5. Clean only with a damp cloth.
6. Only use attachments/accessories specied by the
manufacturer.
7. Prolonged listening at high volume levels may cause
irreparable hearing loss and/or damage. Always be sure
to practice “safe listening.”
08
or
or
QUICK START
1. Transmitter plugs into your guitar (or other instrument),
the receiver plugs into the eects pedal, amp or other
audio device.
2. Turn transmitter and receiver on and verify that the
blue LED ash the same number of times on both
devices to indicate that they are operating on the
same channel.
Channel 1: one ash
Channel 2: two ashes
Channel 3: three ashes
Channel 4: four ashes
09
QUICK START
3. The LED on the receiver will stop blinking after the
connection was successfully established.
4. Now, let’s rock together.
Hello!
10

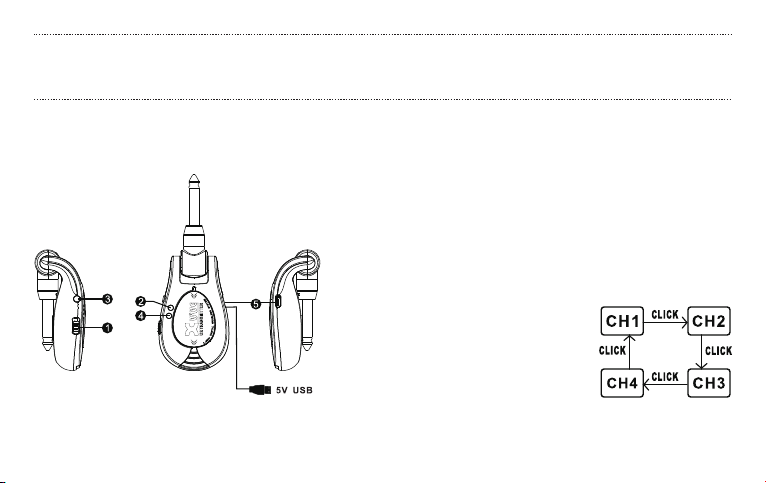

1. Power – Slide switch to turn on/o
TRANSMETER/RECEIVER
2. Power LED and battery LED
solid red LED indicates Power ON
ashing red LED indicates low battery charge, charging required
LED will stop ashing during charging and turn
o when charging is complete
3. Channel channel - synchronize TRANSMITTER
and RECEIVER channels
Double-click the channel switch to
activate the cannel select function.
Select the same cannel on both
devices according the diagram.
The signal LED will ash to
indicate the selected channel.
BASIC OPERATION
