XtendLan DPM-571 User manual

APARTMENT VIDEO INTERCOM SYSTEM

USER’S MANUAL

Features

■7 inch touch screen

■Up to 120 pcs colour picture memory

■15 chord tunes selectable

■Intercom function

DPM-571

1. Parts and Function

Bracket

Right View

Bottom View

TOP Vie

UNLOCK

INTERCOM

MON/

TALK

IN USE

1. TFT Touch Screen

2. Aluminum Panel

3. Microphone

4. UNLOCK Button

5. INTERCOM Button

6. TALK/MONITOR Button

7. LED for Power, In-use

8. Loudspeaker

9. Mounting Bracket Hold

10. Connection Port

WARNING

Don’t attempt to service this product yourself as opening or removing covers may expose

you to dangerous voltage or other hazards. Refer servicing to qualified service personnel.

- 1 -

2. OPERATION INSTRUCTIONS

■ Operation for Basic Video Doorphone

1. When visitor inputs room numbers in

Door Station of the building or main

entrance, the Monitor rings, at the same

time, the screen displays the visitor image.

2. Then press icon(or MON/TALK Button),

and you can talk with the visitor for 60 seconds.

During talking state, press icon(or MON/

TALK Button) to end the conversation. If nobody

answers the phone, the screen will be turned off

automatically after 30 seconds. If the system connects two or more Monitors, when any

Monitor starts to talk, the other Monitors will be automatically shut off.

3. Press icon(or Unlock Button) to open the door

during call waiting or talking.

4. When Monitor is standby, press anywhere on the screen

and the screen will show the main menu, then press

icon (or press MON/TALK Button directly in the standby),

the screen will display the view of the Outdoor Station. During monitoring, press

icon(or MON/TALK Button), you can talk with outside through the Outdoor Station;

press the icon(or press MON/TALK Button again) to exit. However, monitoring

state is limited to 30 seconds and will be shut off automatically.

NOTE1: During the monitoring state, Press icon at bottom right, all the icons on the

screen will hide out, press anywhere on the screen again to display the icons.

NOTE2: During the monitoring state, press icon to record the current image.

- 2 -

■Image and volume adjust operation

1. During the monitoring, press icon on

the screen, the ADJUST MENU will be

displayed.

2. Press the item that you want to adjust, then

the selected item will be displayed in red color.

Press or icon to decrease or increase

the value of the current item. Any change will be save instantly.

3. Press EXIT item to quit out the setting.

NOTE1: Total 4 SCENE modes can be selected in sequence: NORMAL, USER, SOFT

and BRIGHT. Whenever you modify BRIGHTNESS or COLOUR, SCENE item

will be set to USER mode automatically.

NOTE2: The RATIO can be shifted from 16:9 to 4:3.

NOTE3: The BRIGHTNESS and COLOUR item is for the screen setting, adjust the value

that you are comfortable with.

NOTE4: The TALK VOLUME is for voice volume adjust.

■ Operation for Color Memo

The picture can be recorded both manually and automatically. The image capacity is

about 120 pcs, and the oldest one will be replaced if the memory is full.

1. Automatic Record

If AWAY SET mode is set (see as below) in the Monitor, when Door Station calls, a

picture will be automatically saved after 2 seconds. If nobody answers the call, the

Message LED will be lighten.

- 3 -

2. AWAY SET Mode

During standbby, touch anywhere on the

screen to launch the MAIN MENU, then

press icon,the SET UP menu will

show as bellow.

Press the AWAY SET item to turn it on,

then the IN-USED LED will flashing in

green; press again to turn it off.

3. Playback

During standby, touch the screen to launch MAIN

MENU, then press icon, the latest picture in

the Memory will be showed. Press icon or

- icon to view the next or previous picture.

During the playback, press icon will exit. If

no key was pressed within 40 seconds, the screen

will be closed.

4. Delete picture

During playback, press icon, a tip ‘DELETE?’ will be showed on the upper

right of the screen, press icon again to confirm, the current picture will be

deleted. You can press or icon to cancel if you don’t want to delete.

5. Date and time setting

Follow installation configuration instructions as below to set the clock.

■Operation for extended Outdoor Camera(If installed)

1. Visitor can call Monitor in Outdoor Camera, operations are similar as Door Station

calls. If only an extended doorbell without camera is connected, the Monitor will

ring only.

2. Door Camera can be used to survey if installed, by pressing TALK/MONITOR

Button one more time in monitoring state, the image will be switched to the Outdoor

Camera.

- 4 -

■Operation for Guard Unit related function

If Guard Unit is installed in the system, you can contact it by the operation as below.

1. When standby, press anywhere on the screen,

then press icon(or press INTERCOM

Button in standby), to activate the INTERCOM

FUNCTION MENU as shown on the at right.

2. Press CALL GUART UNIT item, a message

will be sent to Guard Unit, after the screen

displays CALL MESSAGE SEND OUT...,

you can turn off and wait Guard Unit to call

back. When receiving the call from Guard Unit, the Monitor will rings in a different

tune from other calls, and the screen may be in shut-off state (which depends on the

system configuration).

3. Press DIRECT DIAL GUARD UNIT item, it will directly dial to the Guard Unit,

then the screen will displays DIALING GUARD UNIT... PLEASE WAIT. If Guard

Unit answers the call, you can talk with the guard person. However, If the system is

busy, you have to try again later.

■Operation for Intercom

1. Intercom among Monitors can be started

by direct dialing the target room code.

2. When standby, press anywhere on the

screen, then press icon(or press

INTERCOM Button in standby), to activate

the INTERCOM FUNCTION MENU. Then

press the INTERCOM CALL item, you will

see a keypad on screen as right.

3. To call the room in the same building with you, just left the Building code to be

“000”, and directly input the Room code and then press [#] to dial; to call Monitor in

other buildings, you should input Building code after the Room code, then press [#]

to dial. During input state, press [*] to backspace and re-input number.

4. Note: Intercom will be available only when the system is free. Intercom function is

prior to monitor function, but calling function is always the first.

- 5-

■ Basic Setup instructions

1. During standby state, press anywhere on

the screen to display MAIN MENU, then

press icon to enter SETUP MENU.

2. The DOOR STATION and GUARD UNIT item

are for chord ring selection. You can select

different chord rings to identify different

calling source, press or icon to change

the chord ring, and the change will be saved

automatically.

3. The RING VOLUME item is for ring volume

adjust, press or icon to change the value.

4. The INSTALLATION…is for system

setting, when you press this item, a

password is asked. Input password

‘2008’, and press [#] icon to enter.

5. ROOM CODE item can only be configured

by the installer.

6. DATE AND TIME SET… item is

for clock setting, use the

touch screen keypad to input

numbers, and press “#” to save and

exit.

7. The INFORMATION… item is for the system information includes: the software

version, the hardware version and the producing date.

- 5 -- 6 -

3. Mount Illustration

1) Installation height of Monitor is usually from 145 to 160CM

2) Fix bracket on 86 Installation Box or wall surface directly, then install the Monitor.

4. Specifications

1) Power supply: DC 15~18V (by system Power Supply)

2) Power consumption: <0.5W in standby, <15W in working

3) Video signal: 1Vp-p, 75Ω, CCIR standard

4) Resolutions: 7 Inch TFT-LCD in 1440(H)*234(V)

5) Touch Screen: IPO film

6) Door Camera power: DC 10~12V (Supplied by Monitor)

7) Door Camera lens: 3.6mm, 72 degree horizontal visual angle

8) Monitor timing: 15 seconds

9) Talking timing: 60 seconds

10) Wirings: 6 wires with system, 4 wires with Door Camera

11) Ring tune: 15 chord tunes, user configurable

12) Color Memo capacity: 120 images

13) Dimensions：224(W)×153(H)×25(D)

14) Operating temperature: 0 ~ +40 centigrade

5. Precautions

1) All parts should be protected from violence vibration. And not allow be impacting,

knocking and dropping.

2) For clean the Lens& Screen, using hands or wet cloth is forbidden. Please do the

cleanness with soft cotton cloth, do not use the organic or chemical clean impregnate.

Image distortion may occur if the video door phone is mounted too close to magnetic

field e. g. Microwaves, TV, computer etc.

3) Please keep away the video door monitor from wet, high temperature, dust, and

caustic and oxidation gas in order to avoid any unpredictable damage.

- 7 -

Table of contents

Other XtendLan Intercom System manuals

XtendLan

XtendLan DPM-473AD User manual

XtendLan

XtendLan DT607 Series User manual

XtendLan

XtendLan DPC-D248-R User manual

XtendLan

XtendLan DPC-IP100 User manual

XtendLan

XtendLan DPM-IP700 User manual

XtendLan

XtendLan DPC-W110-ID User manual

XtendLan

XtendLan DPC-536 Owner's manual

XtendLan

XtendLan DPP-D202 User manual

XtendLan

XtendLan DPG-IP-G21 User manual

XtendLan

XtendLan DPM-D271TMD User manual

XtendLan

XtendLan DPM-473M User manual

XtendLan

XtendLan DPC-D250 series User manual

XtendLan

XtendLan DPM-451 User manual

XtendLan

XtendLan DPC-D218ID User manual

XtendLan

XtendLan DPC-518ID User manual

XtendLan

XtendLan DPC-D244-K User manual

XtendLan

XtendLan GSM DPC-G100 User manual

XtendLan

XtendLan DPK-W100 User manual

XtendLan

XtendLan DPC-D246A User manual

XtendLan

XtendLan DPP-D203 User manual

XtendLan

XtendLan DPM-D2101TMD User manual

XtendLan

XtendLan DPC-D268 User manual

XtendLan

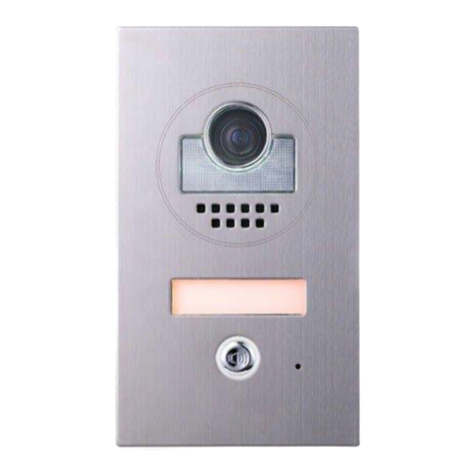

XtendLan DPC-D247 User manual
