Xpelair Everdri XEL User manual

Instructions Manual

Positive Input Ventilation Unit - Everdri XEL & XELH

Product Number:

110015 Everdri XEL

110022 Everdri XELH

prior permission in writing of Glen Dimplex

Glen Dimplex UK LTD, trading as,

Glen Dimplex Heating & Ventilation

Web: www.gdhv.co.uk

Millbrook House, Grange Drive, Hedge End, Southampton, SO30 2DF.

Customer Service Tel: +44 [0]344 879 3588

www.xpelair.co.uk

December 2020

08/100245/0

Important Notes

In this manual, especially important notes are marked as WARNING! or NOTE!

WARNING: Warnings against hazards and errors that can cause severe or

fatal injuries or can have serious consequences for the product.

NOTE!

Useful notes and additional information.

This manual forms part of the ventilation unit and must be kept readily available at all times. It must be handed over to any

technicians carrying out work on the unit and must be handed over to the new tenants when moving home.

Description

This ventilation unit is designed to combat condensation and improve air quality through positive input ventilation. An efficient

centrifugal fan is used to take fresh air from the loft space, filter it and introduce it into the living quarters through a single ceiling

diffuser.

The electric motor and fan are enclosed in the ventilator casing. Air is drawn into the unit via the G4 filter on the cover. The casing

incorporates a 125mmØ spigot for easy connection to the supplied ducting.

Safety Instructions

This ventilation unit is intended exclusively for the ventilation of rooms within a property. Any other use and any use exceeding the

design limits is not permitted. Any improper use can damage the unit and can cause severe hazards.

The unit must not be altered or modified. The unit is guaranteed safe to use in accordance with these instructions.

Failure to observe the safety instruction can cause hazards to the user as well as the unit and will invalidate the guarantee.

WARNING: This appliance is not intended for use by persons (including

children and the infirm) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a

person responsible for their safety.

WARNING: Children should be supervised to ensure that they do not

play with the appliance.

CE-Conformity and Rating

This unit meets all relevant CE standards. This fan is rated to IPX2.

December 2020

08/100245/0

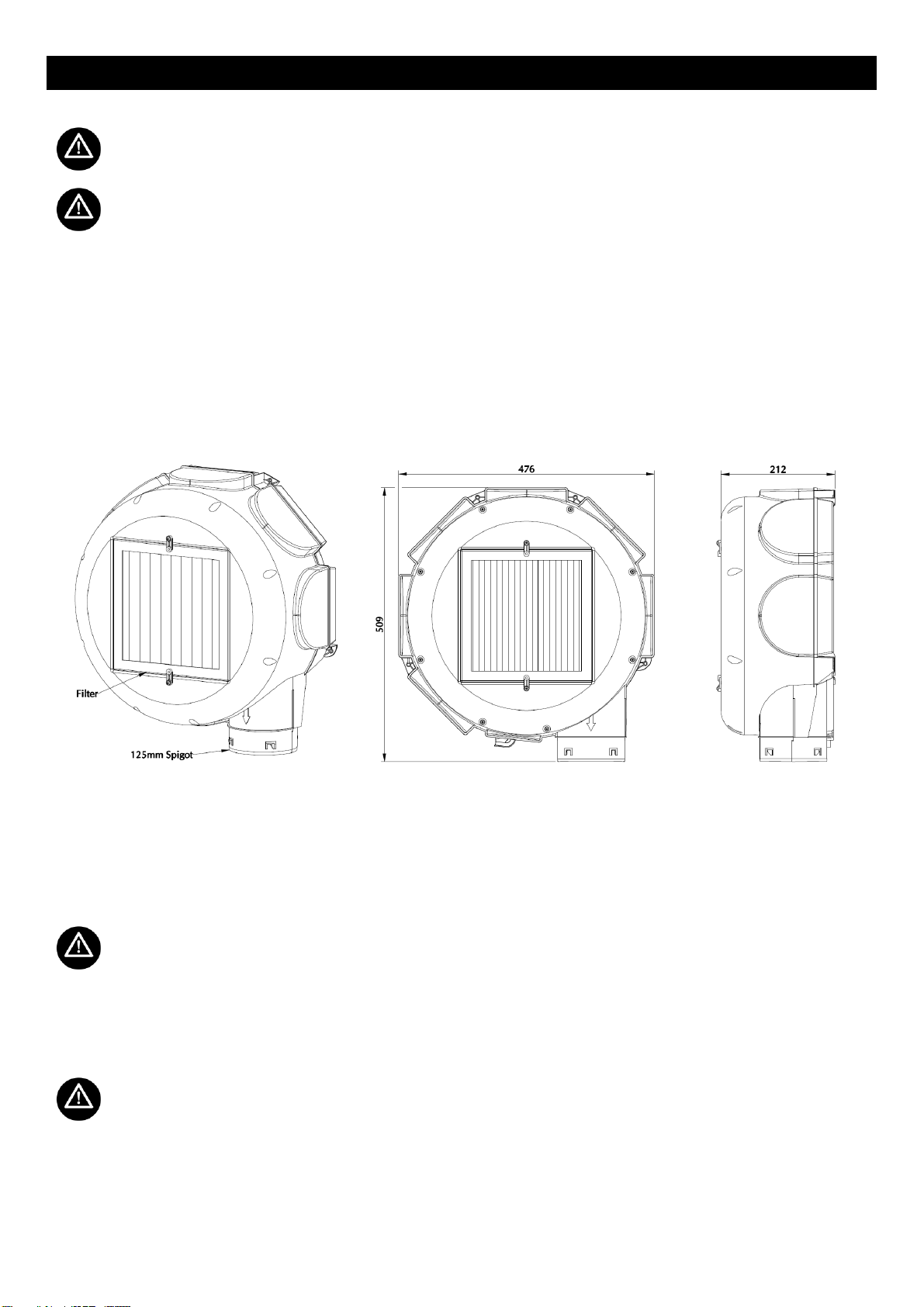

Installer Information

WARNING: READ THE ENTIRE INSTRUCTION MANUAL BEFORE

COMMENCING THE INSTALLATION

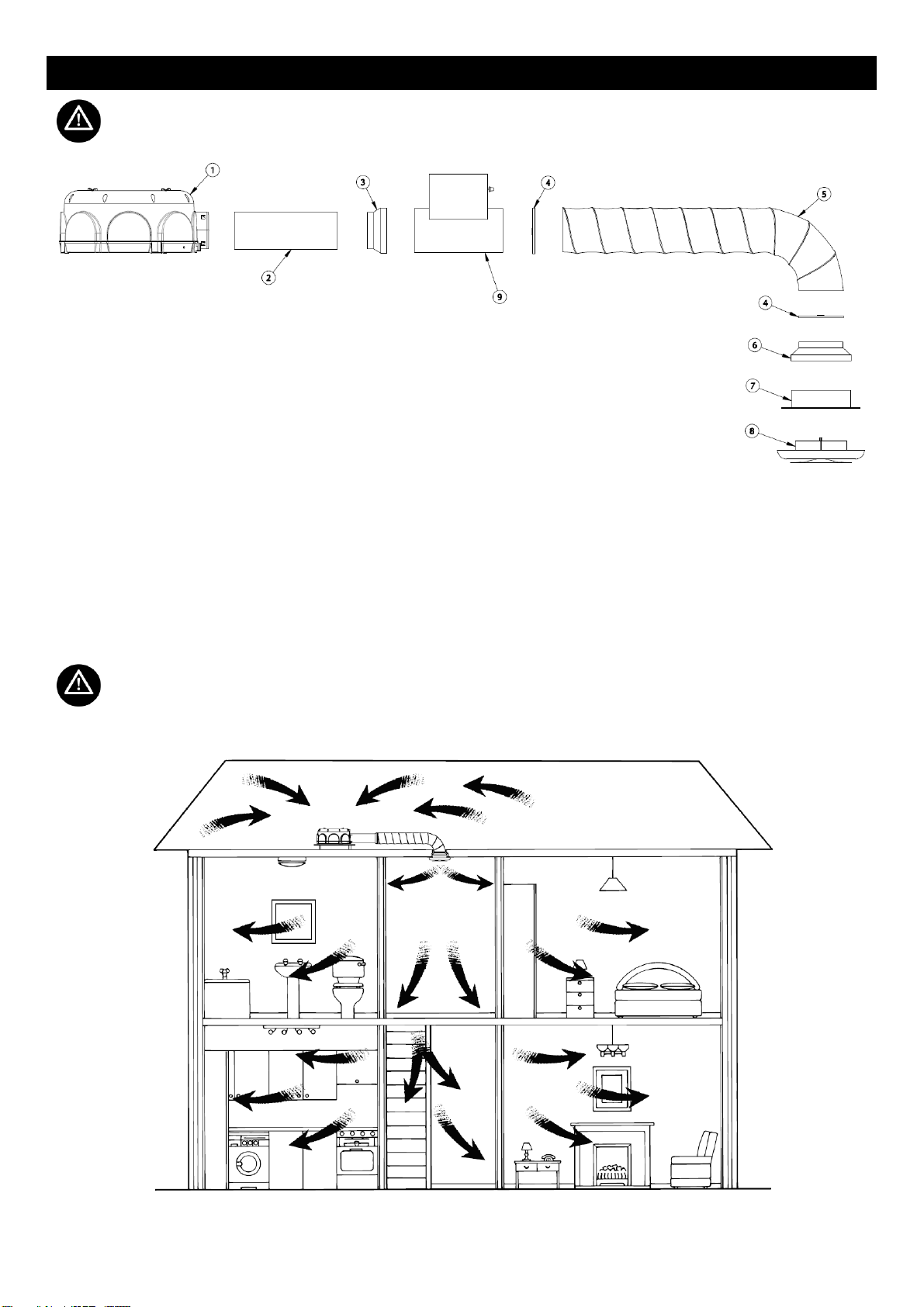

1. Everdri XEL Ventilation Unit

2. 125mm Solid Duct

3. 125mm to 150mm Adapter

4. 150mm Jubilee Clip

5. 150mm Flexible Duct

6. 150mm to 200mm Adapter

7. 200mm Diffuser Mounting Ring

8. 200mm Supply Air Diffuser

9. Duct Heater (Everdri XELH Version Only)

Position of air supply diffuser

It is recommended that the supply air diffuser is installed in a central location to allow air into all rooms in the house. In

the central hallway of a single storey dwelling or in the ceiling of the top floor landing of a multi-storey building would

be a good position.

WARNING: It is important to ensure that the diffuser in NOT placed

within 1m of a smoke alarm.

December 2020

08/100245/0

Installing the Diffuser

Prepare a hole in the ceiling.

Using the mounting ring as a template, drill 4 holes and fix using the screws provided.

Finally, screw the valve body into the ceiling mounted ring.

Location of the Ventilation Unit

Locating the ventilation unit in a well-ventilated loft space is recommended to ensure sufficient fresh air is available. The unit should

be installed in a position where the air inlet cannot be obstructed.

Ducting should be considered when choosing the location for the ventilation unit. The installation should aim to minimise air

resistance and prevent any leakage in the ducting. Where possible the use of flexible ducting should be minimised. Flexible duct

should not be compressed.

NOTE:

Care should be taken to ensure ducting is as straight and uncompressed as possible with minimal bends. This will

reduce resistance in the air flow path allowing greater performance at lower speed settings thus improving energy

efficiency and reducing noise.

NOTE:

Use of solid duct exclusively may result in increased noise as a result of vibration. A short length of flexible duct

should be used to transition from solid duct to the diffuser.

WARNING: DO NOT install this product in areas where the following may

be present or occur:

•Corrosive or flammable gases, liquids or vapours.

•Ambient temperatures are higher than 50 °C or less than -5 °C

•Possible obstructions which hinder access to or removal of the Fan.

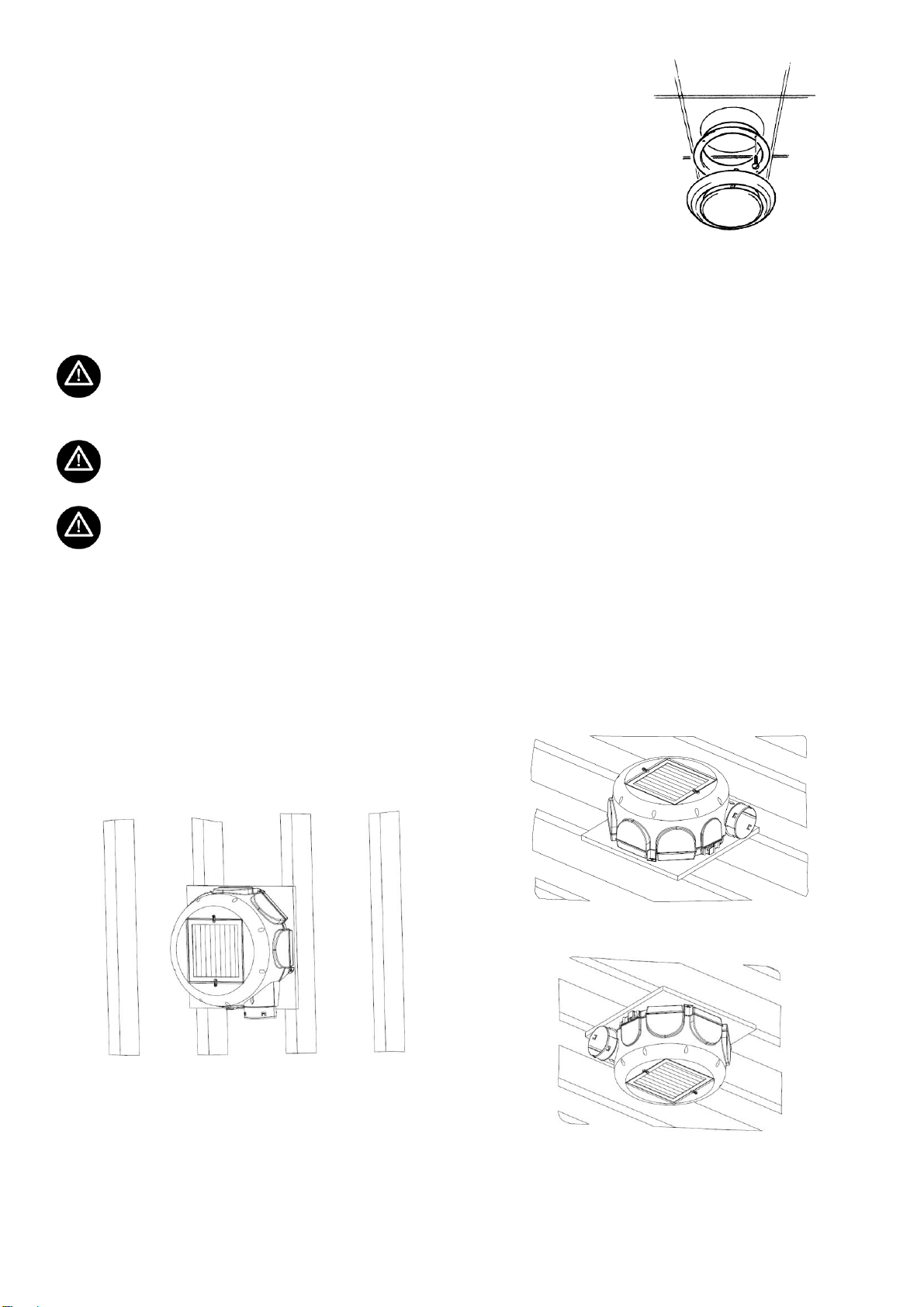

Orientation of the Unit

The unit is designed to be screwed down to a robust impermeable surface horizontally, vertically, or inverted as shown below.

In the vertical position, the outlet must face down

Horizontal position

Ceiling and Rafter Mounted

December 2020

08/100245/0

Installing the Ventilation Unit

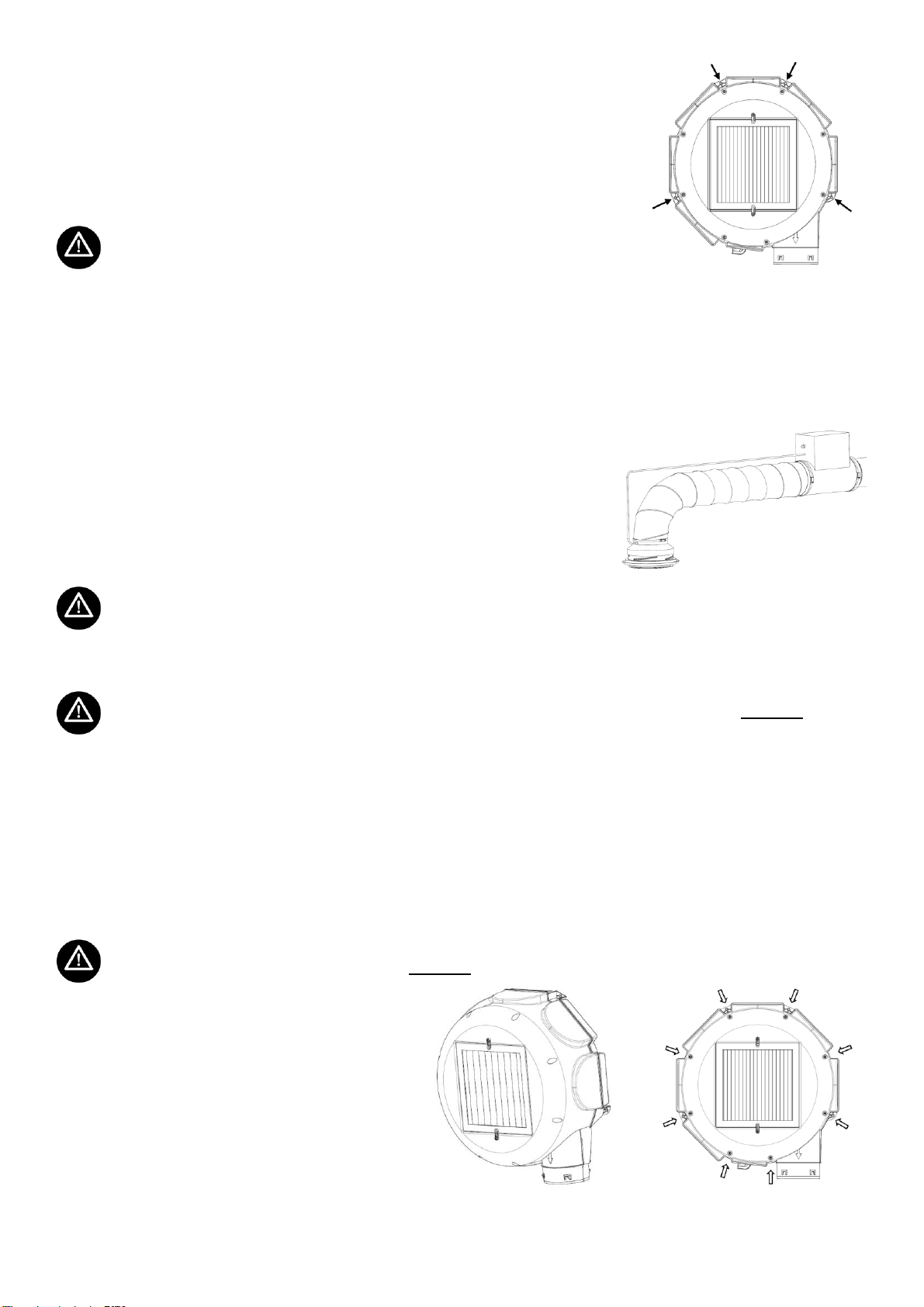

The ventilation unit must always be firmly fixed through the four mounting points provided

Ensure the unit is installed by either of the following methods:

1. Using suitable wood screws with a head size ≥8mm

2. Using threaded bolts ≤5mm with a head size ≥8mm

NOTE:

The ventilation unit is well balanced however, if desired, antivibration

mounts with threaded bolts ≤5mm could be used.

Connecting the Ducting

1. Push the 125mm solid duct on the XEL spigot.

2. Push the 125mm to 150mm adapter into the 125mm solid duct.

3. (XELH version only) Insert the cold side of the heater into the adapter.

4. Place one of the supplied worm drive clips over the flexible duct.

5. Fix the flexible ducting to the adapter or heater and tighten the worm drive clip.

6. Place the second worm drive clips over the flexible duct.

7. Fix the flexible ducting to the 150mm to 200mm adapter.

8. (XELH version only) Drill an 8mm hole in the 150mm side of the adapter and

insert the temperature probe from the heater as shown on the right.

9. Push the adapter onto the installed diffuser mounting ring.

NOTE:

When testing the ventilation unit check the ducting for any air leaks and seal with duct tape if necessary.

Electrical Connection

WARNING: THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE

ISOLATED FROM THE POWER SUPPLY DURING INSTALLATION OR

MAINTENANCE.

All installations must be supervised by a qualified electrician. Installations and wiring must conform to current IET Wiring

Regulations (BS7671) (UK), local or appropriate regulations (other countries).

A means for disconnection must be incorporated in the fixed wiring in accordance with wiring regulations.

Check that the electrical rating shown on the fan matches the mains supply.

This appliance is intended for connection to fixed wiring. The connection should be made with a double insulated cable with cable

cores greater than 0.75mm2; which has been appropriately specified for this specific application by a qualified professional.

WARNING: THIS APPLIANCE MUST BE EARTHED.

Remove the cover by undoing the eight screws

identified in the image to the right.

A long reach PZ2 screw driver at least 150mm long is

required for this step.

December 2020

08/100245/0

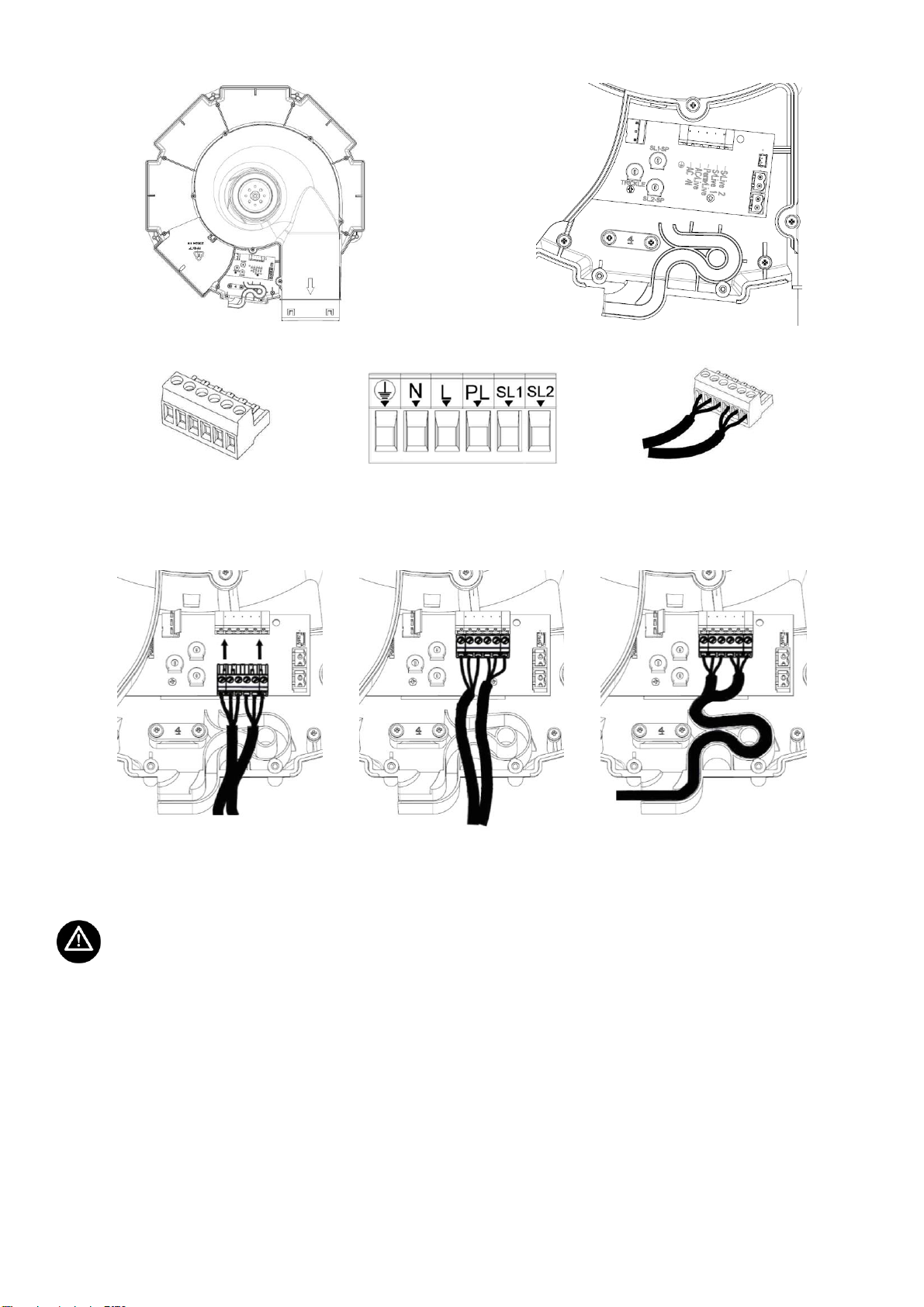

Removing the cover gives access to the PCB for power connection and speed control settings.

Locate the PCB termination plug

which comes plugged into the

termination socket on the PCB

Identify the correct power and control

connections for your system requirements

Connect the power and control

wires to the PCB termination

plug and fix with a screw driver

Align the PCB termination plug with

the PCB termination socket

Firmly connect the two sides of the

plug

Fix the cables by either;

Routing the cable in the labyrinth

Fixing with the cable clamp

NOTE:

If using the labyrinth, ensure the cable is securely fitted inside the entire length of the labyrinth.

If using the cable clamp, ensure the cable is an appropriate diameter to achieve a firm grip.

If you have any queries regarding the installation of this product, please call the Technical Hotline. Our engineers are there to help

during normal office hours (UK only) and may be faxed at all times.

Customers outside the UK please contact your local Xpelair distributor, details of which are available from the UK office.

December 2020

08/100245/0

Commissioning and Speed Control

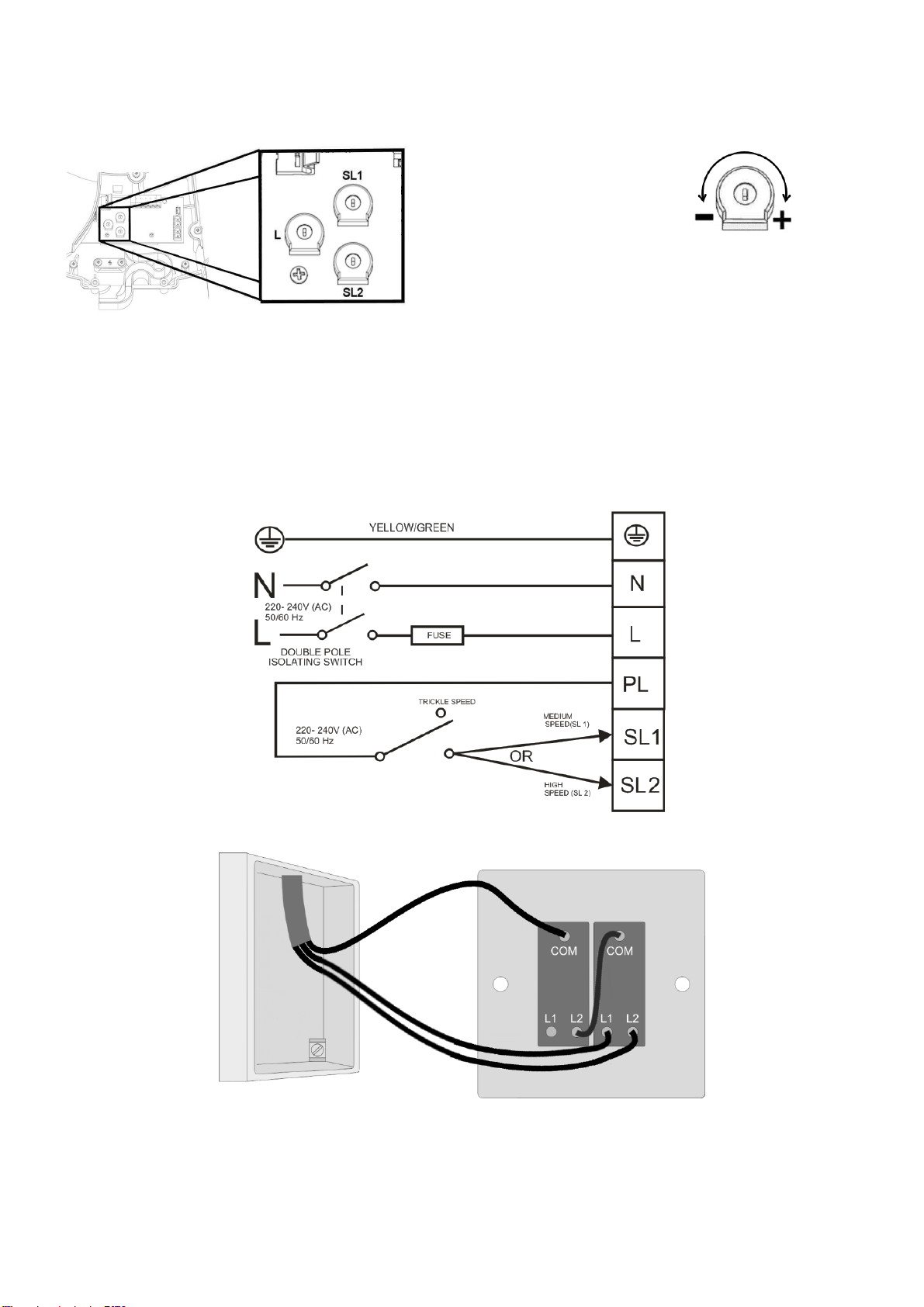

The Everdri has potentiometer speed control, this enables the air flow to be set for your specific systems requirements, while

maximising energy efficiency. Each speed (trickle, speed 1 and speed 2) has an individual potentiometer which is adjustable from

0-100% of the total fan performance.

SL1: Speed 1 Control

SL2: Speed 2 Control

L: Trickle Speed

Using a small long handle screw driver,

adjust the potentiometer as required by

turning the knob using the central slot.

Turn clockwise to increase speed.

Turn anti clockwise to decrease speed.

Refit the cover when finished.

Isolate the unit from the power

supply before commencing.

Identify the speed control potentiometer for

the speed to be adjusted.

Manual Override Switch Connection

The ventilation unit is supplied with a manual override switch which allows the user to switch from trickle mode to manual mode and

then select speed 1 or 2.

December 2020

08/100245/0

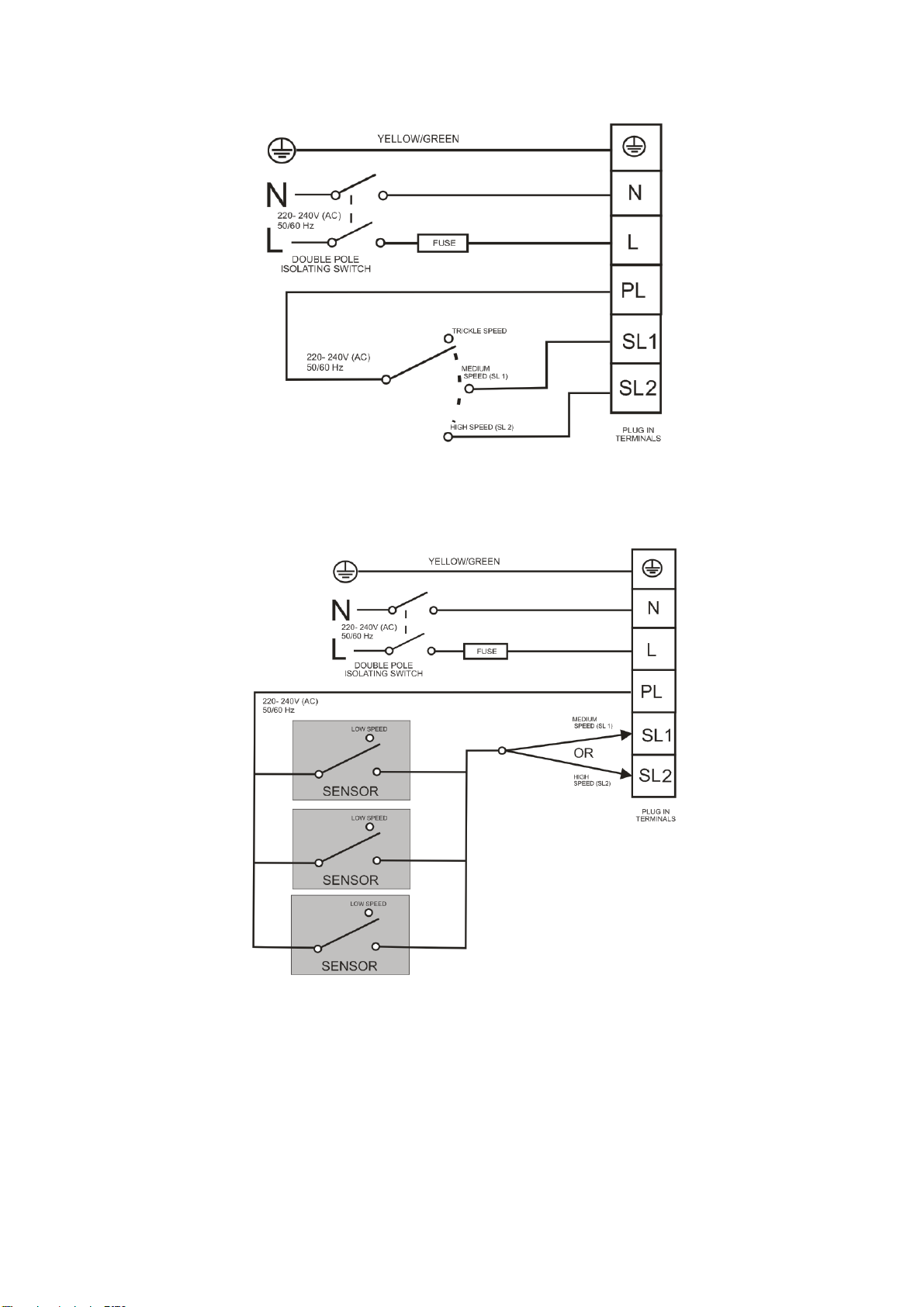

Alternative Switch Option

Connection with a three speed selector switch

Connection with sensors or several change over switches

December 2020

08/100245/0

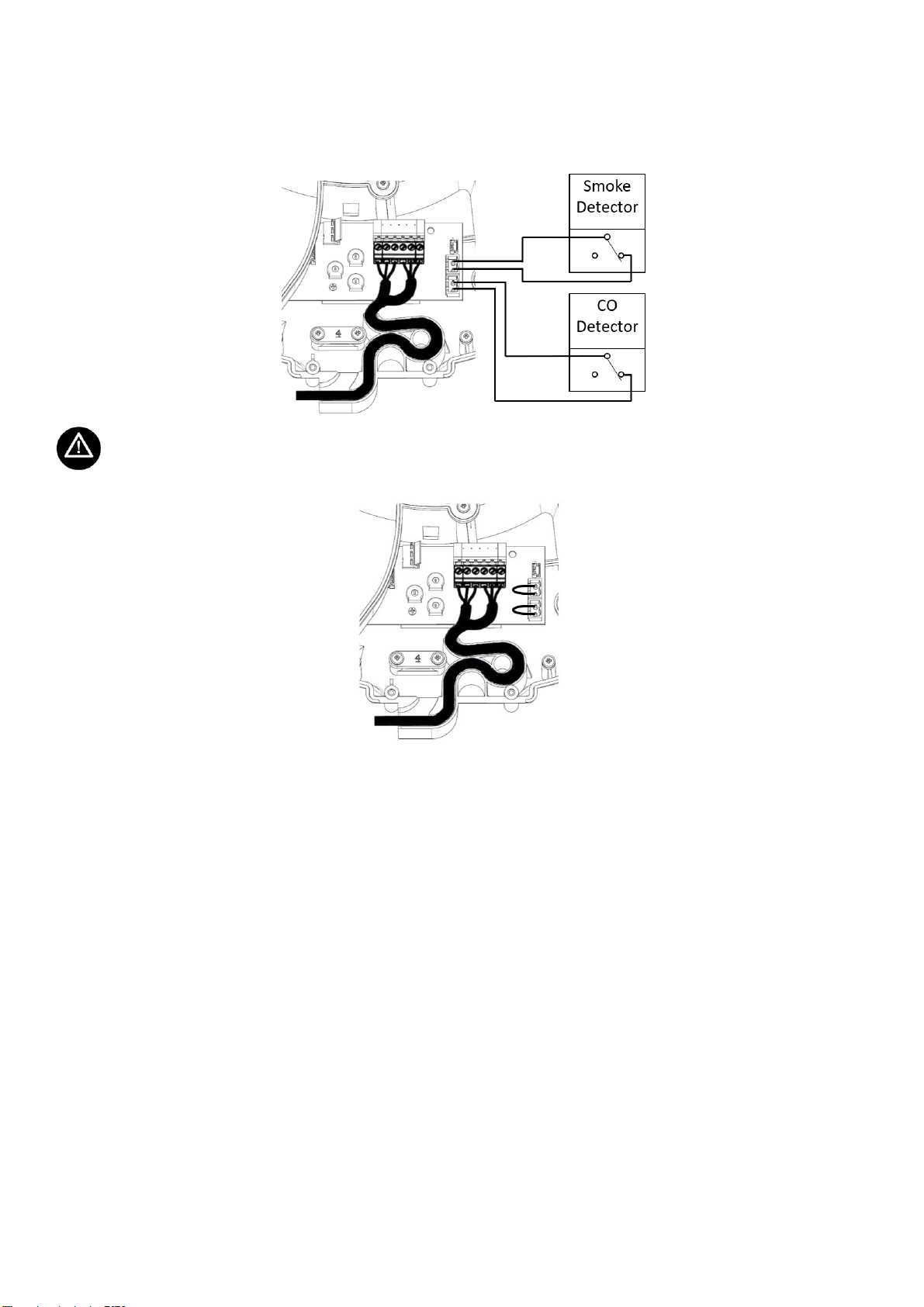

Installation of Smoke Detector or CO Detector (optional)

To enable the safe cut-out of the ventilation system in case of fire, the ventilation unit can be connected to an optional smoke

detector or CO detector with a volt free output. The smoke or CO detector must be normally closed (NC) and will go open circuit

(OC) in the event of a fire. When the ventilation unit detects an open circuit, the fan will stop to prevent feeding fresh air to a fire

and will not restart until it is powered down and restarted.

NOTE:

If an external smoke detector is not used then a link wire MUST be fitted across the “Smoke Detector” terminals on

the Main Connector PCB. These link wires are fitted to all units leaving the factory.

December 2020

08/100245/0

User Information

Your home has been fitted with a highly energy efficient mechanical ventilation system. The system should consist of an Everdri

XEL central mechanical supply fan, ducting and discharge diffuser. The correct working system will provide a healthy indoor

atmosphere and will help eliminate condensation and unwanted odours by supplying filtered fresh air into your home.

The fan is designed to run continuously 24 hours a day. It is fitted with an energy efficient electronic motor.

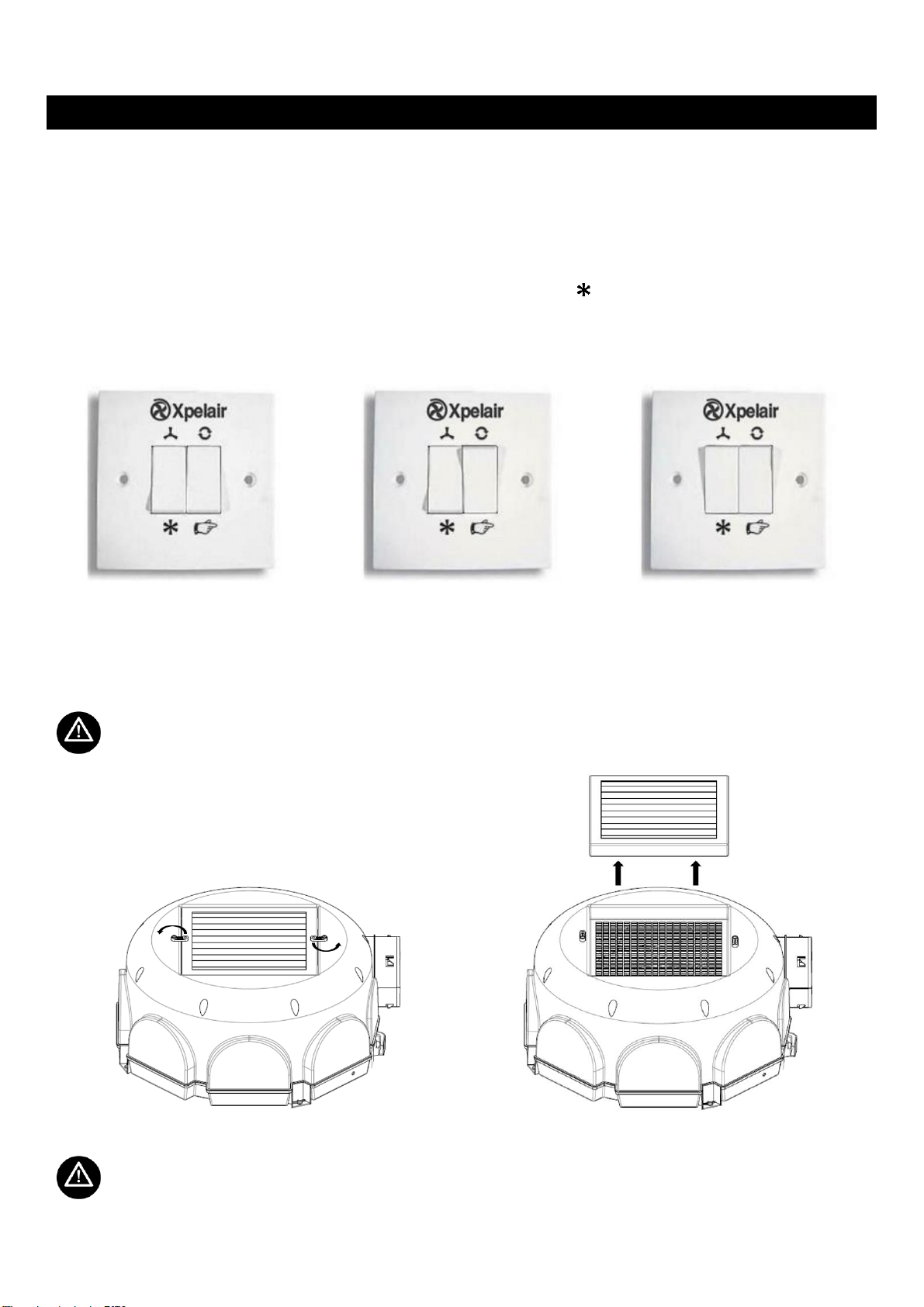

Manual Override Switch Control Options

The Everdri XEL system is supplied with a Manual over-ride switch, allowing you to switch between a low trickle speed (in

Automatic mode) and 2 additional speeds in Manual mode. The high-speed setting is a boost position to allow for the extract of

cooking smells or moisture-laden air. When in use, it is advisable to open window vents or a window to allow the moisture laden air

to escape. The middle position would be the normal running position in a house with the low speed position as a background

position if the house is not fully occupied. In a smaller dwelling or flat the low speed position could be the normal running position

with the middle position as boost.

▲▲

Trickle Mode

▲▼

Speed 1

▼▼

Speed 2

Maintenance

The fresh air input is protected by a G4 filter which should be annually inspected, cleaned and if required replaced. The following

procedure can easily be used to remove the filter for cleaning or to be replaced if necessary.

WARNING: Make sure that water does not get into the motor or

electrical termination box during cleaning.

Rotate filter locking tabs through 90 degrees

Lift filter straight up taking care not to drop dust into the fan

NOTE:

It is advisable to have the unit inspected by your installer annually.
