Wybron NEXERA 2560 User manual
Color Mixing Luminaire
2
TABLE OF CONTENTS
Product Modification Warning ........................................................................................3
Important Safety Instructions .........................................................................................3
Quick Start........................................................................................................................5
Nexera Fixture Specifications.........................................................................................6
Model 2560: Wash - Tungsten.....................................................................................6
Model 2570: Profile - Tungsten....................................................................................7
Model 2580: Wash – CDM...........................................................................................8
Model 2600: Profile – CDM..........................................................................................9
Fixture Setup and Configuration ..................................................................................10

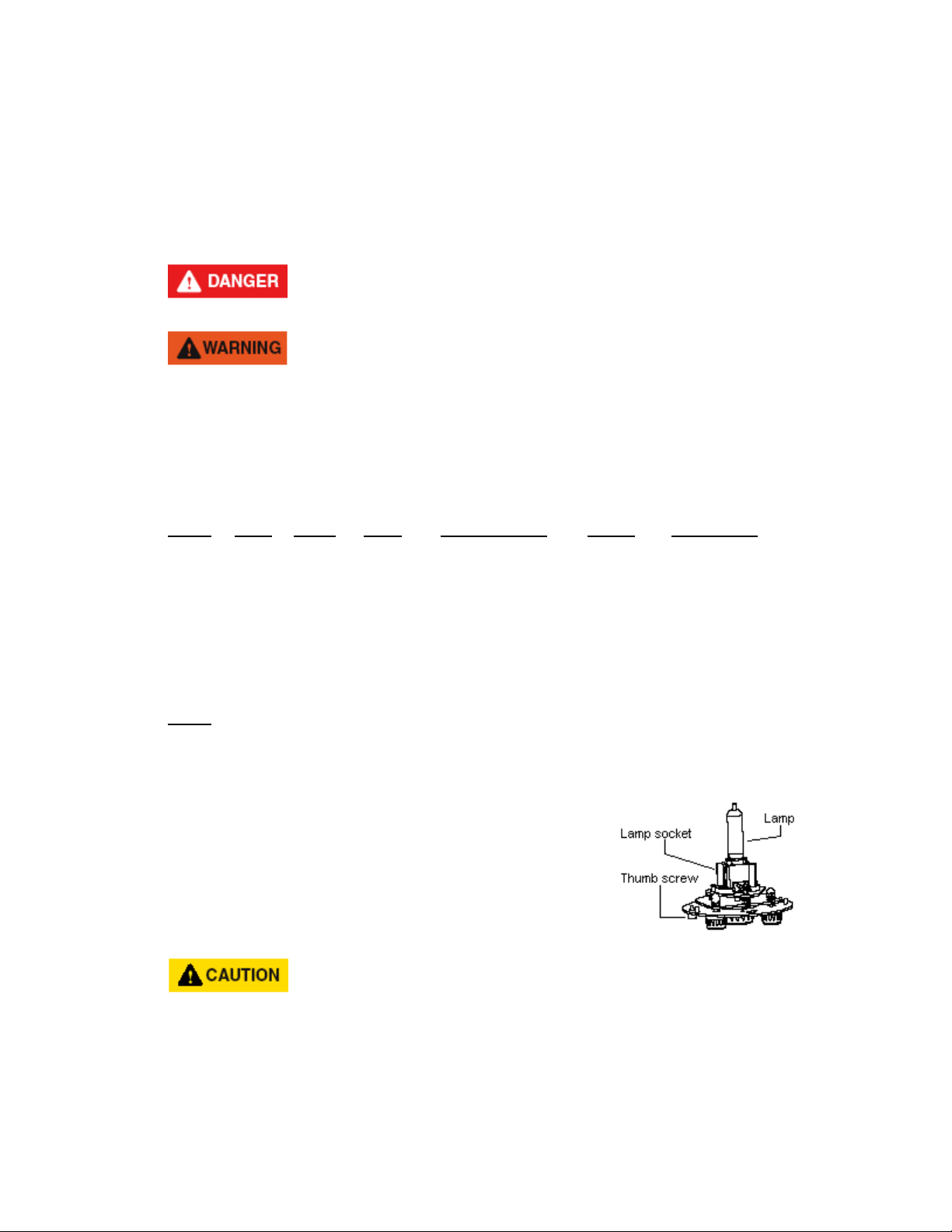

Installing the Lamp.....................................................................................................10
Lamp Optimization.....................................................................................................11
Mounting and Adjusting the Fixtures..........................................................................11
Attaching Accessories to the Front Accessory Holder ...............................................12
Connecting AC Power ...............................................................................................12
Adjusting Field Angle.................................................................................................12
Nexera and the RAM system.....................................................................................13
Head-Feet Restrictions ..............................................................................................14
Head-Feet Example...................................................................................................14
DMX Setup and Operation.............................................................................................15
Controls and Indicators..............................................................................................15
Menu Tree and Navigation ........................................................................................16
Display Messages......................................................................................................17
Service ............................................................................................................................18
Lamp Replacement....................................................................................................18
Cleaning the Reflector ...............................................................................................18
Cleaning the Color Module ........................................................................................19
Cleaning the Lenses..................................................................................................19
Replacing Fuses........................................................................................................20
Error Messages / Troubleshooting.............................................................................20
Reprogramming via AVR ISP port .............................................................................21
Appendix 1 – Color Table ..............................................................................................25
Warranty Information.....................................................................................................27
3
SAVE THESE INSTRUCTIONS
READ AND FOLLOW ALL
INSTRUCTIONS
This manual gives step-by-step instructions for preparation,
setup, and operation of the NexeraTM Luminaire.
There is a potential risk of fire, electric shock or injury to
persons if the product is not used as instructed.
The Nexera Luminaire is to be used in an indoor environment
only and is not intended for residential use.
Product Modification Warning
Wybron, Inc. products are designed and manufactured to meet the requirements
of United States and International safety standards. Modifications to the products
could affect safety and render the product non-compliant to relevant safety
standards.
Important Safety Instructions
This product is for professional use only. It is not for
residential use.
Read this manual before powering or installing the fixture. Follow the safety
precautions and observe all warnings in this manual and on the fixture. If you
have questions about how to operate the fixture safely, please contact your
Wybron dealer or call Wybron directly at 1-800-624-0146.
4
To protect yourself and others from electric shock:
•If the Nexera fixture was received without an AC cord plug attached, attach the
appropriate lamp cord plug according to the following code:
green – ground/earth
gray – neutral
gray – line
•Disconnect the fixture from AC power before removing or installing the lamp, fuses, or
any electronic parts.
•Always ground (earth) the fixture electrically.
•Use a good source of AC power that complies with local building and electrical codes and
has both overload and ground fault protection.
•Nexera fixtures and RAM Power Supplies are suitable for dry locations only. Do not
expose the fixture or power supply to rain or moisture.
•Refer all service to a Wybron certified service technician.
To protect yourself and others from burns and fire:
•Do not operate the fixture with missing or damaged lenses or reflector.
•When replacing the lamp, allow the fixture to cool for at least 5 minutes before removing
the lamp holder from the fixture.
•Do not stare directly into the light. Never look at an exposed lamp while it is illuminated.
•Replace the lamp if it becomes damaged or thermally deformed.
•A hot lamp may be an explosion hazard. Do not open the fixture for 5 minutes after power
has been disconnected. Wear eye and hand protection when re-lamping.
•Do not use any lamps other than those approved for use by Wybron and listed in this
manual. Use of any other lamp may be hazardous and may void the warranty.
•Keep all combustible materials (fabric, wood, paper, etc) at least 1 meter (39 inches)
away from the fixture. Keep flammable materials well away from the fixture.
•Do not illuminate surfaces within 1 meter (39 inches) of the fixture.
•Nexera fixtures are convection cooled. Provide a minimum clearance of 0.1 meter (4
inches) around all air vents.
•The exterior of the fixture can reach temperatures up to 177ºC (350ºF). Allow the fixture
to cool before handling.
•Do not modify the fixture or install any parts other than genuine Wybron replacement
parts.
•Do not operate the fixture if the ambient temperature exceeds 40º C (104ºF).
To protect yourself and others from injury due to falls:
•When suspending the fixture above ground level, verify that the structure can hold at
least 10 times the weight of all installed devices.
•Use a secondary safety cable when mounting this fixture.
•Verify that all external accessories and rigging hardware are securely fastened and use
an approved means of secondary attachment such as a safety cable.
•Always hang the Nexera fixture with the front accessory retaining clip in the locked
position.
•Block access below the work area whenever installing or removing the fixture.
5
Introduction
NexeraTM is Wybron's family of affordable dichroic CMY color mixing luminaires expressly
designed to complement your current equipment. Nexera wash lights and profile spots operate
just like the conventional theatrical fixtures you're using already, but with the addition of Wybron
CMY dichroic color mixing.
Nexera fixtures are offered with the Philips®GLC/GLA 575W compact tungsten sources (the
preferred source for theater and television) or CDM lamps, and provide superb light output and
beam uniformity. All Nexera fixtures are convection cooled and servo-driven, utilizing no fans for
silent operation. The patent-pending Wybron CMY color mixing module produces a wide color
palette, featuring an exceptional range of control over the most subtle theatrical colors like
bastard amber, light pink and no-color blue, all with seamless transitions between colors. Color
consistency over time is assured, because the glass filters will not fade with heat or age. Each
unit requires 3 DMX channels, thus they are easy to use and patch, even on the simplest of
control consoles. The chosen color is easily selected using any two of the three DMX control
channels. Color fades are gracefully accomplished with your choice of color path from one color
to the next. The Wybron CMY dichroic color-mixing module also allows designers to make color
choices and changes in real time.
All Nexera fixtures share a common lamp housing, borosilicate cold mirror reflector and Wybron
CMY dichroic color-mixing module for ease of service and flexibility. The Wybron CMY module
offers a menu display for DMX addressing and operational info. The Nexera has a front
accessory frame, allowing for standard sized accessories like gel frames, snoots, barn doors and
donuts to be fitted to the fixtures. The profiles accept standard M size patterns and accessories.
Quick Start
1. Connect the Equipment
a. Install the C-clamp onto the yoke using the yoke bolt.
b. Mount luminaire on mounting pipe using the C-clamp and safety cable.
c. Connect Nexera to the RAM Power Supply by using the 4-pin Power / Data
cable.
d. Connect the RAM Power Supply to a DMX source with a 5-pin cable.
e. Connect the RAM Power Supply to a 115/230V AC power.
f. Connect the Nexera to AC power (115V or 230V depending upon lamp installed.)
Metal parts of the lamp and reflector housing get hot!
2. Setup Nexera and Power Supply
a. Set the power supply starting channel to 1 (see power supply manual for
questions).
b. Set the power supply mode to CR2.
c. Set Nexera channel to 1 (Factory default).
d. Set Nexera to low speed color change mode (Factory default).
3. Control Nexera with DMX
a. DMX channel 1 controls Cyan (0% = no color, 100% = full saturation)
b. DMX channel 2 controls Magenta (0% = no color, 100% = full saturation)
c. DMX channel 3 controls Yellow (0% = no color, 100% = full saturation)
d. DMX channel 4 controls Dimming (CDM only, 0%=off, 100%=full on)
6
Nexera Fixture Specifications
Model 2560: Nexera Wash - Tungsten
Dimensions:
Height (with yoke attached): 551.82 mm / 21.73 inches
Width (with yoke attached): 270.64 mm / 10.65 inches
Length (with yoke attached): 482.35 mm / 19.092 inches
Weight: 8.79 kg / 19.38 pounds
Electrical Specifications:
Lamp Power Consumption: 600W max
Lamp Power Input Ratings: 115V, 50/60Hz @ 7A
230V, 50/60Hz @ 2.5A
Environmental Specifications:
Maximum Ambient Temperature: 40ºC / 104ºF
Maximum External Surface Temperature: 177ºC / 350ºF
Minimum Distance to Flammable Objects: 1 meter / 3.28 ft
Minimum Distance to Illuminated Objects: 1 meter / 3.28 ft
Features:
•Precise, tool-free lamp optimization
•Integral safety cable mount on fixture
•Precision milled aluminum construction
•6” borosilicate fresnel lens
•No fans for silent operation
•Integral Color Module provides a nearly
infinite color palette via 3-channel DMX
control
•Philips® 575W compact tungsten, high
CRI source (GLA/GLA)
•Standard 7.5-inch accessory holders
•Utilizes RAM Power Supplies
•Legendary Wybron reliability
•Made in the USA
482.35mm/18.99”
221.46mm
8.72”
7
Model 2570: Nexera Profile - Tungsten
Dimensions:
Height (with yoke attached): 551.82 mm / 21.73 inches
Width (with yoke attached): 301.88 mm / 11.86 inches
Length (with yoke attached): 484.18 mm / 19.06 inches
Weight: 9.6 kg / 21.18 pounds
Electrical Specifications:
Lamp Power Consumption: 600W max
Lamp Power Input Ratings: 115V, 50/60Hz @ 7A
230V, 50/60Hz @ 2.5A
Environmental Specifications:
Maximum Ambient Temperature: 40ºC / 104ºF
Maximum External Surface Temperature: 177ºC / 350ºF
Minimum Distance to Flammable Objects: 1 meter / 3.28 ft
Minimum Distance to Illuminated Objects: 1 meter / 3.28 ft
Features:
•Precise, tool-free lamp optimization
•Integral safety cable mount on fixture
•Precision milled aluminum construction
•Zoom adjust detents at 30° and 36° for
quick setup
•No fans for silent operation
•Integral Color Module provides a nearly
infinite color palette via 3-channel DMX
control
•Philips® 575W compact tungsten, high
CRI source (GLA/GLA)
•Standard 6.25-inch accessory holders
•Utilizes RAM Power Supplies
•Legendary Wybron reliability
•Made in the USA
8
Model 2580: Nexera Wash - CDM
Dimensions:
Height (with yoke attached): 551.82 mm / 21.73 inches
Width (with yoke attached): 270.64 mm / 10.65 inches
Length (with yoke attached): 482.35 mm / 19.092 inches
Weight: 10.31 kg / 22.74 pounds
Electrical Specifications:
Lamp Watts (nominal): 150W max
Ballast Voltage: 120-227VAC
Environmental Specifications:
Maximum Ambient Temperature: 40ºC / 104ºF
Maximum External Surface Temperature: 177ºC / 350ºF
Minimum Distance to Flammable Objects: 1 meter / 3.28 ft
Minimum Distance to Illuminated Objects: 1 meter / 3.28 ft
Features:
•Precise, tool-free lamp optimization
•Integral safety cable mount on fixture
•Precision milled aluminum construction
•6” borosilicate fresnel lens
•No fans for silent operation
•Integral Color Module provides a nearly
infinite color palette plus mechanical
dimming via 4-channel DMX control
•150W compact CDM light source
•Standard 7.5-inch accessory holders
•Utilizes RAM Power Supplies
•Legendary Wybron reliability
•Made in the USA
9
Model 2600: Nexera Profile - CDM
Dimensions:
Height (with yoke attached): 551.82 mm / 21.73 inches
Width (with yoke attached): 301.88 mm / 11.88 inches
Length (with yoke attached): 484.18 mm / 19.06 inches
Weight: 11.13 kg / 24.54 pounds
Electrical Specifications:
Lamp Watts (nominal): 150W max
Ballast Voltage: 120-227VAC
Environmental Specifications:
Maximum Ambient Temperature: 40ºC / 104ºF
Maximum External Surface Temperature: 177ºC / 350ºF
Minimum Distance to Flammable Objects: 1 meter / 3.28 ft
Minimum Distance to Illuminated Objects: 1 meter / 3.28 ft
Features:
•Precise, tool-free lamp optimization
•Integral safety cable mount on fixture
•Precision milled aluminum construction
•Zoom adjust detents at 30° and 36° for
quick setup
•No fans for silent operation
•Integral Color Module provides a nearly
infinite color palette plus mechanical
dimming via 4-channel DMX control
•150W compact CDM light source
•Standard 6.25-inch accessory holders
•Utilizes RAM Power Supplies
•Legendary Wybron reliability
•Made in the USA
10
Fixture Setup and Configuration
Installing the Lamp
Disconnect fixture from line voltage before replacing
lamp.
Lamp and lamp mounting surfaces are hot! Allow lamp to
cool before replacing.
Lamp Specifications:
Note: Wybron supplies and approves only Philips® Broadway™ P3 Series tungsten halogen
lamps for use in Nexera tungsten luminaires.
Lamp socket / base: G9.5
Part # ANSI Watts Volts Lumen Output Life(h) Color Temp
287391 GLC 575 115 15,500 400 3200º K
294322 GLA 575 115 13,500 1500 3100º K
363721 GKV 600 230 15,000 400 3200º K
363739 GLB 600 230 13,000 1500 3100º K
Nexera CDM Units:
Part #
CDM150T6830 Lamp, CDM 150W with UV Fade Block
Disconnect fixture from AC power.
Remove lamp cap by unscrewing both thumbscrews and
pulling the lamp assembly straight back out of the fixture.
Grasp lamp by the base and remove from heat sink lamp
holder.
Touching the lamp glass can reduce lamp life. Handle
new lamps with a clean cloth. Fingerprints can be
cleaned off lamp glass with alcohol and a clean cloth.
Install a new lamp by firmly inserting the lamp into the lamp socket.
Verify lamp is fully seated by looking through the hole in the side of the lamp socket.
This manual suits for next models
3
Table of contents
