Wolf I663418(R) User manual

Planning Information

Model I663418(R) Pro Island Hood

Dimensions in parentheses are in

millimeters unless otherwise specified.

9/06

AWolf Pro island hood — the final touch to complete

your stage featuring professional cooking equipment.

This premier ventilation system complements your

cooking appliance of choice, guaranteeing you’ll look

the part, no matter what new cooking challenges you

take on.

This 66" (1676) wide island hood is 34" (864) deep and

available in the classic stainless steel finish. You also

have the option of decorative rails. While classic stain-

less steel rails are standard on the (R) model, platinum

rails are also available to match the bezels of our dual

fuel ranges and sealed burner rangetops.

The Pro island hoods are recommended for use with all

Wolf cooking appliances.

Wolf Pro island hoods are available in

the classic stainless steel finish. Rail

option hoods (R) come with classic stain-

less steel decorative rails and stand-offs

for both sides of the hood. Optional

platinum rails match dual fuel range

bezels. Pro island hoods are sold as a

shell only; internal, in-line and remote

blower options are available.

Classic stainless

steel finish

Backdraft damper

Stainless steel

baffle filters

Infinite speed

blower control

Welded seams

and hemmed edges

Halogen lighting

Model I663418

Model I663418R

Rail Option

Hand finished crafts-

manship

Recessed easy

access controls

Decorative rail

(optional)

Model I663418R shown with standard classic stainless steel decorative

rails, platinum rails available as a sales accessory

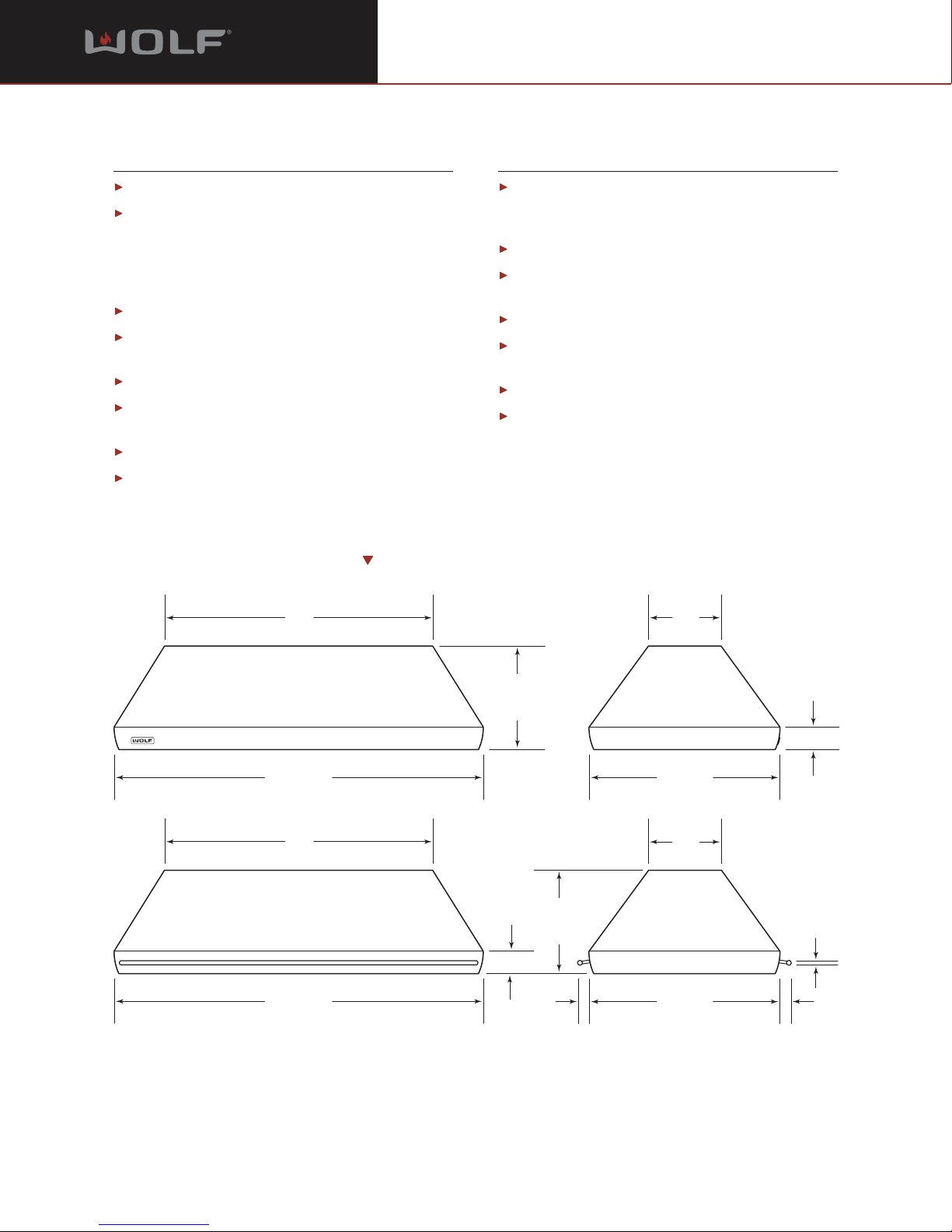

18" (457)

OVERALL

HEIGHT

66" (1676)

OVERALL WIDTH

4"(102)

66" (1676)

OVERALL WIDTH

34" (864)

OVERALL DEPTH

48"

(1219)

48"

(1219)

13"

(330)

18" (457)

OVERALL

HEIGHT

34" (864)

OVERALL DEPTH

13"

(330)

4"(102)

(51)

3/4" (19)

DIAMETER

OF RAIL

(51)

Planning Information

Model I663418(R) Pro Island Hood

Dimensions in parentheses are in

millimeters unless otherwise specified.

Dimensions may vary by ±

" (3).

Model I663418

Model I663418R with Rail

OVERALL DIMENSIONS

FEATURES

Classic stainless steel finish

Rail option hoods (R) come with classic

stainless steel decorative rails and stand-offs

– optional platinum rails to match dual fuel

range and sealed burner rangetop bezels are

available as a sales accessory

Internal, in-line and remote blower options

Heavy-duty 16-gauge brushed stainless steel

construction

Stainless steel enclosed liner

Continually welded seams, hemmed edges

and sides and hand finished craftsmanship

Recessed easy-access controls

Infinite-speed blower control

Heat sentry feature automatically turns unit

on when heat is sensed and automatically

adjusts blower speed

Halogen lighting with two settings

Removable, dishwasher-safe, restaurant-

grade stainless steel baffle filters

Transition with backdraft damper included

UL listed to US and Canadian safety

standards

UL approved for covered outdoor applications

Two and five year residential warranty –

exclusions apply; warranty information can

be found on our website, wolfappliance.com

Planning Information

Model I663418(R) Pro Island Hood

Dimensions in parentheses are in

millimeters unless otherwise specified.

BLOWER OPTIONS

1200 CFM Internal Blower 804703

1100 CFM In-Line Blower 808332

1200 CFM Remote Blower 801642

1500 CFM Remote Blower 804701

Refer to the Pro Ventilation

Recommendations chart at the end

of this section.

ACCESSORIES

Platinum decorative rails and

stand-offs for both sides of the

hood

6" (152) and 12" (305) duct

covers

Contact your Wolf dealer for additional

information on accessories.

SPECIFICATIONS

Overall Width of Hood 66" (1676)

Overall Height of Hood 18" (457)

Overall Depth of Hood – I663418 34" (864)

I663418R (including rails) 38" (965)

Duct Size 10" (254) Round

Discharge Vertical

Electrical Supply Requirements 110 / 120 V AC, 60 Hz

15 amp dedicated circuit

Shipping Weight (shell only) 168 lbs (76 kg)

Specifications are subject to change without notice.

Planning Information

Model I663418(R) Pro Island Hood

Dimensions in parentheses are in

millimeters unless otherwise specified.

INSTALLATION SPECIFICATIONS

18" (457)

HEIGHT

OF HOOD

34" (864)

DEPTH OF HOOD

66" (1676)

WIDTH OF HOOD

LOCATION OF ELECTRICAL SUPPLY

CENTERED THROUGH TOP OF HOOD

30" TO 36"

(762–914)

TO COUNTERTOP

30" TO 36"

(762–914)

TO COUNTERTOP

DIMENSIONS

Overall Width of Hood 66" (1676)

Overall Height of Hood 18" (457)

Overall Depth of Hood (excluding rails) 34" (864)

Countertop to Bottom of Hood 30" (762) to 36" (914)

Location of Electrical Centered through top of hood

See Installation Instructions shipped with unit for detailed specifications.

Planning Information

Model I663418(R) Pro Island Hood

Dimensions in parentheses are in

millimeters unless otherwise specified.

INSTALLATION NOTES

Refer to the illustrations and specifications

for overall dimensions and installation specifics.

Wolf Pro island hoods are recommended for

use with any Wolf cooking appliance. The hood

must overlap the cooking surface by a minimum

of 3" (76) on either side.

Installation of all Pro island hoods should be

30" (762) to 36" (914) from the bottom of the

hood to the countertop. Follow the dimensions

shown in the Installation illustration.

Wolf Pro island hoods are shipped without a

blower assembly. Internal, in-line and remote

blower assemblies are available. Blower options

also vary with the volume of air that needs to

be moved and the length of the duct run. Refer

to the charts at the end of this section for Pro

ventilation recommendations and blower

options.

IMPORTANT NOTE: Install this ventilation hood

only with a Wolf blower.

Pro island hoods require a separate,

grounded 110/120 V AC, 60 Hz power supply.

The service should have its own 15 amp circuit

breaker. Placement of the electrical supply is

not critical, as long as you provide a minimum

of 6" (152) of 120 V AC, 60 Hz power cable.

Location of electrical is centered through the

top of the hood as shown in the Installation

illustration on page 4.

You must follow all National Electrical Code

regulations. In addition, be aware of local codes

and ordinances when installing your service.

Refer to the installation instructions shipped

with each Wolf product for detailed specifica-

tions. This information can also be found on

our website, wolfappliance.com.

Planning Information

Model I663418(R) Pro Island Hood

Dimensions in parentheses are in

millimeters unless otherwise specified.

ROOF CAP OR REMOTE BLOWER

18" (457)

HEIGHT OF HOOD

ISLAND HOOD

DUCTWORK INSTALLATION

THROUGH ROOF

34" (864)

DEPTH OF HOOD

10" ROUND DUCT

VERTICAL

DISCHARGE

VERTICAL DISCHARGE ONLY FOR ISLAND HOODS.

TRANSITION

141/8"W x 9"D TO 10" ROUND

11"H (INCLUDING FLANGES)

SOFIT, CABINET OR

DUCT COVER

30" TO 36"

(762–914)

COUNTERTOP

TO BOTTOM OF

VENTILATION HOOD

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

DUCTING CONSIDERATIONS

Pro island hoods are shipped without the blower

assembly. Internal, in-line or remote blower

assemblies are available.

Wolf Pro island hoods have a vertical discharge

location as shown in the illustration below.

IMPORTANT NOTE: Install these ventilation

hoods only with a Wolf blower.

Refer to the Pro ventilation charts at the end of

this section for recommendations and blower

options.

Ducting considerations for

Pro island hoods.

Planning Information

Wolf Ventilation Recommendations

Dimensions in parentheses are in

millimeters unless otherwise specified.

241/2"

(622)

151/2"

(394)

281/4"

(718)

203/4"

(527)

243/4"

(629)

14"

(356)

43/4"

(121)

10" (254)

Diameter

143/4"

(375)

291/2"

(749)

291/2"

(749)

18" (457)

22"

(559)

101/8"

(257)

71/4"

(184)

10"

(254)

10" (254)

Diameter

Remote BLOWER-60REM and

BLOWER-90REM

143/4"

(375)

291/2"

(749)

291/2"

(749)

21" (533)

25"

(635)

103/8"

(264)

71/4"

(184)

10"

(254)

10" (254)

Diameter

WOLF BLOWER ASSEMBLIES

A ventilation system must include a blower

assembly. With a few exceptions where internal

blowers are included, Wolf ventilation hoods and

downdrafts are shipped without the blower

assembly. An internal, in-line or remote blower

assembly must be selected to accommodate the

cooking appliance, CFM requirements and home-

owner preferences. Internal, in-line and remote

blower assemblies are available as sales acces-

sories through your Wolf dealer.

Wolf internal, in-line and remote blowers are for

use with Wolf cooktop hoods, downdraft

systems and Pro ventilation hoods and hood

liners.

IMPORTANT NOTE: Use only a Wolf blower

with all Wolf ventilation products.

Internal blowers are mounted inside the hood

canopy or downdraft blower box. In-line blowers

are mounted in between the hood and the

exterior of the home. Remote blowers can be

mounted on the roof or in some cases, on an

exterior wall. Refer to the illustrations below for

dimensions of Wolf in-line and remote blowers.

Ventilation recommendation charts on the

following pages provide minimum CFM recom-

mendations according to the cooking appliance

and ventilation system used and blower options

for each specific ventilation hood or downdraft.

Remote BLOWER-120REM Remote BLOWER-150REM

113/4"

(298)

211/2"

(546)

243/8"

(619)

181/2"

(470)

121/4"

(311)

41/2"

(114)

18"

(457)

22"

(559)

247/8"

(632)

12"

(305)

18"

(457)

(203)

In-line BLOWER-60IL In-line BLOWER-110IL

Dimensions may vary by ±

" (3).

Planning Information

Wolf Ventilation Recommendations

Dimensions in parentheses are in

millimeters unless otherwise specified.

PRO VENTILATION CFM RECOMMENDATIONS

Pro Island Hoods

I363418 I423418 I543418 I663418

DF304 / R304 / SRT304 600 600

DF366 / R366 / SRT366 / RT366 900

DF364 / R364 / SRT364 / RT364 900

RT362 900

R488 / RT488 1100

DF486 / R486 / SRT486 / RT486 1100

DF484 / R484 / SRT484 / RT484 900

R482 / RT482 900

DF606 / R606 1500

DF604 / R604 1500

Model numbers for dual fuel ranges, gas ranges, sealed burner rangetops and gas rangetops indicate width and number of surface

burners. Features such as a charbroiler, griddle and/or French Top will vary.

CFM recommendations are based on total Btu/hr output. Wolf recommends 1 CFM per 100 Btu/hr (.03 kW). Additional CFM may be

required for long duct runs.

PRO VENTILATION BLOWER OPTIONS

Pro Island Hoods

Blower Description Blower Number Island Hood Models

1200 CFM Internal IBLOWER-120INT (804703) All Island Hoods

1100 CFM In-Line BLOWER-110IL (808332) All Island Hoods

900 CFM Remote BLOWER-90REM (801641) I363418 / I423418 / I543418

1200 CFM Remote BLOWER-120REM (801642) All Island Hoods

1500 CFM Remote BLOWER-150REM (804701) All Island Hoods

Vertical discharge with 10" (254) round duct.

Island hood models without decorative rails listed; blower options are the same for (R) models. Transition with backdraft damper

included with island hoods. Blower configurations are for reference only. Refer to minimum CFM recommendations for your specific

cooking product. Always consult a qualified HVAC Engineer for specific applications

Other Wolf Ventilation Hood manuals

Wolf

Wolf W302210I User manual

Wolf

Wolf Pro Wall Chimney Ventilation Hoods User manual

Wolf

Wolf ICBPW482418 Owner's manual

Wolf

Wolf PWC422418(R) Instructions for use

Wolf

Wolf Pro Wall Series User manual

Wolf

Wolf IH4227 User manual

Wolf

Wolf Pro Island Instruction Manual

Wolf

Wolf PW662718 Instructions for use

Wolf

Wolf Pro Wall Ventilation hoods User manual

Wolf

Wolf L282212I Instructions for use

Wolf

Wolf W482210 Instructions for use

Wolf

Wolf CTWH30 Instructions for use

Wolf

Wolf W542418 Instructions for use

Wolf

Wolf L402212 Instructions for use

Wolf

Wolf VW36B User manual

Wolf

Wolf VW30S User manual

Wolf

Wolf Downdraft Ventilation Owner's manual

Wolf

Wolf Pro Wall Ventilation hoods User manual

Wolf

Wolf PW482418 User manual

Wolf

Wolf DD45I User manual

Wolf

Wolf L342212 User manual

Wolf

Wolf W302418 Instructions for use

Wolf

Wolf PW482210R Owner's manual

Wolf

Wolf PW542418R Instructions for use

Popular Ventilation Hood manuals by other brands

emmeti

emmeti RECUPA MED A-140 Installation and use manual

Nibe

Nibe F135 user manual

Kuppersberg

Kuppersberg INTRO 60 Technical Passport

Zephyr

Zephyr Spruce AK9834BS Use, care and installation guide

Hisense

Hisense MH6INBG manual

Miele

Miele DA 1255 Operating and installation instructions

Broan

Broan 46000 Specification sheet

GE Profile PV977 Owner's Manual & Installation Instructions

FALMEC

FALMEC FFRIA24W5FS Instruction booklet

Whirlpool

Whirlpool RH2600XL-1 SERIES installation instructions

Küppersbusch

Küppersbusch DX ISLA instruction manual

ETNA

ETNA AV360RVS Instructions for use

JUNO

JUNO JDF603E6 installation manual

Miele

Miele DA 6708 D Operating and installation instructions

Tricity Bendix

Tricity Bendix LE 150 Installation & operating instructions

AEG

AEG X68163BV1 user manual

AEG

AEG 125 D operating instructions

Smeg

Smeg KSEV97X instruction manual
