Winmate T5-series User manual

T5-series Panel PC

Intel Core Duo Mini-ITX SBC, Low

Power, High Performance Design with

Intel Platform, TFT LCD and

10/100/1000 base-T Ethernet.

User Guide Version 1.2

FCC Statement

This device complies with part 15 FCC rules. Operation is subject to

the following two conditions：

zThis device may not cause harmful interference.

zThis device must accept any interference received including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class "a"

digital device, pursuant to part 15 of the FCC rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at him

own expense.

T5 series Panel PC User Guide

III

this document may be reproduced, copied, translated, or transmitted in any form or by

any means, electronic or mechanical, for any purpose, without the prior written

permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective

owners.

Disclaimer

Winmate Communication Inc. reserves the right to make changes, without notice, to

any product, including circuits and/or software described or contained in this manual

in order to improve design and/or performance. Winmate Communication assumes no

responsibility or liability for the use of the described product(s), conveys no license or

title under any patent, copyright, or masks work rights to these products, and makes

no representations or warranties that these products are free from patent, copyright, or

mask work right infringement, unless otherwise specified. Applications that are

described in this manual are for illustration purposes only. Winmate Communication

Inc. makes no representation or warranty that such application will be suitable for the

specified use without further testing or modification.

Warranty

Winmate warrants that each of its products will be free from material and

workmanship defects for a period of one year from the invoice date. If the customer

discovers a defect, Winmate will, at its option, repair or replace the defective product

at no charge to the customer, provided it is returned during the warranty period of one

year, with transportation charges prepaid. The returned product must be properly

packaged in it’s original packaging to obtain warranty service.

If the serial number and the product shipping data differ by over 30 days, the

in-warranty service will be made according to the shipping date. In the serial numbers

the third and fourth two digits give the year of manufacture, and the fifth digit means

the month (e. g., with A for October, B for November and C for December).

For example, the serial number 1W07Axxxxxxxx means October of year 2007.

T5 series Panel PC User Guide

Check List

Before using this Panel PC, please make sure that all the items listed below

are present in your package

¾1 x T5 series Panel PC

¾1 x T5 series Panel PC User Guide

¾1 x I370 SBC User Manual

¾1 x Power adapter

¾1 x Power cord

¾1 x Keyboard

¾1 x Mouse

¾1 x CD-ROM disc with Driver Utility and User's Manual

¾1 x Touch Driver CD (Optional)

¾Mounting of screws (Option)

Make sure that all of the items listed above are present. Do not attempt to

apply power to the system if there is damage to any of its components.

Customer Service

We provide service guide for any problem as follow steps：First, visit the website at

http://www.winmate.com to find the update information about the product. Second,

contact with your distributor, sales representative, or our customer service center for

technical support if you need additional assistance. You may have the following

information ready before you call：

¾Product serial number

¾Peripheral attachments

¾Software (OS, version, application software, etc.)

¾Description of complete problem

¾The exact wording of any error messages

In addition, free technical support is available from our engineers every business day.

We are always ready to give advice on application requirements or specific

information on the installation and operation of any of our products. Please do not

hesitate to call or e-mail us.

Notice

1. Do not touch the LCD panel surface with sharp or hard objects.

2. Do not use abrasive cleaners, waxes or solvents for cleaning, use only a dry

or damp, soft cloth.

3. Use only with a high quality, safety-approved, AC/DC power adapter.

Safety Precautions

Warning!

Always completely disconnect the power cord from your chassis

whenever you work with the hardware. Do not make connections

while the power is on. Sensitive electronic components can be

damaged by sudden power surges. Only experienced electronics

personnel should open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution, use a

grounding wrist strap at all times. Place all electronic components

in a static-dissipative surface or static-shielded bag when they are

not in the chassis.

T5 series Panel PC User Guide

Safety and Warranty

1. Please read these safety instructions carefully.

2. Please keep this user's manual for later reference.

3. Please disconnect this equipment from any AC outlet before cleaning. Do not use

liquid or spray detergents for cleaning. Use a damp cloth.

4. For pluggable equipment, the power outlet must be installed near the equipment

and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a reliable surface during installation. Dropping it or letting

it fall could cause damage.

7. The openings on the enclosure are for air convection. Protect the equipment from

overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting the

equipment to the power outlet.

9. Position the power cord so that people cannot step on it. Do not place anything

over the power cord.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source

to avoid damage by transient over-voltage.

12. Never pour any liquid into an opening. This could cause fire or electrical shock.

13. Never open the equipment. For safety reasons, only qualified service personnel

should open the equipment.

14. If any of the following situations arises, get the equipment checked by service

personnel:

A. The power cord or plug is damaged.

B. Liquid has penetrated into the equipment.

C. The equipment has been exposed to moisture.

D. The equipment does not work well, or you cannot get it to work according to

the user’s manual.

E. The equipment has been dropped and damaged.

F. The equipment has obvious signs of breakage.

15. Do not leave this equipment in an uncontrolled environment where the storage

temperature is below -20° C (-4°F) or above 60° C (140° F). It may damage the

equipment.

T5 series Panel PC User Guide

VII

Revision History

Version Date Note Author

0.1 2007.09.11 9First Version Aladin Huang

1.1 2007.09.20 9Double Check Aladin Huang

1.2 2007.10.02 9H/W Double Check Kevin Chen

Contents

CHAPTER 1 GENERAL INFORMATION.........................................................................................1

1-1 Introduction .....................................................................................................1

1-2 I370 SBC and T5 series Panel PC System Specifications...............................2

1-3 LCD Selection Guide.......................................................................................3

CHAPTER 2 GETTING STARTED.....................................................................................................4

2-1 Input / Output Devices.....................................................................................4

2-2 Starting the Panel PC& O/S Installation..........................................................5

2-3 Driver Installation............................................................................................5

CHAPTER 3 TOUCH DRIVER INSTALLATION.............................................................................6

3-1 Introduction .....................................................................................................6

3-2 The ELOAccuTouch Driver Installation.........................................................7

3-2-1 Configuration Utility............................................................................8

3-3 The Premier Touch Driver Installation..........................................................10

3-3-1 Configuration Utility..........................................................................11

CHAPTER 4 T5 SERIES PANEL PC MOUNTING GUIDE...........................................................13

4-1 Open Frame Panel PC: ..................................................................................13

4-2 5mm Panel Mount Panel PC:.........................................................................15

4-3 10mm IP65 Panel PC.....................................................................................17

4-4 Chassis Panel PC...........................................................................................19

KNOWN ISSUES.................................................................................................................................20

NOTICES..............................................................................................................................................21

Chapter 1 GENERAL INFORMATION

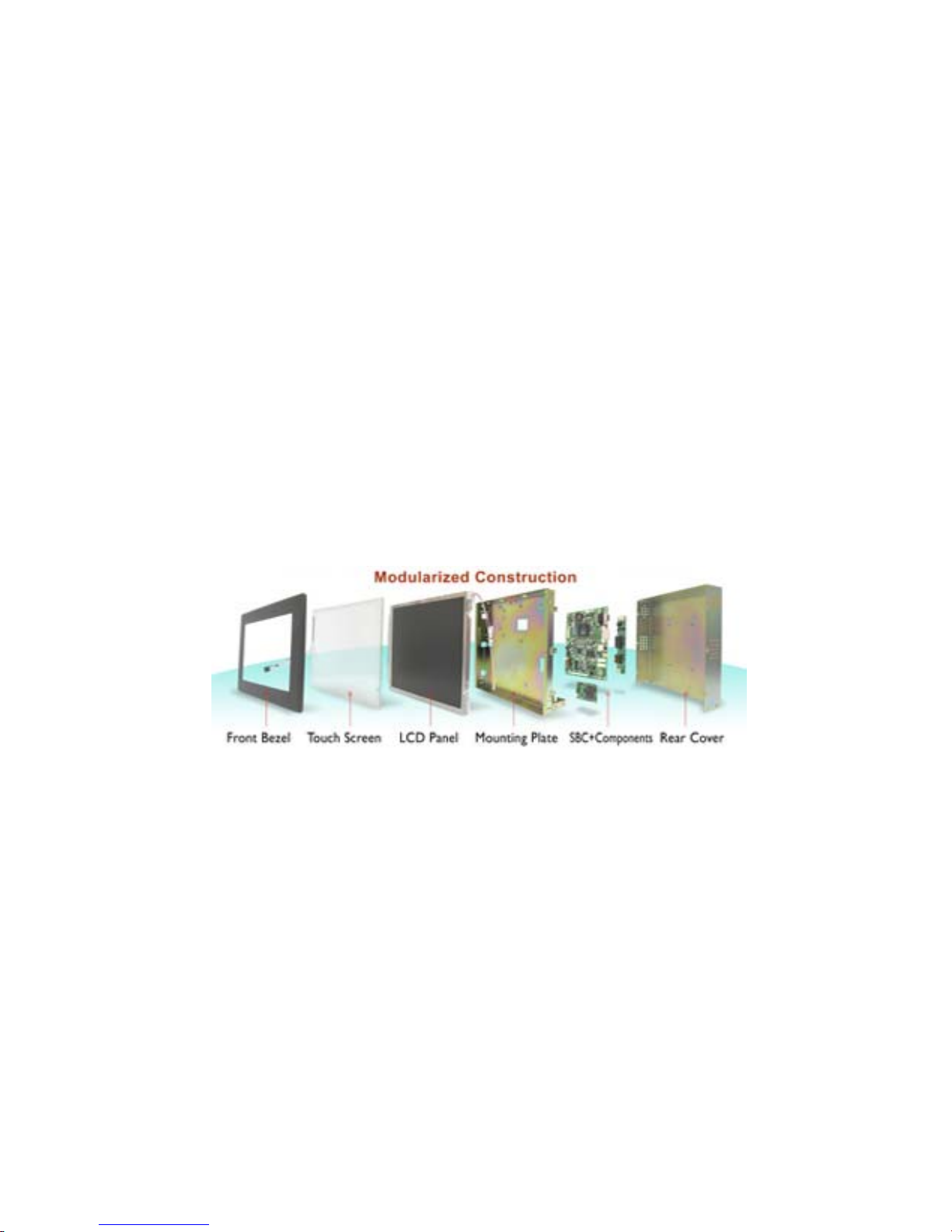

1-1 Introduction

The T5 series Panel PC is high performance, low power PC with Intel 945

GME chipset combine with a TFT LCD Panel. The Intel Core Duo high

performance Processor delivers the most performance per watt available in

the market. The Panel PC is designed to satisfy most of the applications in the

industrial market, such as POS, KIOSK, Industrial Automation, HMI and

Programmable Control System. It’s a PC-based system with DDR2 SDRAM,

VGA/LCD controller, four COM ports, and on-board 10/100/1000 Mpbs Base-T

Ethernet. The Panel PC supports one Mini-PCI expansion slot for Wireless,

Ethernet, COM port, VGA solutions. It is a compact design to meet the

demanding performance requirements of today’s business and industrial

applications.

T5 series Panel PC User Guide

1-2 I370 SBC and T5 series Panel PC System Specifications

Form Factor Mini-ITX

CPU Intel Core2 Duo, Core Duo, Core Solo, Celeron M

ULV Processor

Chipset Intel Socket M

Memory 2 x DDR2 DIMM socket, supports up to 4GB DDR2

533/667 SDRAM (240 pins)

BIOS Award 4Mbit

VGA Controller Intel® GMA 950 Integrated Graphics Engine

VGA Memory Up to 224MB shared with system memory

LCD Support Intel® GMA 950 Integrated Graphics Engine built-in,

single- or dual-channel panel support up to 1600 x

1200, 18bit

Ethernet 2 x Giga LAN (Dual Realtek RTL8111B Controller )

Audio Realtek ALC655 5.1 channel (Line-out, Line-in &

Mic in)

IDE One channels; supports Ultra DMA33/66/100

Serial 4 x RS-232(3x Rear I/O, 1 x pin-header)

USB 8 x USB (4 x Rear I/O, 4 x pin-header)

Expansion Slots 1 x Mini PCI (Optional)

Power Adapter DC-in 4 Pin 12V Power input

HDD 40GB (Default for 8.4” ~ 12.1”)

80GB (Default for 15” above)

O/S(Optional) Windows XP Embedded / Windows XP Professional

/ WinCE5.0 / Linux

Table of contents

Other Winmate Touch Panel manuals

Winmate

Winmate W05TA3S-PCT3AC User manual

Winmate

Winmate R15IW3S-65C3 User manual

Winmate

Winmate PT Series User manual

Winmate

Winmate R15IB3S-PCC3-PoE User manual

Winmate

Winmate W07FA3S-GCM1 User manual

Winmate

Winmate 7'' S-Series User manual

Winmate

Winmate W10IB3S-GSH1 User manual

Winmate

Winmate R15IT3S-SPC369 User manual

Winmate

Winmate W07FA3S-PCO1AC-POE Troubleshooting guide

Winmate

Winmate W07L100-GCO1 User manual

Winmate

Winmate W10IE3S-MRH2FP User manual

Winmate

Winmate W22IK3S-SPA3 User manual

Winmate

Winmate R15IB3S-SPC369 User manual

Winmate

Winmate G-WIN User manual

Winmate

Winmate R17IB3S-RKA1ML User manual

Winmate

Winmate M-Series User manual

Winmate

Winmate W27FA3S-CHC1 User manual

Winmate

Winmate R05FA3S-OFD1HMHB User manual

Winmate

Winmate G-WIN W07RK3S-GCT1 User manual

Winmate

Winmate R19IHAT-66EX User manual

Winmate

Winmate R17IW3S-SPM1 User manual

Winmate

Winmate W10RK3S-PCH2LB User manual

Winmate

Winmate W10IB3S-PCH2AC-PoE S-Series User manual

Winmate

Winmate W10FA3S-GSH1 User manual

Popular Touch Panel manuals by other brands

FlowLine

FlowLine Data loop quick start

ALPEX

ALPEX AEx-8 P Series user manual

Ltech

Ltech E5S manual

Harman

Harman AMX MODERO S MSD-701-L2 quick start guide

Acnodes

Acnodes PC 1150 installation guide

AIS

AIS IP10IA99 series user guide

IBASE Technology

IBASE Technology ASTUT-152-RE1S user manual

YASKAWA

YASKAWA TP 610C manual

B&R

B&R Power Panel C Series user manual

Beijer Electronics

Beijer Electronics X2 control Hardware and installation manual

AXIOMTEK

AXIOMTEK GOT321W-521 user manual

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Operation manual

Qomo

Qomo QIT1386 user manual

DFI

DFI KS104-CD user manual

AMX

AMX AXP-PPC Dimensional drawing

Sartorius

Sartorius X3 PR 5410 operating manual

AMX

AMX Modero X Series quick start guide

Advantech

Advantech TPC-30 Series user manual
