Winic W-T5082 User manual
HOW TO CONNECT BNC TO RG59 CABLE
WITH COMPRESSION TOOL.
THINGS YOU WILL NEED
① COAXIAL ( SIAMESE ) CABLE
( RG59 )
② W-CT5062S ( BNC CONNECTOR )
③ W-T5082 ( COMPRESSION TOOL )
④ W-CT5005 ( UNIVERSAL STRIPPING
TOOL )
⑤ W-T5021 (HAND CRIMPING) ( WIRE
CUTTER )
THINGS YOU WILL NEED
① COAXIAL ( SIAMESE ) CABLE
( RG59 )
② W-CT5062S ( BNC CONNECTOR )
③ W-T5082 ( COMPRESSION TOOL )
④ W-CT5005 ( UNIVERSAL STRIPPING
TOOL )
⑤ W-T5021 (HAND CRIMPING ( WIRE
CUTTER )

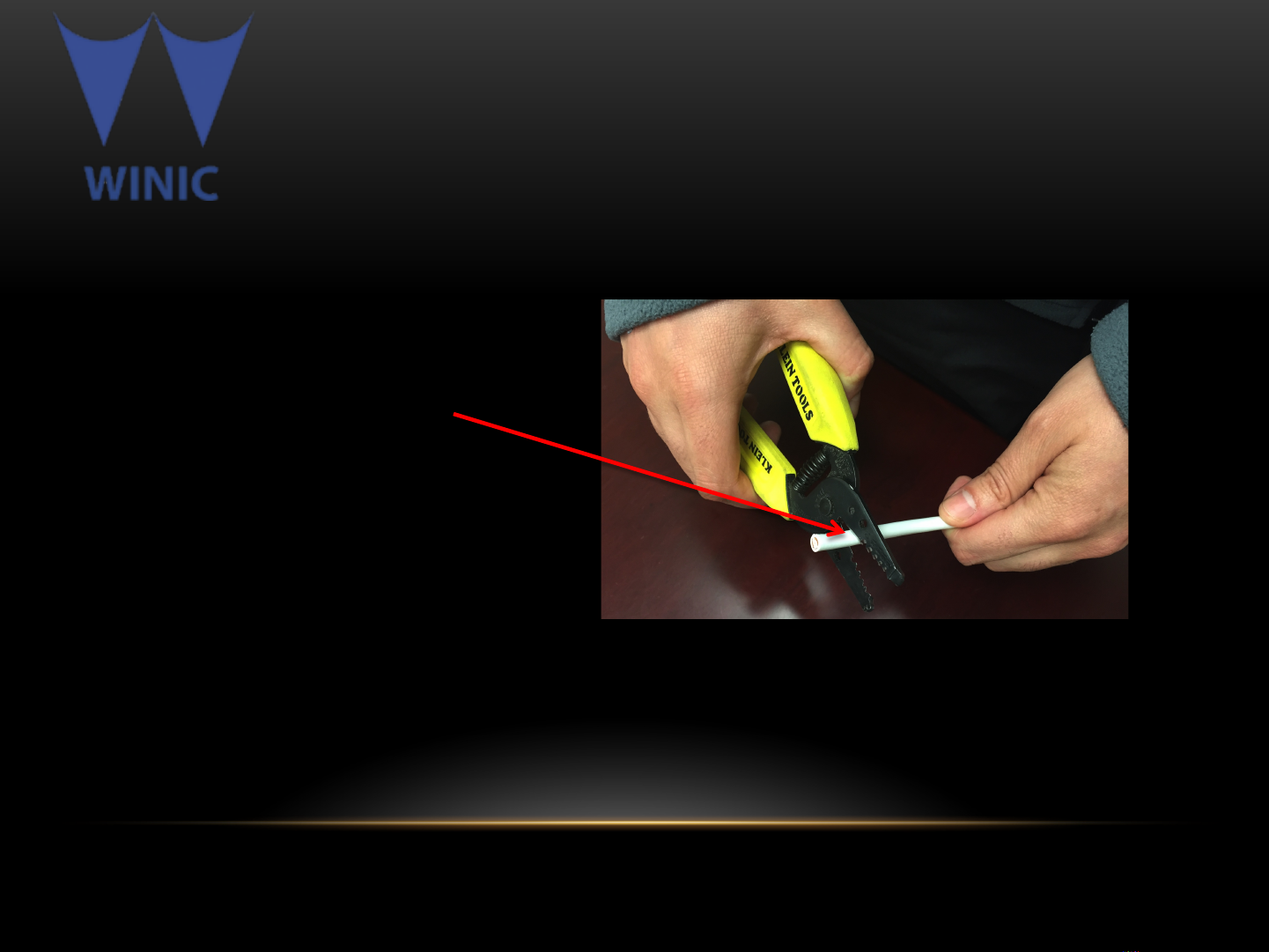

USING W-T5021 (HAND
CRIMPING) ( WIRE CUTTER )
① CUT THE ENDS FOR A FRESH
CUT
USING W-T5021 (HAND
CRIMPING) ( WIRE CUTTER )
① CUT THE ENDS FOR A FRESH
CUT
USING W-CT5005
( UNIVERSAL STRIPPING
TOOL )
① INSERT RG59 CABLE TO FIT
PERFECTLY BETWEEN THE
STRIPPER
② CUTTING IT EXCESSIVLY LONG
WILL NOT WORK WHEN
CONNECTING TO BNC
③ MAKE SURE IT LOOKS LIKE THIS
④ PRESS DOWN ON THE STRIPPER
SO THAT IT CONNECTS WITH
THE WIRE AND TURN COUNTER
CLOCK WISE TWICE AND
REVERSE
✅
❌
USING W-CT5005
( UNIVERSAL STRIPPING
TOOL )
① INSERT RG59 CABLE TO FIT
PERFECTLY BETWEEN THE
STRIPPER
② CUTTING IT EXCESSIVLY LONG
WILL NOT WORK WHEN
CONNECTING TO BNC
③ MAKE SURE IT LOOKS LIKE THIS
④ PRESS DOWN ON THE STRIPPER
SO THAT IT CONNECTS WITH
THE WIRE AND TURN COUNTER
CLOCK WISE TWICE AND
REVERSE
REMOVING THE PRECUT ON
THE RG59
① THE FIRST PIECE WILL REMOVE
CMPLETLY ONLY EXPOSING THE
INNER WIRE
② THE SECOND PIECE WILL REMOVE
ONLY EXPOSING THE BRAIDED
WIRE AND MIDDLE CORE
③ PULL BACK THE BRAIDED WIRE SO
THE THE MIDDLE CORE IS
SHOWING (MAKE SURE NO WIRES
ARE TOUCHING THE MIDDLE CORE
④ CONNECT THE BNC (W-CT5062S)
PUSH IT ALL THE WAY IN (YOU
WILL FEEL IT CLICK IN)
REMOVING THE PRECUT ON
THE RG59
① THE FIRST PIECE WILL REMOVE
CMPLETLY ONLY EXPOSING THE
INNER WIRE
② THE SECOND PIECE WILL REMOVE
ONLY EXPOSING THE BRAIDED
WIRE AND MIDDLE CORE
③ PULL BACK THE BRAIDED WIRE SO
THE THE MIDDLE CORE IS
SHOWING (MAKE SURE NO WIRES
ARE TOUCHING THE MIDDLE CORE
④ CONNECT THE BNC (W-CT5062S)
PUSH IT ALL THE WAY IN (YOU
WILL FEEL IT CLICK IN)
USING W-T5082
( COMPRESSION TOOL )
① FIRST ADJUST THE CENTER
PIECE SO THAT IT FITS THE
PROPER BNC CONNECTOR
② INSERT WIRE AND BNC
CONNECTOR AND SQUEEZE
UNTIL YOU CANNOT SQUEEZE
ANYMORE
③ REPEAT ALL STEPS FOR OTHER
END OF WIRE
