Windsor Saber Glide 86037580 User manual

86037580 GLIDE 01/03/07

PARTS LIST

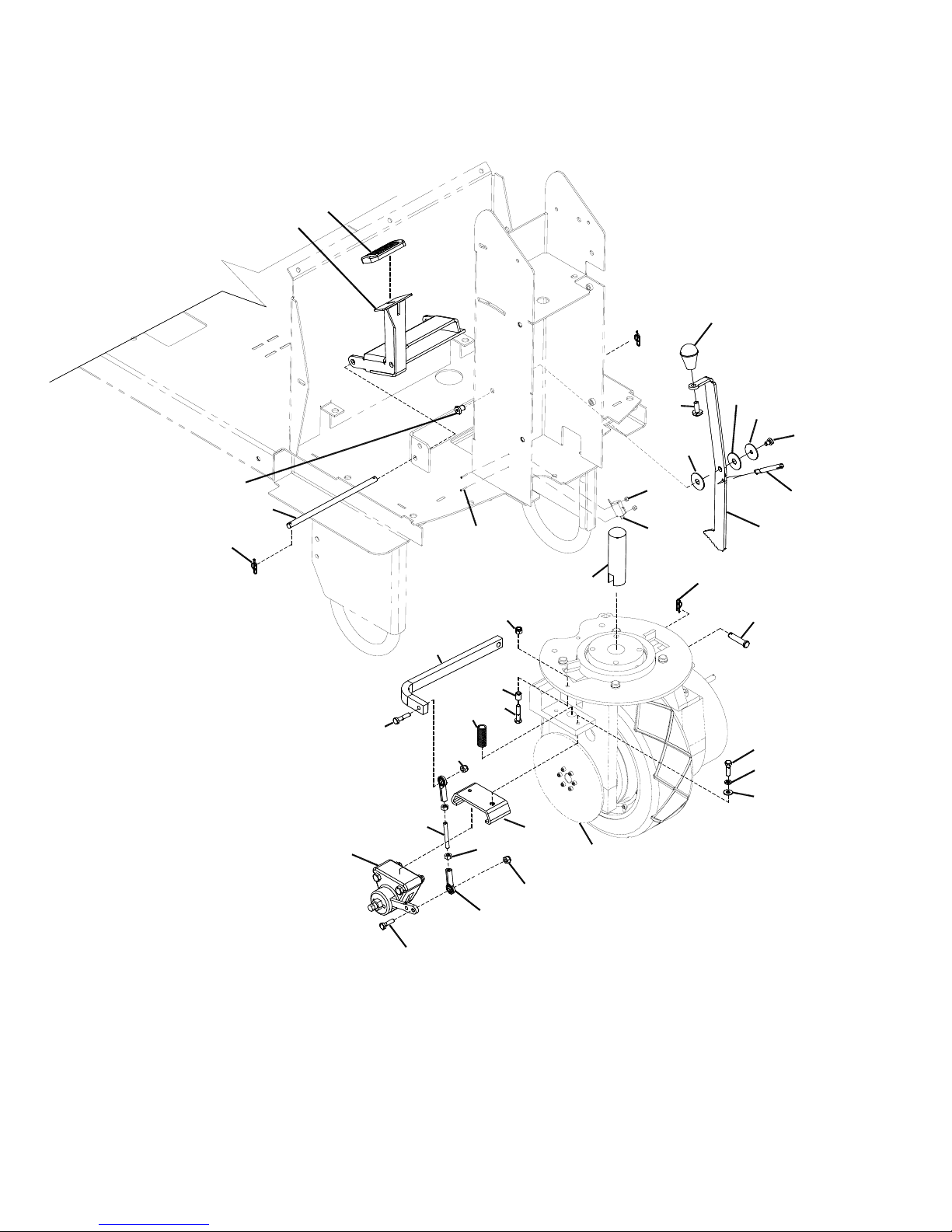

BRAKE

86037580 GLIDE 01/03/07

5-1

14 16

18 19

22 7

BRAKE

86037580 GLIDE 01/03/07

5-2

REF PART NO. PRV

NO. QTY DESCRIPTION SERIAL NO.

FROM NOTES:

1 86276880 70751 1 SCR, 1/4-20 X 3/8 HHCS SS

2 86278940 87008 1 WASHER, 1/4ID X 1-1/4OD PLTD

3 86255560 82855 1 SPRING, .31 X .04 X 3.0 EXT CS ZC

4 86279620 87200 2 WASHER, .4ID X 1.3OD NYLON

5 86009440 81972 1 PAD, BRAKE PEDAL

6 86093360 66363 1 PEDAL, BRAKE SRS

7 86008670 80606 3 COTTER, 3/8” RING

8 86248980 81438 1 PIN, CLEVIS 3/8” X 1.75 PLTD

9 86273810 70018 3 SCR, 1/4-20 X 1 HHCS SS

10 86010780 87162 2 WASHER, 1/4 SPLIT LOCK PLTD

11 86010630 87013 2 WASHER, 1/4ID X 5/8OD SS

12 86215650 29251 1 DISK, BRAKE

13 86005810 57245 3 NUT, 1/4-20 HEX NYLOCK SS

14 86073850 140466 1 CALIPER, CLOCKWISE BRAKE

14A 86135470 83050 1 CALIPER ACTUATING PIN SERVICE ONLY

14B 86134940 83051 1 BACKING PLATE, CALIPER SERVICE ONLY

14C 86135480 83052 1 PUCK CALIPER SERVICE ONLY

14D 86010330 83053 1 CALIPER, ANVIL SUB-ASSEMBLY SERVICE ONLY

15 86251790 67480 2 ROD END, BALL JOINT 1/4-28

16 86271600 57225 2 NUT, 1/4-28 HEX

17 86065800 05003 1 ARM, LOWER VAC CONTROL

18 86273820 70019 2 SCR, 1/4-20 X 1.25 HHCS

19 86254960 730266 1 SPRING, COMP .67 OD X 1.63 X .08

20 86066010 140458 1 ARM, BRAKE LEVER

21 86087430 73206 1 SPACER, 3/8OD X .058W X 1/2L CRS

22 86252040 67470 1 ROD, BRAKE PUSH

23 86078400 66356 1 PIN, CLEVIS 0.375 X 8.26L

24 86005860 57273 1 NUT, 1/4-20 X 12MM HEX BARREL

25 86276890 70752 1 SCR, 5/16-18 X 3/4 PTHMS SS

26 86077270 51367 1 LEVER, PARKING BRAKE

27 86004800 48030 1 KNOB

28 86006720 70245 2 SCR, 4-40 X 3/4 PPHMS

29 86028630 72082 1 SWITCH, SOL LEVER BENT

30 86271280 57163 2 NUT, 4-40 W/STAR WASHER

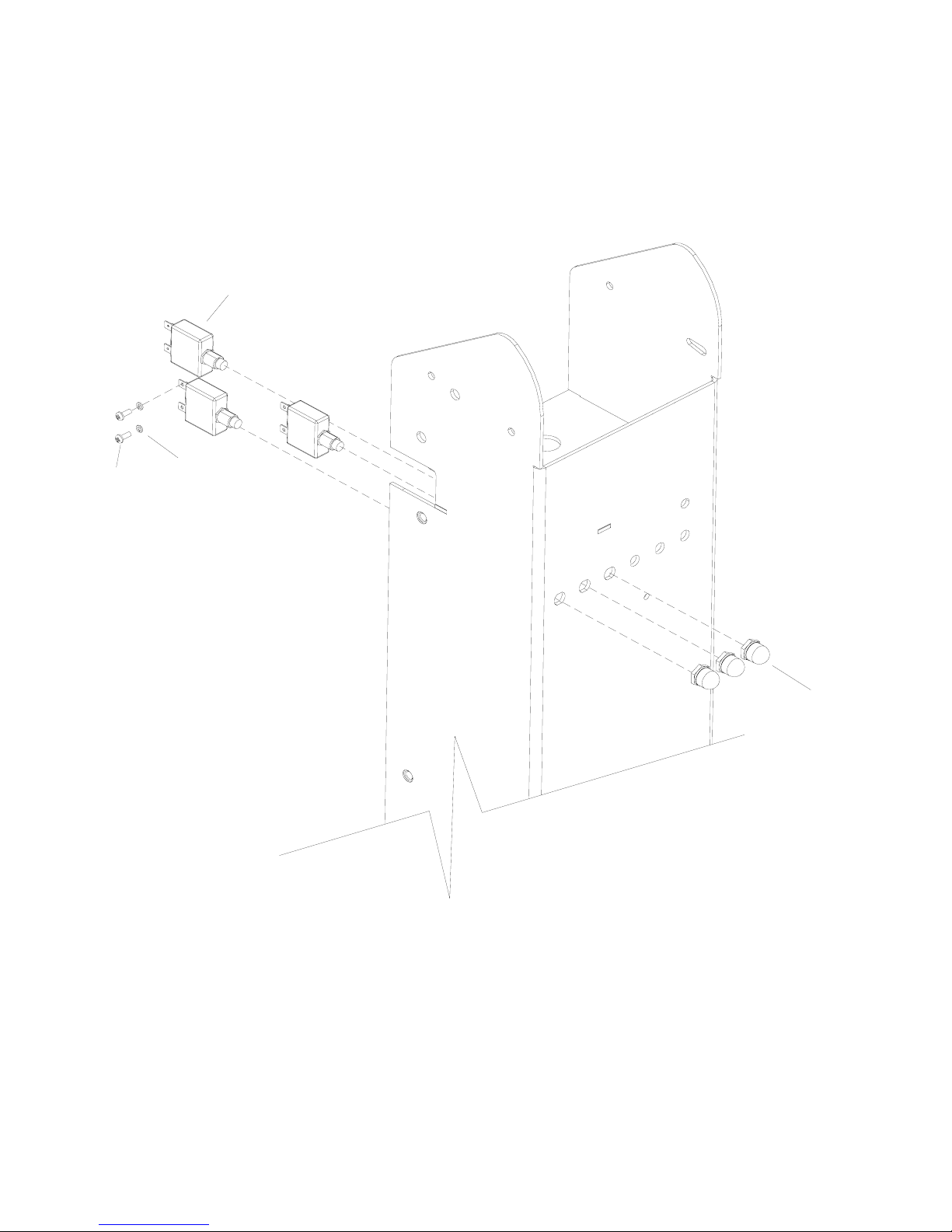

CIRCUIT BREAKER

86037580 GLIDE 01/03/07

5-3

CIRCUIT BREAKER

86037580 GLIDE 01/03/07

5-4

REF PART NO. PRV

NO. QTY DESCRIPTION SERIAL NO.

FROM NOTES:

1 86273990 70067 4/6 SCR, 6-32 X 3/8 PPHMS 4 per 28&32/6

per 36

2 86279300 87134 4/6 WASHER, #6 LOCK 4 per 28&32/6

per 36

3 86001920 14607 2/3 BREAKER, 25A 50VDC CIRCUIT 2 per 28&32/3

per 36

4 86008900 80845 2/3 BOOT, SEAL-PUSH BUTTON 7/16-28 2 per 28&32/3

per 36

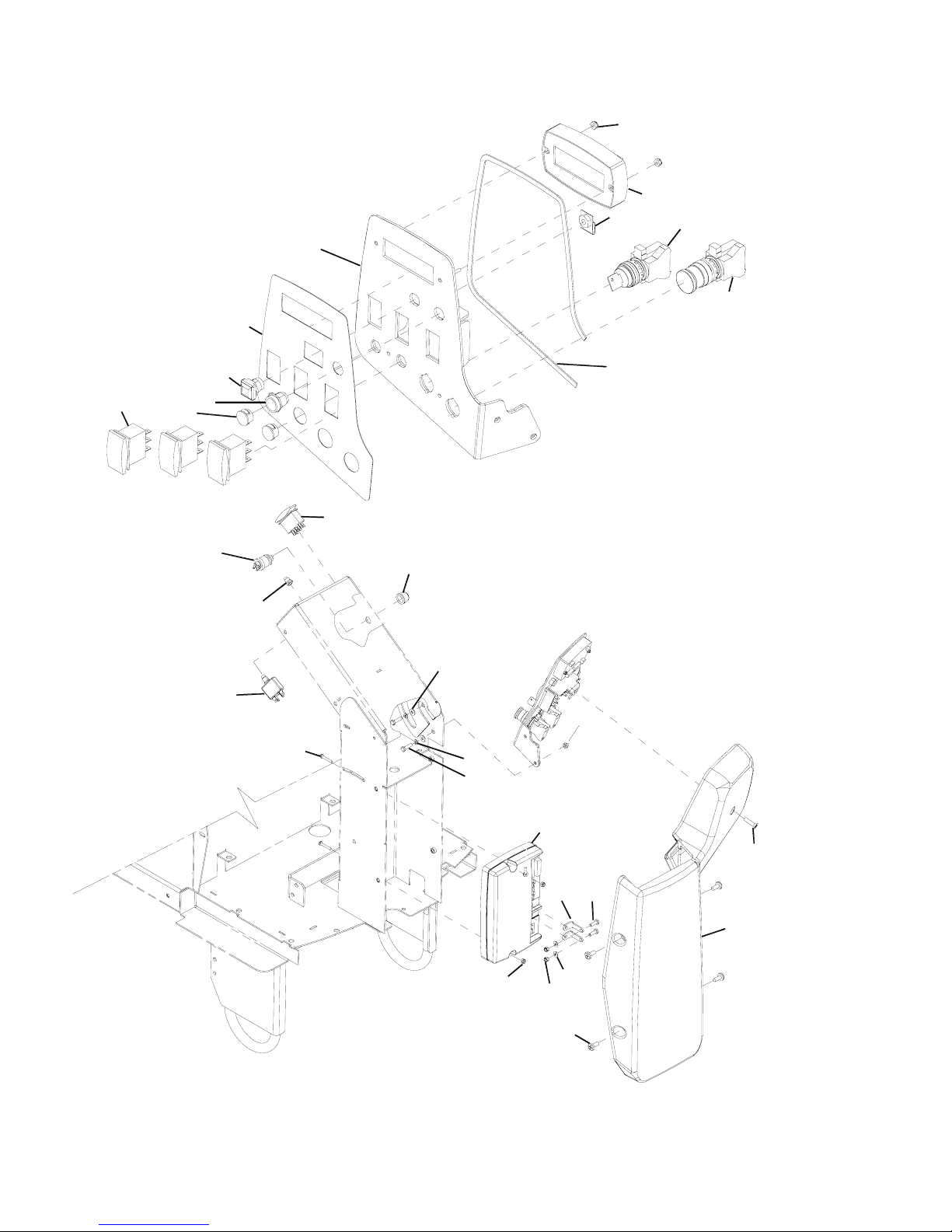

CONTROL PANEL

86037580 GLIDE 01/03/07

5-5

21 22 23

16A

16C

16B

16D

CONTROL PANEL

86037580 GLIDE 11/05/08

5-6

REF PART NO. PRV

NO. QTY DESCRIPTION SERIAL NO.

FROM NOTES:

1 86270920 57049 2 NUT, 6-32 HEX NYLOCK SS

2 86005550 54183 1 MODULE, LCD

3A 86007190 72161 1 SWITCH, KEY DPST

3B 86004860 48073 REF KEY SERVICE ONLY

4 86007180 72160 1 SWITCH, EMERGENCY STOP

5 86257280 81371 1 SWITCH, PUSH BUTTON

6 86271820 57270 1 NUT, 5/16-18 CAPTIVE “J” PLTD

7 86238000 36216 1 GASKET, .06T X .25W X 26.5L

8 86093320 66364 1 PANEL CONTROL

9 86270990 57090 2 NUT, 10-32 HEX NYLOCK SS

10 86276900 70753 1 SCR, 5/16-18 X 1-1/4 PFHMS SS

11 86003230 27936 1 COVER, FRONT SMALL RIDER

12 86276890 70752 4 SCR, 5/16-18 X 3/4 PTHMS SS

13 86271910 57295 2 NUT, 5/16-18 FLEXLOCK

14 86010670 87029 2 WASHER, 5/16 FLAT SS

15 86068850 140219 2 BRACKET, CABLE ATTACH *(1)

16A 86002660 270070 1 CONTROLLER, GLIDE 28/32 28 IN & 32 IN,

WAS 27950

16B 86002670 270071 1 CONTROLLER, GLIDE 36 36 IN, WAS

27967

16C 86002680 270072 1 CONTROLLER, GLIDE 28/32 GEL

28 IN & 32 IN

WITH SEALED

BATTERIES,

WAS 27972

16D 86027700 270075 1 CONTROLLER, GLIDE 36 GEL

36 IN WITH

SEALED

BATTERIES,

WAS 270009

17 86274410 70195 2 SCR, 10-32 X 1.25 SS

18 86273810 70018 2 SCR, 1/4-20 X 1 HHCS SS

19 86010780 87162 2 WASHER, 1/4 SPLIT LOCK

20 86010630 87013 2 WASHER, 1/4ID X 5/8 OD SS

21 86007520 730142 3 SWITCH, SPDT 3-POSITION MOM

22 86250190 66365 2 PLUG, DD .625-.550

23 86007480 730124 1 SWITCH ASM, SEALED

PUSHBUTTON

24 86007470 730123 1 SWITCH ASM, SEALED PUSH SQ

25 86243510 500563 REF LABEL, CONTROL PANEL

26 86007210 72165 1 SWITCH, DPDT 3-POSITION

ROCKER 36 IN. ONLY

27 86002010 14942 1 BOOT, 3/8 CIRCUIT BREAKER 36 IN. ONLY

28 86001450 140541 1 BREAKER, 2A 250VAC, 50VDC 36 IN. ONLY

29 86271940 57299 1 NUT, 1/4-20 ACORN SS

30 86275760 70540 2 SCR, 5/16-18 X 1 HHCS GR8 PLTD *(1)

*SEE SERIAL NUMBER PAGE.

DECAL GROUP

86037580 GLIDE 01/03/07

5-7

3 6

DECAL GROUP

86037580 GLIDE 01/03/07

5-8

REF PART NO. PRV

NO. QTY DESCRIPTION SERIAL NO.

FROM NOTES:

1 86004970 50990 1 LABEL, WINDSOR LOGO DOMED

2 86243510 500563 1 LABEL, CONTROL PANEL

3 86243570 500574 2 LABEL, GLIDE

4 86243500 500562 1 LABEL, SRS CHARGING

5A 86244130 500859 1 LABEL, CIRCUIT BREAKER GLIDE 28 IN & 32 IN

5B 86244140 500861 1 LABEL, CIRCUIT BREAKER 36 SRS 36 IN.

6 86248210 81349 1 OVERLAY, HORN

7 86243580 500575 1 LABEL, SOLUTION FILL GLIDE

8 86243810 500651 1 LABEL, DECK SHIFT 36 INCH 36 IN. ONLY

9 86243830 500662 1 LABEL, COVER SMALL RIDER

NOTE: SEE “SAFETY LABEL LOCATION” PAGE FOR SAFETY LABEL INFORMATION.

FRONT BUMPER & FLOOR

86037580 GLIDE 01/03/07

5-9
