Windsor Clipper Duo User manual

OPERATION

Clipper

WINDSOR

01)

Install jets and brush.

05)

Adjust handle for push or pull

cleaning and operator height.

04) For spotting:

Hook up vacuum

line, solution line, and tool if

necessary.

02)

Fill solution tank with extraction

rinse or fresh water and replace

the lid properly. The notch on the

lid should match up with the notch

in the tank.

06) Turn on brush motor.

03)

Make sure that all three prongs

are on the main body of the cord.

iFone oF the prongs is missing, notiFy

your supervisor. Plug in to outlet and

machine cord and twist to lock.

07) Starting at the highest set-

ting, adjust brush height set-

ting by setting until you hear

the brush hit the carpet.

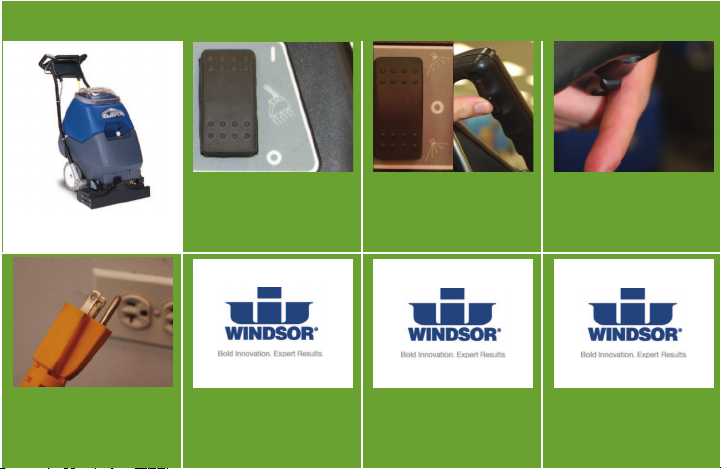

OPERATION

Clipper

WINDSOR

08)

Turn on the vacuum motor.

11) Unplug the cord from the

wall when nished.

09)

Choose continuous or intermit-

tent spray. Press buttons on

handle to control spray on

intermittent mode.

10) Overlap 2-3” on ever pass, and

on intermittent spray release

button and continue pulling

for 1 foot before making a

new pass.

MAINTENANCE

Clipper

WINDSOR

01) Drain recovery tank and

solution tank.

05) inspeCt brush:

When the black

brush bristles reach the height

of the yellow indicator bristles

replace the brush.

04) Clean the brush and

vacuum shoe.

02)

Rinse and clean recovery tank.

06) Store brush in the recovery

tank with the bearing side

up and vent the recovery

tank dome to let dry.

03) Clean the oat shut off.

07) Soak spray jets in a solu-

tion of water and vinegar

overnight.
