ASSEMBLY INSTRUCTIONS
HERITAGE SINGLE GLIDER
330-893-4212 • www.wildridge.com LCC-106
© 2019
E
F
E
F

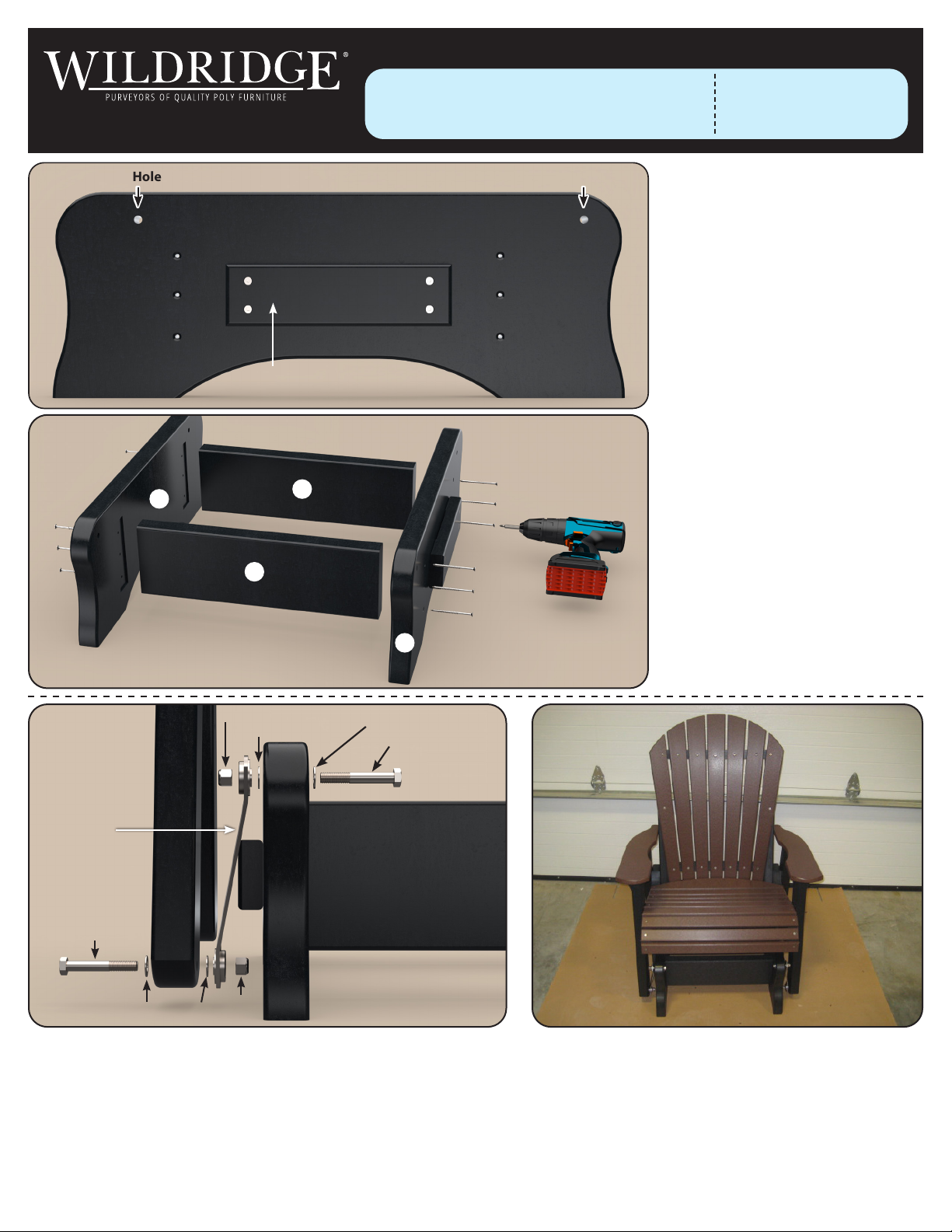

Step 2
Pictured top left is a single base piece
to use as reference.
Please note
the hole placement
dierence in the ends of both of the
base pieces (E). Both base pieces will
have the same hole conguration, and
should be placed so the matching sides
on the base pieces are both facing the
same direction. Glider bracket hole
closest to end of base goes towards the
front of the glider and the other end
will go towards the back of the glider.
The screws will go through the three
holes that are to the left and three
holes to the right of the pre-attached
board on the base pieces Do not put
the screws in the holes on the top of
the base pieces, those holes are for the
glider bracket hardware used later.
Turn the base pieces (E) so the pre-
attached boards face outward, then
place the cross members (F) into the
notches on the base and attach them
using (12) 2-1/2” screws, six per side.
Note: As noted in rst pic, the front of
the base will be the front of the glider
when you are assembling the base and
glider in step 4.
3/8” x 2 1/2”
Machine Bolt
3/8”Washer
3/8” Locknut
Glider
Bracket
will curve
away from
base. Base
3/8”Washer
3/8” x 2 1/2”
Machine Bolt
3/8”Washer
Leg
3/8”
Locknut
This pre-attached board will
face towards the outside of the chair.
This End
Goes
Towards
Front Of
Glider
This End
Goes
Towards
Back Of
Glider
Hole for Glider BracketHole for Glider Bracket
TOP OF BASE
Step 3
You will need (1) glider bracket and the hardware: (2) 3/8”x2 1/2” machine bolts, (4) 3/8” washers and (2) 3/8” locknut. This will be for the
installation of one glider bracket in the front of the glider.
Using the picture above left as a reference, install the hardware and glider bracket to the front of the base (note where the hole placement
is to determine the front of the base as shown in step 3). For it to glide correctly the hardware must be placed in the order that is pictured
above. Using the glider bracket and the hardware, install the hardware through the top hole of the glider base and fasten to the glider
bracket in the order shown. Next, locate the glider assembly (seat/backrest/arm-leg assembly you put together earlier) and place it onto
the base, as shown above right, then fasten the leg to the bottom of the glider bracket, installing the hardware in the order that is pictured
above left. Repeat this same process on the remaining three legs. Your glider is now complete.
