Whites Vision Spectra User manual

Vision™

Field Guide

all you need to know

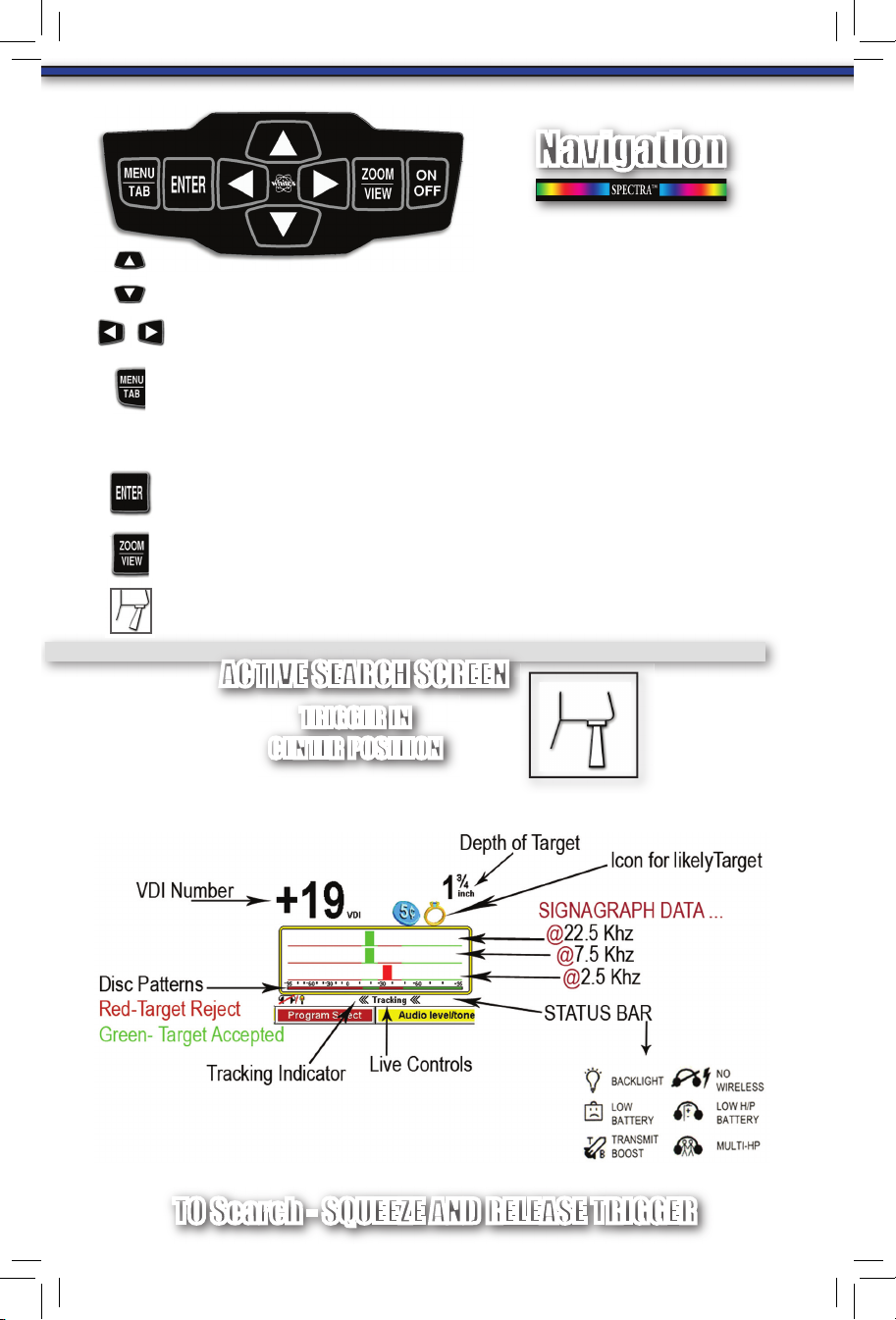

Navigation

TO Search - SQUEEZE AND RELEASE TRIGGER

UP/DOWN moves the Cusor vertical to select from a list.

SIDE/SIDE moves the highlighted selection horizontally.

MENU/TAB brings up menu or moves the Cursor to the next item or

selection on the screen. Selection is highighted.

MENU/TAB x2 brings up information screen. Includes backlight and

advanced menu (see page 11).

ENTER selects the option.

ZOOM/VIEW increases text size or provides more detailed Menu.

ACTIVE SEARCH SCREEN

TRIGGER IN

CENTER POSITION

BACKUP or ESCAPE squeeze and release trigger from any Menu or

control.

Navigation

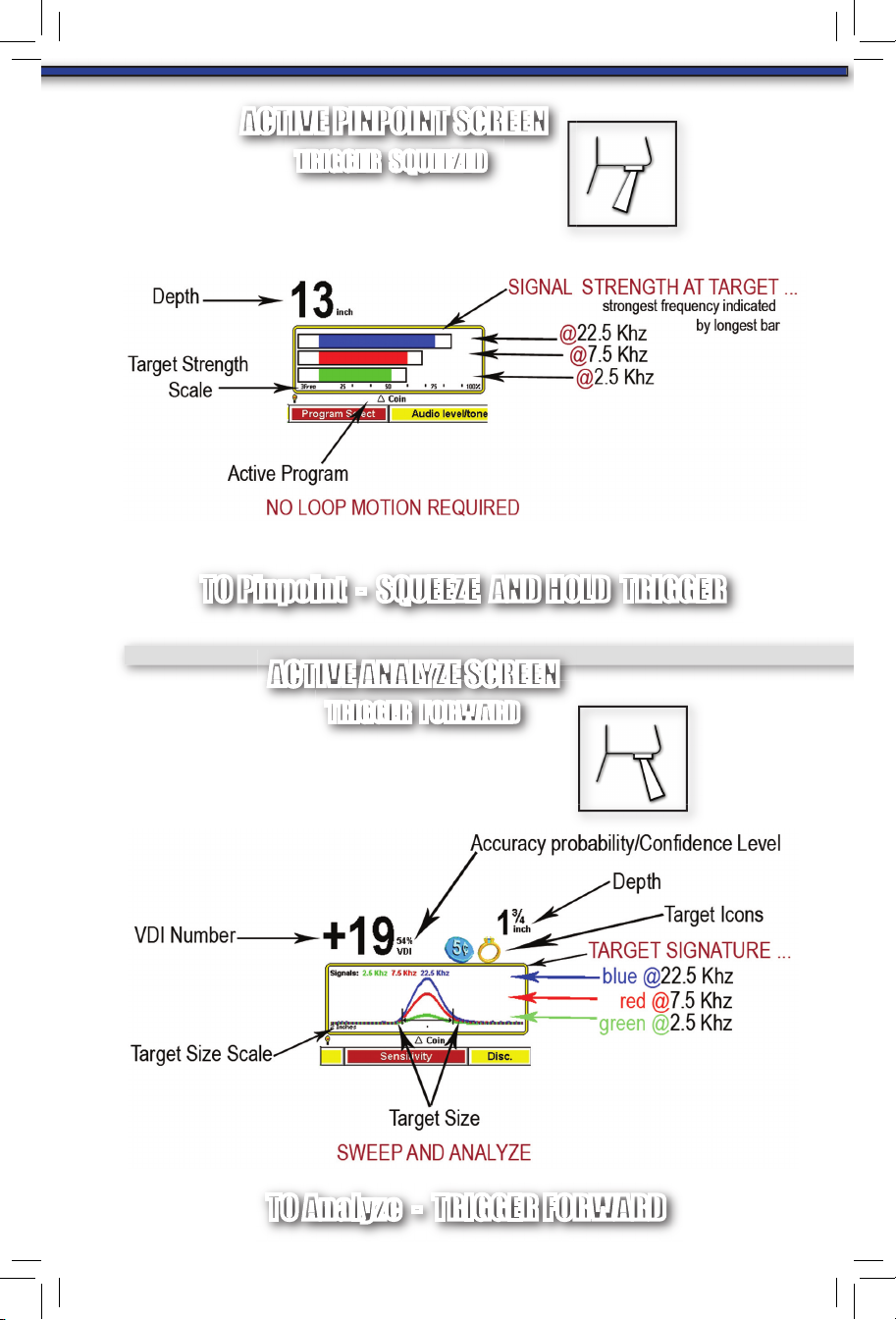

TO Pinpoint - SQUEEZE AND HOLD TRIGGER

ACTIVE PINPOINT SCREEN

TRIGGER SQUEEZED

ACTIVE ANALYZE SCREEN

TRIGGER FORWARD

TO Analyze - TRIGGER FORWARD

The Live Control Bar across the bot-

tom of the display for quick and easy

on-the-fly adjustment. Vision continues

to operate normally while these settings

are being changed. Use to

highlight a control item, to adjust, or press

to pop up the control. Press to

expand the content. Detector continues to

operate to allow for perfect adjustments.

Coin - Aggressively rejects pull-tabs and trash. Responds to most coins and some rings.

Coin & Jewelry - Less trash reject - accepts aluminum, responds to most jewelry coins

and rings.

Salt Beach -Salt subtraction method. Rejects iron and some trash. Accepts aluminum,

responds to most jewelry coins and rings.

Relic - Accepts Civil and Revolutionary War relics, small iron reject, large iron accepted.

Prospecting - Accepts Gold, Silver and Copper nuggets. Iron ID Uses VCO audio,

SAT and aggressive ground reject.

Deep Silver - Accepts very high range VDI numbers. Allows max detection of deep

Silver targets.

High Trash – High trash rejection for heavy use in public areas.

Hi Pro - Minimum audio trash reject. Display used for target ID - very high gain levels.

May be unstable in some areas.

Mixed Mode Pro - Combines Audio from Discrimination and All Metal modes plus

Hi Pro options.

Meterorite - Detects nickel/iron specific to meteorites by accepting negative VDI

numbers. Most other targets rejected.

Common - Contains Demo Program. Further options in Expert Menu.

Restore - Returns selected Program to factory settings. Use Menu/Tab to select

Push Enter to restore. See back cover.

More in “Complete Owner’s Guide

USING LIVE CONTROLS -

Programs

Sensitivity

Sensitivty Zoomed

Programs - Sensitivity -

Audio - Discrimination -Frequency -

Ground Balance/Tracking

Sensitivty Live Control used as EXAMPLE

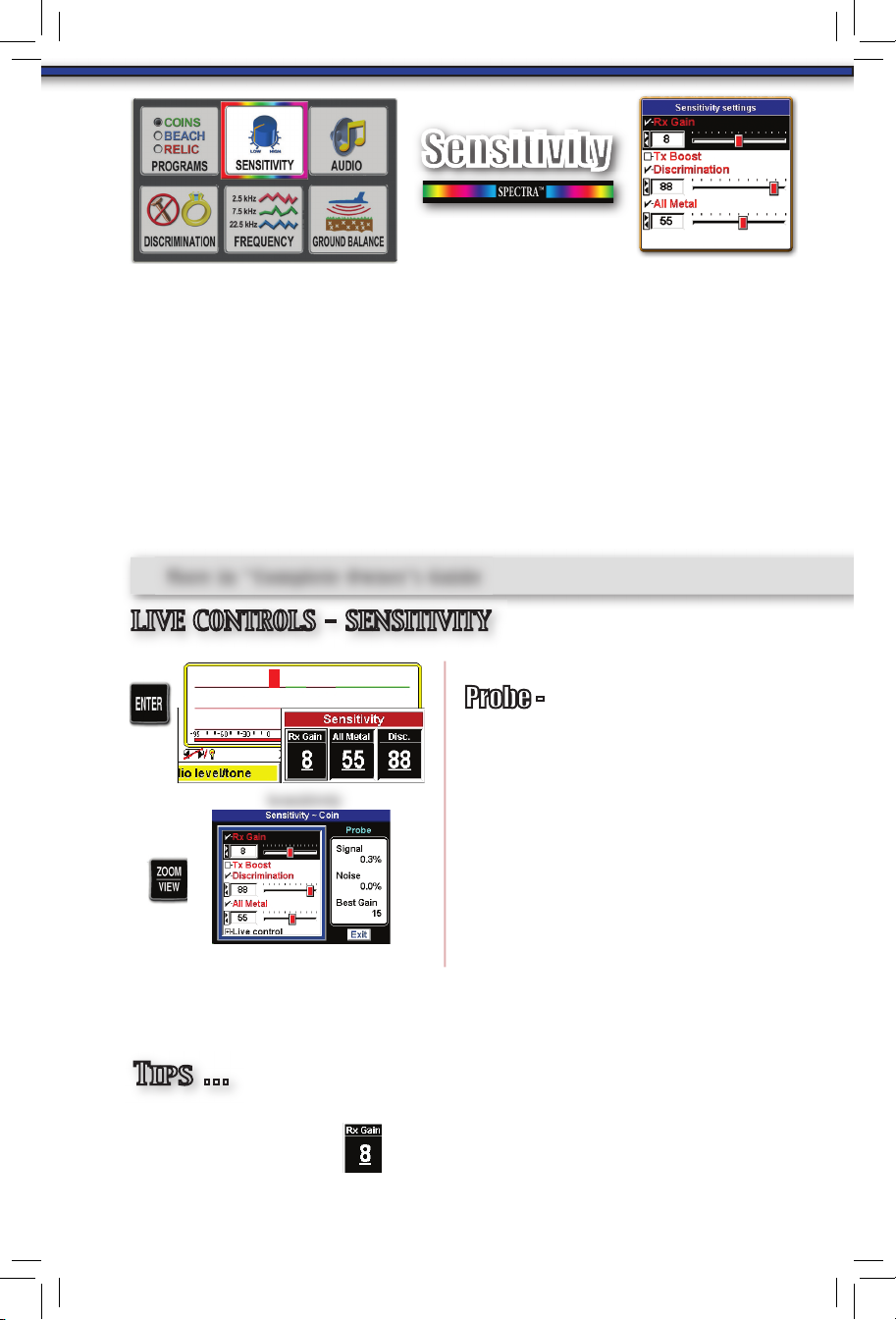

Rx Gain – (Pre-Amp) Adjusts receive signal amplification. Affects sensitivity, depth,

and external noise.

Tx Boost – Boosts transmit signal for use in low mineral ground.

CAUTION - prolonged use will increase battery drain.

Discrimination – Adjust post amp signal strength after discrimination filter process.

All Metal - Adjust detection signal in All Metal circuit. Effects depth and width of

target response.

Sensitivity

Tips ...

LIVE CONTROLS - SENSITIVITY

Sensitivity

Sensitivty Zoomed

Probe -

Percentage indicator of signal to noise

ratio and a Best Gain calulation for MAX

performance.

a. Signal % = return from ground.

b. Noise % = external electrical noise.

c. Best Gain = RX Gain reasonable level

(considering all other current settings).

With the loop on the ground, note “Best

Gain”. Adjust RX Gain to match.

The “preset” factory program settings are always marked with a checkmark or

the value is underlined.

More in “Complete Owner’s Guide

Wireless Headphones -

(Select from Zoom Audio)

• Push Enter to enable x

• Menu/Tab to Connect

• Press Enter

• “Help Balloon” prompt -

• Headphone connected when DONE is

displayed.

Target Volume – Adjust how loud a metal target “beeps”.

Audio Threshold – Adjust volume level of Threshold (slight background hum).

Tone –Target Tone or Pitch. (the “beep” a metal target produces).

Threshold Tone or Pitch -Tone or pitch of the Threshold.

Tone ID – When activated produces a progressively higher pitch keyed to VDI

number.

Wireless Headphone - SEE BELOW

Audio

Audio Zoomed

Tips ...

Audio

LIVE CONTROLS - AUDIO

Waiting fo headphone.

Press and hold Headphone Power

Button.

Press the soft rubber pad on the side of the headphone.

Headphone is ON when you hear

Headphone is OFF when you hear

T i p s . . .

More in “Complete Owner’s Guide

Tips ...

Discrimination Accept / Reject – Custom setting accept or reject for VDI range.

“X” Box = Accept (detected) - Empty Box = Reject.

Bottle Cap Reject –Adjust level of Bottle cap signal response.

Hot Rock – Adjust rejection level of negative pebbles and rocks that are not

silenced by the ground balance system and would sound like targets.

Ground Filter -

Selects one combination set of:

Sweep speeds- Slowest 5.0HZ-7.5HZ-10HZ-12.5HZ (Fastest)

Pass filters- High for moderate to high mineralized ground or

Band for lower mineralized ground

Select 10HZ-High for best all around performance.

CAUTION - activation of bottle cap or hot rock controls may cause good targets to

break up and/or reject.

LIVE CONTROLS - DISCRIMINATION

Discrimination

Discrimiation Zoomed

Discrimination

Zoom Discrimination -

Visual Reject, VDI

Select, and Icons

Advanced and custom

Discrimination selections

from several methods

and menus. Icons can be

selected from three sets - Park, Relic

and Prospecting. Use Help Balloons

(trigger forward) and advanced manual

for more information.

More in “Complete Owner’s Guide

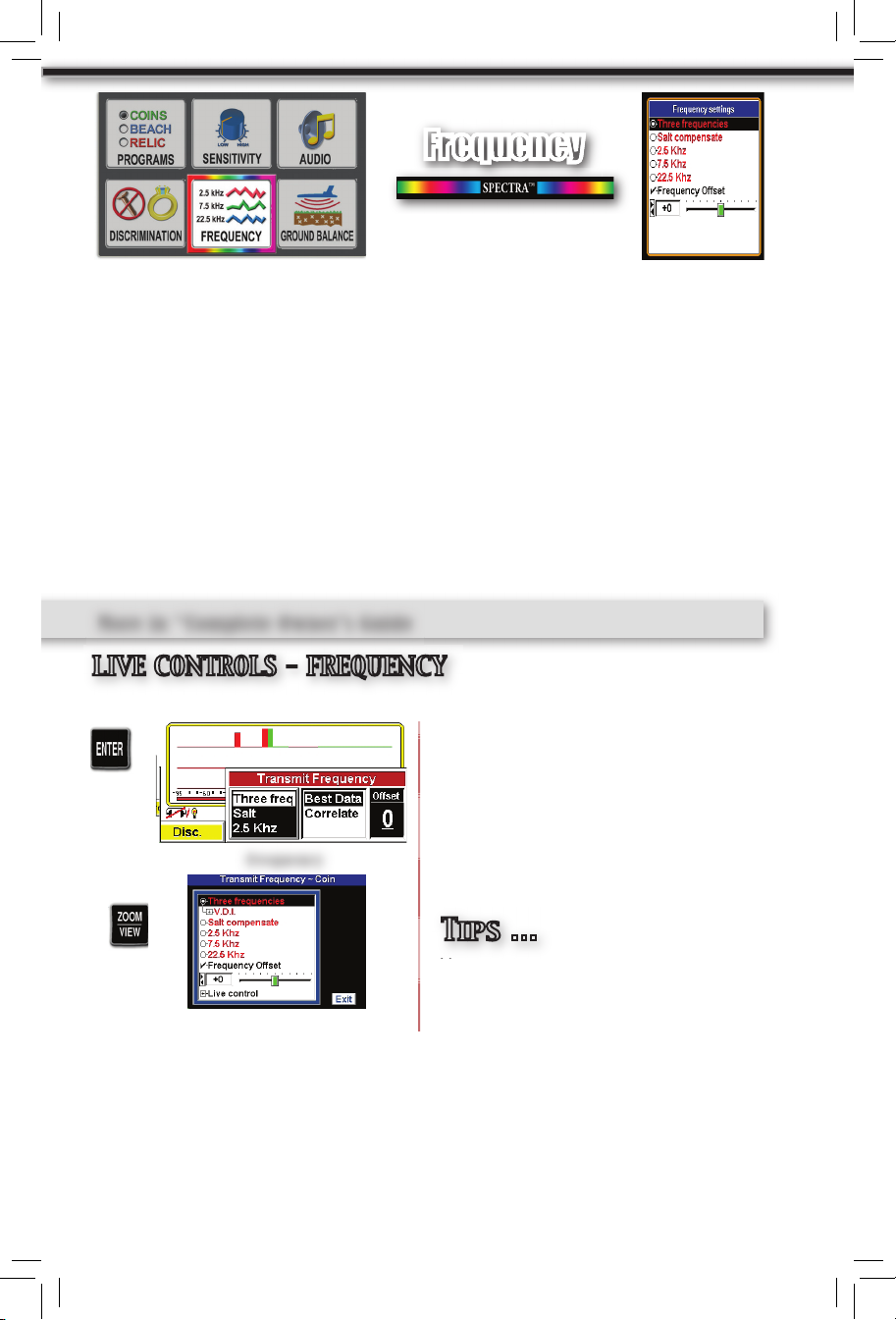

Three Frequencies – Best choice for general use. Transmits and receives

2.5 KHz-7.5 KHz and 22.5 KHz at the same time.

Salt Compensate – Receives and displays all frequencies. Uses subtraction

method for saltwater balance.

2.5 KHz – Single frequency. More sensitive to high conductive metals,

Silver/Copper.

7.5 KHz – Single frequency. Sensitive to all types of metals.

22.5 KHz – Single frequency. Most sensitive to small and/or low conductive metal,

Gold/Nickel.

Frequency Offset - Tunes out unwanted external signals by selecting one of 5

positive or 5 negative offsets. Aids in avoiding other metal detector signals and

other electrical interference. Offsets apply to single or combined frequencies.

LIVE CONTROLS - FREQUENCY

Frequency

Frequency Zoomed

Frequency

Zoomed Frequency Control -

• Allows advanced frequency methods

and display.

• Use “Help Balloons”, (Trigger forward),

and advanced manual for more infor-

mation.

Using a single frequency can increase

the sensitivity to certain classes of met-

als by concentrating all availale energy to

a single transmit frequency.

U s i n g a s i n g l e f r e q u e n c y c a n i n c r e a s e

Tips ...

Moreover, 22.5 Khz is more sensitive to small and low-conductive targets like

gold. 2.5 Khz works best for high-conductive targets like silver coins. Preset

progams Prospecting and Deep Silver use the single frequency method. (Pros-

pecting 22.5 Khz and Deep Silver 2.5 Khz.) When changing frequencies a

re-adjustment of Sensitivity may be necessary.

More in “Complete Owner’s Guide

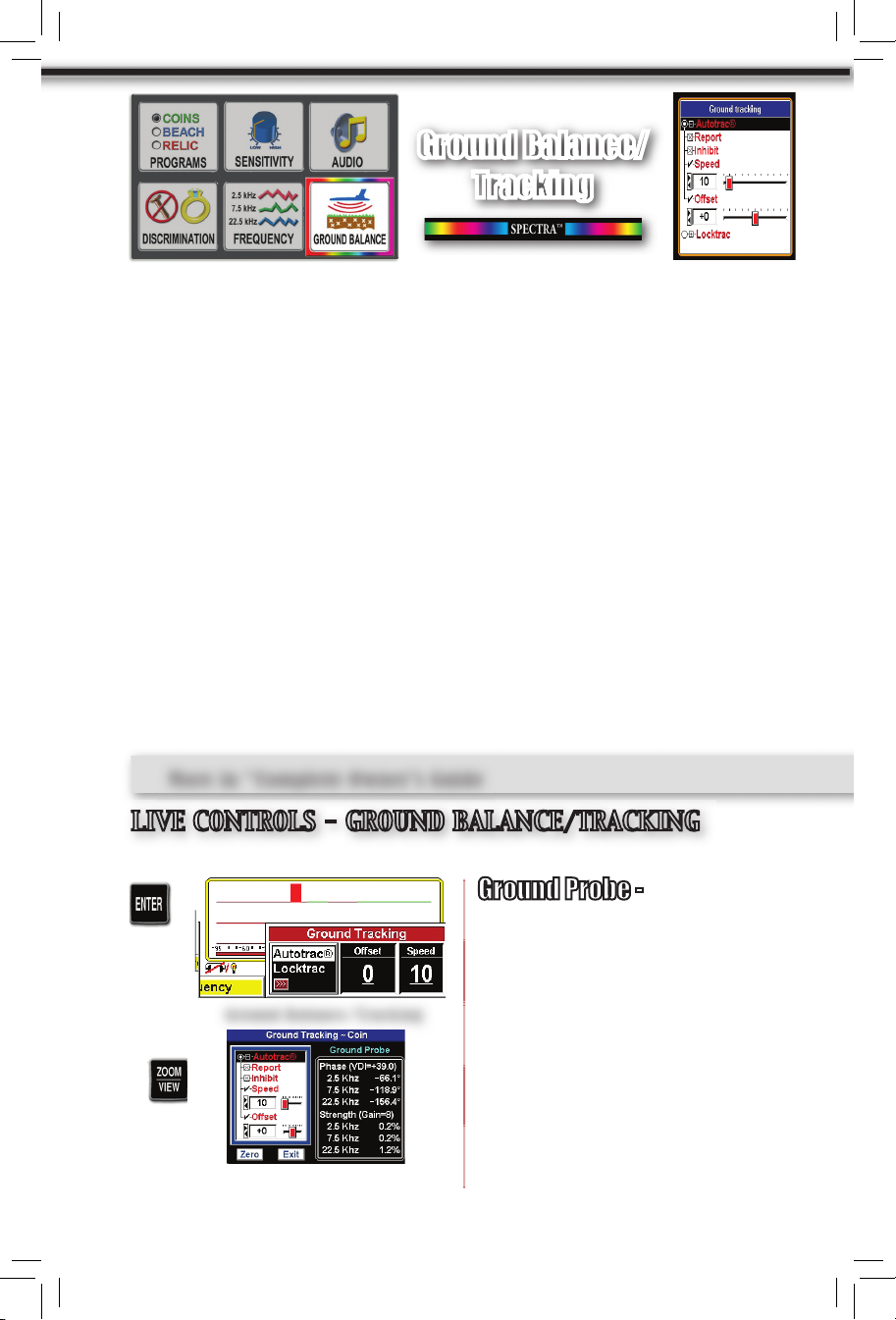

For best results, instrument start up should be followed by a manual ground balance.

Pull and hold trigger, then press and hold enter while pumping loop up and down

over the ground until threshold is smooth. Release enter then release trigger. Also

helpful as an option to check tracking from any search mode.

Report - ON (“X” in box) Activates ground tracking indicator arrows on display reports

(indicates) the automatic increasing or decreasing of the ground balance point.

Inhibit – ON (“X” in box) When on, delays the point automatic tracking begins to ad-

just to the ground. Helps in iron infested ground. Use off in widely variable ground

with little or no iron to allow immediate tracking.

Speed – Adjust the rate of ground tracking – higher numbers “track” faster to

changes in the ground.

Offset – Manually moves ground balance point from perfect balance. Positive offset

often used in highly mineralized ground to enhance conductive (gold, silver, coins)

targets.

Locktrac – Locks ground setting. Turns off all tracking. Turn ON and use manual

method above. Best used for repeatable responses on very deep targets, and rejec-

tion of difficult minerals.

LIVE CONTROLS - GROUND BALANCE/TRACKING

Ground Balance/Tracking

Ground Balance/Tracking Zoomed

Ground Balance/

Tracking

Ground Probe -

Provides helpful information -

• To determine the severity of ground

(weak ground vs strong ground).

• Targets can also be analyzed for VDI

number, phase and target strength at

each frequency. To use - (from Zoomed

Live Control) Menu/Tab to Zero and press

Enter with loop in air. Hold loop on the

ground or target to read results.

More in “Complete Owner’s Guide

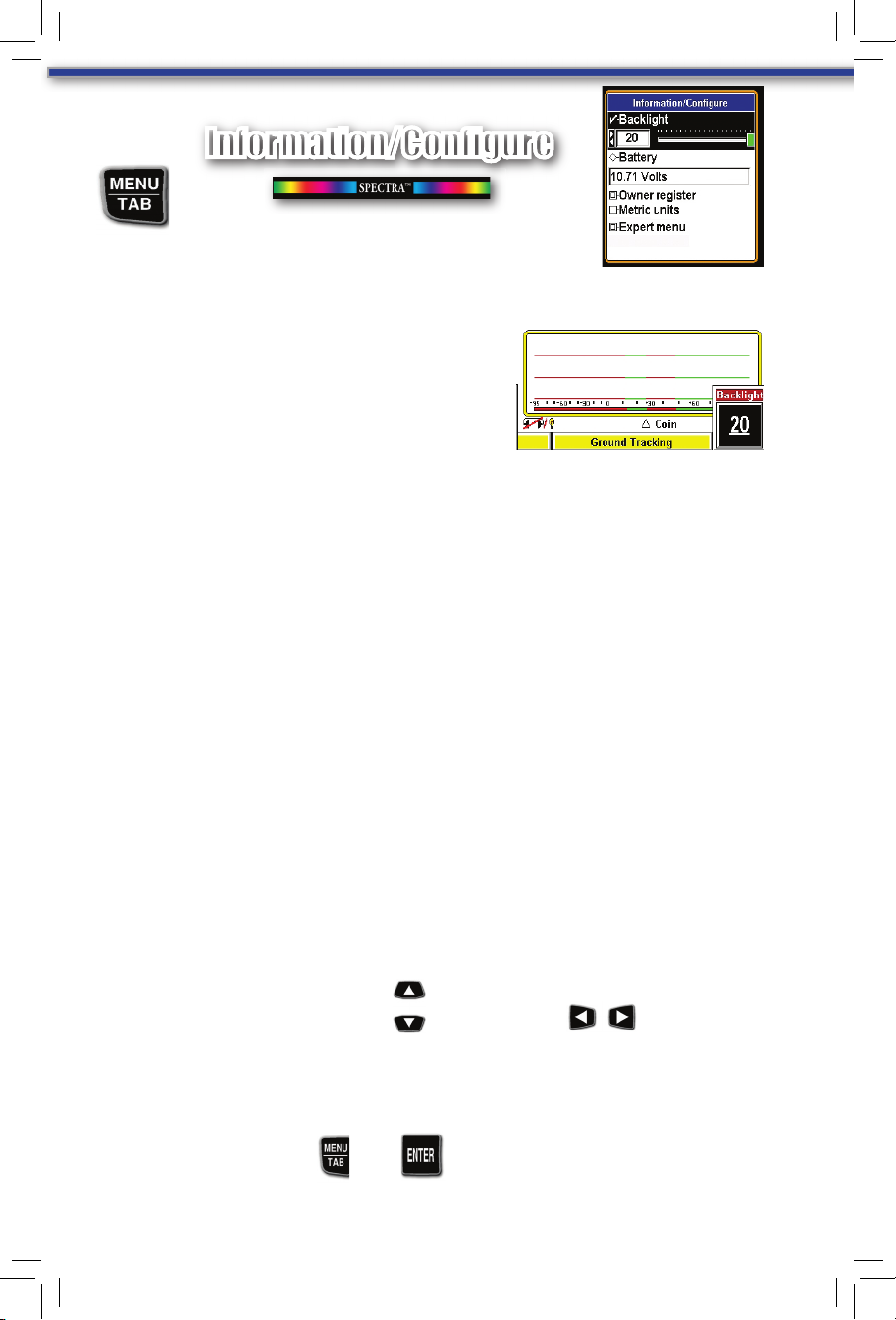

To access Information/Configure press MENU twice in succession. To Exit squeeze

and release trigger on hand grip twice.

Backlight - Backlight level - 0 = OFF, 20 = BRIGHT.

CAUTION - Backlight use will cause a slight increase

in battery drain.

Battery - Check battery voltage. Charge or replace soon at 8V or less.

Owner Registration - Embeds owner name and contact info.

To Register -

Tab to “owner’s name”. Use to select letters - lower case and

upper case. To backup, squeeze trigger and “write over”. To space,

choose any blank space and press enter.

NOTE: Record your units unique password and serial number in a safe place.

To protect the owner, the password will not be visable after registration is

complete - and plus to save.

Metric Units - Selects Metric Units.

Standard Battery - The standard battery holder holds eight “AA” cell batteries.

Alkaline batteries are recommended

NiMH Rechargeable Battery - The included “Smart Charger” senses the type

of charge the battery needs and automatically adjusts the charge cycle. From

fully low this system provides a full charge in as little as 2-3 hours. A full charge

will last 6-12 hours of normal use An “Unhappy Battery Icon” will automatically

appear on the search display when the battery approaches eight volts. When

the battery voltage gets exceedingly low, Vision will begin to act erratically and

automatically shut down.

Charging - To charge the NiMH battery pack, plug the charger into a standard

wall outlet. (110 volts for USA models, 220 volts for UK models). Green light

should glow. Insert the battery pack into the cradle and plug the charger plug into

the back of the cradle. Red light should glow. During charge it is normal for the

battery and charger to get warm. If either gets hot or deforms due to the heat,

discontinue use and return for testing. When the red light goes off the battery

is fully charged and ready for use. Leaving the battery in the charger for longer

periods does no harm.

Information/Conﬁgure

Table of contents

Other Whites Metal Detector manuals

Whites

Whites Liberty i User manual

Whites

Whites GOLDMASTER Series User manual

Whites

Whites The Classic ID User manual

Whites

Whites Coinmaster IV Specifications

Whites

Whites Alaskan Discriminator User manual

Whites

Whites Spectra V3 User manual

Whites

Whites Conquistador 200 Specifications

Whites

Whites Goldmaster Alascan 73 TR-4B Specifications

Whites

Whites Eagle User manual

Whites

Whites Coinmaster 5500/D Series 3 User manual

Whites

Whites Treasuremaster Amphibian Specifications

Whites

Whites V3 User manual

Whites

Whites Logmaster User manual

Whites

Whites Goldmaster 66TR-4B User manual

Whites

Whites Coinmaster 2900 Series 3 User manual

Whites

Whites COINMASTER 2500/D User manual

Whites

Whites Lawman L-4 Specifications

Whites

Whites Nuggetmaster T.R. Specifications

Whites

Whites Classic 5ID User manual

Whites

Whites Goldmaster User manual

Whites

Whites BeachHunder ID User manual

Whites

Whites DXF User manual

Whites

Whites BULLSEYE TRX User manual

Whites

Whites Beachcomber G.E.B. User manual

Popular Metal Detector manuals by other brands

Garrett

Garrett MAGNASCANNER CS 5000 owner's manual

Valex

Valex 1800200 Use and maintenance manual

Gauss

Gauss MIL MD operating manual

Velleman

Velleman CS130 user manual

Sears

Sears 321.596370 owner's manual

Eriez

Eriez X8 reference guide

Steinberg Systems

Steinberg Systems SBS-MD-22 user manual

Zircon

Zircon MetalliScanner m60c instructions

nalanda

nalanda MD027 owner's manual

REV Ritter

REV Ritter CB-7005 instruction manual

Minelab

Minelab F1A4 Service manual

Fisher Research Labs

Fisher Research Labs F70 user manual

Steinberg Systems

Steinberg Systems SBS-MD-12 user manual

GOLDEN MASK

GOLDEN MASK 5 user guide

Grizzly

Grizzly YM 203 manual

Fisher Research Labs

Fisher Research Labs 1280-X Aquanaut operating manual

Treasure Cove

Treasure Cove Vibra-Probe 560 quick guide

Accurate Locators

Accurate Locators XL16 IMAGER user guide
