Whirlpool RH2630XJB2 User manual

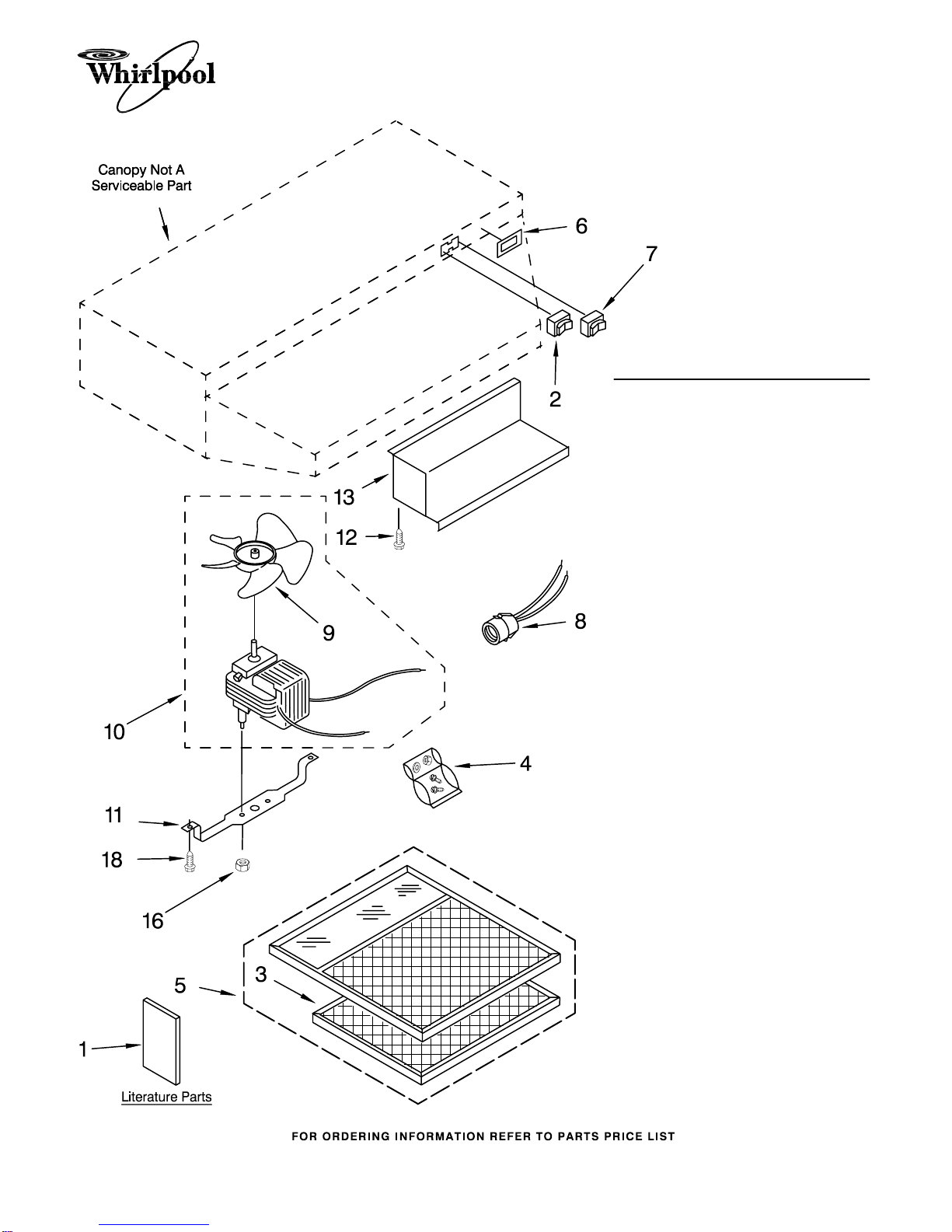

RANGE HOOD PARTS

1

For Model: RH2630XJQ2, RH2630XJZ2, RH2630XJB2, RH2630XJT2

(Designer White) (Almond) (Black) (Biscuit)

11−05 Litho in U.S.A. (jac) Part No. 8191085

30" RANGE HOOD

(Ductless)

(Use with Gas or Electric Range)

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9763371 Instructions,

Installation

883184 Wiring Diagram

2 Switch, Light

8189843 White Model

8189845 Black Model

8189844 Almond Model

8189846 Biscuit

3 883151 Pad, Charcoal

(Replacement

Package Of 3)

4 883185 Hardware,

Installation

5 883149 Filter, With Lens

6 Nameplate

8189511 White Model

8189512 Almond Model

8189513 Black Model

8189514 Biscuit

7 Switch, Fan

8189847 White Model

8189849 Black Model

8189848 Almond Model

8189850 Biscuit

8 883094 Light Socket

9 883381 Blade, Fan

10 883377 Motor/Blade Assy

11 883397 Bracket, Motor

12 830465 Screw, 8 x 1/4

13 Cover, wiring

883095 White

883096 Almond/Biscuit

883169 Black

16 883353 Nut, 6−32 (2)

18 883354 Screw,

8−32 x 1/4 (2)
