Whirlpool IN600S User manual

Home Appliances

IN600S/IN900S

Instruction Manual

CHARACTERISTICS

Dimensions

Components

Hood Type IN600S IN900S

598 898

Ref. Q.ty

Product Component

1Hood Body, co plete with: Controls, Light,

Blower, Filters

1Directional Air Outlet grille

1Reducer Flange ø 150-120

1Closing ele ent

Ref. Q.ty

In tallation Component

12a

4Screws 4,2 x 44,4

12e

2Screws 2,9 x 9,5

Q.ty

Documentation

1Instruction Manual

0÷152

280

260

ø 150

12e

12a

ELECTRICAL CONNECTION

•Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

•When opening the sliding carriage for the first time after installing the hood, pull it out briskly until it

clicks.

USE

Control panel

Light Switches the lighting system on

and off

Light Switches the lighting system on

and off

Motor Switches the extractor motor on

and off

Motor Switches the extractor motor on

and off

Speed Sets the operating speed of the ex-

tractor:

1. Low speed, used for a contin-

uous and silent air change in

the presence of light cooking

vapour.

2. Medium speed, suitable for

most operating conditions

given the optimum treated air

flow/noise level ratio.

3. Maximum speed, used for

eliminating the highest cook-

ing vapour emission, includ-

ing long periods

Speed Sets the operating speed of the ex-

tractor:

I. Low speed, used for a contin-

uous and silent air change in

the presence of light cooking

vapour.

II. Maximum speed, used for

eliminating the highest cook-

ing vapour emission, includ-

ing long periods

M-V

M - V

MAINTENANCE

Grease filters

CLEANING METAL SELF-SUPPORTING GREASE FILTERS

CLEANING MULTILAYER METAL GREASE FILTERS

REPLACING SYNTHETIC GREASE FILTER

The filters must be cleaned every 2 months of oper-

ation, or more frequently with heavy usage, and can

be washed in a dishwasher.

•Remove the filters one at a time, after

disconnecting the relative fastening elements.

•Wash the filters, taking care not to bend them.

Allow them to dry before refitting.

•When refitting the filters, make sure that the

handle is visible on the outside.

The filters must be cleaned every 2 months of oper-

ation, or more frequently with heavy usage, and can

be washed in a dishwasher.

•Release the filter retaining grill using the lateral

sliding handles.

•Remove the filter retaining clips.

•Remove and wash the filters. Allow them to dry

before refitting.

•Replace the filters on the grill, fix them in

position using the filter retaining clips and close

the filter retaining grill.

The filter is not washable and cannot be regenerat-

ed, and must be replaced every 2 months of use, or

more frequently with heavy usage.

•Release the filter holder frame using the lateral

sliding handles.

•Remove the fIlter retaining clips.

•Replace the saturated synthetic filter.

•Fix the new synthetic filter using the retaining

clips and close the filter holder frame.

Odour filters (Recirculation version)

REPLACING ACTIVATED CHARCOAL FILTERS

These filters are not washable and cannot be regen-

erated, and must be replaced every 4 months of op-

eration, or more frequently with heavy usage.

•Remove the grease filters.

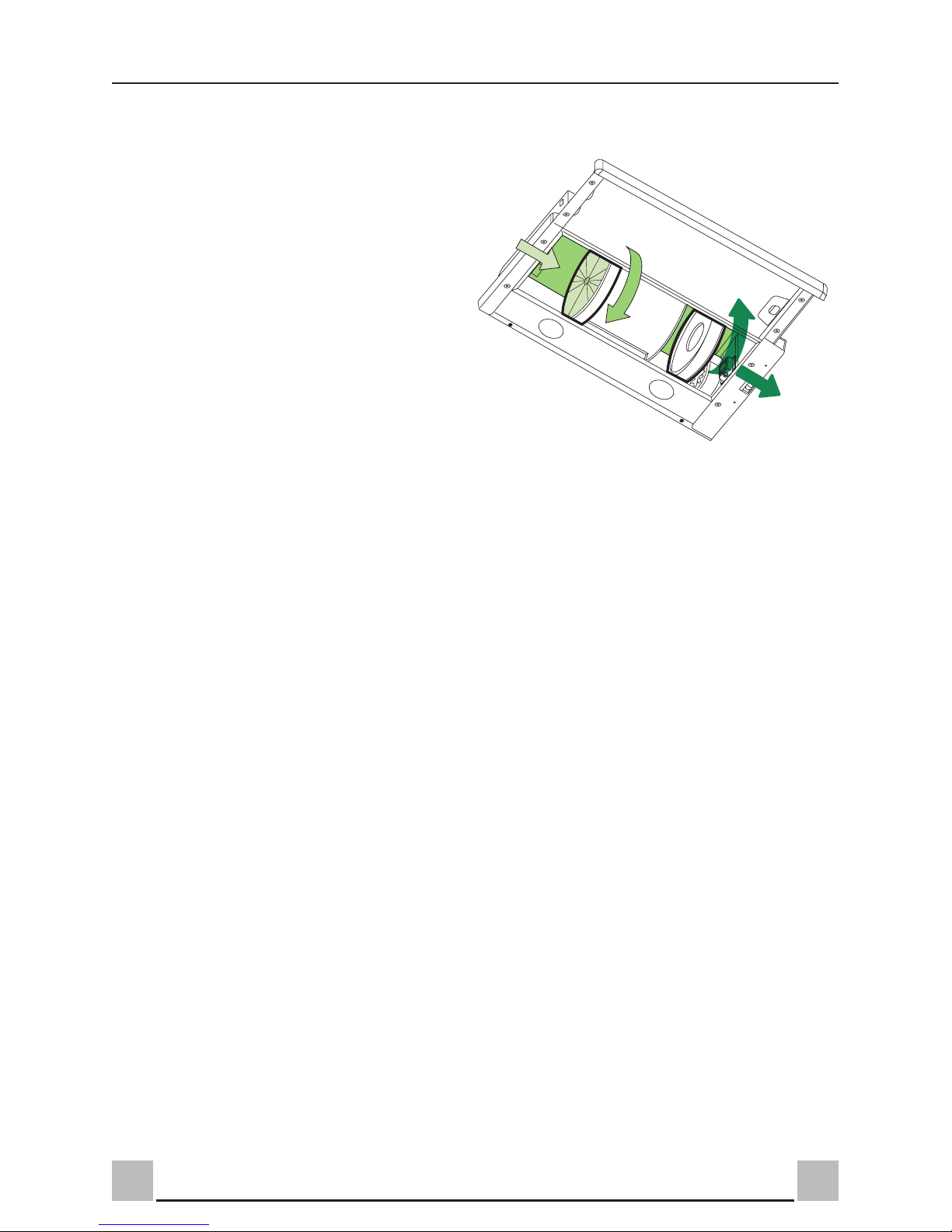

•Removethesaturatedactivatedcharcoalfiltersas

shown (

•Fit new filters (

•Replace the grease filters.

This appliance conforms to European Low Voltage Directive 73/23/CEE governing electrical safety, European Directive 89/336/

CEE on Electromagnetic Compatibility and Directive 93/68/CEE regarding CE Marking.

Home Appliances

Star Service Hotline 24069138

www.whirlpool.com.hk

IFU0203IN600IN600S/IN900S436000612 00 - 020430
