Whirlpool AKR 604 Assembly instructions
5019 318 33111
AKR 604-605-606-650
AKR 769-770-771-772-773
INSTALLATIONSANGABEN
Mindestabstand zur Kochfläche: 65 cm (Elektroplatten), 75 cm (Gas-, Öl-,
Kohlekochplatten). Befolgen Sie bei der Installation die Nummerierung (1
Ö
2
Ö
3
Ö
.....)
und die jeweiligen Anleitungen. Schließen Sie das Gerät erst nach erfolgter Installation
an die Stromversorgung an. Achtung! Das Auslassrohr und die
Befestigungsmanschetten sind nicht im Lieferumfang inbegriffen und müssen
gesondert erworben werden. Die Styroporleiste am inneren Rand des
Fettfilterhalterungsrahmens ist zu entfernen (siehe Abildung unten).
INSTALLATION SHEET
Minimum height above cooker: 65 cm (electric cookers), 75 cm (gas, gas oil or coal
cookers). To assemble follow the numbers (1
Ö
2
Ö
3
Ö
.....) and relative instructions. Do
not connect the appliance to the electrical power supply until installation is
completed. Warning! The exhaust pipe and clamps are not supplied and must be
bought separately. Remove the polystyrene bar located inside the grease filters
surround (see figure below).
FICHE D'INSTALLATION
Distance minimale par rapport à la cuisinière : 65 cm (cuisinière électrique), 75 cm
(cuisinière à gaz, mazout ou charbon). Pour le montage, suivez la numérotation
(1
Ö
2
Ö
3
Ö
.....) et les instructions correspondantes. Ne branchez pas l'appareil tant
que l'installation n'est pas terminée. Attention ! Le conduit d'évacuation et les colliers
de fixation ne sont pas fournis et doivent être achetés à part. La barre en polystyrène
située à l'intérieur du cadre du support filtres à graisses doit être enlevée (voir
illustration ci-dessous).
INSTALLATIEKAART
Minimumafstand tot het kooktoestel: 65 cm (elektrische kooktoestellen), 75 cm
(kooktoestellen op gas, gasolie of kolen). Volg voor de montage de nummering
(1
Ö
2
Ö
3
Ö
.....) en de bijbehorende aanwijzingen. Geef het apparaat geen stroom
totdat de installatie geheel voltooid is. Let op! De afvoerbuis en de klembanden
worden niet bijgeleverd en moeten apart worden aangeschaft. Het element van
polystyreen in de draaglijst van de vetfilters moet worden verwijderd (zie
onderstaande afbeelding).
D
GB
F
NL
31833111.fm Page 1 Friday, December 19, 2003 9:57 AM
5019 318 33111
AKR 604-605-606-650
AKR 769-770-771-772-773
FICHA DE INSTALACIÓN
Distancia mínima desde los quemadores: 65 cm (quemadores eléctricos), 75 cm
(quemadores a gas, gasóleo o carbón). Para efectuar el montaje siga la numeración
(1
Ö
2
Ö
3
Ö
.....) y las instrucciones. No conecte el aparato a la corriente eléctrica hasta
que la instalación esté completamente finalizada. ¡Atención! El tubo de descarga y las
guías no están incluidas y se compran aparte. La barra de poliestireno situada en el
interior del soporte de sujeción de los filtros antigrasa se quita (vea la figura siguiente).
FICHA DE INSTALAÇÃO
Distância mínima dos fogões: 65 cm (fogões eléctricos), 75 cm (fogões a gás, óleo ou
carbono). Para a montagem, siga a numeração (1
Ö
2
Ö
3
Ö
.....) e as respectivas
instruções. Não ligue o aparelho à corrente eléctrica até a instalação estar concluída.
Atenção! O tubo de descarga e as braçadeiras de fixação não são fornecidas e devem
ser compradas à parte. A barra em esferovite colocada no interior da esquadria de
suporte dos filtros de gordura, deve ser retirada (vide figura em baixo).
SCHEDA INSTALLAZIONE
Distanza minima dai fuochi: 65 cm (fuochi elettrici), 75 cm (fuochi a gas, gasolio o
carbone). Per il montaggio seguire la numerazione (1
Ö
2
Ö
3
Ö
.....) e le istruzioni
relative. Non dare corrente all’apparecchio finché l’installazione non è totalmente
completata. Attenzione! Il tubo di scarico e le fascette di fissaggio non sono fornite e
vanno acquistate a parte. La barra in polistirolo posta all'interno della cornice
supporto filtri antigrasso va rimossa (vedi illustrazione sottostante).
ùüùü+ùùùþ
ü$12.)12.1.)2"0120"FP02!"0120"FP0120"
.0! #02!0. #0! #.+.22 21. #1202
.!1
1
Ö
2
Ö
3
Ö
.2"1$02" /0"2! 3 / 2020002!)
!0*.21#10#!2 !&12"0.212.1"! 1 $
1&."..&".2. !.120!&1"/0/.202..!0.
. 2 *$&!12þ!..) #12#!) #!102.12 01&20!)
2 #.1 #12!"2&32!&.!0..3.!000).
E
P
I
GR
31833111.fm Page 2 Friday, December 19, 2003 9:57 AM
5019 318 33111
AKR 604-605-606-650
AKR 769-770-771-772-773
AKR 650
AKR 773
31833111.fm Page 3 Friday, December 19, 2003 9:57 AM
5019 318 33111
AKR 604-605-606-650
AKR 769-770-771-772-773
D F NL E
GB P I GR
PRODUCT SHEET
1. Control panel.
2. Grease filters (1 or 2 pieces).
3. Lighting unit (AKR 772-773: halogen bulbs).
4. Grease filters surround.
Removing and renewing or cleaning the
grease filter:
1. Disconnect the electrical power supply.
2. Remove the dirty grease filter by pulling the handle
first backwards and then downwards (Fig. 1).
3. After cleaning the grease filter refit in reverse
order, making sure the entire extraction surface is
covered.
Replacing bulbs
1. Disconnect the electrical power supply.
2. Remove the grease filter (Fig. 1) and the grease
filter surround (Fig. 2 - sequence a-b).
3. Remove the burnt-out bulb.
4. Use 40 W max E14 bulbs only.
For models AKR 772-773 use 20 W max halogen
bulbs (GU5.3 - Ø 50 mm).
5. Remount the grease filters surround.
Fitting or renewing the carbon filter:
1. Disconnect the electrical power supply.
2. Remove the grease filter (Fig. 1) and the grease
filter surround (Fig. 2 - sequence a-b).
3. If the carbon filters are already mounted (one or
two filters, depending on the model. covering the
motor protection grille) and need renewing, turn
the central handle (Fig. 3 - c) anticlockwise until
the filters release.
4. If the carbon filters are not already mounted,
locate the filters to cover the motor protection
grilles (two protection grilles - two carbon filters,
one protection grille - onecarbon filter), then turn
the central handle (Fig. 3 - c) of the filters
clockwise.
5. Refit the grease filter surround and the grease
filter.
CONTROL PANEL
Light switch.
The switch has two positions
(lights OFF - lights ON).
To switch on the lights: move the switch to the
right.
Speed selector switch.
The extraction speed switch has 3 settings,
depending on the amount of steam and fumes.
To increase the extraction speed: move the
switch to the right.
Fig. 3
Fig. 1
Fig. 2
AKR 650 - AKR 773
31833111.fm Page 6 Friday, December 19, 2003 9:57 AM
This manual suits for next models
8
Table of contents
Other Whirlpool Ventilation Hood manuals
Whirlpool
Whirlpool UXI0600DYS Parts list manual
Whirlpool
Whirlpool AKR 504 IX/1 User manual
Whirlpool
Whirlpool WVI75UC6DS0 Product information sheet
Whirlpool
Whirlpool WVW93UC0LZ User manual
Whirlpool
Whirlpool AKR 890 IX User manual
Whirlpool
Whirlpool GZ8330 Series and Manual
Whirlpool
Whirlpool UXT4230AAW0 Product information sheet
Whirlpool
Whirlpool UXT3030AYW0 Product information sheet
Whirlpool
Whirlpool WVU57UC6 Product information sheet
Whirlpool

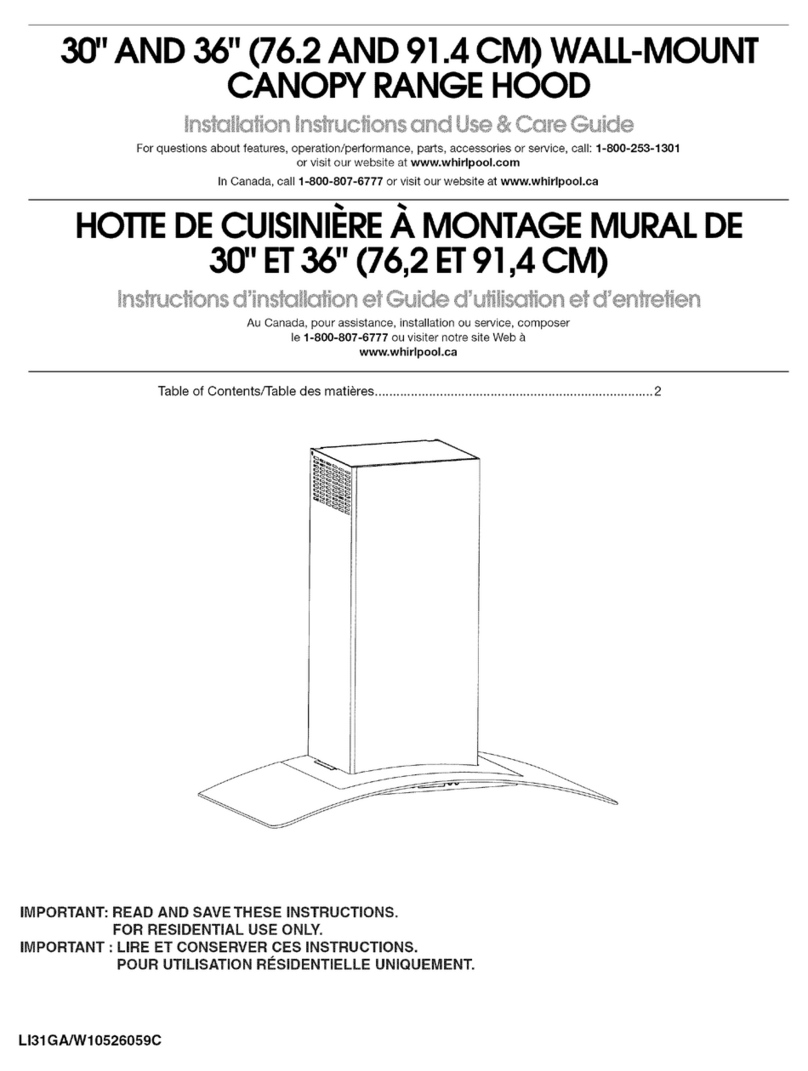

Whirlpool UXW6530BS0 User manual
