Whirlpool W8FLNGFV User instructions

Top Mount Refrigerator

®

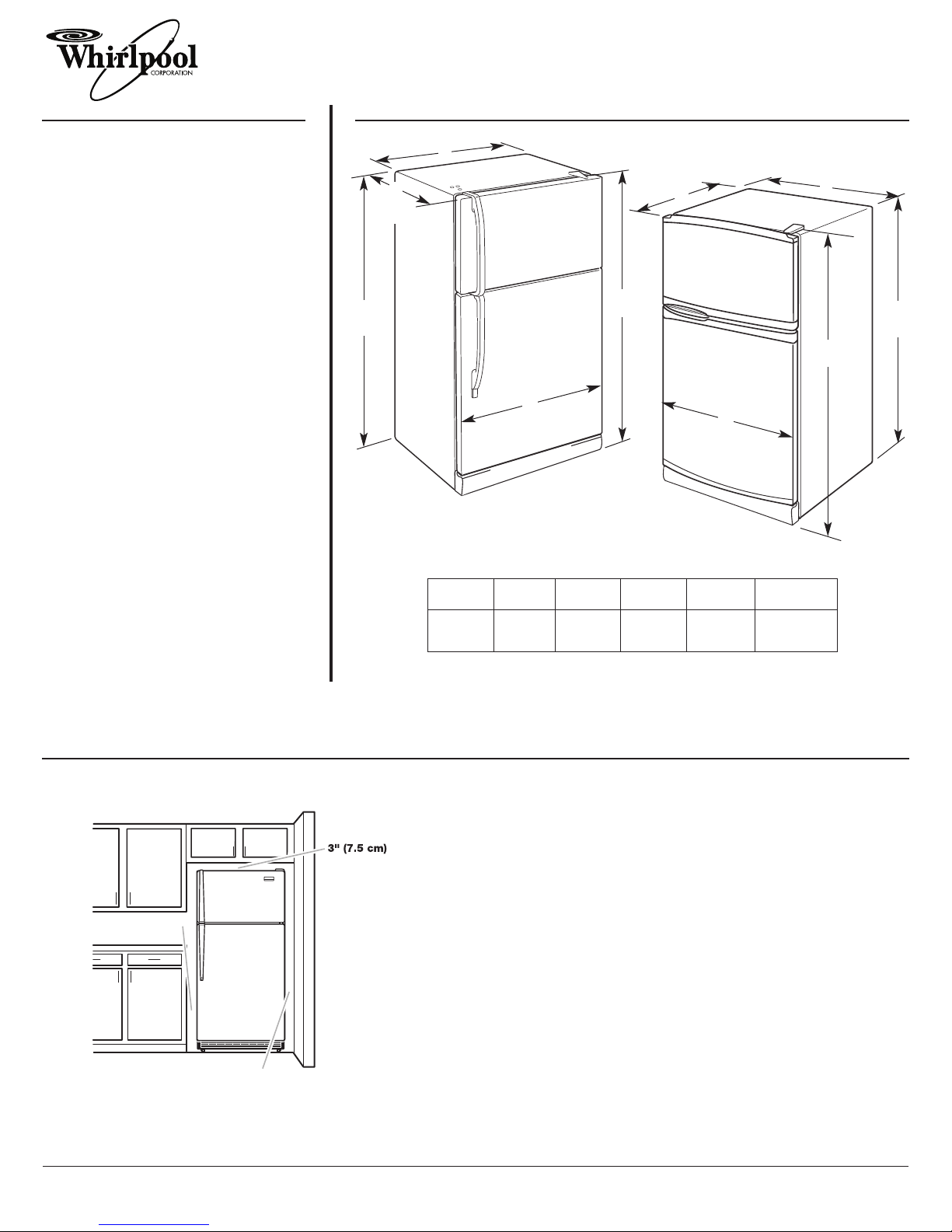

PRODUCT MODEL NUMBERS PRODUCT DIMENSIONS

LOCATION REQUIREMENTS

W8FLNGFV

W8FRNGFV

W8FXNGMW

Electrical: A 115-volt, 60-Hz, AC-only,

15- or 20-amp fused, grounded electrical

supply is required. It is recommended that a

separate circuit serving only your refrigerator

be provided. Use an outlet that cannot be

turned off by a switch. Do not use an

extension cord.

Water: A cold water supply with water

pressure of between 30 and 120 psi (207 and

827 kPa) is required to operate the ice maker.

If you have questions about your water

pressure, call a licensed, qualified plumber.

If a reverse osmosis water filtration system is

connected to your cold water supply, the

water pressure to the system needs to be a

minimum of 40 to 60 psi (276 to 414 kPa).

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. W10217604

3-17-09

1

/

2

" (1.3 cm)

2" (5.1 cm)

To ensure proper ventilation for your refrigerator, allow for a 1⁄2" (1.3 cm) space on

each side. Allow 3" (7.5 cm) of space between overhead cabinets and refrigerator

top. Allow at least 1" (2.5 cm) between back of cabinet and the wall. If your

refrigerator has an ice maker, make sure you leave some extra space at the back for

the water line connections.

If you are installing your refrigerator next to a fixed wall, leave 2" (5.1 cm) minimum

on the hinge side (depending on your model) to allow for the door to swing open.

NOTE: Do not install the refrigerator near an oven, radiator, or other heat source, nor

in a location where the temperature will fall below 55°F (13°C).

Depth Cab. Width Door Width Cab. Height Overall Height

Model size "A" "B" "C" "D" "E"

18 cu.ft. 30-1/2" 28" 28-1/4" 67-1/4" 68"

(77.5 cm) (71.1 cm) (71.8 cm) (170.8 cm) (172.7 cm)

4

1

E

overall

D

top of

cabinet

C

B

not incl.

handle

A

C

D

top of

cabinet

B

A

E

overall

Dimensions “D” and “E” include rollers

extended 3/4" (1.9 cm)

Other manuals for W8FLNGFV

1

This manual suits for next models

2
