Whirlpool S-04-GNF32E WO Building instructions

Whirlpool of India Limited

SERVICE AND

PARTS MANUAL

GLOBAL NO FROST DOUBLE DOOR

REFRIGERATORS

1.0 Safety precautions & warnings 2-3

2.0 Product specifications 4

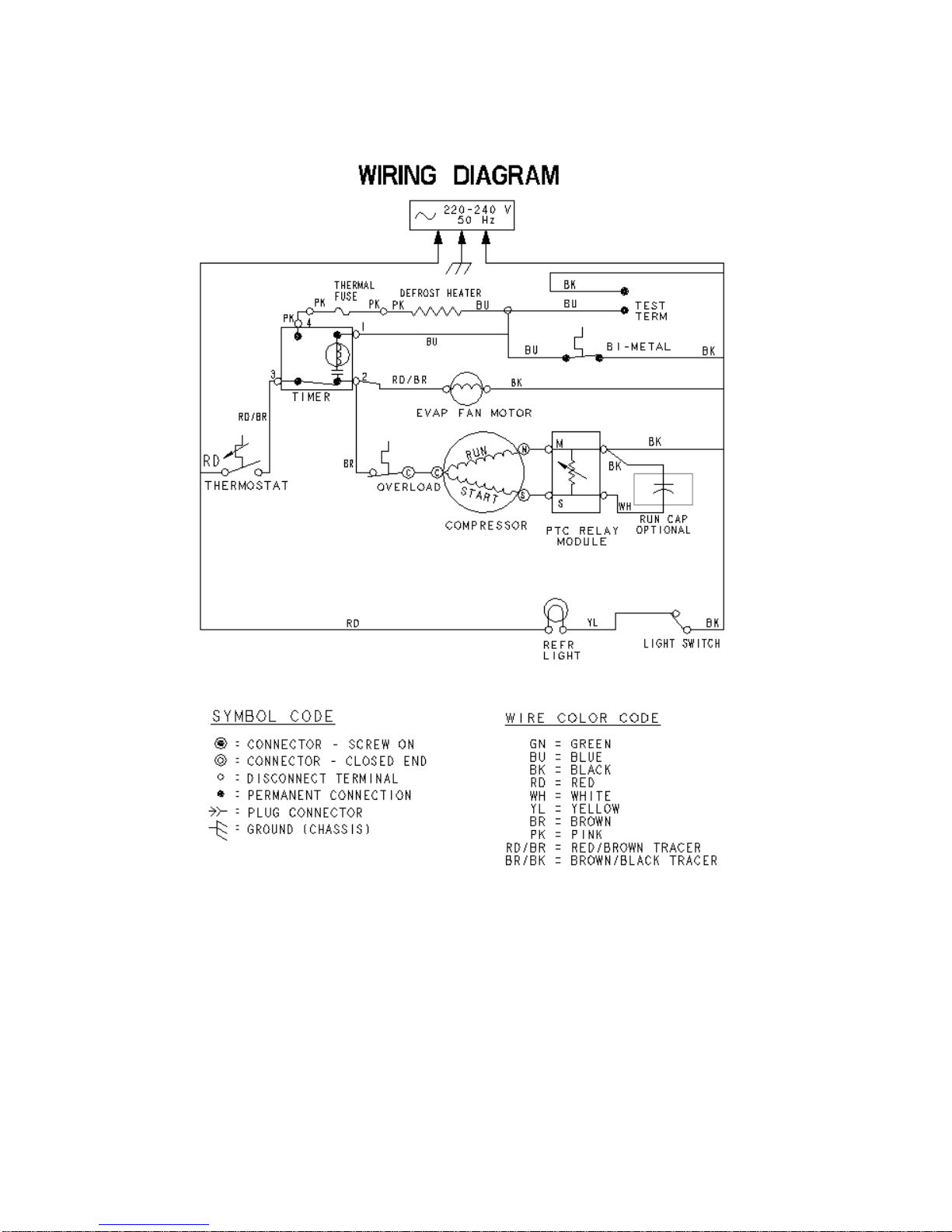

3.0 Circuit diagram 7

4.0 Product dimensions 8

5.0 Packaging dimensions 9

6.0 Sealed system schematic layout 10

7.0 Trouble shooting -cooling system 11

7.1 Trouble shooting defrosting 12

8.10 Cabinet assembly parts diagram 13

8.11 Cabinet assembly parts list 14

8.20 Shelves part diagram 15

8.21 Shelves parts list 16

8.30 Freezer compartment parts diagram 17

8.31 Freezer compartment parts list 18

8.40 Control box parts diagram 19

8.41 Control box parts list 20

8.50 Compressor assembly parts diagram 21

8.51 Compressor assembly parts list 22

SAPCODE MODEL DESCRIPTION

4428 S-04-GNF24E WO 220L QUICKCHILL ELITE – WHITE

4429 S-04-GNF26E WO 250L QUICKCHILL ELITE – WHITE

4440 S-04-GNF32E WO 285L QUICKCHILL ELITE – WHITE

This document is only intended for qualified technicians who are aware of the respective safety regulations.

Date 10th april 2002 Subject to modification

Document No. WOI/GNF/100420021

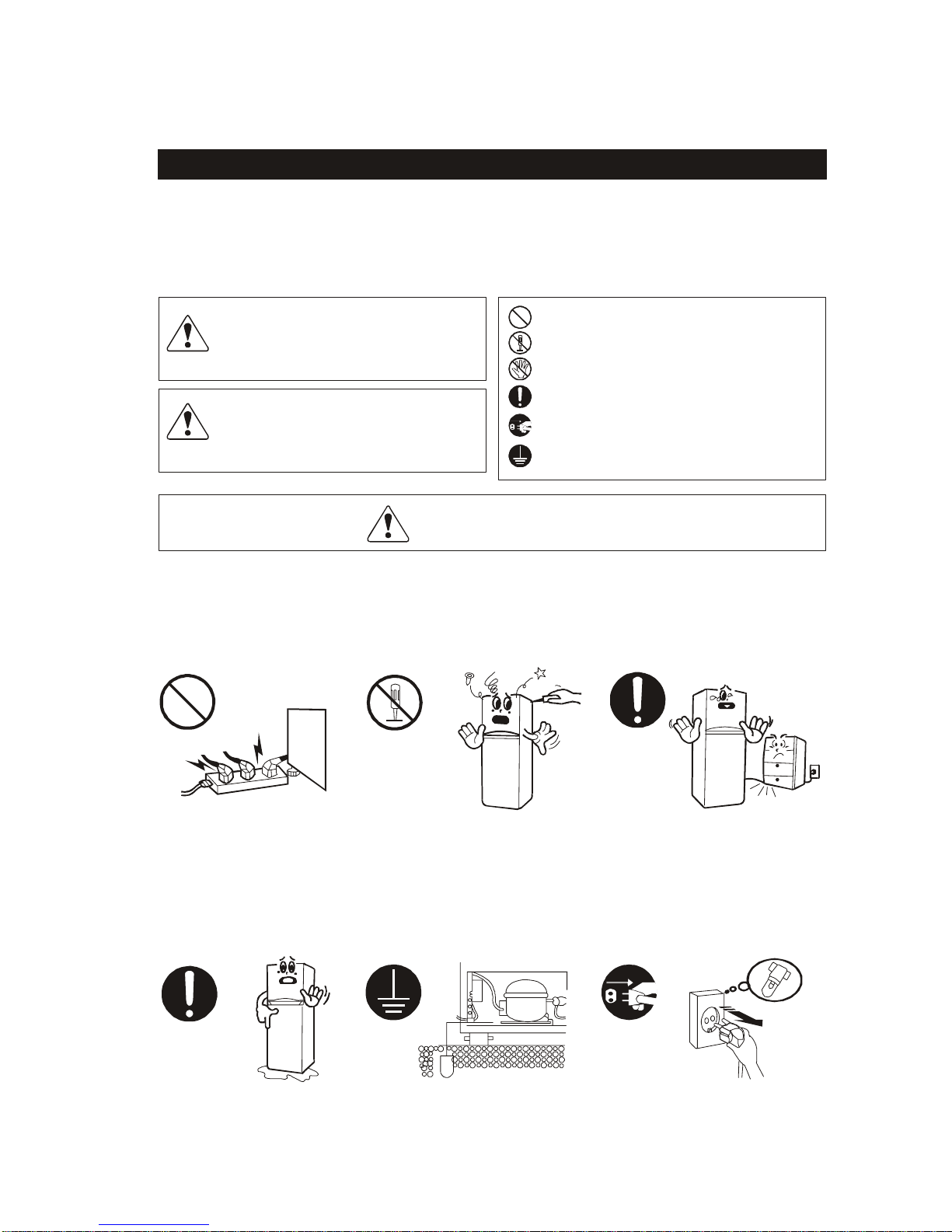

Safety precautions and warnings:

Read all instructions before using this appliance in order to

avoid risk of accident or possible damage.

Indicates prohibition

This symbol is intended

to alert the user to the

possible death or injury.

This symbol is intended

to alert the user to the

possible injury or damage.

Warning / Caution Description of symbols

Warning

Caution

Do not disassemble

Adhere the instruction strictly

Unplug fromthe electrical outlet

Earth the appliance to avoid the risk

of an electric shock.

This may cause abnormal

heating or fire hazard.

Do not install the

refrigerator in a humid

(with condensation)

location or an

unstable surface.

If earthling is not done, it will

cause break down and electric

shock. It may cause electric shock

It may cause fire or abnormal

operation which leads to injury. This may cause fire.

Do not plug multiple

electric appliances

into the same outlet.

Check the operating

environment Be sure to earth. Pull the power plug out for

exchanging the interior

lam of the refrigerator.

Prohibition

Do not disassemble

repair or alter. Do not bend the power cord

with excessive force or do

not have the power cord

pressure by heavy article.

Do not

disassemble

Do not contact

Earth Unplug

Page 2

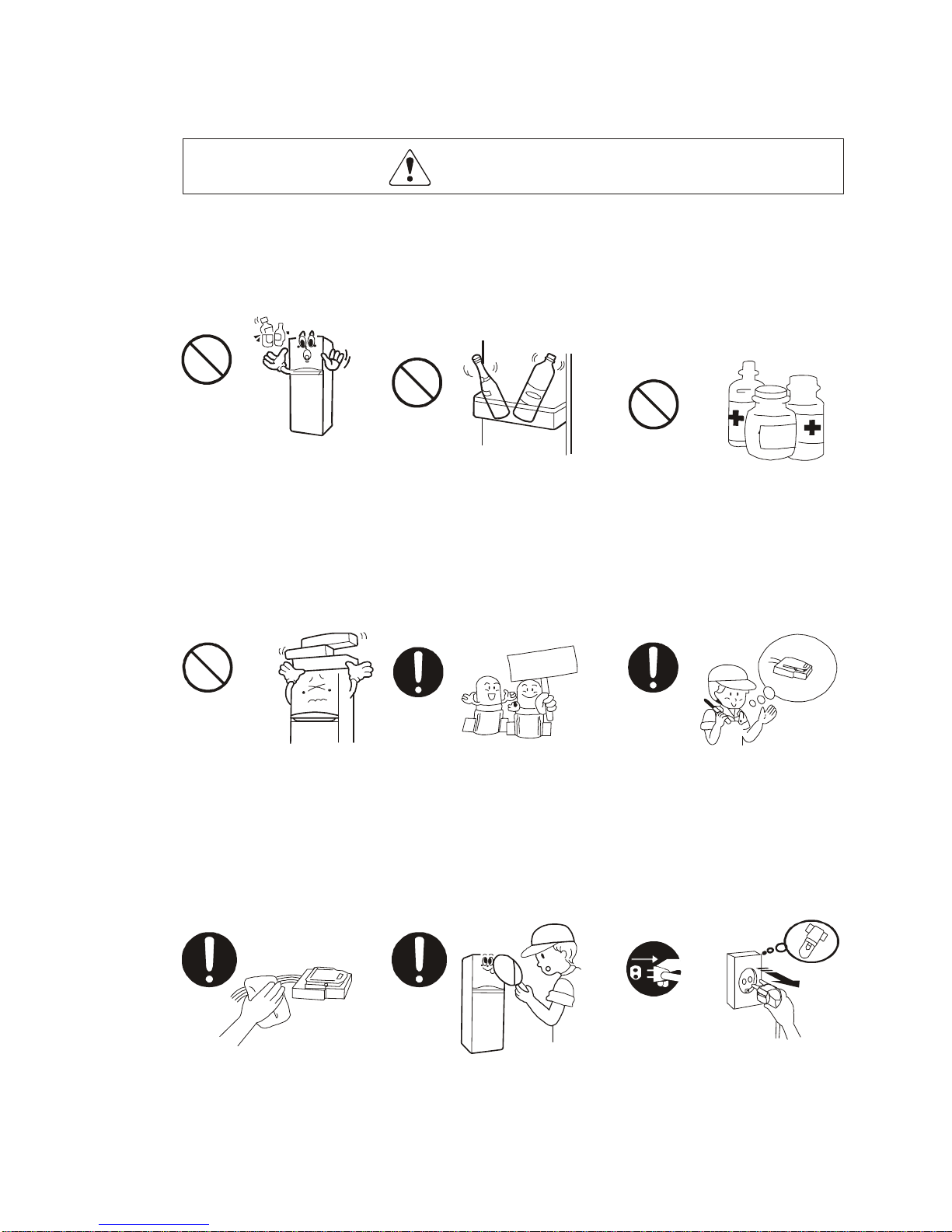

Caution

Bottles may explode

causing personal injury.

Opening or closing the

door may trigger the loose

itemsto slip & cause injury.

Use of it as it is may cause

fire.

Opening the door may

trigger loose items to slip

&cause injury.

Check the model, rated

voltage, rated current,

operating temperature etc.

of the component.

The service unit should be

resembled & returnto its

original assembly state.

Medical supplies, which

need to be under strict

temperature control, should

not be stored in the

refrigerator.

This can protect against the

risk of fire hazard caused by

tracking and short circuit.

When the trace of moisture

penetration is detected,

insulation tapping.

Do not store bottled food

or drinks in the freezing

compartment.

Do not put on top of the

refrigerator.

Please wipe out foreign

materials of the metal

option of power plug

cleanly.

Do not store food in

unstable manner.

When replacing electric

components, be sure to

use rated components.

fter servicing the refrigerator

be sure to check the

components are reassembled

in a correct manner.

Do not store anything

other than food in the

refrigerator.

When servicing the

refrigerator completely

remove dust or foreign

substances from the housing,

electric connections etc.

Check electrical ports for

the trace of moisture

penetration.

Prohibition

Prohibition Prohibition

Unplug

Rated

Components

Page 3

2.0 Technical Specifications for 220L Elite Model

Dimensions Cooling agent

Height 1408mm Type -R134a

Width 550mm Quantity – 88Grams

Depth 625mm

Capacity 220L

Refrigerator compartment-150L

Freezer compartment-70L

Thermostat Cooling

Total – 220L

Switchingvalues

Cut in Temperature

COLD:-3.9 to -7.3 Deg.Cen,

MID: -2.4 to -0.9 Deg.Cen,

WARM: 0.5 to 3.9 Deg.Cen

Electrical Connection

Switch off Temperature Voltage

Frequency- For every 8 hours. . Max. Voltage- 260V

Power consumption Min. Voltage- 160V

In 24 hours -1.36kwh

*With Control knobs in Mid Position

Compressor for service)

Type -QB66 of Matsushita

(Oil cooled Type)

Technical Specifications for 250L Elite Model

Dimensions Cooling agent

Height: 1550mm

Width: 550mm

Depth: 625mm Type R134a

Quantity 88Grams

Capacity-250L Thermostat Cooling

Refrigerator Compartment: 180L Cut in temperature

Freezer Compartment: 70L COLD:-7.3 to –3.9 Deg.Cen

Total : 250L MID :-0.8 to 0.8 Deg.Cen

WARM:2.8 to 6.2 Deg.Cen

Electrical Connection Voltage

Switch off Frequency: For every 8 hours. Maximum: 260V

Minimum: 160V

Power consumption

In 24 hours - 1.3383 Kwh.

*With control knobs in “Mid Position”

Compressor

Type: QB66 of Matsushita(Oil cooled type)

Technical Specifications for 285L Elite Model

Dimensions Cooling agent

Height: 1725mm

Width: 550mm

Depth: 625mm Type R134a

Quantity 88Grams

Capacity-285L Thermostat Cooling

Refrigerator Compartment: 215L Cut in temperature

Freezer Compartment: 70L COLD :-1.7 to 1.7 Deg.Cen

Total : 285L MID : 2.0 to 3.6 Deg.Cen

WARM : 2.8 to 6.2 Deg.Cen

Electrical Connection Voltage

Switch off Frequency: For every 8 hours. Maximum: 260V

Minimum : 160V

Power consumption

In 24 hours - 1.4392 Kwh.

*With control knobs in “Mid Position”

Compressor

Type: QB66 of Matsushita(Oil Cooled type)

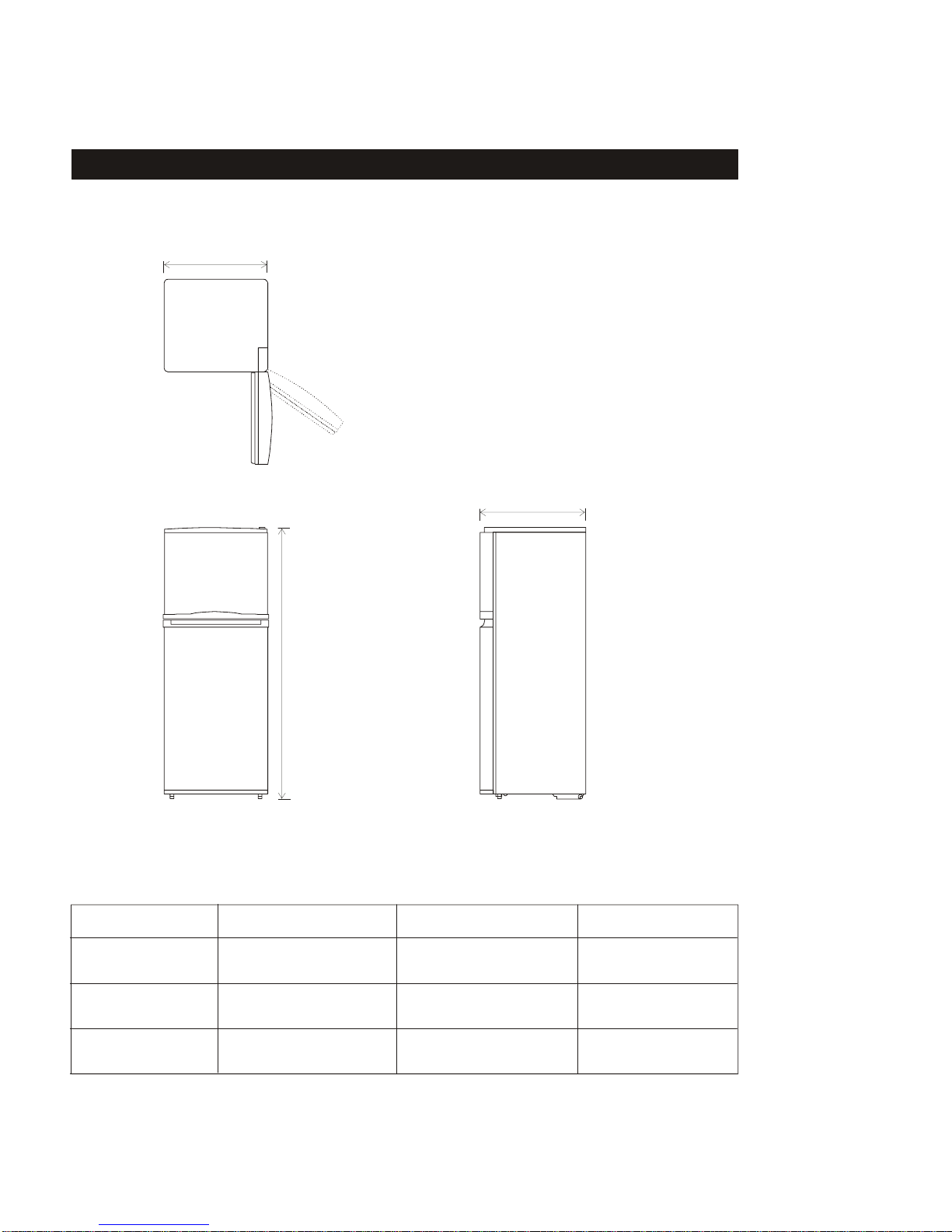

4.0 Product Dimension

220 Liter

250 Liter

285 Liter

Height (A) Width (B) Depth (C)

1395 mm

1537 mm

1662 mm

550 mm

625 mm

Page 6

5.0 Packaging Dimensions :

220 Liter

250 Liter

285 Liter

Height (A) Width (B) Depth (C)

1493 mm

1609 mm

1734 mm

628 mm

695 mm

Page 7

Page 8

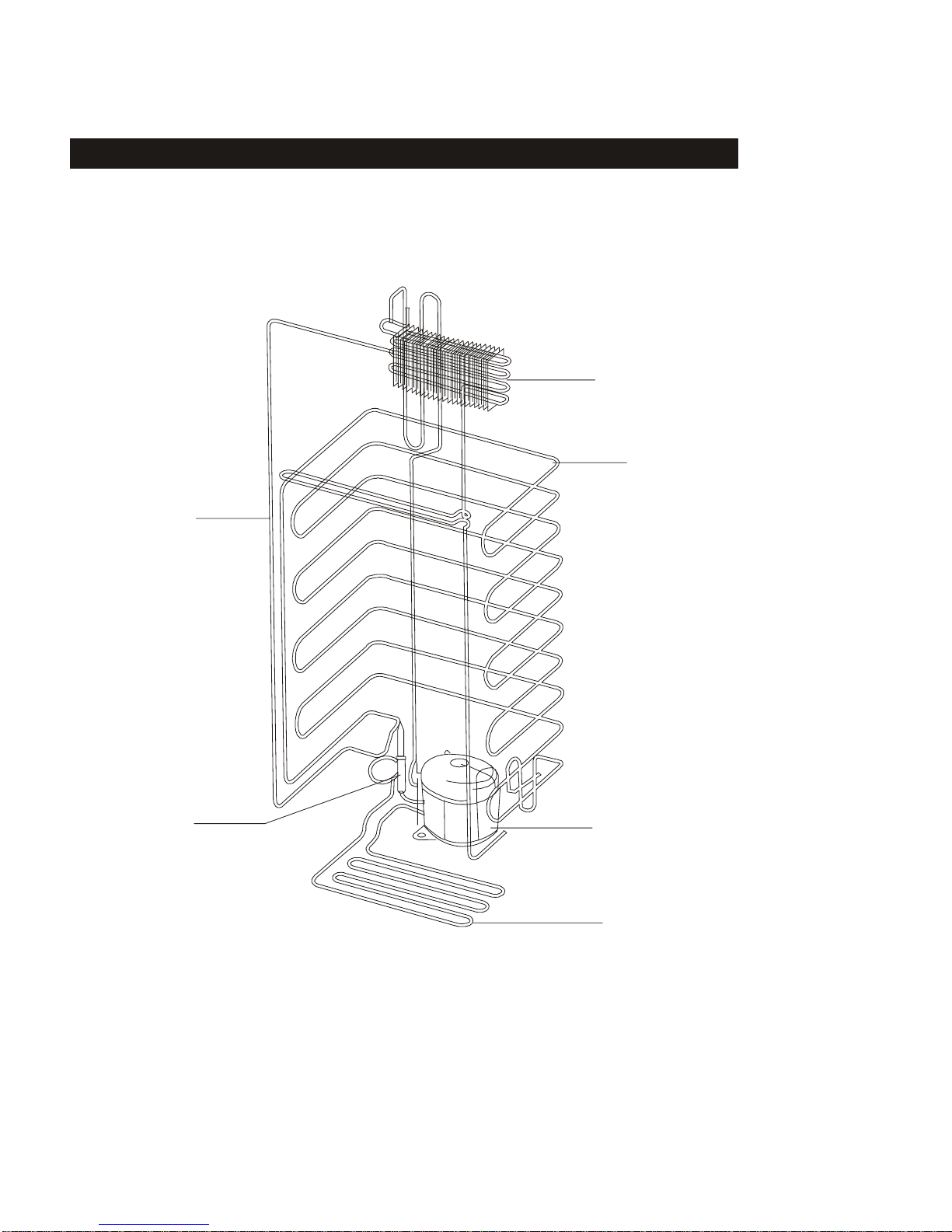

6.0 Sealed System Schematic Layout :

Evaporator

Condenser

(Foamedin three sides.)

Heat Loop

(Foamed)

Drier Compressor

Precooler
