Side by Side Refrigerator

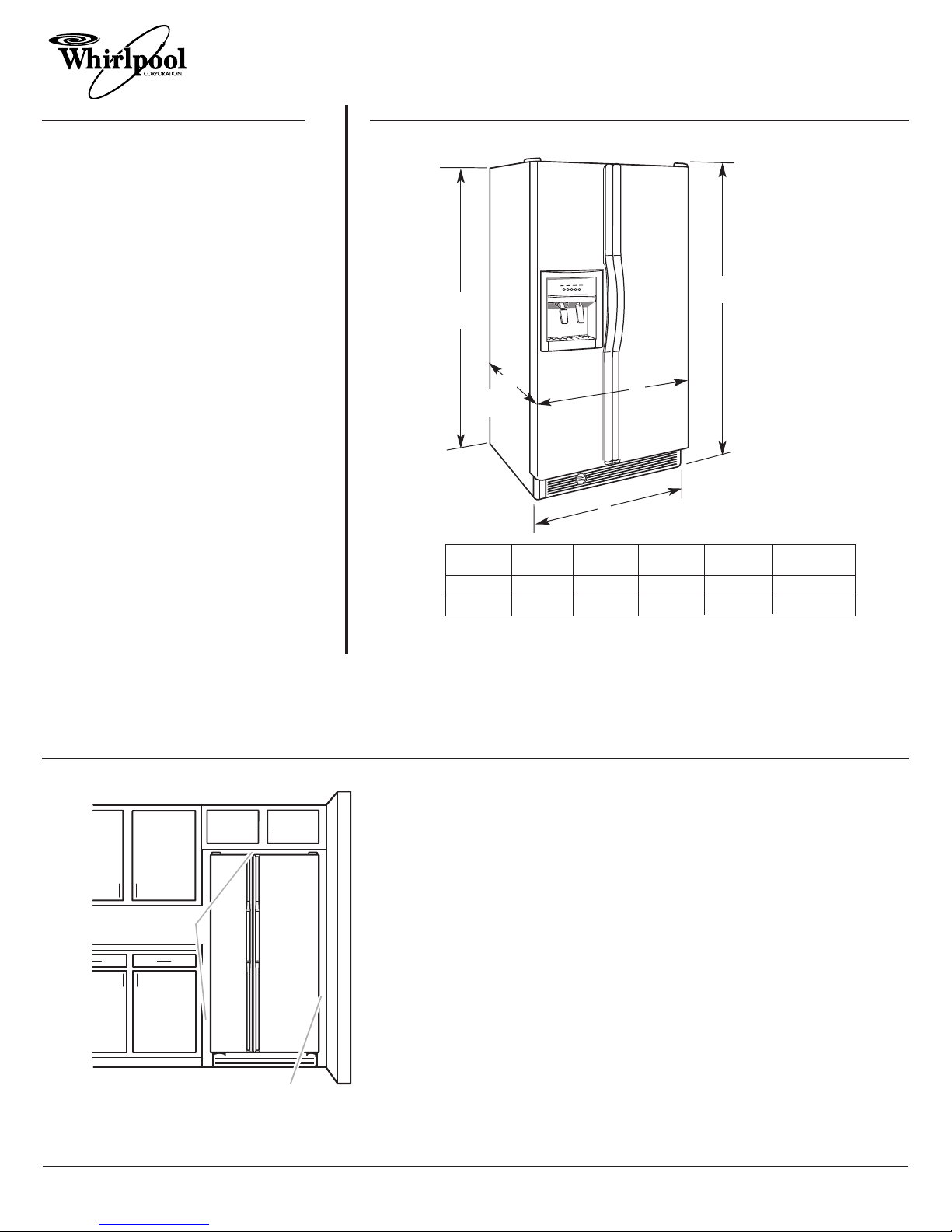

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS

GD5NHAXS GD5NVAXS

Electrical: A 115 Volt, 60 Hz., AC only 15 or 20

amp fused, grounded electrical supply is required.

It is recommended that a separate circuit serving

only your refrigerator be provided. Use an outlet

that cannot be turned off by a switch. Do not use

an extension cord.

Water: A cold water line with water pressure

between 30 and 120 psi (207 - 827 kPa) is

required for the water dispenser and ice maker.

Reverse osmosis water supply: The pressure of

the water supply coming out of a reverse osmosis

system going to the water inlet valve of the

refrigerator needs to be between 30 and 120 psi

(207 - 827 kPa).

If a reverse osmosis water filtration system is

connected to your cold water supply, the water

pressure to the reverse osmosis system needs to

be a minimum of 40 to 60 psi (276 - 414 kPa).

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. 2318505

08-08-06

1

E

overall

D

top of

cabinet

C

B

not incl.

handle

A

Depth Cab. Width Door Width Cab. Height Overall Height

Model size "A" "B" "C" "D" "E"

23 cu.ft. 27 1/2" 35 5/8" 35 1/2" 68 1/2" 68 3/4"

25 cu.ft. 27 1/2" 35 5/8" 35 1/2" 71 1/2" 71 7/8"

Dimensions “D” and “E”

include rollers extended 3/4".

®

LOCATION REQUIREMENTS

1

/

2

" (1.25 cm)

2" (5.08 cm)

To ensure proper ventilation for your refrigerator, allow for 1⁄2”(1.25 cm) space on

each side and at the top. When installing your refrigerator next to a fixed wall, leave

2”(5.08 cm) minimum on each side (depending on your model) to allow for the

door to swing open. If your refrigerator has a water dispenser and ice maker, allow

extra space at the back for the water line connections.

NOTE: Do not install the refrigerator near an oven, radiator, or other heat source, nor

in a location where the temperature will fall below 55°F (13°C).
