Whirlpool GC3NHAXVA01 User manual

CABINET PARTS

For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01

(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)

06−08 Printed In U.S.A. (jdc) (eeb) Part No. W10212490 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01

(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)

W10212490

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2318582 Use & Care Guide

W10152830

Service & Wiring

Sheet

2318510 Installation

Instructions

W10194142

Energy Guide

2220407 Modular Icemaker

Service Sheet

2 Front Roller Asm

2306950 Left Side

2306951 Right Side

3 2223263 Strap, Roller

4 2306949 Roller, Rear (2)

5 2223388 Clip, Retainer (4)

6 2155013 Clip, Grille

7 489478 Screw

8 2223545 Shim

9 Hinge Top, RC

2307008W White

2307008B Black

2307008AP

Apollo Gray

10 3400113 Screw

11 3400243 Screw

12 2307179 Hinge Assembly,

Bottom−RC

13 Filler, Wrapper

2223893W White

2223893B Black

2223893AP

Apollo Gray

14 Grille

W10194047

White

W10194057

Black

W10194061

Midnight Grey

15 3400108 Screw

16 Hinge, Top FC

2307007W White

2307007B Black

2307007AP

Apollo Gray

17 489464 Screw

18 2304888 Drain Fitting

19 2254566 Tube, Extension

21 2223409 Cover, Unit

22 2223387 Pin, Roller (4)

23 549193 Clamp, Service

Cord

24 489084 Screw

25 2307152 Hinge Assembly,

Bottom−FC

26 Button, Water

Filter

2260503W White

2260503B Black

2260503MG

Midnight Grey

27 8212650 Housing, Water

Filter

28 4396841 Water Filter

29 2307051 Door Closer, FC

30 Cap, Water

Filter

2260502W White

2260518B Black

2260518MG

Midnight Grey

31 Cabinet (Not A

Serviceable Part)

32 489483 Screw

33 2307049 Door Closer, RC

35 3400858 Screw

36 2224020 Tube, Filter

Outlet

37 2319867 Tube, Filter

Inlet

REFRIGERATOR LINER PARTS

For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01

(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)

W10212490

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2223524 Escutcheon, Meat

Pan Control

3 2223339 Slide Meat

Pan Control

4 1118894 Switch, Rocker

Arm

5 2188820 Thermistor

6 2319866 Ladder, Shelf (2)

7 489084 Screw

8 2171846 Release Valve

9 2209204 Clip, Thermistor

10 1116793 Cover, Thermistor

11 489478 Screw

12 2304597 Gasket,

Air Baffle

13 2223403 Cover,

Air Baffle

14 2224076 Air Diffuser

Assembly

W10185224

Air Baffle

16 2162085 Socket

17 2307107 Reservoir

18 2205813 Strap

19 2255743 Light Bulb

20 2223663 Light Lens

21 488280 Screw

REFRIGERATOR SHELF PARTS

For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01

(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)

W10212490

Illus. Part

No. No. DESCRIPTION

1 2223288 Pan Assembly

(Includes #31)

2 2223309 Button, Humidity

3 2223308 Slide, Humidity

4 2203027 Cover, Meat Pan

(Includes Items

8, 9, 10, & 15)

5 2223261 Snack Pan

6 2223307 Cover, Crisper

(Includes 2 & 3)

7 2223591 Glass, Cover

8 2174478 Eyelet, Roller

9 2188212 Roller

10 489211 Screw

11 2223235 Crisper Pan

12 2223526 Meat Pan

(Includes 8,

9, 10, & 15)

13 2224059 Shelf and Frame

Assembly (3)

14 489261 Screw

15 2223487 Deflector

16 2203029 Handle

17 2196485 Stud Assembly

18 3400894 Screw

19 2196483 Stud Assembly

20 8281158 Screw

21 2223320 Slide, Pan

FREEZER LINER PARTS

For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01

(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)

W10212490

FREEZER LINER PARTS

For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01

(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)

W10212490

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2223777 Spacer, Slide (2)

3 3400893 Screw

4 2196483 Stud Assembly

5 2223690 Basket, Deep (2)

6 8281158 Screw

7 2223500 Shelf Assembly,

Cantilever (2)

8 2223782 Front, Basket

9 Shelf Track

2223787 Right Side

2223788 Left Side

10 2254615 Shelf, Fixed

11 2223692 Basket, Lower

12 842534 Clip, Air Duct (2)

13 Glide Assembly,

Basket (2)

2301544 Right Side

2301545 Left Side

14 2259487 Cover, Emitter

15 8534064 Screw

16 2198635 Spring

17 2198634 Pin

18 2198665 Tube, P.C. Board

19 1115373 Switch, Rocker Arm

W10193840

P.C. Board

Emitter

W10185438

Cover, Ice Maker

22 Slide, Ice Maker

Mounting

2212321 Right Side

2306900 Left Side

23 489478 Screw

24 489214 Screw

25 2162085 Light Socket

26 2255743 Light Bulb

27 8281185 Screw

28 2198633 Flipper

W10173569

Cover, Receiver

30 2315398 Slide, Ice Maker

Shut Off

W10193666

P.C. Board,

Receiver

32 2198643 Lens

33 2198589 Light Shield

34 2212340 Light Lens

35 2198641 Bracket, Ice Maker

Cover

36 2155597 Socket, Light

37 Ladder

2198609 Left Side

2198610 Right Side

38 2303378 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS

For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01

(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)

W10212490

MOTOR AND ICE CONTAINER PARTS

For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01

(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)

W10212490

Illus. Part

No. No. DESCRIPTION

W10139482

Ice Bin

W10138753

Crusher Bin

W10140642

Auger

4 2258220 Washer

5 1119007 Spacer, Flat (4)

W10139321

Cover, Crusher

7 2257024 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 2257023 Blade, Rotary

11 2317239 Block, Blade

12 489229 Roll Pin

13 2257022 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2220457 Coupling

17 8281164 Screw

18 3400065 Screw

19 2305382 Rubber Boot

W10140685

Latch, Bin

21 2198608 Spring, Latch

22 2187813 Wire Assembly,

IDI Motor

23 2212369 Holder

24 2220458 Coupling, Bottom

25 2198628 Seal

26 2212370 Washer

27 2198607 Spring

28 2305243 Drive Shaft

29 2252130 Dispenser, Motor

30 2305208 Bracket, Motor

31 8281163 Screw

32 2212365 Sleeve, Coupling

33 2317250 Divider−Chamber

34 2317243 Wiper

100

W10140690

Ice Container

(Complete)

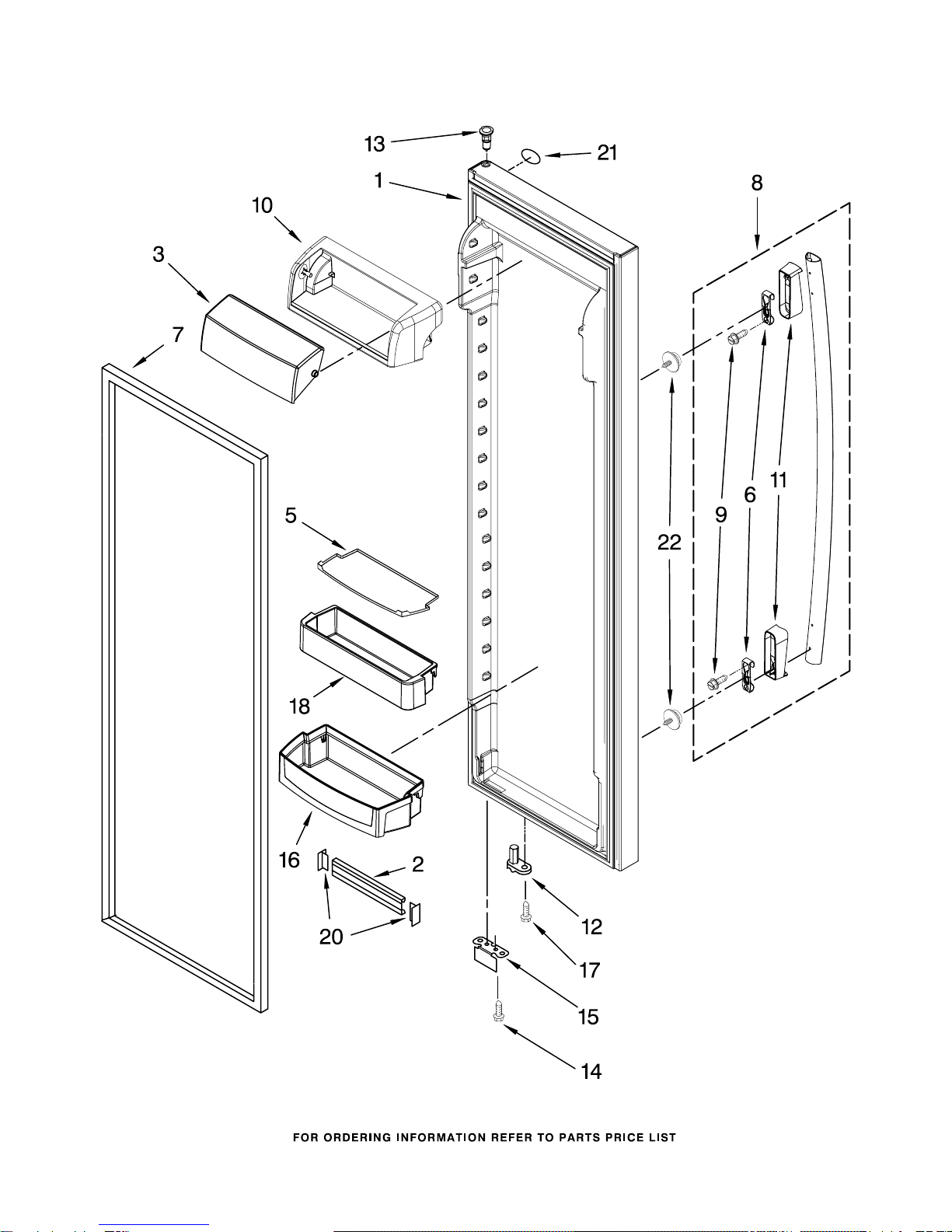

REFRIGERATOR DOOR PARTS

For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01

(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)

W10212490

REFRIGERATOR DOOR PARTS

For Models: GC3NHAXVQ01, GC3NHAXVB01, GC3NHAXVY01, GC3NHAXVA01, GC3NHAXVS01

(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)

W10212490

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes #7)

W10168248

White

W10168249

Black

W10168250

Mono Satina

W10168251

Monochromatic

Stainless

W10172106

Stainless Steel

2 2203087K Trim, Shelf

3 2255421 Dairy Door

5 2223464K Mat, Bin (3)

6 2255411 Clip, Mounting

7 Door Gasket,

Magnetic

2223841 Mist Beige

2223911 Black

2326342 Apollo Grey

8 Handle

W10127803

White

W10127804

Black

W10152865

Nickel Alloy

W10155511

Screw, Handle

10 2223879 Dairy Compartment

11 Endcap, Handle

W10127813

White

W10127814

Black

W10152864

Nickel Alloy

12 2307048 Door Closer,

Upper Cam

13 2308091 Thimble, Top

14 489420 Screw

15 Bracket, Door Stop

2306940 Chrome

2306940B Black

16 2223239K Door Bin (2)

17 3400012 Screw

18 2224173 Door Bin,

Shallow

20 2156006K Plug, Trim

21 2220214 Nameplate

W10129563

Screw, Mounting
