Whirlpool ET8WTMXKQ08 User manual

CABINET PARTS

For Models: ET8WTMXKQ08, ET8WTMXKT08

(White) (Biscuit)

10−05 Litho In U.S.A. (mek) Part No. 8199492

REFRIGERATOR

CABINET PARTS

For Models: ET8WTMXKQ08, ET8WTMXKT08

(White) (Biscuit)

8199492

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2314273 Service &

Wiring Sheet

2302696 Energy Label

2314472 Use & Care Guide

2225623 Modular Icemaker

Service Sheet

2225413 Customer

Instructions

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677969 Do−It−Yourself

Manual, Ref./Fzr.

2 2189410 Hinge (Top)

3 2166108 Roller, Front (2)

4 489427 Screw

5 489385 Clamp, Tube

(Water Supply Line)

7 3400504 Screw

8 2179826 Rivet

12 549193 Clamp, Cord

15 489497 Screw

16 2183972 Hinge, Center

17 2183854 Shim, Hinge

Center

18 8281265 Screw

20 2254473 Hinge Butt

24 Fitting, Water Tube

(NOT SERVICED)

27 Hole Plug (6)

2201012 White

2200924 Biscuit

35 Corner Filler (2)

2201014 White

2200926 Biscuit

36 Grille

(Includes

Illus. 39 & 43)

2254386 White

2254389 Biscuit

37 489341 Washer

38 487576 Washer

39 2254385 Clip, Grille

40 Cover−Hinge

2213360 White

2213364 Biscuit

41 Rail, Center

(NOT SERVICED)

43 2189356 Clip−Grille

44 2221775 Cover, Unit

45 Cabinet (Not a

Serviceable Part)

DOOR PARTS

For Models: ET8WTMXKQ08, ET8WTMXKT08

(White) (Biscuit)

8199492

DOOR PARTS

For Models: ET8WTMXKQ08, ET8WTMXKT08

(White) (Biscuit)

8199492

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes

Illus. 2,3,9

& 11)

2183948 White

2205285 Biscuit

2 939101 Screw Anchor

3 2183198 Tap Plate

5 Handle,

Refrigerator

2202807W White

2202807T Biscuit

6 489357 Screw

8 8281146 Screw

9 Door Gasket, R.C.

Magnetic

2202874 Mist Beige

11 2183003 Thimble

12 Cover, Screw

2202819W White

2202819T Biscuit

13 2262218 Nameplate

16 2180027 Trim, Door Shelf

17 8281206 Screw

18 2201052 Trim, Door

19 Freezer Door

(Includes

Illus. 3,11 & 23)

2182487 White

2205279 Biscuit

20 Hole Plug,

Handle (1)

2189000 White

2200936 Biscuit

21 2195943 Trim, Door Shelf

22 2195915 Plug, Trim

23 Door Gasket, F.C.

Magnetic

2214966 Mist Beige

24 2195915 Endcap (2)

25 2201051 Trim, Door Shelf

26 2189202 Bracket, Door

Stop (2)

27 488921 Screw

28 Hole Plug,

Hinge (2)

2212648 White

2212649 Biscuit

29 2156007 Plug, Trim (4)

30 2156006 Plug, Trim (4)

31 2218113 Compartment Door

33 Handle,

Freezer

2202806W White

2202806T Biscuit

37 2201050 Trim, Door (2)

41 2156003 Endcap (4)

42 2195949 Trim, Door

LINER PARTS

For Models: ET8WTMXKQ08, ET8WTMXKT08

(White) (Biscuit)

8199492

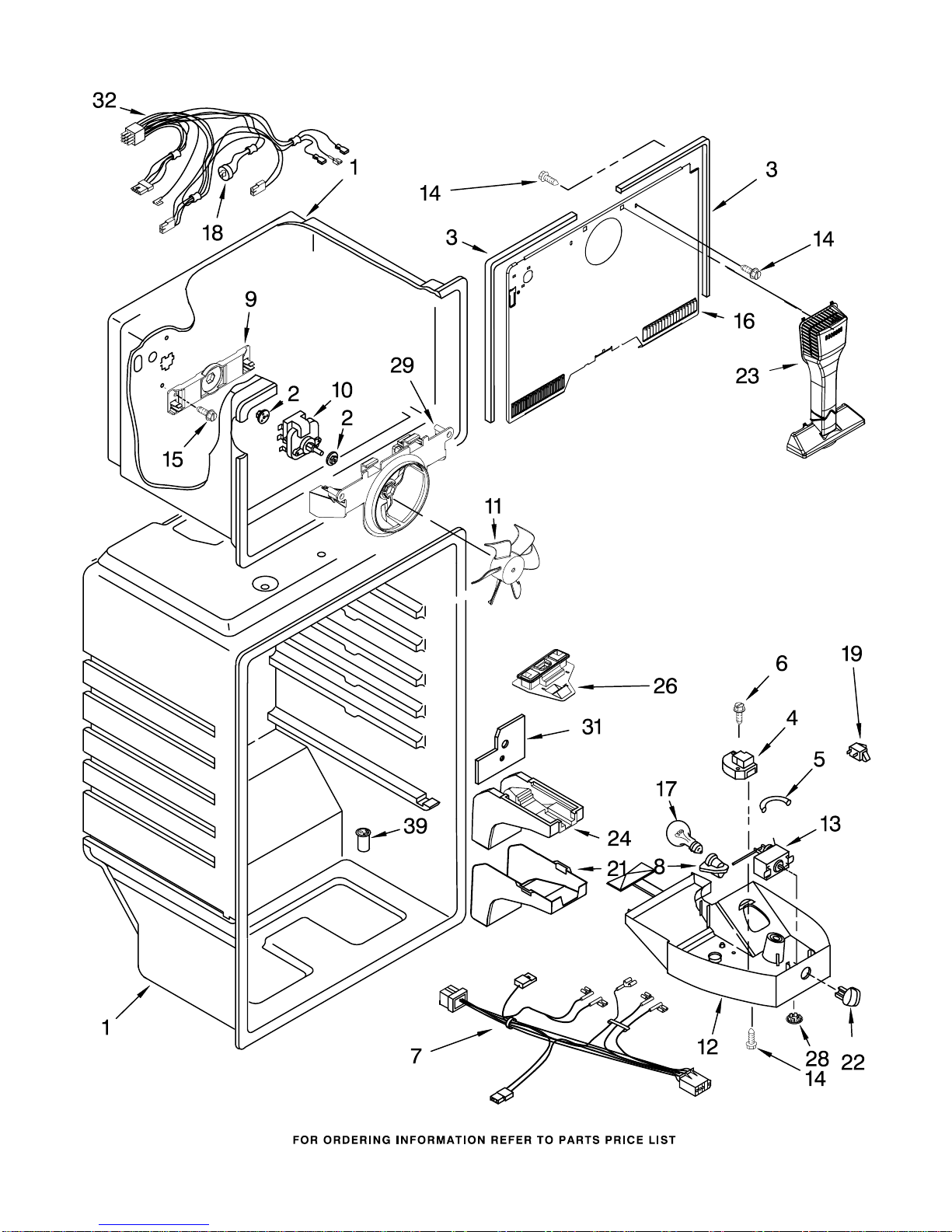

LINER PARTS

For Models: ET8WTMXKQ08, ET8WTMXKT08

(White) (Biscuit)

8199492

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2197380 Grommet (2)

3 2254359 Gasket, Evaporator

Cover(2)

4 2314156 Defrost Timer

5 2204640 Thermostat Tube

Barrier

6 98129 Screw

7 2187885 Wire Assy.

Control Box

8 2162085 Socket, Light (2)

9 2254454 Bracket,

Fan Rear

10 2214986 Fan Motor

11 2163777 Fan Blade

12 2218381 Control Box

13 2225460 Thermostat

14 489478 Screw

15 488208 Screw

16 2254261 Cover, Evaporator

17 2160708 Light Bulb

18 2314158 Defrost, BI−Metal

19 1118894 Rocker Arm

Switch

21 2176281 Cover, Air

Diffuser

22 2202885 Knob, Thermostat

23 2254354 Air Tower

24 2189452 Air Diffuser,

Bottom

26 2210390 Air Separator

Assembly

28 940014 Hole Plug,

Control Box

29 2254453 Bracket,

Fan Motor

31 2204639 Shield, Heat

32 2310041 Wire Assembly,

Freezer Compartment

(Includes

Illus. 18)

39 2171931 Valve−Tube, Body

UNIT PARTS

For Models: ET8WTMXKQ08, ET8WTMXKT08

(White) (Biscuit)

8199492

UNIT PARTS

For Models: ET8WTMXKQ08, ET8WTMXKT08

(White) (Biscuit)

8199492

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2225597 Plate, Unit

Mounting

2 2169104 Insullation,

Sound Dampening

3 2214960 Condenser

4 2315531 Heater, Defrost

5 2254250 Evaporator Assy.

6 8533859 Screw

7 2254294 Drain Pan

9 2176301 Bracket, Heater

10 2300638 Extension, Air

Baffle

12 Cover

2162358 Production

4387731 Service

13 Overload

2302290 Production

4387938 Service

(Includes Relay)

14 Grommet (4)

1100826 Production

4387558 Service

15 2258450 Start−Relay

(Production

Compressor Only)

16 2201184 Support Block

17 2150304 Roller (2)

18 2221797 Rivet

19 2182338 Clip, Heater

28 2225647 Compressor

(Includes Items

12,13,14 & 29)

(Also Order

482801

Installation Kit

& 876765

Tube Kit)

29 Drier

2199167 Production

4387019 Service

30 2155774 Clamp

31 489373 Screw

32 488500 Screw

33 3400518 Screw

39 2302249 Air Baffle

40 2188874 Motor, Condenser

42 2187764 Wire Assy. Unit

43 2225834 Fan Blade

46 2205294 Tube, Discharge

47 2205293 Tube, Suction

48 2212848 Tube, Process

58 2300635 Evap. Tray

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

3.75 Ozs.

(R134A)

ICEMAKER PARTS

For Models: ET8WTMXKQ08, ET8WTMXKT08

(White) (Biscuit)

8199492

ICEMAKER PARTS

For Models: ET8WTMXKQ08, ET8WTMXKT08

(White) (Biscuit)

8199492

Illus. Part

No. No. DESCRIPTION

1 488878 Clamp, Tube

4 2181939 Insert, Tube

5 628379 Clip, Fuse

7 2181943 Tube Water

8 2210495 Clip, Water Valve

9 489478 Screw

10 2188782 Valve Solenoid

11 627018 Nut Compression

12 489464 Screw

14 489385 Clamp, Tube

18 2210484 Cover

19 8281265 Screw

20 628228 Mold & Heater

Assembly (Also

Order 542638

Silicone Grease)

22 628356 Cup, Water Fill

23 2194711 Ejector

24 2182124 Ice Striper

25 2194712 Support

26 627796 Retainer

Thermostat

27 627985 Thermostat (Also

Order 542369

Cement

Alumilastic)

28 8533917 Screw

30 489276 Screw

31 627792 Shut Off Arm

32 2187464 Harness, Wiring

33 628320 Bracket

35 626680 Module Assembly

(Includes Item 38)

38 489136 Screw,

3−24 x 23/64

39 488208 Screw

40 488886 Screw, 8−18 x 1/2

100 4317943 Icemaker, Complete

Assembly
