CABINET PARTS
1
For Models: ET8WTMXKQ07, ET8WTMXKT07
(White) (Biscuit)
1−05 Litho In U.S.A. (djc) Part No. 8199267
REFRIGERATOR
CABINET PARTS
2
For Models: ET8WTMXKQ07, ET8WTMXKT07
(White) (Biscuit)
8199267
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
2225759 Service &
Wiring Sheet
2302218 Energy Label
2302037 Use & Care Guide
2225623 Modular Icemaker
Service Sheet
2225413 Customer
Instructions
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
677969 Do−It−Yourself
Manual, Ref./Fzr.
2 2189410 Hinge (Top)
3 2166108 Roller, Front (2)
4 489427 Screw
5 489385 Clamp, Tube
(Water Supply Line)
7 3400504 Screw
8 2179826 Rivet
12 549193 Clamp, Cord
15 489497 Screw
16 2183972 Hinge, Center
17 2183854 Shim, Hinge
Center
18 8281265 Screw
20 2254473 Hinge Butt
24 Fitting, Water Tube
(NOT SERVICED)
27 Hole Plug (6)
2201012 White
2200924 Biscuit
35 Corner Filler (2)
2201014 White
2200926 Biscuit
36 Grille
(Includes
Illus. 39 & 43)
2254386 White
2254389 Biscuit
37 489341 Washer
38 487576 Washer
39 2254385 Clip, Grille
40 Cover−Hinge
2213360 White
2213364 Biscuit
41 Rail, Center
(NOT SERVICED)
43 2189356 Clip−Grille
44 2221775 Cover, Unit
45 Cabinet (Not a
Serviceable Part)
DOOR PARTS
3
For Models: ET8WTMXKQ07, ET8WTMXKT07
(White) (Biscuit)
8199267
DOOR PARTS
4
For Models: ET8WTMXKQ07, ET8WTMXKT07
(White) (Biscuit)
8199267
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes
Illus. 2,3,9
& 11)
2183948 White
2205285 Biscuit
2 939101 Screw Anchor
3 2183198 Tap Plate
5 Handle,
Refrigerator
2202807W White
2202807T Biscuit
6 489357 Screw
8 8281146 Screw
9 Door Gasket,
Magnetic
2202874 Mist Beige
11 2183003 Thimble
12 Cover, Screw
2202819W White
2202819T Biscuit
13 2262218 Nameplate
16 2180027 Trim, Door Shelf
17 8281206 Screw
18 2201052 Trim, Door
19 Freezer Door
(Includes
Illus. 3,11 & 23)
2182487 White
2205279 Biscuit
20 Hole Plug,
Handle (1)
2189000 White
2200936 Biscuit
21 2195943 Trim, Door Shelf
22 2195915 Plug, Trim
23 Door Gasket,
Magnetic
2214966 Mist Beige
24 2195915 Endcap (2)
25 2201051 Trim, Door Shelf
26 2189202 Bracket, Door
Stop (2)
27 488921 Screw
28 Hole Plug,
Hinge (2)
2212648 White
2212649 Biscuit
29 2156007 Plug, Trim (4)
30 2156006 Plug, Trim (4)
31 2218113 Compartment Door
33 Handle,
Freezer
2202806W White
2202806T Biscuit
37 2201050 Trim, Door (2)
41 2156003 Endcap (4)
42 2195949 Trim, Door
LINER PARTS
5
For Models: ET8WTMXKQ07, ET8WTMXKT07
(White) (Biscuit)
8199267
LINER PARTS
6
For Models: ET8WTMXKQ07, ET8WTMXKT07
(White) (Biscuit)
8199267
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2197380 Grommet (2)
3 2254359 Gasket, Evaporator
Cover(2)
4 2188376 Defrost Timer
5 2204640 Thermostat Tube
Barrier
6 98129 Screw
7 2187885 Wire Assy.
Control Box
8 2162085 Socket, Light (2)
9 2214976 Bracket,
Fan Rear
10 2214986 Fan Motor
11 2163777 Fan Blade
12 2218381 Control Box
13 2225460 Thermostat
14 489478 Screw
15 693995 Screw
16 2254261 Cover, Evaporator
17 2160708 Light Bulb
18 2221677 Defrost, BI−Metal
19 1118894 Rocker Arm
Switch
21 2176281 Cover, Air
Diffuser
22 2202885 Knob, Thermostat
23 2254354 Air Tower
24 2189452 Air Diffuser,
Bottom
26 2210390 Air Separator
Assembly
27 2214979 Bracket,
Fan Front
28 940014 Hole Plug,
Control Box
29 2218696 Bracket,
Fan Motor
31 2204639 Shield, Heat
32 2187686 Wire Assembly,
Freezer Compartment
(Includes
Illus. 18)
39 2171931 Valve−Tube, Body
UNIT PARTS
7
For Models: ET8WTMXKQ07, ET8WTMXKT07
(White) (Biscuit)
8199267

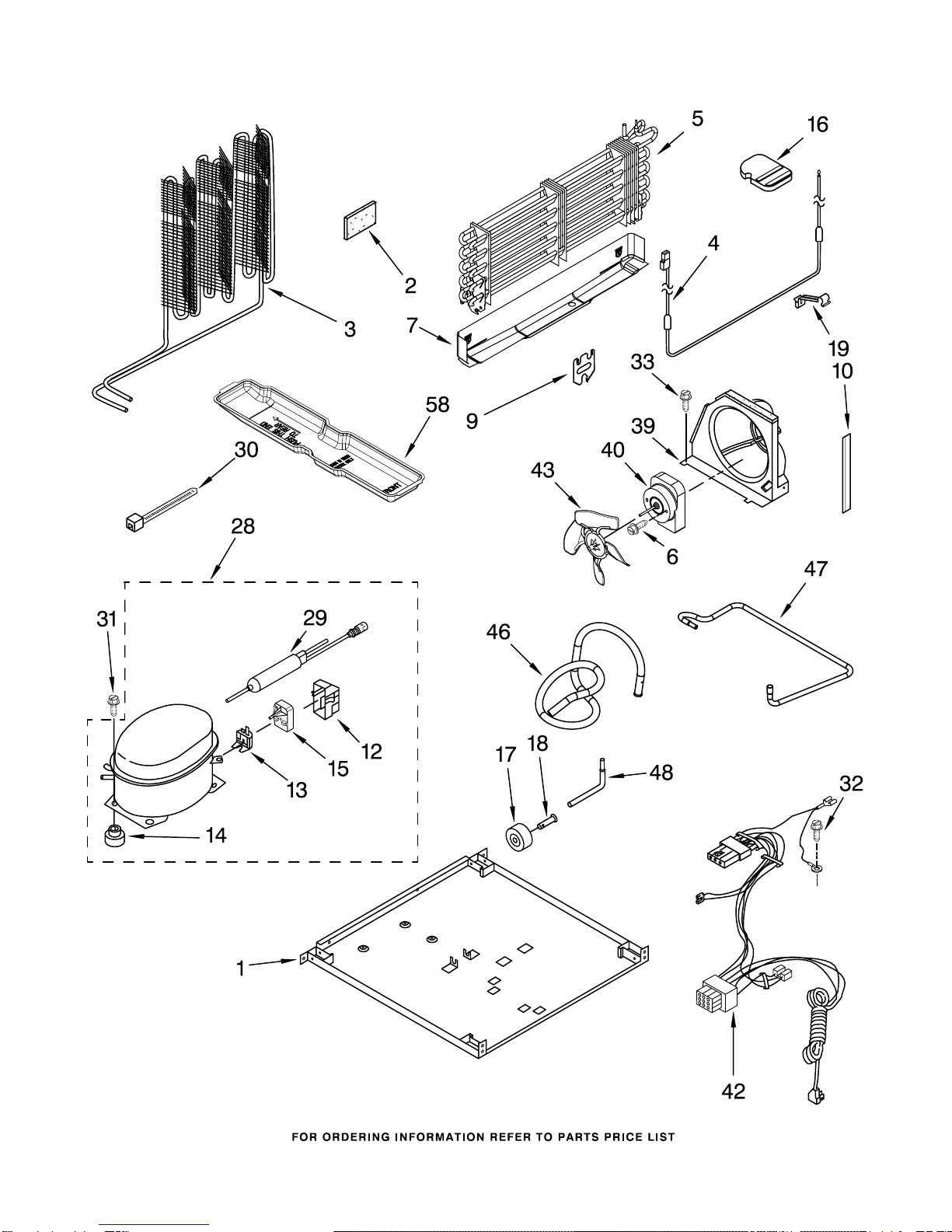

UNIT PARTS
8
For Models: ET8WTMXKQ07, ET8WTMXKT07
(White) (Biscuit)
8199267
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 2225597 Plate, Unit
Mounting
2 2169104 Insullation,
Sound Dampening
3 2214960 Condenser
4 2176300 Heater, Defrost
5 2254250 Evaporator Assy.
6 8533859 Screw
7 2254294 Drain Pan
9 2176301 Bracket, Heater
10 2300638 Extension, Air
Baffle
12 Cover
2162358 Production
4387731 Service
13 Overload
2302290 Production
4387938 Service
(Includes Relay)
14 Grommet (4)
1100826 Production
4387558 Service
15 2258450 Start−Relay
(Production
Compressor Only)
16 2201184 Support Block
17 2150304 Roller (2)
18 2221797 Rivet
19 2182338 Clip, Heater
28 2225647 Compressor
(Includes Items
12,13,14 & 29)
(Also Order
482801
Installation Kit
& 876765
Tube Kit)
29 Drier
2199167 Production
4387019 Service
30 2155774 Clamp
31 489373 Screw
32 488500 Screw
33 3400518 Screw
39 2302249 Air Baffle
40 2188874 Motor, Condenser
42 2187764 Wire Assy. Unit
43 2225834 Fan Blade
46 2205294 Tube, Discharge
47 2205293 Tube, Suction
48 2212848 Tube, Process
58 2300635 Evap. Tray
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
3.75 Ozs.
(R134A)
ICEMAKER PARTS
9
For Models: ET8WTMXKQ07, ET8WTMXKT07
(White) (Biscuit)
8199267
ICEMAKER PARTS
10
For Models: ET8WTMXKQ07, ET8WTMXKT07
(White) (Biscuit)
8199267
Illus. Part
No. No. DESCRIPTION
1 488878 Clamp, Tube
4 2181939 Insert, Tube
5 628379 Clip, Fuse
7 2181943 Tube Water
8 2210495 Clip, Water Valve
9 489478 Screw
10 2210494 Valve Solenoid
11 627018 Nut Compression
12 489464 Screw
14 489385 Clamp, Tube
18 2210484 Cover
19 8281265 Screw
20 628228 Mold & Heater
Assembly (Also
Order 542638
Silicone Grease)
22 628356 Cup, Water Fill
23 2194711 Ejector
24 2182124 Ice Striper
25 2194712 Support
26 627796 Retainer
Thermostat
27 627985 Thermostat (Also
Order 542369
Cement
Alumilastic)
28 8533917 Screw
30 489276 Screw
31 627792 Shut Off Arm
32 2187464 Harness, Wiring
33 628320 Bracket
35 628399 Module Assembly
(Includes Item 38)
38 489136 Screw,
3−24 x 23/64
39 488208 Screw
40 488886 Screw, 8−18 x 1/2
100 4317943 Icemaker, Complete
Assembly
