Whirlpool ET8MHKXMB01 User manual

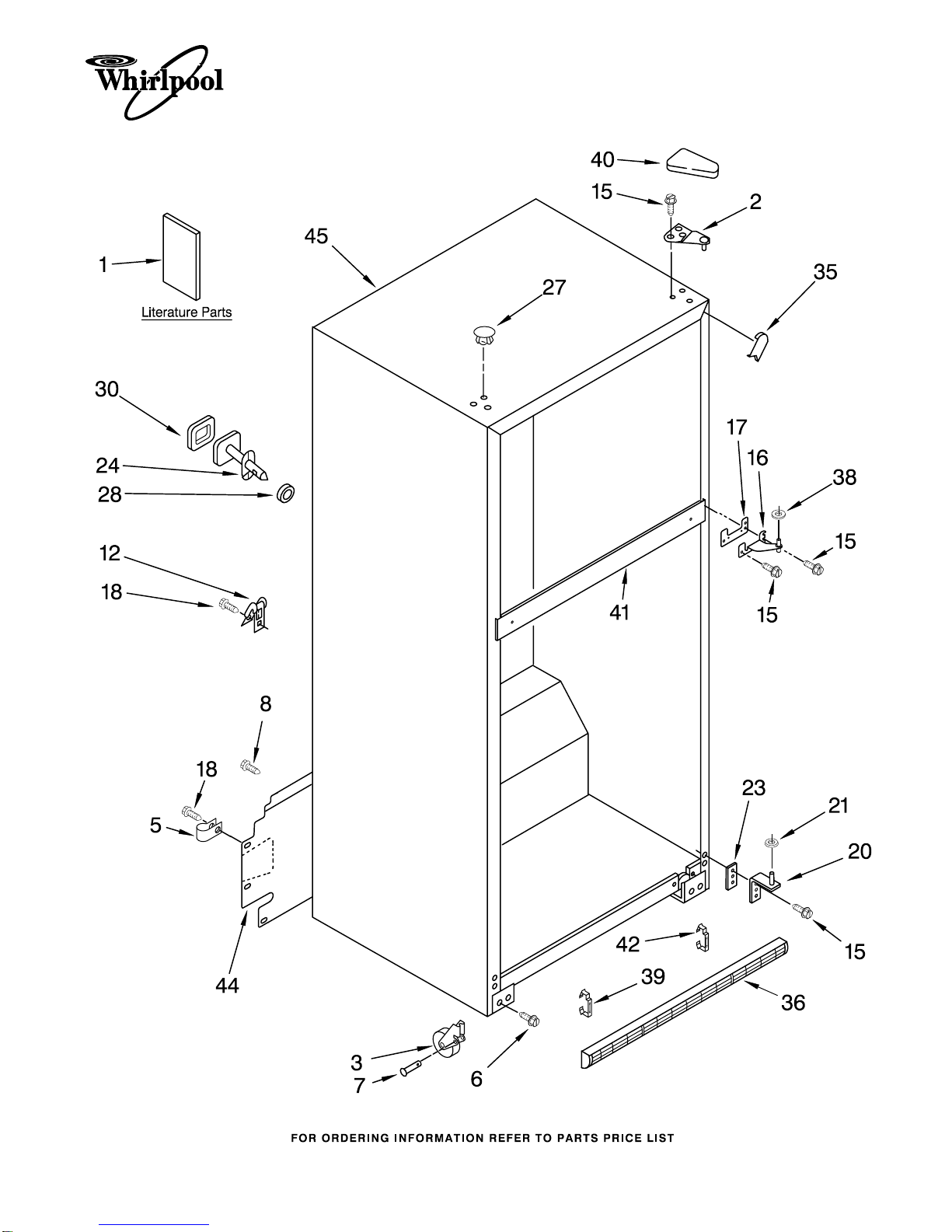

CABINET PARTS
1
For Models: ET8MHKXMQ01,ET8MHKXMT01, ET8MHKXMB01
(White) (Biscuit) (Black)
8−04 Litho In U.S.A. (ebk) Part No. 8199121
REFRIGERATOR
CABINET PARTS
2
For Models: ET8MHKXMQ01,ET8MHKXMT01, ET8MHKXMB01
(White) (Biscuit) (Black)
8199121
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
2225759 Service &
Wiring Sheet
2302184 Energy Label
2302037 Use & Care Guide
2225413 Customer
Instructions
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
677969 Do−It−Yourself
Manual, Ref./Fzr.
2 2189410 Hinge (Top)
3 2166108 Roller, Front (2)
5 489385 Clamp, Tube
(Water Supply Line)
6 3400504 Screw
7 2179826 Rivet
8 489427 Screw
12 549193 Clamp, Cord
15 489497 Screw
16 2183972 Hinge, Center
17 2183854 Shim, Hinge
Center
18 8281265 Screw
20 2189194 Hinge Butt
21 487576 Washer
23 2172743 Shim, Bottom
Hinge
24 Fitting, Water Tube
(Not Serviced)
27 Hole Plug (6)
2201012 White
2200924 Biscuit
2183998 Black
28 Seal, Front
(Not Serviced)
30 Seal, Rear
(Not Serviced)
35 Corner Filler (2)
2201014 White
2200926 Biscuit
2201017 Black
36 Grille
2254386 White
2254389 Biscuit
2254388 Black
38 489341 Washer
39 2189356 Clip, Grille
40 Cover, Hinge
2213360 White
2213364 Biscuit
2213363 Black
41 Rail, Center
(Not Serviced)
42 2254385 Clip, Grille
44 2221775 Cover, Unit
45 Cabinet (Not a
Serviceable Part)

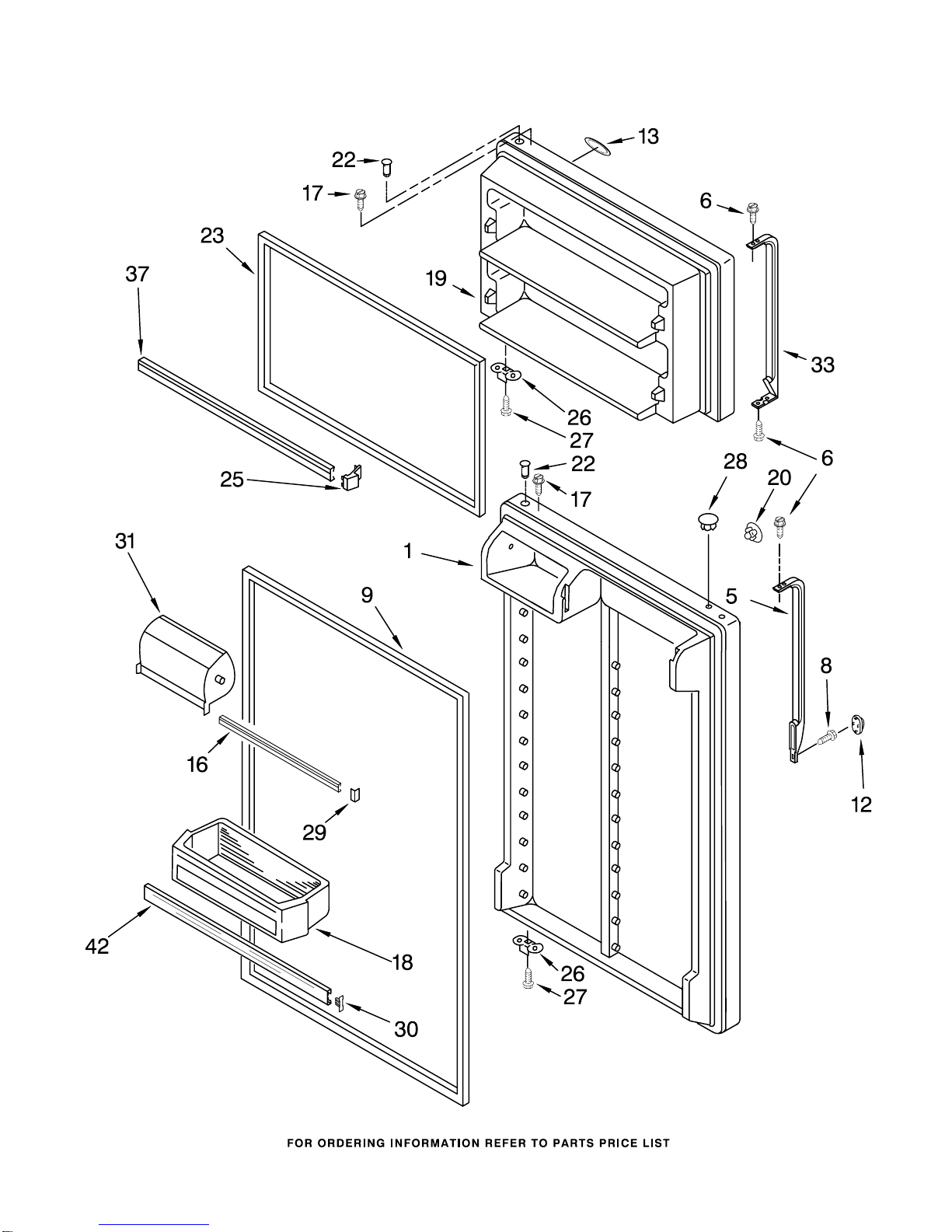

DOOR PARTS
3
For Models: ET8MHKXMQ01,ET8MHKXMT01, ET8MHKXMB01
(White) (Biscuit) (Black)
8199121
DOOR PARTS
4
For Models: ET8MHKXMQ01,ET8MHKXMT01, ET8MHKXMB01
(White) (Biscuit) (Black)
8199121
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #9 & #22)
2183898 White
2205281 Biscuit
2200712 Black
5 Handle Center
2202807W White
2202807T Biscuit
2202807B Black
6 489357 Screw
8 8281146 Screw
9 Door Gasket,
Magnetic
2202874 Mist Beige
12 Cover, Screw
2202819W White
2202819T Biscuit
2202819B Black
13 2262218 Nameplate
16 2180027 Trim, Door Shelf
17 8281206 Screw
18 2204810 Door Bin (3)
19 Freezer Door
(Includes #22 & #23)
2182487 White
2205279 Biscuit
2200710 Black
20 Hole Plug
2189000 White
2200936 Biscuit
2189009 Black
22 2183003 Thimble
23 Door Gasket,
Magnetic
2214966 Mist Beige
2214968 Black
25 2195916 Endcap, Trim (4)
26 2189202 Bracket, Door
Stop (2)
27 488921 Screw
28 Hole Plug
2212648 White
2212649 Biscuit
2212651 Black
29 2156007 Plug, Trim (2)
30 2156006 Plug, Trim (2)
31 2218113 Compartment Door
33 Handle, F.C.
2202806W White
2202806T Biscuit
2202806B Black
37 2195946 Trim, Door (2)
42 2195949 Trim, Door
LINER PARTS
5
For Models: ET8MHKXMQ01,ET8MHKXMT01, ET8MHKXMB01
(White) (Biscuit) (Black)
8199121
LINER PARTS
6
For Models: ET8MHKXMQ01,ET8MHKXMT01, ET8MHKXMB01
(White) (Biscuit) (Black)
8199121
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2197380 Grommet (2)
3 2254359 Gasket, Evaporator
Cover (2)
4 2188376 Control,
Adaptive Defrost
5 2204640 Thermostat Tube,
Barrier
6 941839 Hole Plug
7 2187885 Wire Assy.
Control Box
8 2162085 Socket, Light
9 2214976 Bracket
Evap. Fan, Rear
10 2214986 Fan Motor
11 2163777 Fan Blade
12 2218381 Control Box
13 2225460 Thermostat Assy.
(Includes Item 5)
14 489478 Screw
16 2254261 Cover, Evaporator
17 2160708 Light Bulb
18 2221677 Defrost, BI−Metal
19 1118894 Rocker Arm
Switch
20 940014 Hole Plug,
Control Box
21 2176281 Cover, Air
Diffuser
22 2202885 Knob, Thermostat
23 2254354 Air Tower
24 2189452 Air Diffuser,
Bottom
26 2179877 Air Diffuser, Top
27 2205003 Cover, Hole
29 2218696 Bracket,
Fan Motor
30 2214979 Bracket
Evap. Fan, Front
31 2204639 Shield, Heat
32 487996 Cap
37 98129 Screw
38 2210509 Release Valve
39 2187686 Wire Assembly,F.C.
(Includes Item 18)
UNIT PARTS
7
For Models: ET8MHKXMQ01,ET8MHKXMT01, ET8MHKXMB01
(White) (Biscuit) (Black)
8199121
UNIT PARTS
8
For Models: ET8MHKXMQ01,ET8MHKXMT01, ET8MHKXMB01
(White) (Biscuit) (Black)
8199121
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 2225597 Plate, Unit
Mounting
3 2214960 Condenser
4 2176300 Heater, Defrost
5 2254250 Evaporator Assy.
7 2254294 Drain Pan
9 2176301 Bracket, Heater
10 2300638 Extension, Air
Baffle
11 2201184 Support Block
12 Cover
2162358 Production
4387731 Service
13 Overload
2302290 Production
4387938 Service
(Includes Relay)
14 Grommet (4)
1100826 Production
4387558 Service
15 2258450 Start−Device
Combination
(Start Relay and
Overload for
Production
Compressor Only)
16 489373 Screw
17 2150304 Roller (2)
18 2221797 Rivet
19 2182338 Clip, Heater
20 8281197 Screw
21 Nut
(Not Serviced)
24 489494 Screw
28 2225647 Compressor
(Includes Items
12, 13, 14 & 29)
29 Drier
2199167 Production
4387019 Service
30 2155774 Clamp
39 2302249 Air Baffle
40 2188729 Motor, Condenser
41 2301979 Plate
42 2187764 Wire Assy. Unit
43 2225834 Fan Blade
46 2205294 Tube, Discharge
47 2205293 Tube, Suction
48 2212848 Tube, Process
56 488500 Screw
57 3400518 Screw
58 2300635 Evaporator Tray
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
4.00 Ozs.
(R134A)

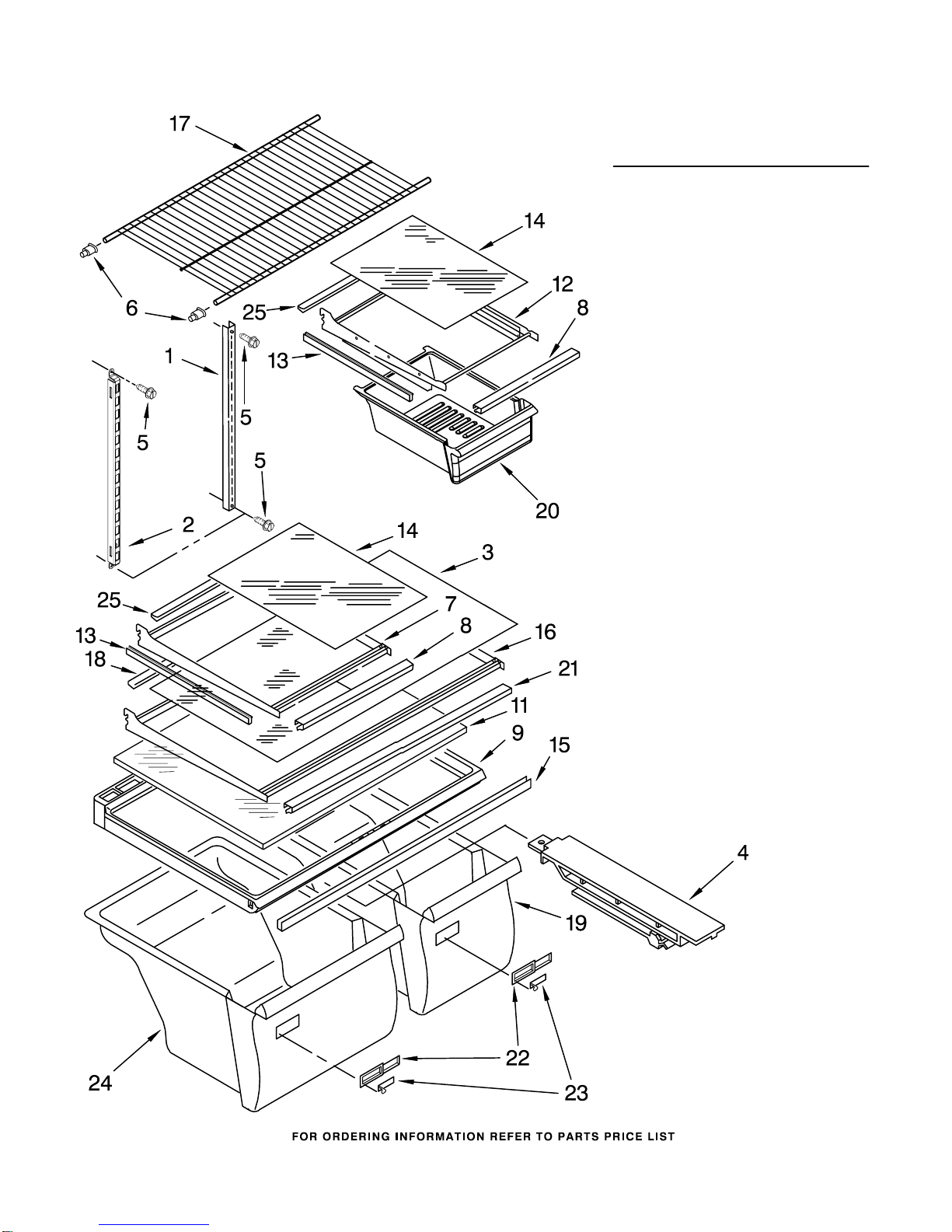

SHELF PARTS
9
For Models: ET8MHKXMQ01,ET8MHKXMT01, ET8MHKXMB01
(White) (Biscuit) (Black)
8199121
Illus. Part
No. No. DESCRIPTION
1 2210522 Shelf, Ladder (2)
2 2300520 Shelf, Ladder
Center
3 2200986 Glass, Full Shelf
4 2163835 Track, Crisper
5 489478 Screw
6 2163762 Cup, Shelf Mounting
7 2201101E Shelf,
Cantilever
8 2188684 Trim, Shelf
9 2200768 Cover, Crisper
11 2221693 Insert, Crisper
Cover
12 2201105 Shelf, Meat Pan
Cantilever
13 2188711 Trim Shelf, Side
14 2200985 Glass, Shelf
15 2172541 Crisper Support
16 2201103E Shelf, Full
Cantilever
17 2189453 Shelf, Freezer
18 2188688 Trim, Shelf Rear
19 2218140 Pan, Crisper
(Includes 22 & 23)
20 2218127K Pan, Meat
21 2188690 Trim, Shelf Front
22 2212446 Body, Humidity
Control
23 2176222 Slide, Humidity
Control
24 2218141 Pan, Crisper
(Includes 22 & 23)
25 2188686 Trim, Shelf Rear
10
OPTIONAL PARTS
For Models: ET8MHKXMQ01,ET8MHKXMT01, ET8MHKXMB01
(White) (Biscuit) (Black)
8199121
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
PARTS NOT ILLUSTRATED
978941 Insulation,
Fiberglass
(63−1/2" x 35−1/2"
x 2−5/8")
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4" x 108")
876305 Kit, Insulation
(14 Pcs.
3" x 24" x 48")
876370 Kit, Insulation
(2 Pcs.
3" x 24 " x 48")
876029 Kit, Foam Slab
(30" x 32−1/2" x
1−1/2")
505587 Sealer, Mastic
(1 Qt.)
511873 Touch−Up, White
Porcelain (2 Oz.)
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
606755 Bag, Insulation
(36−5/8" x 46")
799833 Kit, Evaporator
Repair
(Aluminum Epoxy)
799832 Kit, Porcelain
Repair (White)
503695 Cork Sealer
(1/4 Pound)
Customer Touch−Up Material
350942 Primer, White
(12 Oz. Spray Can)
350930 Enamel, White
(12 Oz. Spray Can)
350956 Enamel, Almond
(12 Oz. Spray Can)
4392901 Enamel, Biscuit
(12 Oz. Spray Can)
72017 Brush Touch−Up Kit
(White)
72107 Brush Touch−Up Kit
(Almond)
4392899 Brush Touch−Up Kit
(Biscuit)
Refinishing Material
799340 Enamel, Black
(1 Qt. Uncut)
799344 Enamel, White
(1 Qt. Uncut)
978883 Enamel, Almond
(1 Qt. Uncut)
4392900 Enamel, Biscuit
(1 Qt. Uncut)
833938 Kit, Terminal
Connector
Important: The spray paint is
not to be used where the paint
may make contact with the door
gaskets.
FIELD INSTALLABLE
ICE MAKER
2155469 ECKMF94
TORX SCREW WRENCH
1117510 Torx Key
