Whirlpool ET8AHMXRQ00 User manual

CABINET PARTS

For Model: ET8AHMXRQ00, ET8AHMXRT00

(White) (Biscuit)

1−06 Litho In U.S.A. (rrm) Part No. 8214762

REFRIGERATOR

CABINET PARTS

For Model: ET8AHMXRQ00, ET8AHMXRT00

(White) (Biscuit)

8214762

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2265591 Service &

Wiring Sheet

2316016 Use & Care Guide

2266599 Energy Guide

628370 Modular Icemaker

Service Sheet

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677969 Do−It−Yourself

Manual, Ref./ Fzr.

2 2261963 Hinge Butt, Top

3 2217757 Roller, Front

5 2264535 Foam Block

7 488296 Washer

8 2266389 Cover, Unit

9 2222100 Screw

10 489442 Screw

11 2266506 Spacer, Back

12 2166086 Hinge, Center

13 2166043 Shim, Hinge

Center

14 489497 Screw

15 2221926 Hinge Butt,

Bottom

16 9791682 Hinge−Pin,

Bottom

17 3428970 Screw

18 2201567 Shim, Bottom

Hinge

19 2174760 Fitting, Water Tube

20 Hole Plug (6)

2201012 White

2200924 Biscuit

21 1106508 Seal

22 2262176 Screw

23 Corner Filler

2166003 White

2202282 Biscuit

24 489341 Washer

25 487802 Washer 7/64

26 Rail, Center

(Not Serviced)

27 Cabinet (Not a

Serviceable Part)

DOOR PARTS

For Model: ET8AHMXRQ00, ET8AHMXRT00

(White) (Biscuit)

8214762

DOOR PARTS

For Model: ET8AHMXRQ00, ET8AHMXRT00

(White) (Biscuit)

8214762

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes

Illus. 9,12,

14 & 24)

2266588W White

2266588T Biscuit

2 2207942 Door Compartment

3 8281206 Screw

4 2156003 Trim, Endcap

5 Handle,

Refrigerator

2221946W White

2221946T Biscuit

6 489357 Screw

8 8281146 Screw

9 2263258 Door Gasket,

Magnetic

10 Screw Cover

2202819W White

2202819T Biscuit

11 2262218 Nameplate

12 939101 Screw Anchor

13 2264785 Trim, Door Shelf

14 2262054 Thimble

15 2263259 Trim, Door

16 Freezer Door

2265990W White

2265990T Biscuit

(Includes

Illus. 14,18 & 24)

17 Hole Plug,

Handle

2189000 White

2200936 Biscuit

18 2263257 Door Gasket,

Magnetic

19 2189202 Bracket, Door Stop

20 488921 Screw

21 Hole Plug

2212648 White

2212649 Biscuit

22 2156007 Plug, Trim

23 2195916 Trim, Endcap

24 2183000 Tap Plate

25 Handle, Freezer

2202098 White

2215015 Biscuit

26 2263260 Trim, Endcap

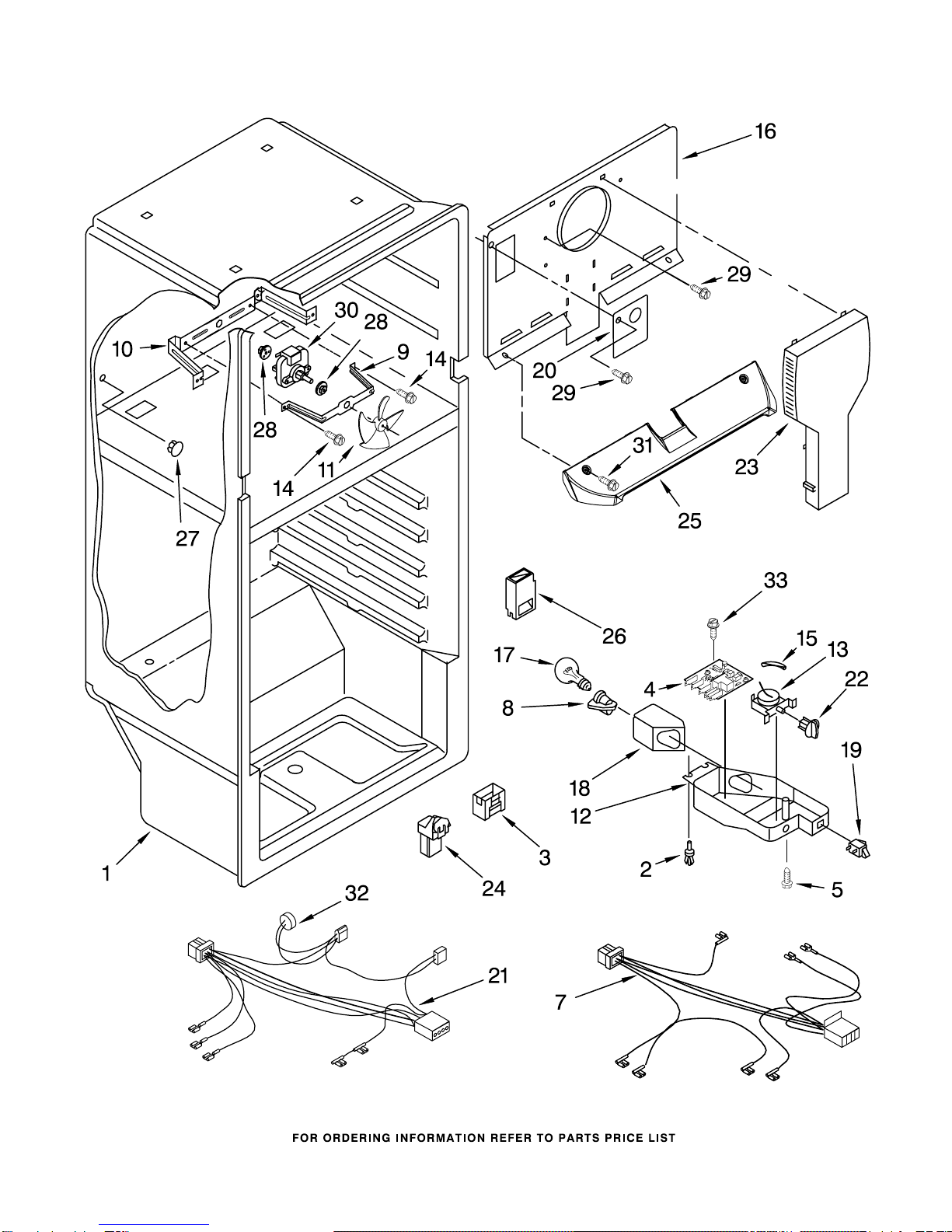

LINER PARTS

For Model: ET8AHMXRQ00, ET8AHMXRT00

(White) (Biscuit)

8214762

LINER PARTS

For Model: ET8AHMXRQ00, ET8AHMXRT00

(White) (Biscuit)

8214762

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 939962 Rivet

3 2183061 Cover, Air Diffuser

4 2303825 Adaptive Defrost

Control

5 489174 Screw

7 2266499 Wire Assembly

Control Box

8 2162085 Socket, Light

9 2197404 Fan Support

Bracket

10 2197405 Fan Mounting

Bracket

11 2169142 Fan Blade

12 2215210 Control Box

13 2201754 Thermostat

14 489399 Screw

15 1118680 Thermostat Tube

Barrier

16 2264669 Cover, Evaporator

17 2252970 Light Bulb

18 9791702 Light Shield

19 1118894 Rocker Arm

Switch

20 2217783 Cover, Hole

21 2215114 Wiring, Freezer

(Includes Item 32)

22 2202885 Control Knob

23 9790408 Air Tower

24 2197052 Hood And Foil

Assembly

25 2261978 Cover, Air Return

26 2221992 Air Diffuser

Assembly

27 941839 Hole Plug

28 2264462 Grommet, Motor

29 489478 Screw

30 2201212 Evaporator Fan

Motor

31 2262178 Screw

32 2183073 Defrost, BI−Metal

33 488693 Screw

UNIT PARTS

For Model: ET8AHMXRQ00, ET8AHMXRT00

(White) (Biscuit)

8214762

UNIT PARTS

For Model: ET8AHMXRQ00, ET8AHMXRT00

(White) (Biscuit)

8214762

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2262904 Support Plate,

Compressor

2 489442 Screw

3 2264004 Condenser

4 2176942 Heater, Defrost

5 2264835 Clip, Condensor

6 8533859 Screw

7 2264762 Heat Shield

8 2264516 Snap Rivet

9 2161302 Sleeve

10 2263929 Air Baffle

11 2188875 Motor, Condensor

12 4387731 Cover

(Service Only)

13 4390624 Overload

(Service Only)

14 Grommet

2264447 Production

4387558 Service

15 2183454 Start Relay

(Service Only)

16 939054 Clip, Wire

17 2150304 Roller

18 2264756 Axle, Rivet

19 2262191 Wedge, Evaporator

20 2263920 Evaporator Assy.

21 9791833 Clip, Evaporator

Tube

22 2225929 Start− Device

Combination

(Start Relay and

Overload for

Production

Compressor Only)

23 2262192 Wedge, Evaporator

24 2264129 Fan Blade

25 2264841 Screw

27 549193 Clamp, Cord

28 2217634 Compressor

(Includes Items

12,13,14,15,29

32 & 38)

29 Drier

2201796 Production

4387019 Service

30 2263990 Strap

31 2264838 Sleeve

32 Capacitor

2264017 Production

1118576 Service

33 2212996 Bale Strap

34 1114718 Clip, Wiring

35 2264278 Tube, Drain

36 2266467 Clip, Harness

37 24364001 Clip, Compressor

38 4387765 Wire Assembly

(Service Only)

39 2264131 Extension,

Tube−Heat

42 2263753 Wire Assy. Unit

43 2263928 Evaporator Tray

44 2316181 Tube, Discharge

45 VS20001 Tube, Process

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

3.75 Ozs.

(R134A)

ICEMAKER PARTS

For Model: ET8AHMXRQ00, ET8AHMXRT00

(White) (Biscuit)

8214762

ICEMAKER PARTS

For Model: ET8AHMXRQ00, ET8AHMXRT00

(White) (Biscuit)

8214762

Illus. Part

No. No. DESCRIPTION

3 488878 Clamp, Tube

4 2181939 Insert, Tube

5 628379 Clip, Fuse

7 2181944 Tube, Water

9 489478 Screw

10 2210494 Valve Solenoid

11 627018 Nut Compression

13 2174755 Tube, Water

Inlet

14 489385 Clamp, Tube

15 2262176 Screw

18 2174157 Cover

19 489442 Screw

20 628228 Mold & Heater

Assembly (Also

Order 542638

Silicone Grease)

22 628356 Cup, Water Fill

23 2194711 Ejector

24 2182124 Ice Stripper

25 2194712 Support

26 627796 Retainer,

Thermostat

27 627985 Thermostat (Also

Order 542369

Cement

Alumilastic

28 8533917 Screw

29 2154101 Clip,

Fill Tube

30 489276 Screw

31 627792 Shut Off Arm

32 2187464 Harness, Wiring

33 628320 Bracket

35 626680 Module Assembly

(Includes Item 38)

38 489136 Screw

39 488208 Screw

40 488886 Screw

100 4317943 Complete Icemaker
