Whirlpool ET6WSKXSQ01 User manual

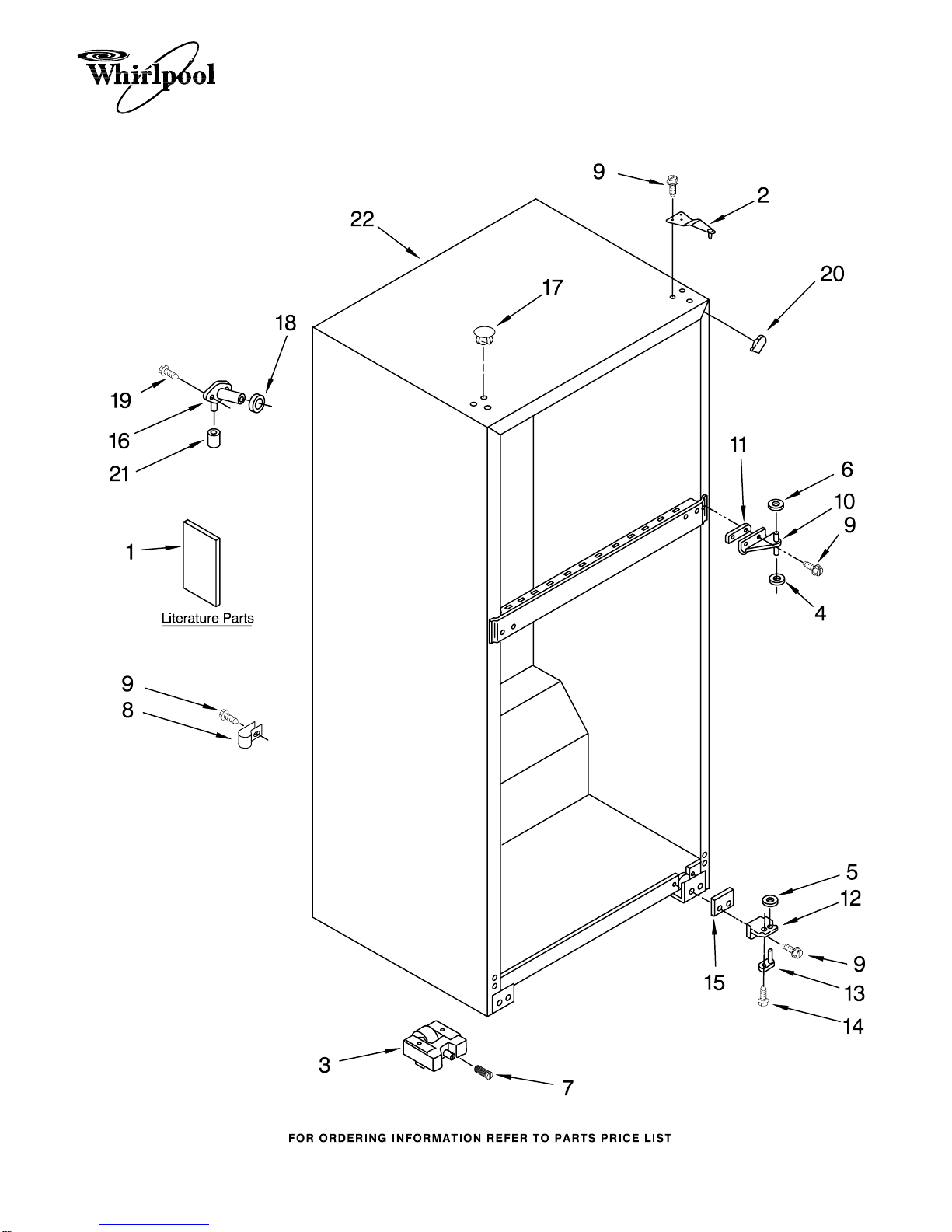

CABINET PARTS
1
For Models: ET6WSKXSQ01, ET6WSKXST01
(White) (Biscuit)
06−07 Litho In U.S.A. (rrm) Part No. W10141156 Rev.A
REFRIGERATOR
CABINET PARTS
2
For Models: ET6WSKXSQ01, ET6WSKXST01
(White) (Biscuit)
W10141156
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
2265209 Service &
Wiring Sheet
W10123841
Energy Label
2316016 Use & Care Guide
2 2261963 Hinge (Top)
3 2324094 Roller−Front
4 489341 Washer
5 488296 Washer
6 487576 Washer (7/64)
7 2222100 Screw
8 549193 Clamp−Cord
9 489497 Screw
10 2166086 Hinge, Center
11 2166043 Shim, Hinge
Center
12 2221926 Hinge Butt
13 9791682 Hinge−Pin Bott.
14 3428970 Screw
15 2201567 Shim, Bottom
Hinge
16 2174760 Fitting, Water
Tube
17 Hole Plug
2201012 White
2200924 Biscuit
18 1106508 Seal
19 2262176 Screw
20 Corner Filler
2166003 White
2202282 Biscuit
21 487996 Cap
Bushing
22 Cabinet (Not a
Serviceable Part)

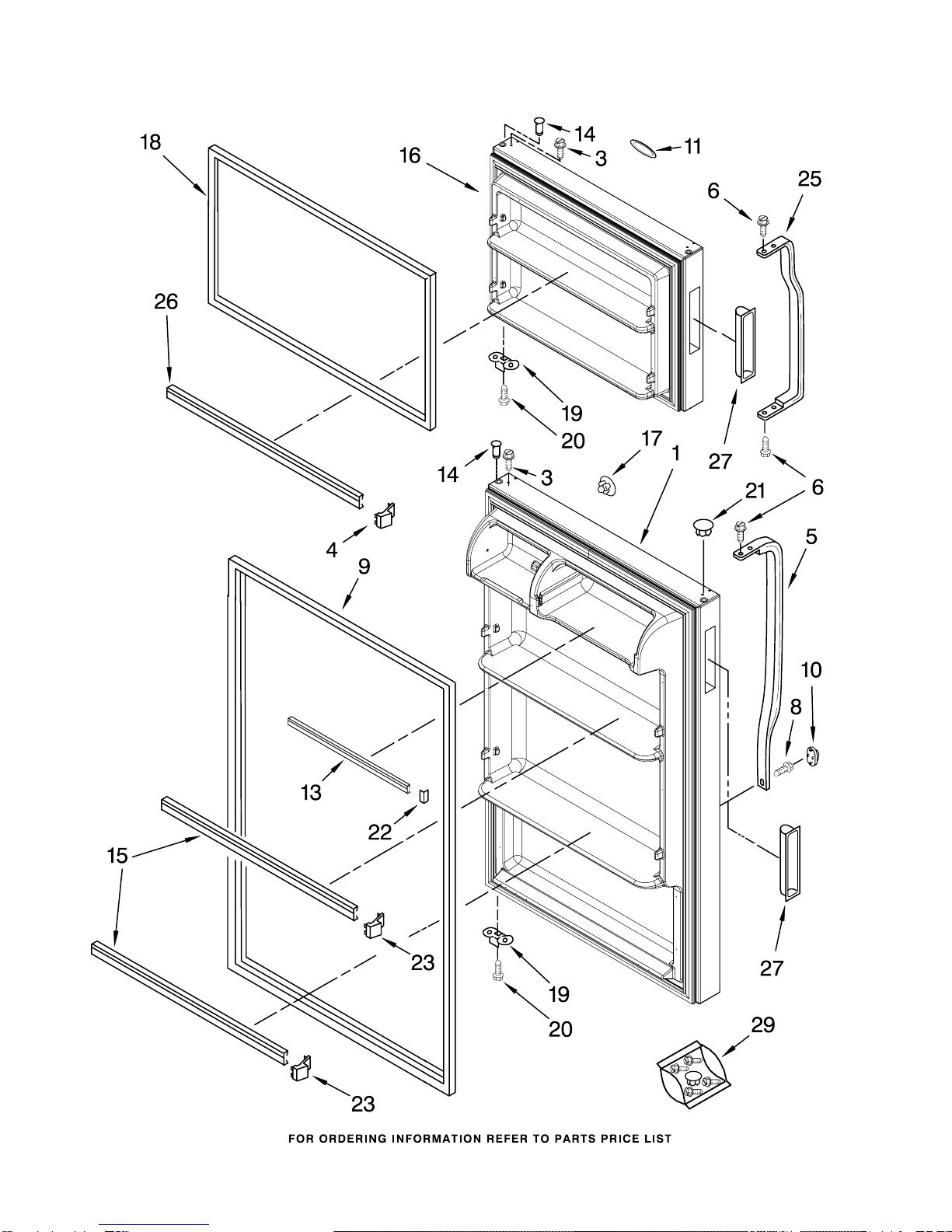

DOOR PARTS
3
For Models: ET6WSKXSQ01, ET6WSKXST01
(White) (Biscuit)
W10141156
DOOR PARTS
4
For Models: ET6WSKXSQ01, ET6WSKXST01
(White) (Biscuit)
W10141156
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes
Illus. 9 & 14)
2316340W White
2316340T Biscuit
3 8281206 Screw
4 2156003 Trim, Endcap
5 Handle,
Refrigerator
2221946W White
2221946T Biscuit
6 489357 Screw
8 8281146 Screw
9 2264507 Door Gasket,
Magnetic
10 Screw Cover
2202819W White
2202819T Biscuit
11 2262218 Nameplate
13 2266729 Trim, Door Shelf
14 2262054 Thimble
15 2266738 Trim, Door
16 Freezer Door
2316341W White
2316341T Biscuit
(Includes
Illus. 14 & 18)
17 Hole Plug,
Handle
2189000 White
2200936 Biscuit
18 2263257 Door Gasket,
Magnetic
19 2189202 Bracket, Door Stop
20 488921 Screw
21 Hole Plug
2212648 White
2212649 Biscuit
22 2156007 Plug, Trim
23 2195916 Trim, Endcap
25 Handle, Freezer
2202098 White
2215015 Biscuit
26 2266727 Trim, Endcap
27 984493 Handle,Door
Snap in
29 2262996 Kit for Omit
Bow Handle Unit

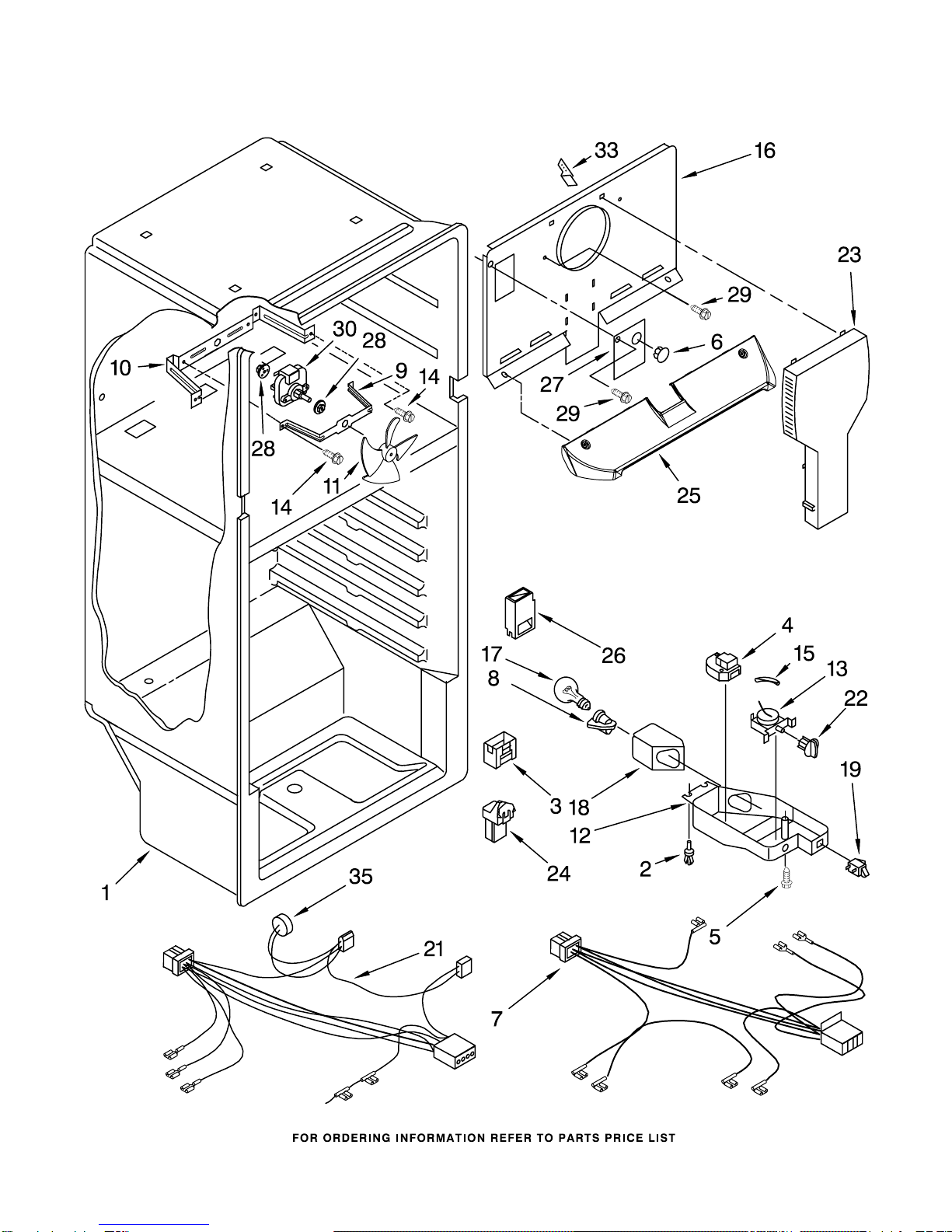

LINER PARTS
5
For Models: ET6WSKXSQ01, ET6WSKXST01
(White) (Biscuit)
W10141156
LINER PARTS
6
For Models: ET6WSKXSQ01, ET6WSKXST01
(White) (Biscuit)
W10141156
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 939962 Rivet−Plastic
3 2183061 Cover, Air Diffuser
4 2188371 Timer, Defrost
5 489174 Screw
6 941839 Hole Plug
7 2265929 Wire Assy.
Control Box
8 2162085 Socket, Light
9 2197404 Fan Support
Bracket
10 2197405 Fan Mounting
Bracket
& Bracket Assy.
11 2169141 Fan Blade
12 2215213 Control Box
13 2325700 Thermostat
14 489399 Screw
15 1118680 Thermostat Tube
Barrier
16 2264669 Cover−Evaporator
17 2252970 Light Bulb
18 9791702 Light Shield
19 1118894 Rocker Arm
Switch
21 2192096 Wiring−Freezer
(Includes Item 35)
22 2202885 Control Knob
23 9790408 Air Tower
24 2197052 Hood And Foil
Assembly
25 2261978 Cover, Air Return
26 2221992 Air Diffuser
27 2217784 Cover, Hole
28 2264462 Grommet−Motor
29 489478 Screw
30 2201212 Evaporator Fan
Motor
33 2197416 Deflector, Air
35 2183073 Defrost, BI−Metal

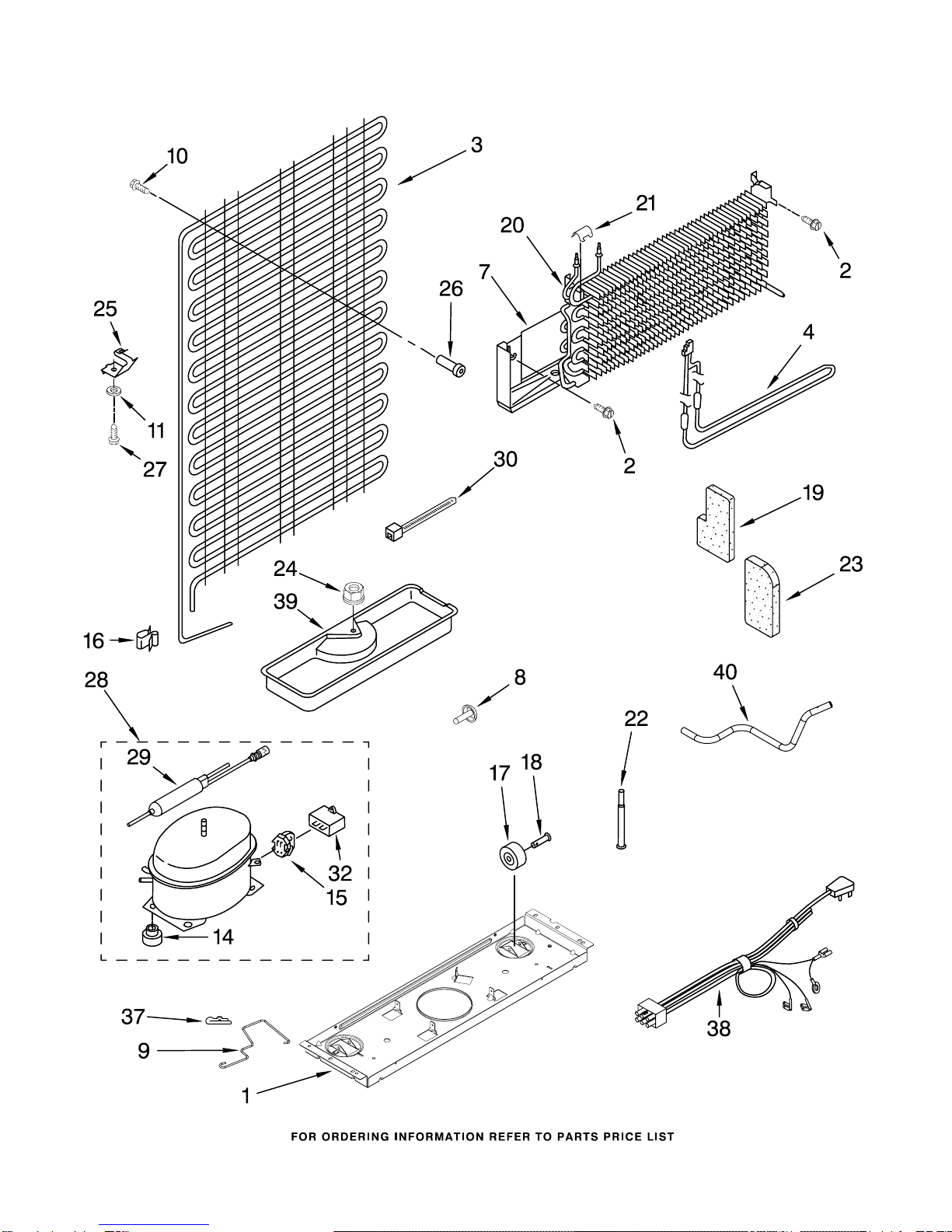

UNIT PARTS
7
For Models: ET6WSKXSQ01, ET6WSKXST01
(White) (Biscuit)
W10141156
UNIT PARTS
8
For Models: ET6WSKXSQ01, ET6WSKXST01
(White) (Biscuit)
W10141156
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
W10127453
Support Plate,
Compressor
2 489442 Screw
3 2252730 Condenser
4 2263749 Heater, Defrost
7 2319224 Heat Shield
8 2264516 Snap Rivet
9 2223313 Retainer
10 8533892 Screw
11 VS611 Washer
14 Grommet
2222084 Production
4387558 Service
15 2320151 Start−Device
Combination
(Start Relay &
Overload for
Production
Compressor Only)
16 939054 Clip, Wire
17 2150304 Roller
18 2264756 Rivet
19 2262191 Wedge−Evap.
20 2263920 Evaporator Assy.
21 9791833 Clip
22 2174739 Tube, Process
23 2262192 Wedge−Evap.
24 489153 Hex Nut
25 2172892 Clip, Condenser
Mounting
26 2258452 Bracket, Condenser
27 2256637 Screw
28 2320132 Compressor
(Includes Items
14,29,& 32)
(Also Order
482801
Installation Kit
& 876765
Tube Kit)
29 Drier
2317845 Service
30 2263990 Strap
32 Capacitator
1118576 Service
2264017 Production
37 24364001 Clip, Compressor
38 2258529 Wire Assy. Unit
39 2201801 Tray Evaporator
40 2264423 Tube, Discharge
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
3.75 Ozs.
(R134A)

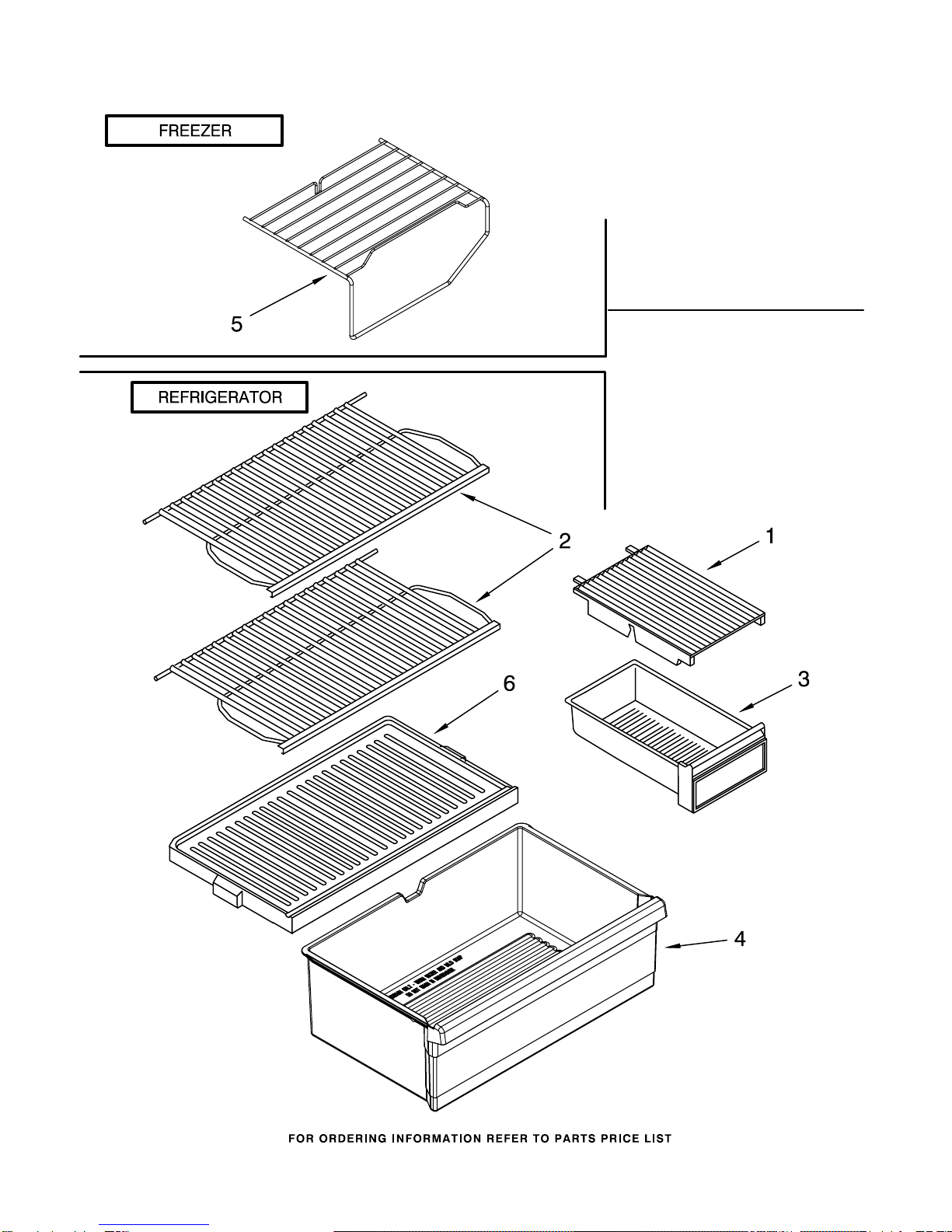

SHELF PARTS
9
For Models: ET6WSKXSQ01, ET6WSKXST01
(White) (Biscuit)
W10141156
Illus. Part
No. No. DESCRIPTION
1 9790379 Cover, Meat Pan
2 2192515 Shelf (2)
3 2183273 Meat Pan
4 2192009 Crisper Pan
5 2262654 Shelf, Ice Tray
6 9791600 Glass, Cover
10
OPTIONAL PARTS
For Models: ET6WSKXSQ01, ET6WSKXST01
(White) (Biscuit)
W10141156
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
Miscellaneous
978941 Insulation
Fiberglass
(63−1/2" x 35−1/2"
x 2−5/8")
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4" x 108")
876305 Kit, Insulation
(14 Pcs.
3" x 24" x 48")
876370 Kit, Insulation
(2 Pcs.
3" x 24 " x 48")
876029 Kit, Foam Slab
(30" x 32−1/2" x
1−1/2")
505587 Sealer, Mastic
(1 Qt.)
511873 Touch−Up, White
Porcelain (2 Oz.)
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
606755 Bag, Insulation
(36−5/8" x 46")
799833 Kit, Evaporator
Repair
(Aluminum Epoxy)
799832 Kit, Porcelain
Repair (White)
503695 Cork Sealer
(1/4 Pound)
Customer Touch−Up Material
350942 Primer, White
(13 Oz. Spray Can)
350939 Enamel, Black
(13 Oz. Spray Can)
350930 Enamel, White
(13 Oz. Spray Can)
350956 Enamel, Almond
(13 Oz. Spray Can)
72017 Brush Touch−Up Kit
(White)
72032 Brush Touch−Up Kit
(Black)
72107 Brush Touch−Up Kit
(Almond)
Refinishing Material
799344 Enamel, White
(1 Qt. Uncut)
978883 Enamel, Almond
(1 Qt. Uncut)
833938 Kit, Terminal
Connector
Important: The spray paint is
not to be used where the paint
may make contact with the door
gaskets.
FIELD INSTALLABLE
ICE MAKER
2155469 ECKMF94
TORX SCREW WRENCH
1117510 Torx Key
