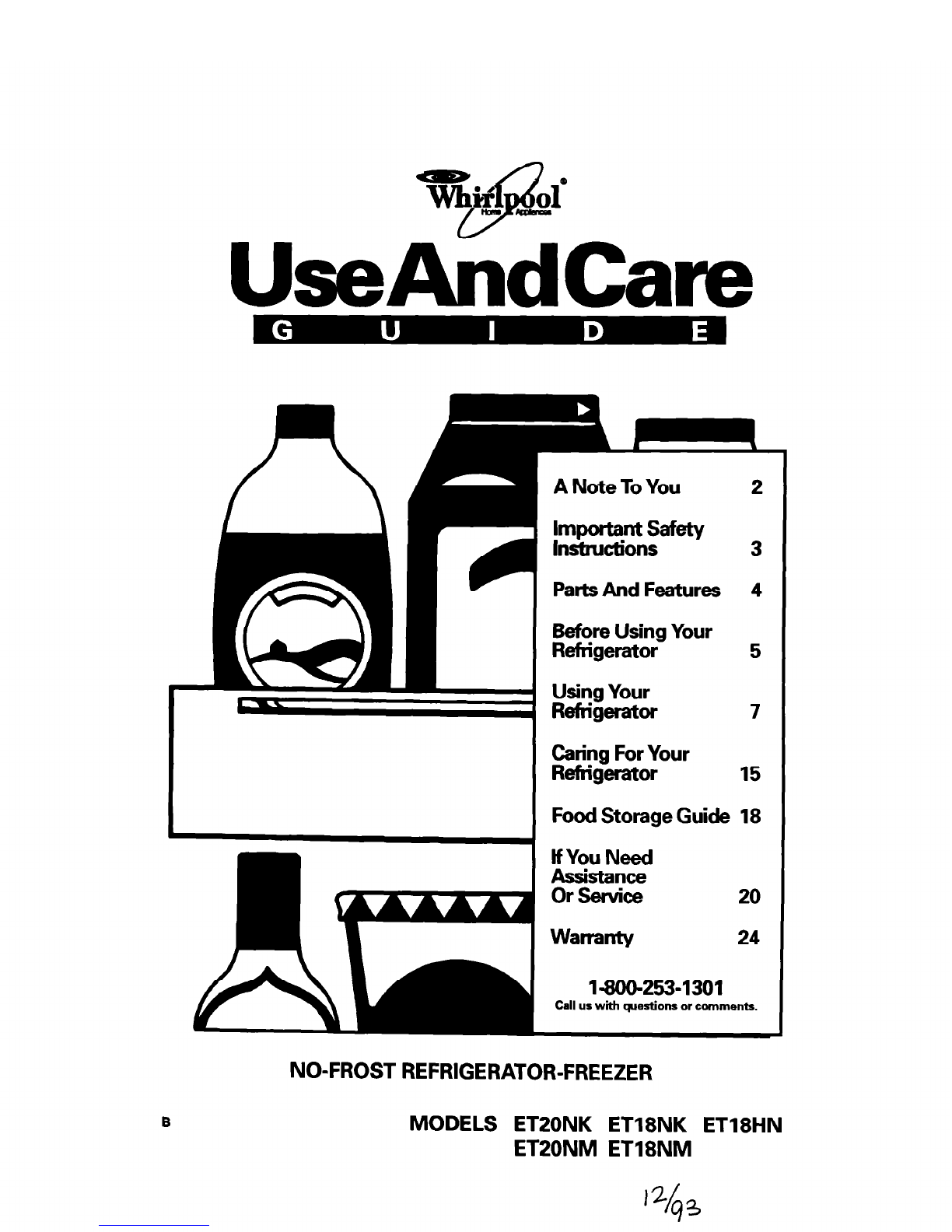

Whirlpool ET20NK User manual

A Note To You 2

Important Safety

Insbuctions 3

Parts And Features

Before Using Your

Refrigerator

Using Your

Refrigerator

Caa;iour 15

Food Storage Guide 18

If You Need

g$j$vg 20

Warranty 24

1-800-253-1301

Call us with westions or comments.

NO-FROST REFRIGERATOR-FREEZER

MODELS ET20NK ET18NK ET18HN

ET20NM ET18NM

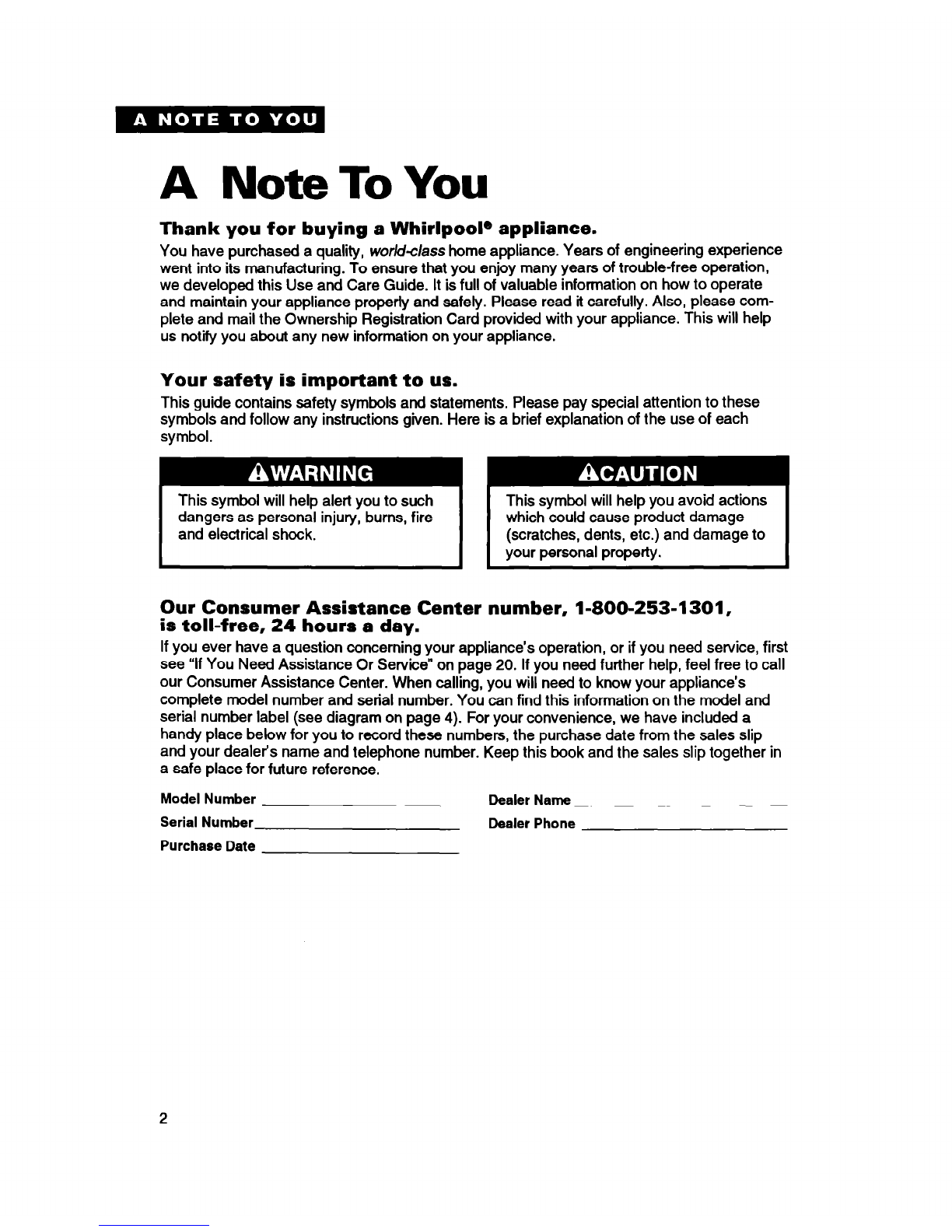

A Note To You

Thank you for buying a Whirlpool@ appliance.

You have purchased a quality, wor/&c/ass home appliance. Years of engineering experience

went into its manufacturing. To ensure that you enjoy many years of trouble-free operation,

we developed this Use and Care Guide. It is full of valuable information on how to operate

and maintain your appliance properly and safely. Please read it carefully. Also, please com-

plete and mail the Ownership Registration Card provided with your appliance. This will help

us notify you about any new information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these

symbols and follow any instructions given. Here is a brief explanation of the use of each

symbol.

This symbol will help alert you to such

dangers as personal injury, burns, fire

1 LeLI

This symbol will help you avoid actions

which could cause product damage

Li$;d damage to

Our Consumer Assistance Center number, l-800-253-1301,

is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first

see “If You Need Assistance Or Service” on page 20. If you need further help, feel free to call

our Consumer Assistance Center. When calling, you will need to know your appliance’s

complete model number and serial number. You can find this information on the model and

serial number label (see diagram on page 4). For your convenience, we have included a

handy place below for you to record these numbers, the purchase date from the sales slip

and your dealer’s name and telephone number. Keep this book and the sales slip together in

a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

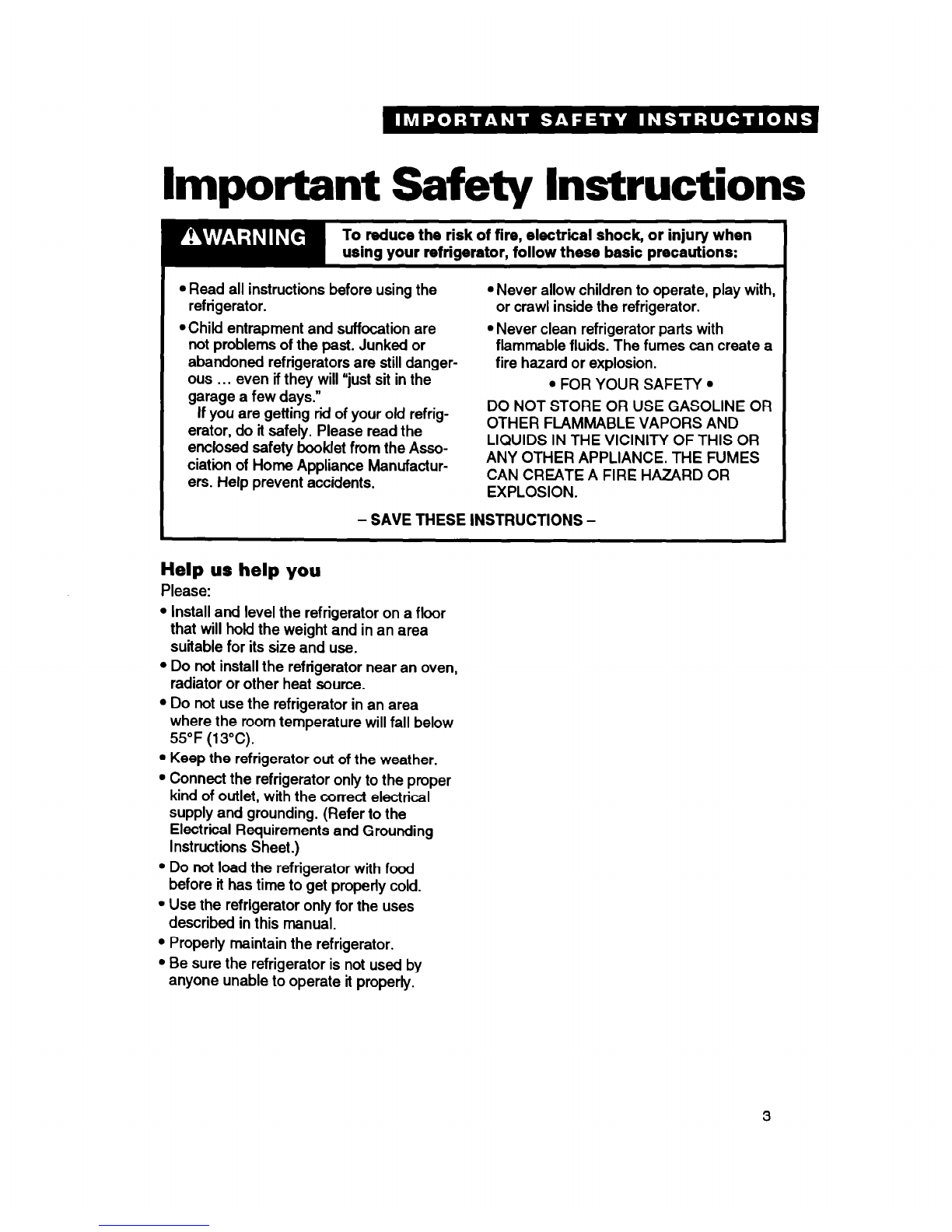

Important Safety Instructions

To reduce the risk of fire, electrical shock, or injury when

using your refrigerator, follow these basic precautions:

l Read all instructions before using the

refrigerator.

Chiti entrapment and suffocation are

not problems of the past. Junked or

abandoned refrigerators are still danger-

ous ... even if they will “just sit in the

garage a few days.”

If you are getting rid of your old refrig-

erator, do it safely. Please read the

enclosed safety booklet from the Asso-

ciation of Home Appliance Manufactur-

ers. Help prevent accidents.

l Never allow children to operate, play with,

or crawl inside the refrigerator.

eNever clean refrigerator parts with

flammable fluids. The fumes can create a

fire hazard or explosion.

l FOR YOUR SAFETY l

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

l Install and level the refrigerator on

floor

that will hoM the weight and in an area

suitable for its size and use.

l Do not install the refrigerator near an oven,

radiator or other heat source.

l Do not use the refrigerator in an area

where the room temperature will fall below

55°F (13°C).

l Keep the refrigerator out of the weather.

l Connect the refrigerator only to the proper

kind of outlet, with the correct electrical

supply and grounding. (Refer to the

Electriil Requirements and Grounding

Instructions Sheet.)

l Do not load the refrigerator with food

before it has time to get properly cold.

l Use the refrigerator only for the uses

described in this manual.

l Properly maintain the refrigerator.

l Be sure the refrigerator is not used by

anyone unable to operate it properly.

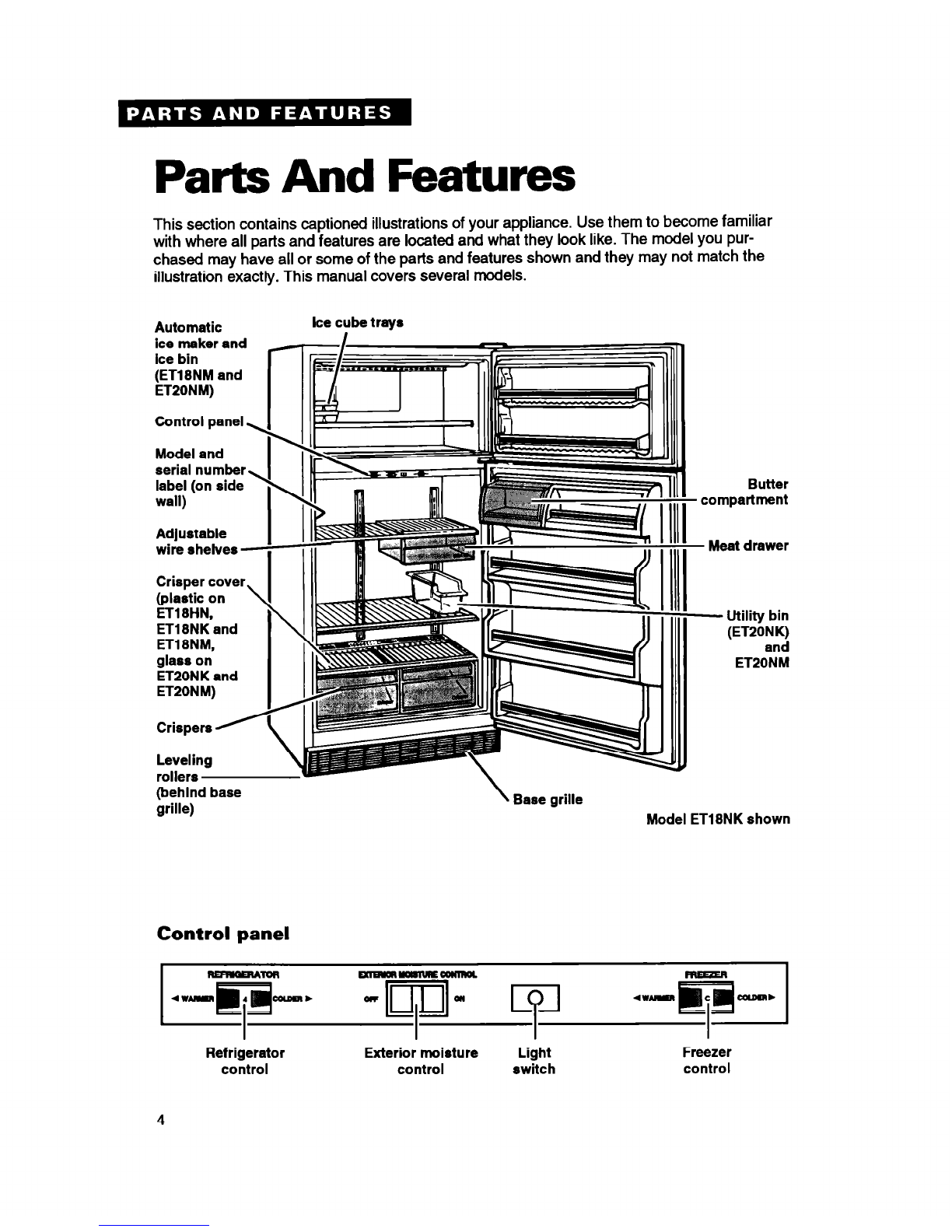

Parts And Features

This section contains captioned illustrations of your appliance. Use them to become familiar

with where all parts and features are located and what they look like. The model you pur-

chased may have all or some of the parts and features shown and they may not match the

illustration exactly. This manual covers several models.

Automatic

ice maker ant

Ice bin

(ET18NM and

ETPON M)

Control panel

Model and

serial number

label (on side

wall)

Adjustable

wire shehres.

Crisper cover

(plastic on

ET1 8HN,

ETl8NK and

ET1 8NM,

glass on

ETPONK and

ETPON M)

Crispers H

Leveling

rollers

Ice cube trays

Butter

. compartment

- Meat drawer

- Utility bin

(ET20NK)

and

ETSONM

(behind base

grille) \ Base grille Model ET1 8NK shown

Control panel

Refrigerator

control Exterior moisture Light

control switch Freezer

control

Before Using Your

Refrigerator

In This Section

Page Page

Cleaning your refrigerator .................5 Installing it properly ...........................6

Plugging it in 5 Leveling it 6

....................................... ............................................

It is important to prepare your refrigerator for use. This section tells you how to clean it,

connect it to a power source, install it and level it.

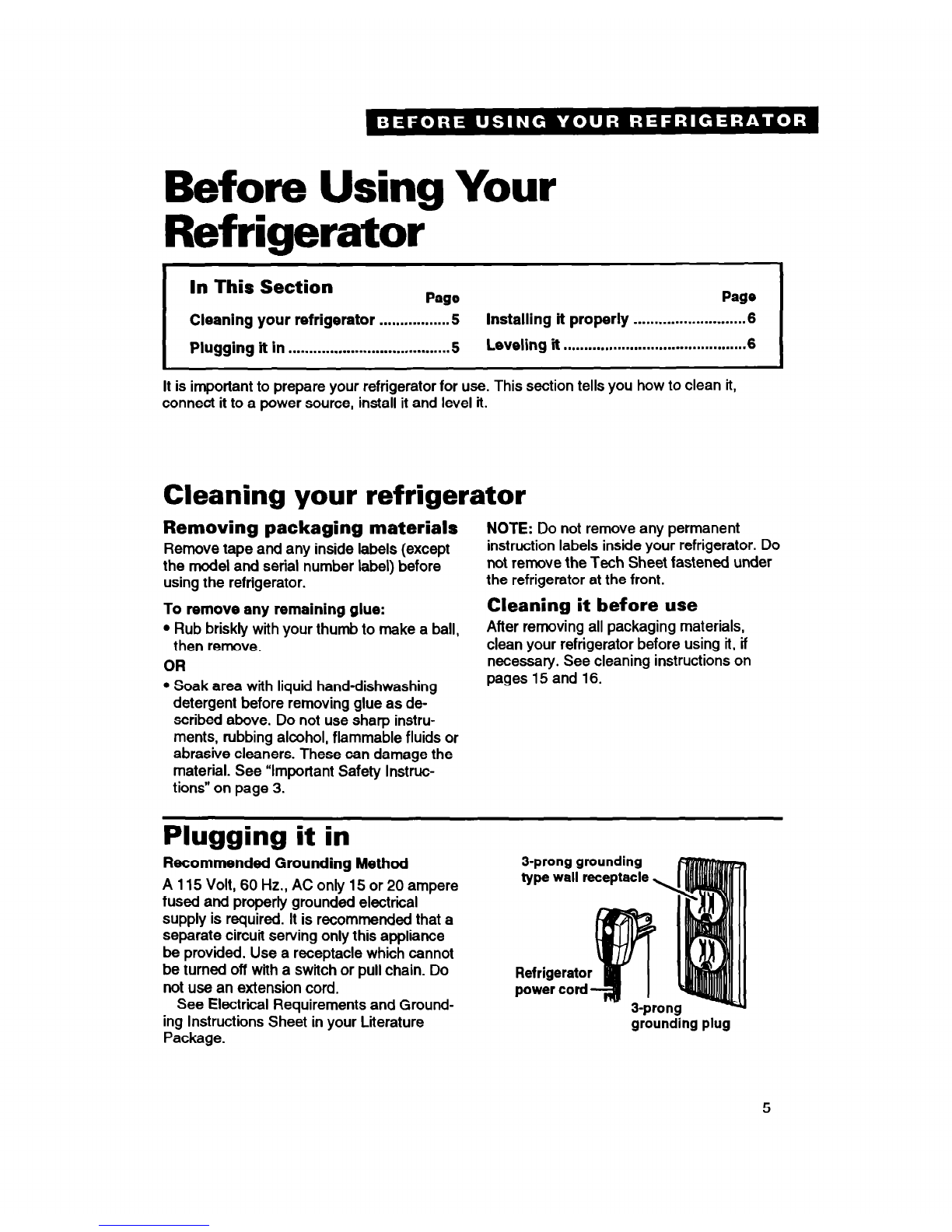

Cleaning your refrigerator

Removing packaging materials

NOTE:

Do not remove any permanent

Remove tape and any inside labels (except instruction labels inside your refrigerator. Do

the model and serial number label) before not remove the Tech Sheet fastened under

using the refrigerator. the refrigerator at the front.

To remove any remaining glue:

Cleaning it before use

l Rub briskly with your thumb to make a ball, After removing all packaging materials,

then remove. clean your refrigerator before using it, if

necessary. See cleaning instructions on

l Soak area with liquid hand-dishwashing pages 15 and 16.

detergent before removing glue as de-

scribed above. Do not use sharp instru-

ments, rubbing alcohol, flammable fluids or

abrasive cleaners. These can damage the

material. See “Important Safety Instruc-

tions” on page 3.

Plugging it in

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere

fused and properly grounded electriil

supply is required. It is recommended that a

separate circuit serving only this appliance

be provided. Use a receptacle which cannot

be turned off with a switch or pull chain. Do

not use an extension cord.

See Electrical Requirements and Ground-

ing Instructions Sheet in your Literature

Package.

3-prong grounding

type wall receptacle

grounding plug

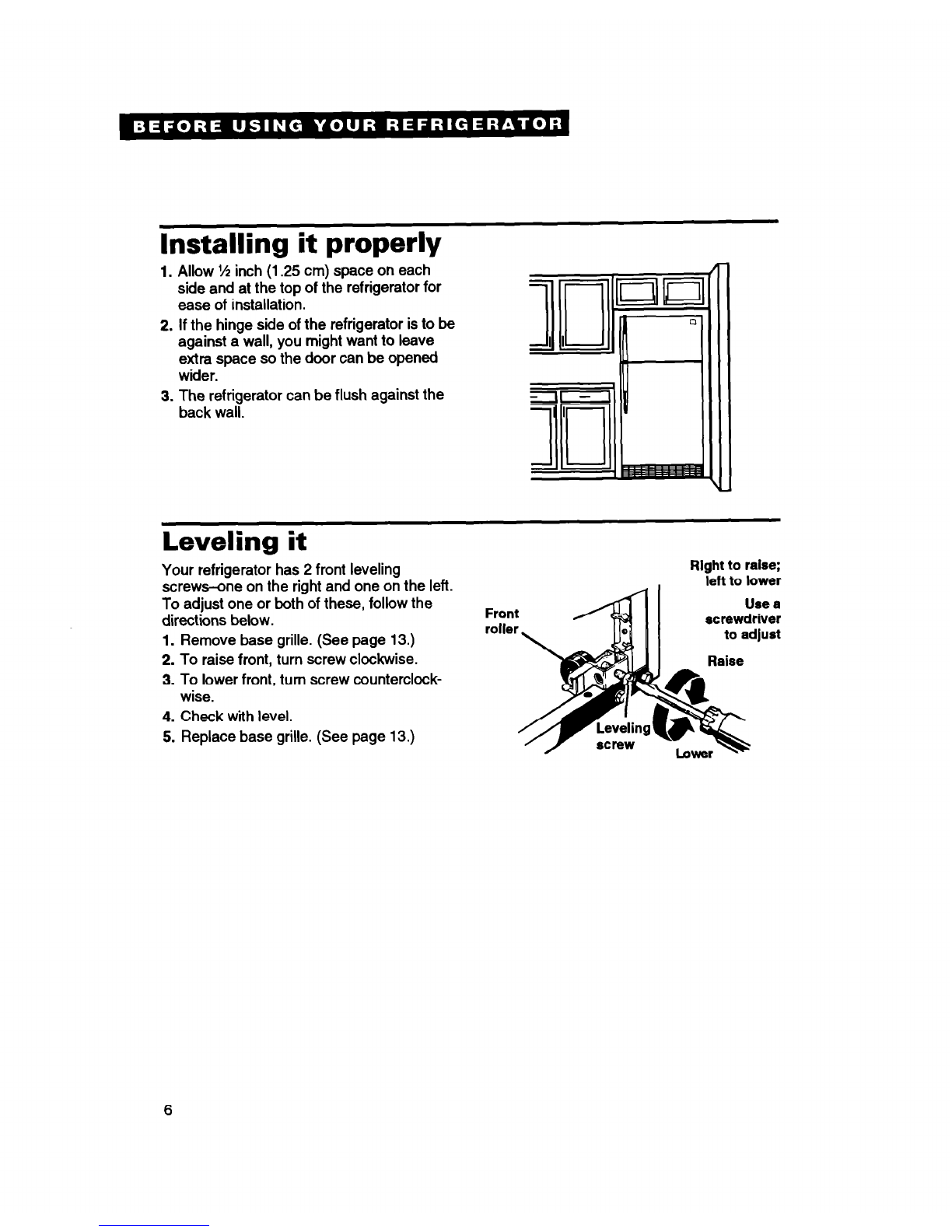

Installing it properly

1. Allow 1/2inch

(1.25 cm) space on each

side and at the top of the refrigerator for

ease of installation.

2. If the hinge side of the refrigerator is to be

against a wall, you might want to leave

extra space so the door can be opened

wider.

3. The refrigerator can be flush against the

back wall.

Leveling it

Your refrigerator has 2 front leveling

screws-one on the right and one on the left.

To adjust one or both of these, follow the

directions below.

Remove base grille. (See page 13.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclock-

Rlght to ralse;

left to

lower

screwdriver

wise.

Check with level.

5. Replace base grille. (See page 13.)

Using Your Refrigerator

In This Section

Page

Setting the controls ............................

Changing the control settings ...........8

Removing the drop-In trlm pieces ........9

Removlng the snapoff door trim .........9

Adjusting the refrigerator shelves ..lO

Removing the meat drawer

and cover ...........................................10

Removing the crispers .....................10

Removing the crisper cover ............11

Page

Using the ice cube trays ..................11

Using the optional automatic

ice maker ............................

...............12

Changing the light bulbs .................13

Removing the base grille .................13

Reversing the door swing ................14

Understanding the

sounds

you may hear ....................................14

Saving energy ...................................14

To obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section tells you how to set the controls, remove and adjust some of the

features in your refrigerator, and how to save energy.

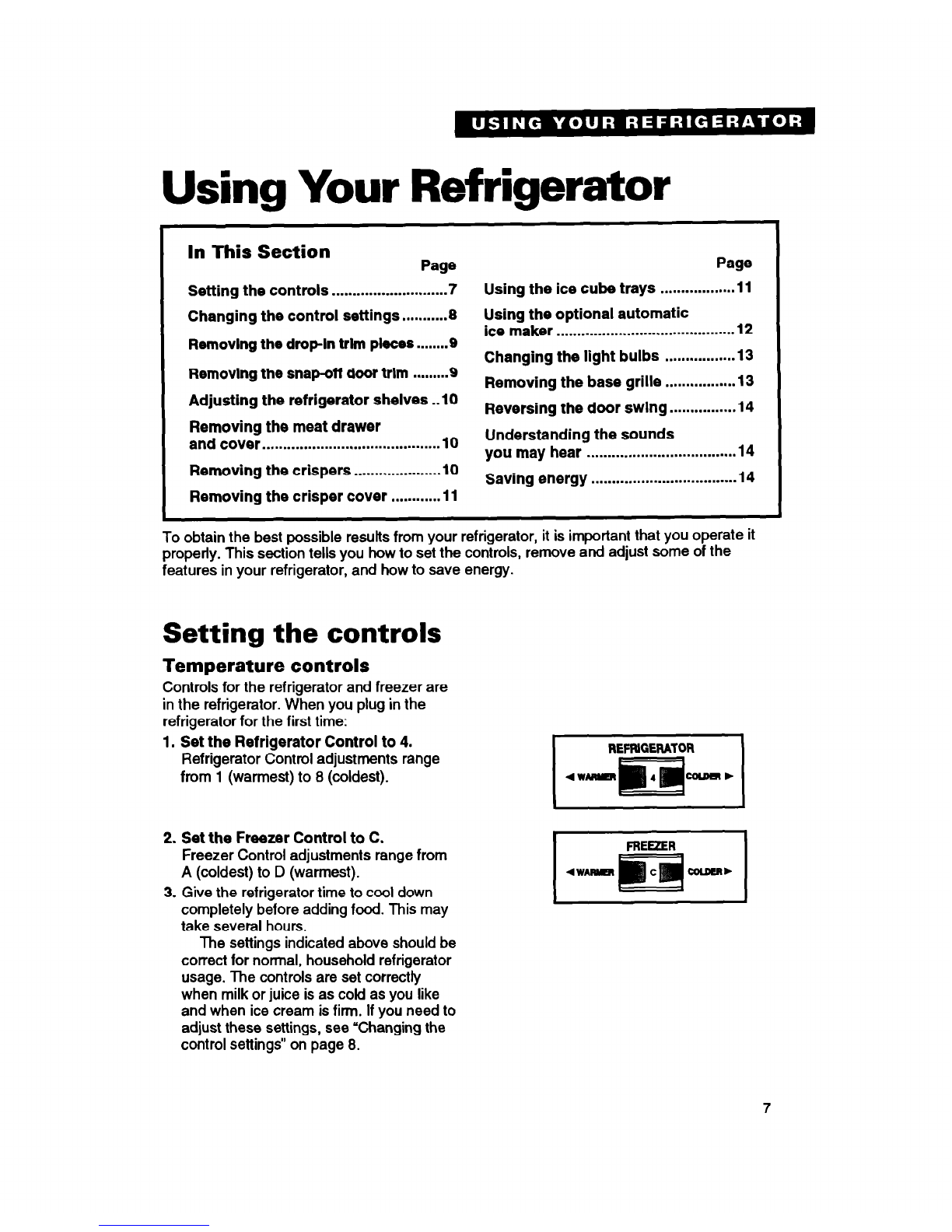

Setting the controls

Temperature controls

Controls for the refrigerator and freezer are

in the refrigerator. When you plug in the

refrigerator for the first time:

1. Set the Refrigerator Control to 4.

Refrigerator Control adjustments range

from 1 (warmest) to 8 (coldest).

2. Set the Freezer Control to C.

Freezer Control adjustments range from

A (coldest) to D (warmest).

3. Give the refrigerator time to cool down

completely before adding food. This may

take several hours.

The settings indicated above should be

correct for normal, household refrigerator

usage. The controls

are

set correctly

when milk or juice is as cold as you like

and when ice cream is firm. If you need to

adjust these settings, see “Changing the

control settings” on page 8.

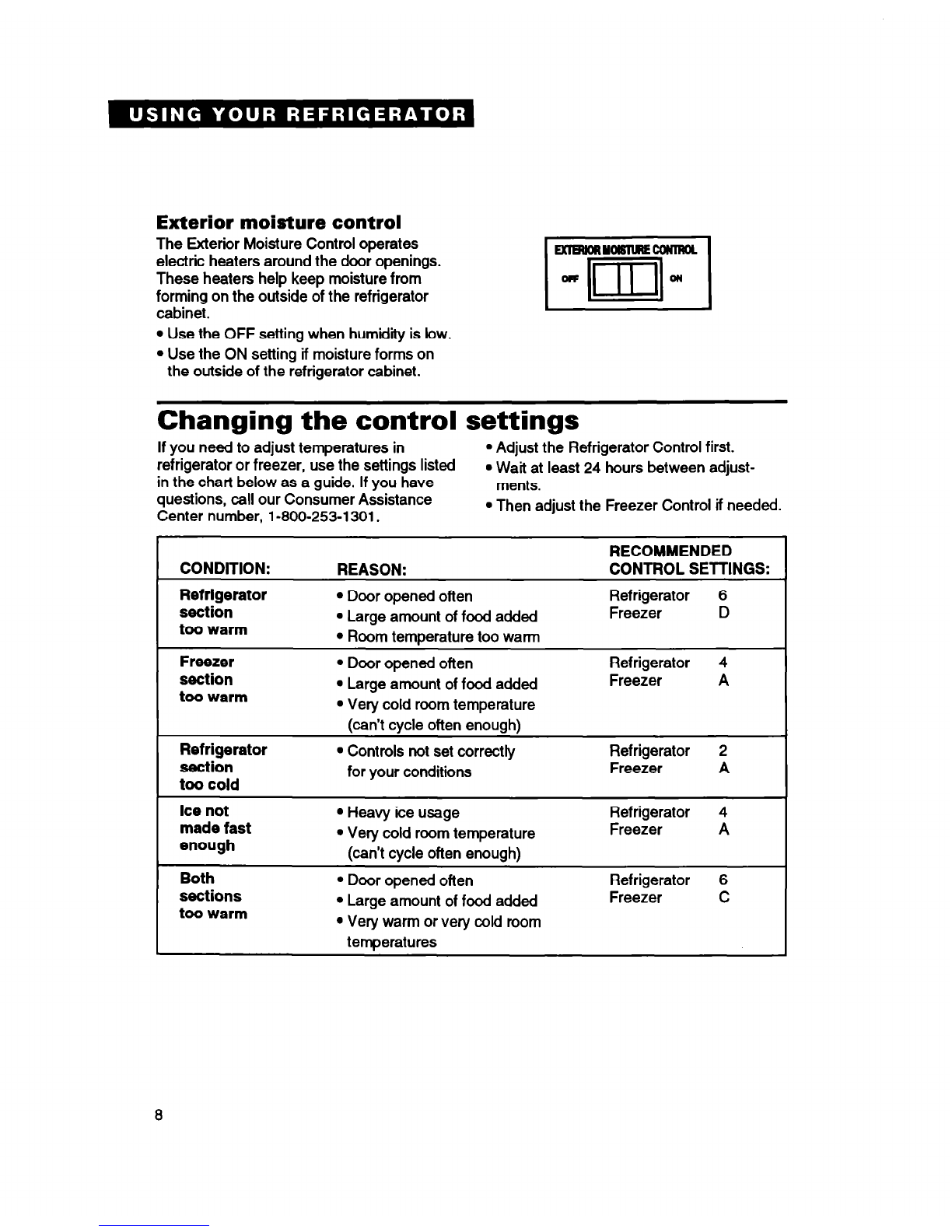

Exterior moisture control

The Exterior Moisture Control operates

electric heaters around the door openings.

These heaters help keep moisture from

forming on the outside of the refrigerator

cabinet.

Use the OFF setting when humidity is low.

Use the ON setting if moisture forms on

the outside of the refrigerator cabinet.

ExmoRYmlwEcoNlRol

-lllDl ou

Changing the control settings

If you need to adjust temperatures in

Adjust the Refrigerator Control first.

refrigerator or freezer, use the settings listed

in the chart below as a guide. If you have

Watt at least

hours between adjust-

ments.

questions, call our Consumer Assistance

Center number, 1-800-253-l 301.

Then adjust the Freezer Control if needed.

CONDITION:

Refrigerator

section

too warm

Freezer

section

too warm

Refrigerator

section

too cold

Ice not

made fast

enough

Both

sections

too warm

REASON:

Door opened often

Large amount of food added

Room temperature too warm

Door opened often

Large amount of food added

Very cold room temperature

(can’t cycle often enough)

Controls not set correctly

for your conditions

RECOMMENDED

CONTROL SETTINGS:

Refrigerator 6

Freezer D

Refrigerator 4

Freezer A

Refrigerator 2

Freezer A

Heavy ice usage

Very cold room temperature

(can’t cycle often enough)

Door opened often

Large amount of food added

Very warm or very cold room

temperatures

Refrigerator 4

Freezer A

Refrigerator 6

Freezer C

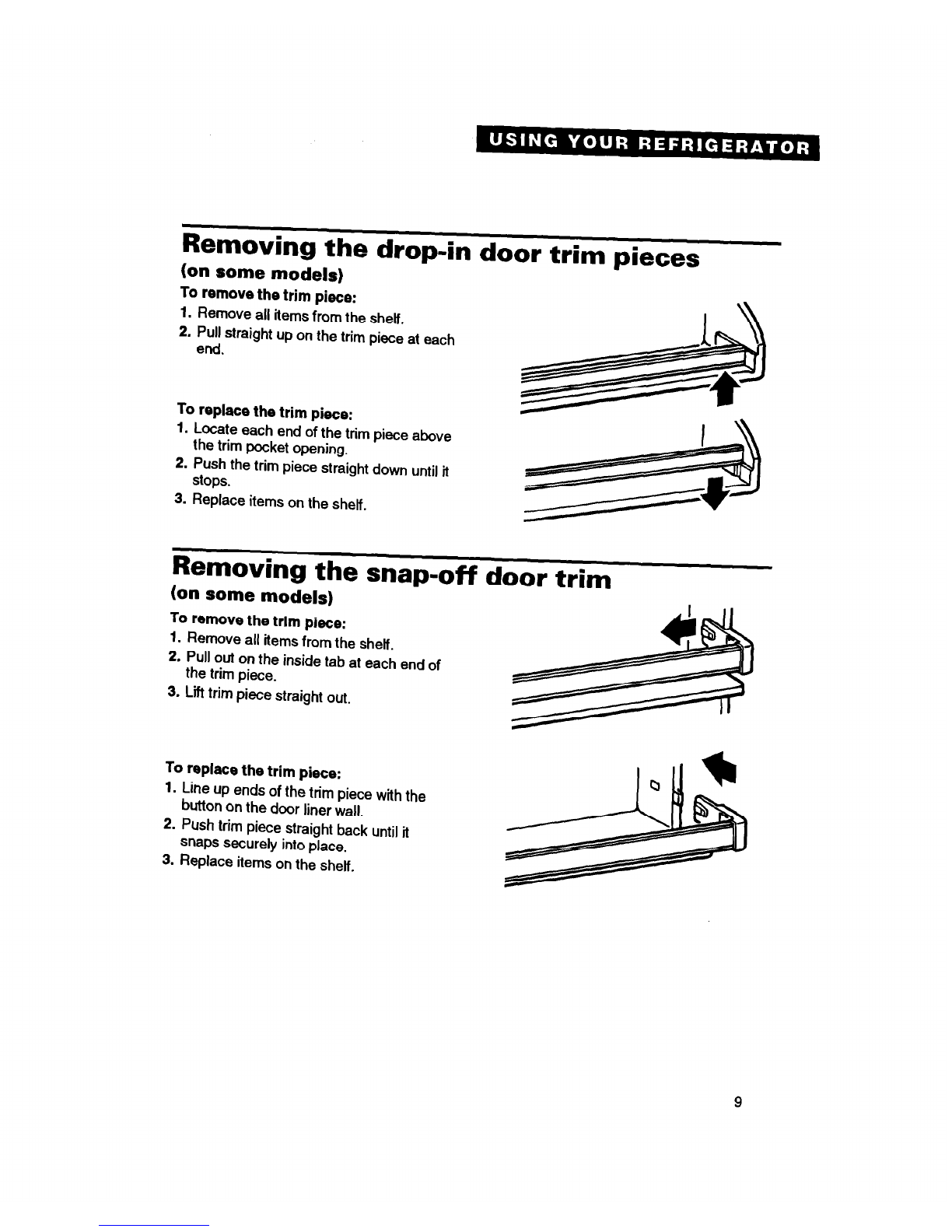

Removing the drop-in door trim pieces

(on some models)

To remove the trim piece:

Remove all items from the shelf.

2. Pull straight up on the trim piece at each

end.

To replace the trim piece:

Locate

each

end of the trim piece above

the trim pocket opening.

2. Push the trim piece straight down until it

stops.

Replace items on the shelf.

Removing the snap-off door trim

(on some models)

To remove the trim piece:

1. Remove all items from the shelf.

Pull out on the inside tab at each end of

the trim piece.

Lii trim piece straight out.

To replace the trim piece:

1. Line up ends of the trim piece with the

button on the door liner wall.

2. Push trim piece straight back until it

snaps securely into place.

Replace items on the shelf.

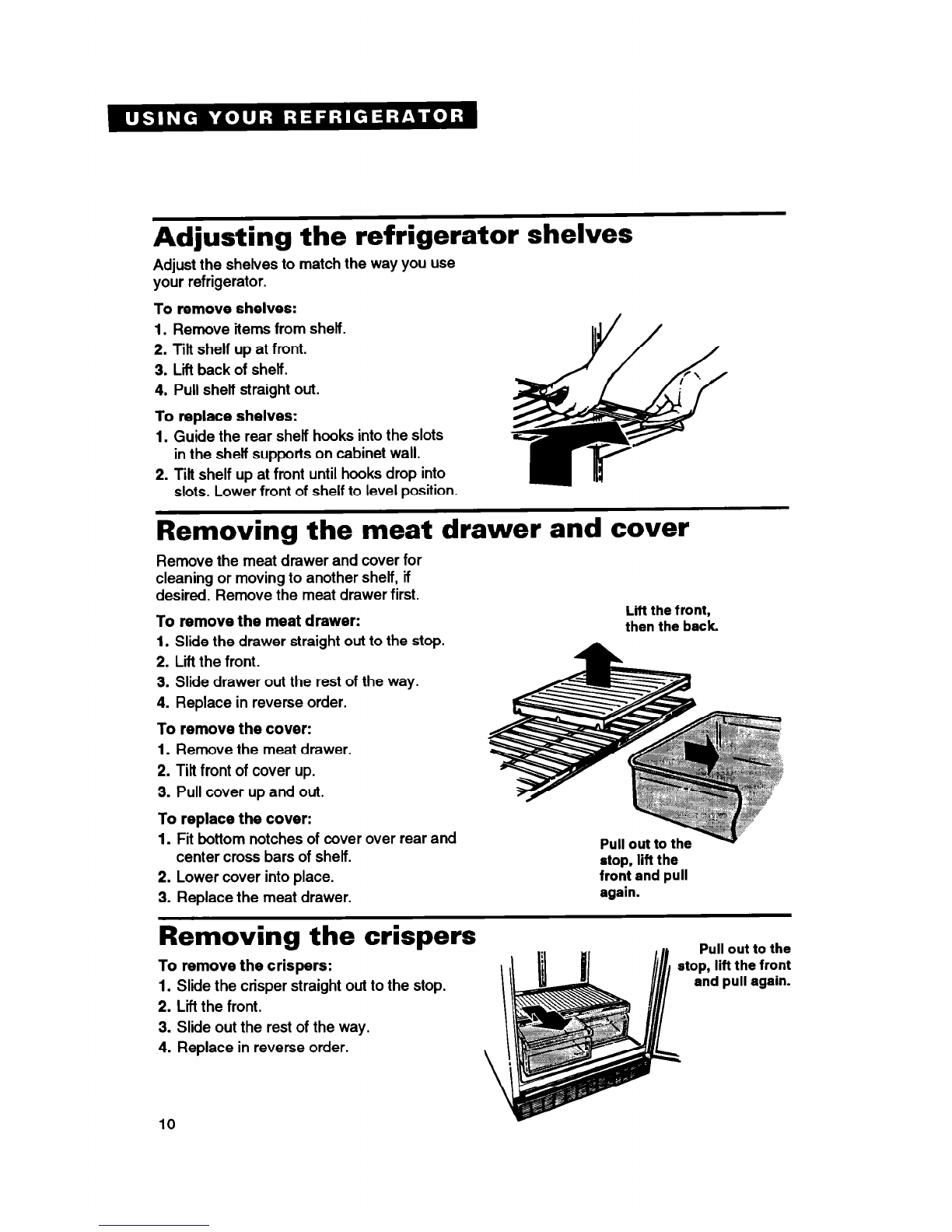

Adjusting the refrigerator shelves

Adjust the shelves to match the way you use

your refrigerator.

To remove shelves:

Remove items from shelf.

2. Titt shelf up at front.

3. Lii back of shelf.

4. Pull shelf straight out.

To replace shelves:

Guide the rear shelf hooks into the slots

in the shelf supports on cabinet wall.

2. Tilt shelf up at front until hooks drop into

slots. Lower front of shelf to level position.

Removing the meat drawer and cover

Remove the meat drawer and cover for

cleaning or moving to another shelf, if

desired. Remove the meat drawer first.

To remove the meat drawer:

Slide the drawer straight out to the stop.

2. Lii the front.

3. Slide drawer out the rest of the way.

4. Replace in reverse order.

To remove the cover:

Remove the meat drawer.

2. Tilt front of cover up.

3. Pull cover up and out.

To replace the cover:

Fit bottom notches of cover over rear and

Lii the front,

then the back.

Pull out to the

center cross bars of shelf.

stop, lift the

2. Lower cover into place.

front and pull

3. Replace the meat drawer.

again.

Removing the crispers

Pull out to the

To remove the crispers:

Slide the crisper straight out to the stop.

2. Lift the front.

top, lift the front

and pull again.

3. Slide out the rest of the way.

4. Replace in reverse order.

Other manuals for ET20NK

This manual suits for next models

Table of contents

Other Whirlpool Refrigerator manuals

Whirlpool

Whirlpool REFRIGERATOR User manual

Whirlpool

Whirlpool W8RXEGMV User instructions

Whirlpool

Whirlpool ART 471 - Dimensions

Whirlpool

Whirlpool ST14CKXKQ00 User manual

Whirlpool

Whirlpool ET4WSKXS Parts list manual

Whirlpool

Whirlpool 2308045 User manual

Whirlpool

Whirlpool ENXTM 19 FL Series User manual

Whirlpool

Whirlpool B2lDK User manual

Whirlpool

Whirlpool WHC20 T321 UK User manual

Whirlpool

Whirlpool 3ET22DK User manual

Whirlpool

Whirlpool EB19AKXL User manual

Whirlpool

Whirlpool BOTTOM MOUNT REFRIGERATOR GB2SHDXT User guide

Whirlpool

Whirlpool WRX-17TM User manual

Whirlpool

Whirlpool GI5FVAXVB - 25 Cubic Foot Refrigerator User guide

Whirlpool

Whirlpool W55TM 4110 W User manual

Whirlpool

Whirlpool ST21PKXJW00 User manual

Whirlpool

Whirlpool ET1 8JKXL User manual

Whirlpool

Whirlpool WRF560SMYB00 User manual

Whirlpool

Whirlpool ED2JHGXRB00 User manual

Whirlpool

Whirlpool 2318584 User manual

Whirlpool

Whirlpool GS6SHEXNT05 User manual

Whirlpool

Whirlpool W10321466A User manual

Whirlpool

Whirlpool Roper RS22AQXGN03 User manual

Whirlpool

Whirlpool WRID41TW User manual

Popular Refrigerator manuals by other brands

Bonnet Neve

Bonnet Neve SKYVIEW PLUS User instructions

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Instruction book

Sharp

Sharp SJ-BA31IEXW2-EU user manual

CORBERO

CORBERO CC2300MCW Instruction booklet

KitchenAid

KitchenAid 2205264 Use and care guide

Stengel

Stengel KU 1101 A++ user manual

NEFF

NEFF KI181 Series user manual

Hoshizaki

Hoshizaki Reach-In instruction manual

Amana

Amana ASD2524VES00 User instructions

BOMANN

BOMANN KGC 213 instruction manual

Danby

Danby DAR044A1SLDD Owner's use and care guide

Samsung

Samsung RF323TE user manual

Beko

Beko CSA31022 Instructions for use

IKEA

IKEA FROSTIG C 185 E manual

Electrolux

Electrolux ER 6821 D Instruction book

True

True TS-28 Specifications

Frigidaire

Frigidaire FSC23R5DW9 installation guide

Beko

Beko LSP4579W Instructions for use
