Whirlpool ER8AHMXRL02 User manual

CABINET PARTS

For Models: ER8AHMXRQ02, ER8AHMXRL02

(White) (Satina)

7−07 Litho In U.S.A. (rrm) Part No. W10155529 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: ER8AHMXRQ02, ER8AHMXRL02

(White) (Satina)

W10155529

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10145175

Service &

Wiring Sheet

2316016 Use & Care Guide

628370 Modular Icemaker

Service Sheet

W10123850

Energy Guide

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677969 Do−It−Yourself

Manual, Ref./ Fzr.

2 2261963 Hinge Butt, Top

3 2324094 Roller, Front

4 2266506 Spacer−Back−CB

5 2264535 Foam Block

6 Cover, Hinge

2213360 White

2213363 Black

7 488296 Washer

8 2266389 Cover, Unit

9 2222100 Screw

10 489442 Screw

11 2166086 Hinge, Center

12 Shim, Hinge

Center

2166043 White

2215385 Black

13 489497 Screw

14 2221926 Hinge Butt,

Bottom

15 9791682 Hinge−Pin,

Bottom

16 3428970 Screw

17 2201567 Shim, Bottom

Hinge

18 2174760 Fitting, Water Tube

19 Hole Plug (6)

2201012 White

2183998 Black

20 1106508 Seal

21 2262176 Screw

22 Corner Filler

2166003 White

2215384 Black

23 489341 Washer

24 487576 Washer 7/64

25 Rail, Center

(Not Serviced)

26 Cabinet (Not a

Serviceable Part)

DOOR PARTS

For Models: ER8AHMXRQ02, ER8AHMXRL02

(White) (Satina)

W10155529

DOOR PARTS

For Models: ER8AHMXRQ02, ER8AHMXRL02

(White) (Satina)

W10155529

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes

Illus. 5,6 & 9)

2316159W White

2265677L Satina

3 Shim, Door Stop

2258681W White

2258681B Black

4 2266727 Trim, Door Shelf

5 Handle, Endcap

2265645W White

2222045 Black

6 Endcap, Bottom

2265647W White

2222048 Black

7 2266738 Trim, Door Shelf

8 2195916 Endcap, Trim

9 Door Gasket,

Magnetic

2263258 White

2264723 Black

10 2266729 Trim, Door Shelf

11 2156007 Plug, Trim

12 2156003 Endcap, Trim

13 2262218 Nameplate

14 2207942 Door Compartment

15 Freezer Door

(Includes

Illus. 5,16 & 20)

2316367W White

2265678L Satina

16 Door Gasket,

Magnetic

2263257 White

2264722 Black

17 2189202 Bracket, Door Stop

18 8533904 Screw

19 Hole Plug

2212648 White

2212651 Black

20 Endcap, Top

2265644W White

2252863 Black

LINER PARTS

For Models: ER8AHMXRQ02, ER8AHMXRL02

(White) (Satina)

W10155529

LINER PARTS

For Models: ER8AHMXRQ02, ER8AHMXRL02

(White) (Satina)

W10155529

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 939962 Rivet

3 2252837 Cover, Air Diffuser

4 2303825 Adaptive Defrost

Control

5 489174 Screw

6 2263075 Gasket, Air Duct

7 2262434 Wire Assembly

Control Box

8 2162085 Socket, Light

9 2197404 Fan Support

Bracket

10 2197405 Fan Mounting

Bracket

11 2169142 Fan Blade

12 2263083 Control Box

13 2325701 Thermostat

14 489399 Screw

15 1118680 Thermostat Tube

Barrier

16 2264715 Cover, Evaporator

17 2252970 Light Bulb

18 9791702 Light Shield

19 1118894 Rocker Arm

Switch

20 2217783 Cover, Hole

21 2319444 Wiring, Freezer

(Includes Item 32)

22 2202885 Control Knob

23 9790408 Air Tower

24 2197052 Hood And Foil

Assembly

25 2261978 Cover, Air Return

26 2252834 Air Diffuser

28 2264462 Grommet, Motor

29 489478 Screw

30 2201212 Evaporator Fan

Motor

31 2262178 Screw

32 2266067 Defrost, BI−Metal

33 2252846 Gasket, Body

Air Diffuser

36 2256983 Rivet

37 488693 Screw

38 489442 Screw

40 2256958 Insulation (4)

41 2263082 Grill (4)

42 2261879 Wiring Harness,

Freezer Light

43 2256949 Light Holder

44 2256948 Deflector, Light

45 2263413 Light Socket

46 R−31244 Light Bulb

47 2256946 Cover,

Light Holder

48 2256947 Lens, Light

49 2252831 Air Duct

Assembly

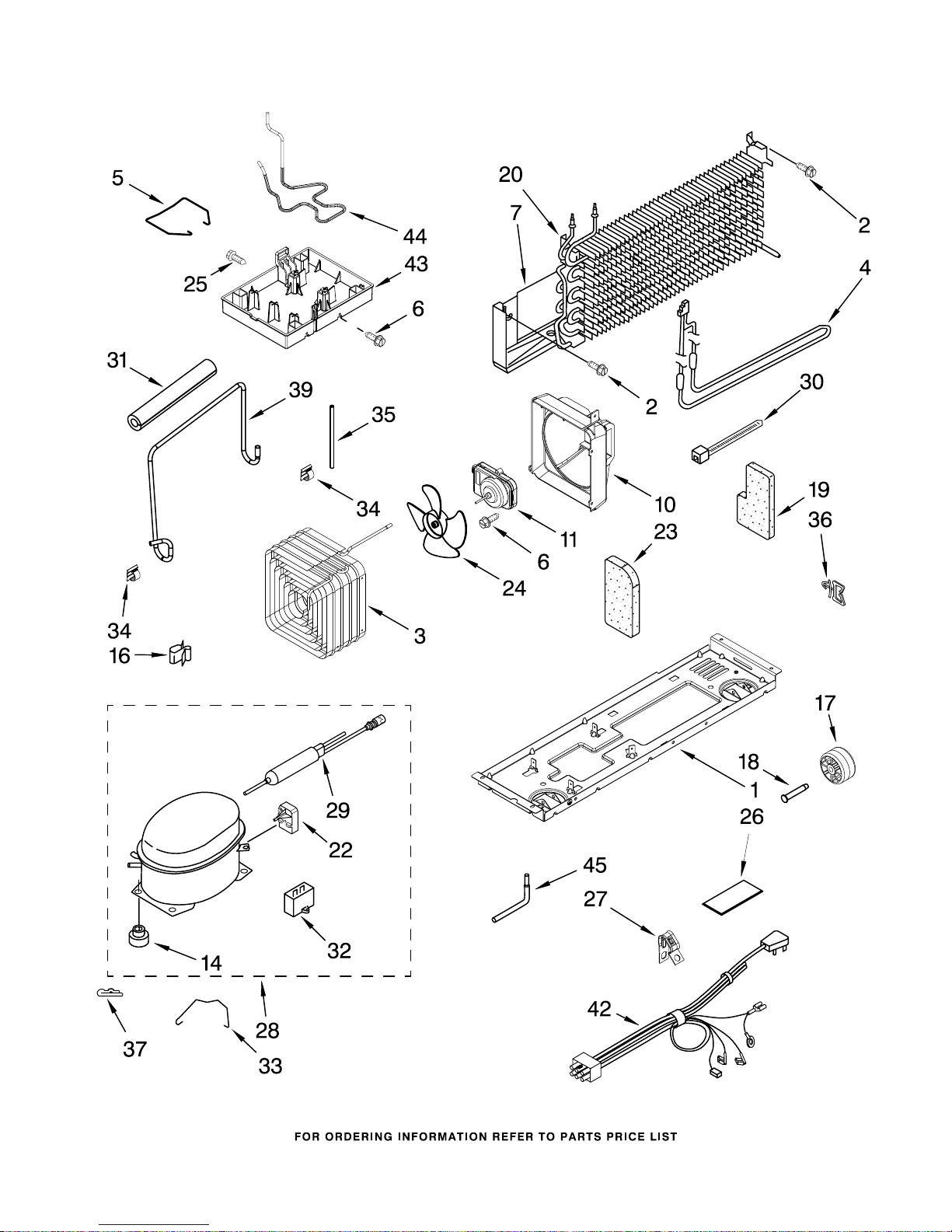

UNIT PARTS

For Models: ER8AHMXRQ02, ER8AHMXRL02

(White) (Satina)

W10155529

UNIT PARTS

For Models: ER8AHMXRQ02, ER8AHMXRL02

(White) (Satina)

W10155529

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10127456

Support Plate,

Compressor

2 489442 Screw

W10140200

Condenser

4 2176942 Heater, Defrost

5 2264835 Clip, Condensor

6 8533859 Screw

7 2319224 Heat Shield

10 2263929 Air Baffle

11 2188875 Motor, Condensor

14 Grommet

2222084 Production

4387558 Service

16 939054 Clip, Wire

17 2150304 Roller

18 2264756 Axle, Rivet

19 2262191 Wedge, Evaporator

20 2263920 Evaporator Assy.

W10128791

Start− Device

Combination

(Start Relay and

Overload for

Production

Compressor Only)

23 2262192 Wedge, Evaporator

24 2264129 Fan Blade

25 2264841 Screw

26 2266360 Shield−Electrical

27 549193 Clamp, Cord

W10141544

Compressor

(Includes Items

14,29,& 32)

29 Drier

2317845 Service

30 2263990 Strap

31 2264838 Sleeve

32 Capacitor

2264017 Production

1118576 Service

W10141545

Bale Strap

34 1114718 Clip, Wiring

35 2264278 Tube, Drain

36 2266467 Clip, Harness

37 24364001 Clip, Compressor

W10140199

Extension,

Tube−Heat

42 2263753 Wire Assy. Unit

43 2263928 Evaporator Tray

W10140197

Tube, Discharge

(Incl. Pre Cooler)

W10140201

Tube, Process

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

3.75 Ozs.

(R134A)

ICEMAKER PARTS

For Models: ER8AHMXRQ02, ER8AHMXRL02

(White) (Satina)

W10155529

ICEMAKER PARTS

For Models: ER8AHMXRQ02, ER8AHMXRL02

(White) (Satina)

W10155529

Illus. Part

No. No. DESCRIPTION

1 488878 Clamp, Tube

2 2181939 Insert, Tube

3 628379 Clip, Fuse

4 2181944 Tube, Water

5 489478 Screw

6 2210494 Valve, Solenoid

7 627018 Nut, Compression

8 2174755 Tube,

Water Inlet

9 489385 Clamp, Tube

10 2262176 Screw

11 2174157 Cover

12 489442 Screw

W10122527

Mold & Heater

Assembly (Also

Order 542638

Silicone Grease)

14 628515 Cup, Water Fill

15 627843 Ejector

16 2182124 Ice Stripper

17 2194712 Support

18 2315522 Retainer,

Thermostat

19 628397 Thermostat (Also

Order 542369

Cement

Alumilastic)

20 8533917 Screw

21 2154101 Clip,

Fill Tube

22 489276 Screw

23 627792 Shut Off Arm

24 2187464 Harness, Wiring

25 628320 Bracket

26 626680 Module Assmbly

(Includes Item 27)

27 489136 Screw

28 488208 Screw

29 488886 Screw

100

W10122496

Complete Icemaker
