Whirlpool 2300234-D-WH User instructions

Bottom Mount Refrigerator

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS

LOCATION REQUIREMENTS

GB2SHKXM

GB9SHKXM

Electrical: A 115 Volt, 60 Hz., AC only 15 or 20

ampere fused, grounded electrical supply is

required. It is recommended that a separate

circuit serving only your refrigerator be provided.

Use an outlet that cannot be turned off by a

switch. Do not use an extension cord.

Water: A cold water line with water pressure

between 30 and 120 psi is required for the water

dispenser and ice maker.

If a reverse osmosis water filtration system is

connected to your cold water supply, the water

pressure to the system needs to be a minimum of

40 to 60 psi (276 - 414 kPa).

IMPORTANT: The pressure of the water coming

out of a reverse osmosis system going to the

water inlet valve of the refrigerator needs to be

between 30 and 120 psi (207 - 827 kPa).

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. 2300234

07-13-04

2¹⁄₈" (5.4 cm)

¹⁄₂" (1.25 cm)

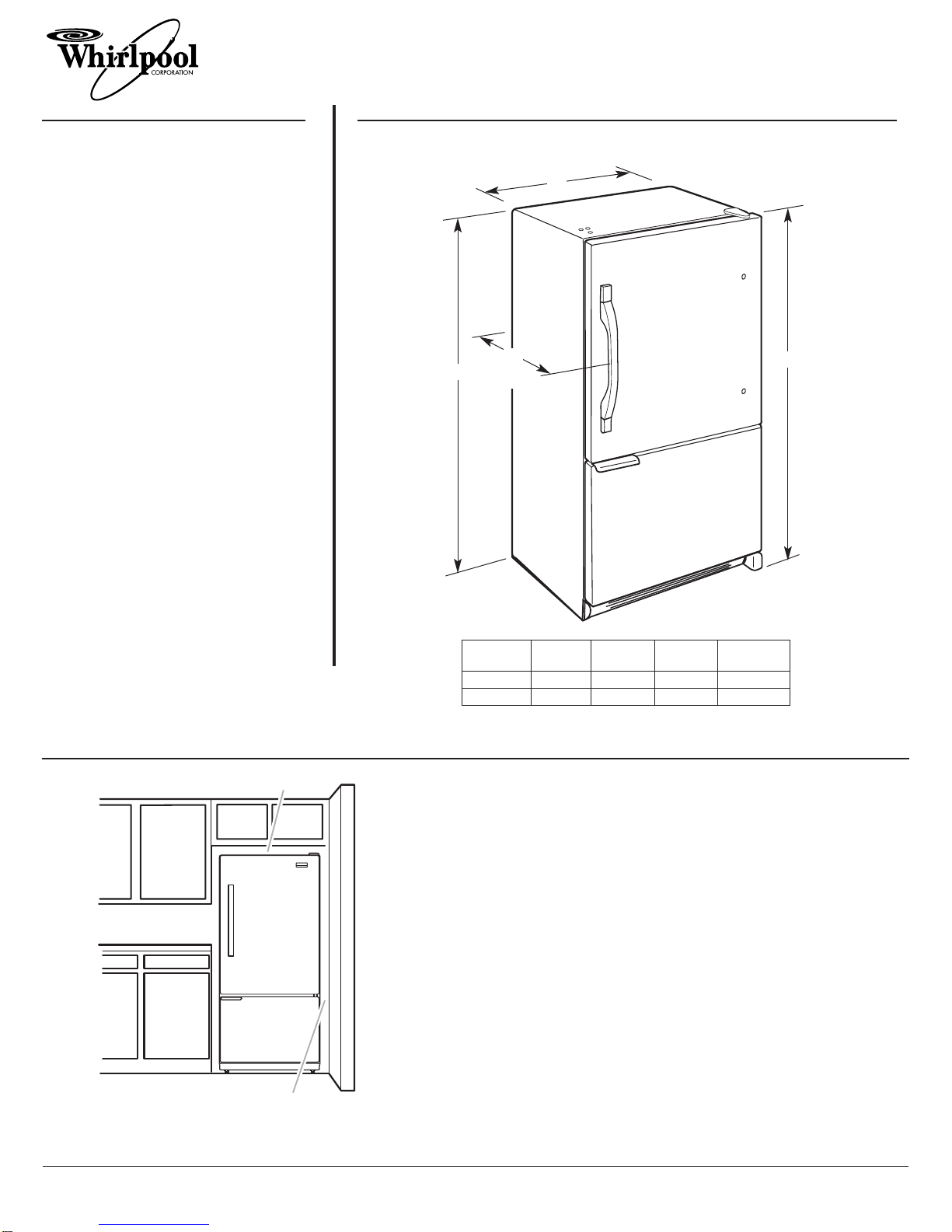

To ensure proper ventilation for your refrigerator, allow 1/2 in. (1.25 cm) space at the top

and behind the refrigerator for ease of installation.

When installing your refrigerator next to a fixed wall, leave 2-1/8 in. (5.4 cm) minimum

on each side (depending on your model) to allow for the door to swing open.

If your refrigerator has an ice maker, allow extra space at the back for the water line

connections.

NOTE: Do not install the refrigerator near an oven, radiator, or other heat source, nor in a

location where the temperature will fall below 55°F (13°C).

including

handle

®

Depth Width Height Cabinet

Model size “A” “B” “C” Height “D”

19 cu.ft. 32 1/2" 29 5/8" 65 5/8" 66 7/8"

22 cu.ft. 32 1/2" 32 5/8" 68 5/8" 69 7/8"

B

C

DA
