Whirlpool SF114PXSB0 User manual

COOKTOP PARTS

For Model: SF114PXSW0, SF114PXST0, SF114PXSB0, SF114PXSQ0

(White) (Designer Biscuit) (Black) (Desinger White)

6−06 Litho in U.S.A. (jac) Part No. 8191156

30" GAS FREESTANDING

STANDARD CLEAN RANGE

ELECTRONIC IGNITION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

98014966 Instructions

Installation

98015589 Installation Instr

(Template)

W10032120

Guide, Use & Care

98007130 Safer Cooking Tips

98018086 Tech Sheet

2 Cooktop

98009677 White

98009678 Biscuit

98009676 Black

3 Panel, Manifold

98018102B

Black

98018102T

Biscuit

98018102W

White

4 Knob, Burner (4)

98006100 Black

98008208 Biscuit

98006102 White

6 Grate, Burner (2)

98017779 Black

98017780 Grey

7 98004722 Clip, Cooktop (2)

8 98014544 Wire, Ground

9 98013389 Bumper, Cooktop

10 98005000 Screw (3)

11 Cap, Burner

98014946 Black

98014947 Grey

12 8534079 Screw

14 98007225 Screw

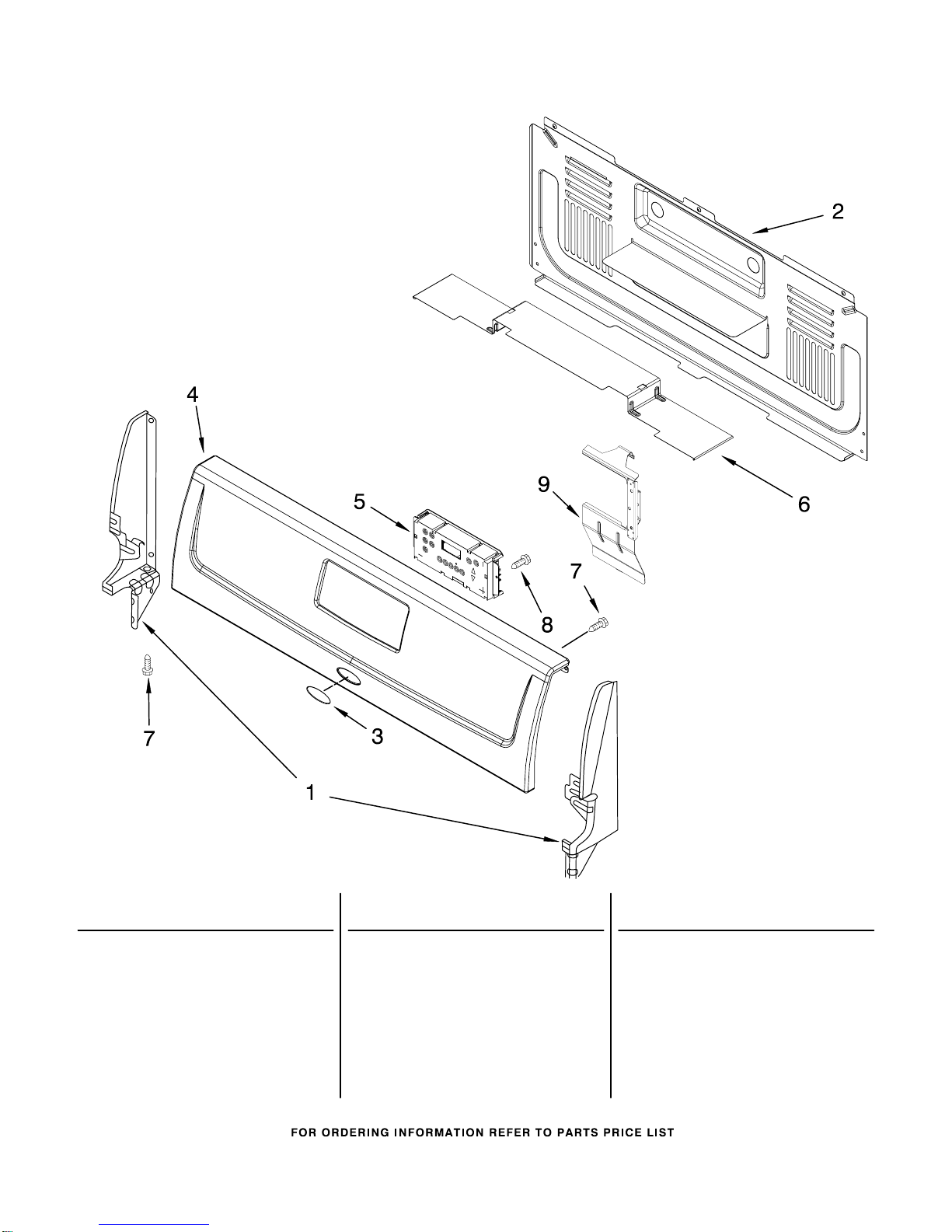

BACKGUARD PARTS

For Model: SF114PXSW0, SF114PXST0, SF114PXSB0, SF114PXSQ0

(White) (Designer Biscuit) (Black) (Desinger White)

8191156

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap

98004632 Black Left

98004633 Black Right

98008274 Biscuit Left

98008275 Biscuit Right

98005336 White Left

98005337 White Right

2 98006083 Rear, Backguard

3 9757609 Nameplate

4 Panel, Control

98017734B

Black

98017734T

Biscuit

98017734W

White

5 Control, Elec

9762212 Black

9762213 Biscuit

9762211 White

6 98018061 Deflctor, Rear Cvr

7 98015526 Screw

8 98004219 Screw

9 Bracket, Timer

98018144 Left

98018143 Right

MANIFOLD PARTS

For Model: SF114PXSW0, SF114PXST0, SF114PXSB0, SF114PXSQ0

(White) (Designer Biscuit) (Black) (Desinger White)

8191156

MANIFOLD PARTS

For Model: SF114PXSW0, SF114PXST0, SF114PXSB0, SF114PXSQ0

(White) (Designer Biscuit) (Black) (Desinger White)

8191156

Illus. Part

No. No. DESCRIPTION

1 Burner, Top

98004410 Left

98003939 Right

2 98005860 Venturi, Front (2)

3 98005500 Brkt., Venturi (4)

4 98005862 Venturi, Rear (2)

5 6610341 Spark Module

6 98007411 Regulator

7 98007192 Cover, Module

8 98015099 Spreader, Flame

9 98006632 Screw

10 98012138 Burner, Oven

11 98006633 Screw

12 98017409 Harness, Switch

13 98014893 Valve, Oven

14 98006633 Screw

15 Valve, Burner (4)

98005574 9,500 BTU

98005626 11,500 BTU

16 98005521 Bolt, Valve Mtg

17 98013574 Pipe, Manifold

18 98009179 U−Nut

21 98005652 Igniter, Oven

Oven Pilot)

22 98007132 Washer, Valve (4)

23 98007428 Tubing (Regltr to

Oven Valve)

24 98013314 Locator, Burner

25 98007410 Bracket, Regulator

26 98007431 Fitting 3/8to9/16

27 98013634 Screw

28 1180823 Screw

31 98007429 Tubing, Inlet

32 98007430 Fitting 1/4to9/16

34 98005659 Screw

35 98004484 Screw

36 Igniter, Top

98014514 RF

98017917 RR

98014515 LF

98014516 LR

37 98015032 Clip, Igniter

FOLLOWING PARTS

NOT ILLUSTRATED

98013676 LP Orifice Kit

(For Use With LP)

98013677 Nat Orifice Kit

(For use with

Natural Gas)

CHASSIS PARTS

For Model: SF114PXSW0, SF114PXST0, SF114PXSB0, SF114PXSQ0

(White) (Designer Biscuit) (Black) (Desinger White)

8191156

CHASSIS PARTS

For Model: SF114PXSW0, SF114PXST0, SF114PXSB0, SF114PXSQ0

(White) (Designer Biscuit) (Black) (Desinger White)

8191156

Illus. Part

No. No. DESCRIPTION

1 98003799 Flue Box

2 98013690 Clip, Flue

3 98014398 Shield, Insulation

4 Panel, Side (2)

98010042 White

98010045 Biscuit

98010043 Black

5 98005502 Clip, Oven Bottom

6 98006710 Counterweight

7 98006739 Wire, Brick

8 98005044 Frame, Front

9 98005306 Foot, Front (2)

10 9761935 Foot, Rear (2)

11 98004449 Bottom, Oven

12 98015683 Baffle, Side (2)

13 98003847 Baffle, Base

14 98003830 Rail, Base (2)

15 98012175 Support, Burner

16 98017162 Gasket, Broil Door

18 98009179 U−Nut

19 3196262 Switch, Door

20 98015100 Back, Main

21 98017163 Seal, Oven

22 98006633 Screw

23 98007193 Washer

24 98007126 Base, Foot

25 98006632 Screw

26 98006715 Shield, Channel

27 98007191 Shield, Lower

29 98014532 Cord, Power

30 98005026 Clip, Tubing

31 98015346 Foil, Side (2)

32 98006634 Screw

33 98004447 Top, Oven

34 Side, Oven

98004452 Right Hand

98004451 Left Hand

35 98013777 Back, Oven

36 98015363 Support, Rear

37 98004498 Bulb, Light

38 98004293 Socket, Light

40 98007205 Cap, Insulation

41 8273902 Sensor, Oven

42 98014105 Cover, Valve

43 98014104 Cover, Socket

INSULATION

98014360 Insulation, Wrap

98004286 Insulation, Back

OVEN & BROILER PARTS

For Model: SF114PXSW0, SF114PXST0, SF114PXSB0, SF114PXSQ0

(White) (Designer Biscuit) (Black) (Desinger White)

8191156

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 98014136 Rack, Oven (2)

2 98003480 Grill, Broiler

3 98016005 Pan, Broiler

5 Support, Tray

98016664 Left (2)

98016666 Right (2)

6 Guide, Fixed(2)

98004994 Left

98005209 Right

7 Guide, Mobile(2)

98004995 Left

98004954 Right

8 Screw

98006727 White

98008169 Biscuit

98006726 Black

9 98017076 Liner, Door

10 98017784 Storage, Drawer

11 98015234 Insulation, Door

12 Panel, Door

98009342 White

98009341 Biscuit

98009343 Black

13 Handle, Brlr Door

98008486 White

98008488 Biscuit

98015643 Black

15 98004052 Bumper, Door(2)

20 98004219 Screw

DOOR PARTS

For Model: SF114PXSW0, SF114PXST0, SF114PXSB0, SF114PXSQ0

(White) (Designer Biscuit) (Black) (Desinger White)

8191156

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8533842 Screw

3 98010182 Liner, Door

4 98006753 Insulation, Door

5 Clip, Glass

98004952 Left

98004953 Right

6 98017875 Hinge, Door (2)

7 Trim, Top Door

98017767B

Black

98017767T

Biscuit

98017767W

White

8 Panel, Door

98017961B

Black

98017961T

Biscuit

98017961W

White

9 98006801 Glass, Inner

10 Handle, Oven Door

98017790B

Black

98017790T

Biscuit

98017790W

White

11 98010557 Actuator (2)

12 98004993 Screw

13 Side Trim, Door(2)

98016787B

Black Left

98016795B

Black Right

98016787T

Biscuit Left

98016795T

Biscuit Right

98016787W

White Left

98016795W

White Right

14 Screw

98008545 Black

98008169 Biscuit

98008544 White

15 Retainer

98004564 Right

98004629 Left

16 Lower Trim, Door

98010187 Black

98010184 Biscuit

98010185 White

17 98004219 Screw

18 98004227 Bumper

19 98004938 Insulation,

Retainer−Top

20 98012904 Insulation,

Retainer−Bottom

21 98017250 Retainer, Upper

OPTIONAL PARTS

For Model: SF114PXSW0, SF114PXST0, SF114PXSB0, SF114PXSQ0

(White) (Designer Biscuit) (Black) (Desinger White)

8191156

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

8316781 Wire, Black

14 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

WIRING HARNESS PARTS

98017728 Harness, Control

98005896 Clip, Wire

3196696 Clip, Wire

3391018 Cable Tie−Push Mnt

98015022 Bushing, Snap (2)

98005894 Clamp, Cord

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit(Uncut)

ANTI−TIP KIT

98007059 Anti−Tip Kit
