Whirlpool RF264LXSB2 User manual

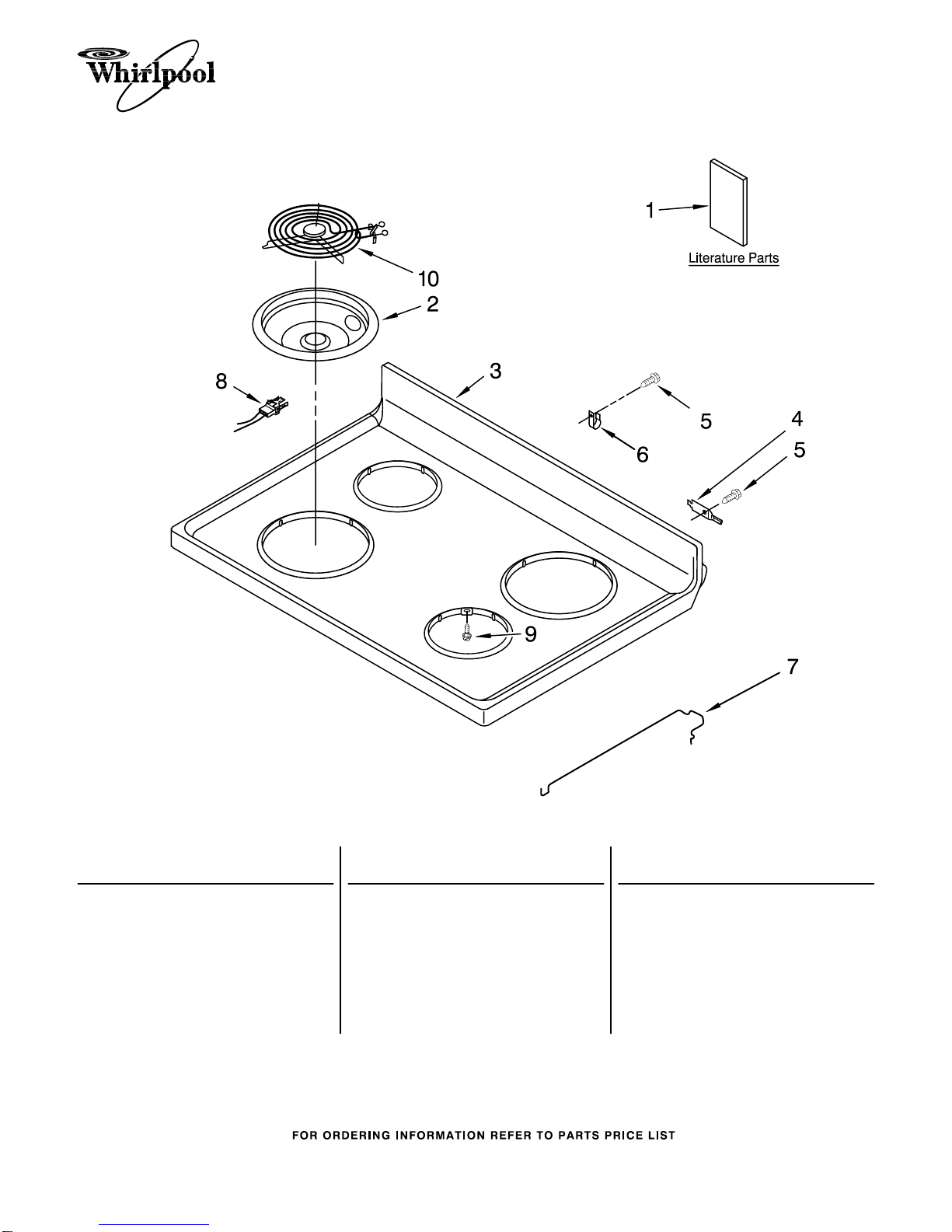

COOKTOP PARTS

For Models: RF264LXSQ2, RF264LXSB2

(Designer White) (Black)

30" ELECTRIC FREESTANDING

SELF CLEAN RANGE

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

3−08 Litho in U.S.A. (mo) Part No. W10174142 Rev. B

1 Literature Parts

W10162204

Owners Manual

W10115599

Tech Sheet

W10141166

Instructions,

Installation

Template, Anti−Tip

9757142 English/Spanish

9757143 English/French

9762761 Safer Cooking Tips

2 Bowl, Drip

3196206 6" Gray

3196207 8" Gray

3196202 6" Black

3196203 8" Black

3195208 6" Chrome

3195209 8" Chrome

3 Cooktop

3186231 White

3186233 Black

4 3195060 Hinge, Cooktop (2)

5 3196178 Screw

6 308605 Strain Relief

7 3195812 Rod, Support (2)

8 814399 Receptacle, Elmnt

9 3196154 Screw

10 Element, Surface

9761347 6" (2)

9761345 8" (2)

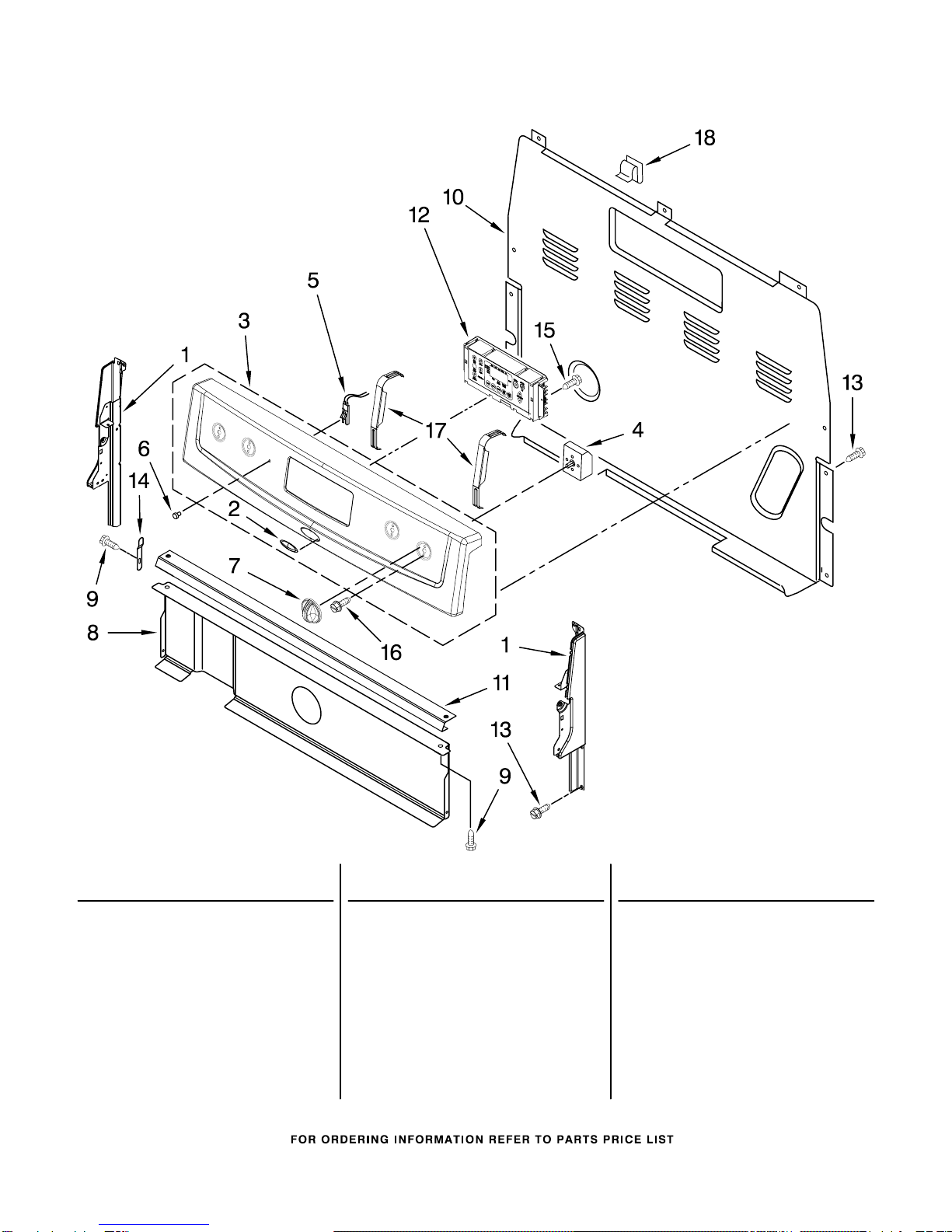

CONTROL PANEL PARTS

For Models: RF264LXSQ2, RF264LXSB2

(Designer White) (Black)

W10174142

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap

W10009080

Black Left Hand

W10009090

Black Right Hand

W10009040

White Left Hand

W10009050

White Right Hand

2 9757609 Nameplate

3 Panel, Control

9762083 Black

9762081 White

4 Switch, Infinite

3148954 Left Front

3148952 Left Rear

3148954 Right Rear

3148952 Right Front

5 8523265 Light, Indicator

6 3196068 Lens, Light

7 Knob, Infinite (4)

9761964 Black

9761962 White

8 8053912 Shield, Heat

9 3196166 Screw

10 8272473 Cover, Upper

11 9762095 Brkt−Mntg,Console

12 Control, Range

W10108100

Black

W10108090

White

13 3196178 Screw

14 3196200 Clip, Spring

15 3196169 Screw

16 3400882 Screw

17 9762078 Brkt−Mntg, EOC

18 8273564 Clip

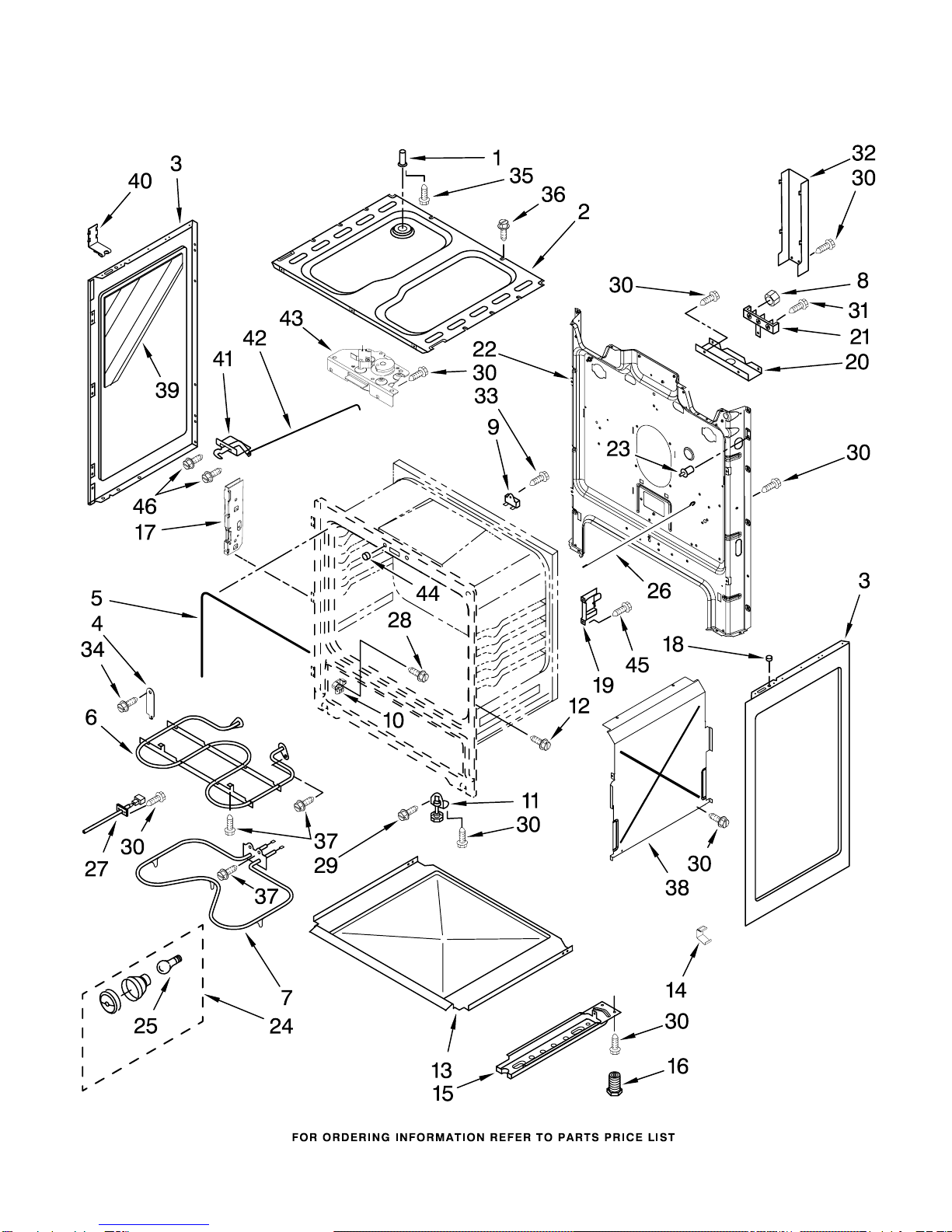

CHASSIS PARTS

For Models: RF264LXSQ2, RF264LXSB2

(Designer White) (Black)

W10174142

CHASSIS PARTS

For Models: RF264LXSQ2, RF264LXSB2

(Designer White) (Black)

W10174142

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9755804 Vent Tube

2 3186144 Box, Burner

3 Panel, Side (2)

8053830 White−Textured

8053832 Black

4 9761517 Clip, Door Mntg(2)

5 8522416 Seal, Oven Door

6 9757340 Element, Broil

7 9758541 Element, Bake

8 112432 Nut (3)

9 3196548 Fuse, Thermal

W10114344

Glide, Drawer Frnt

11 3196037 Foot, Front (2)

W10067840

Screw

13 8054068 Tray, Insulation

14 3196576 Clip, Panel (6)

15 9760314 Rail, Base (2)

W10058460

Foot, Rear (2)

17 9760407 Brkt−Mntg,Dr Hinge

18 3195809 Bumper, Side (2)

19 3186116 Support, Oven (2)

20 3186034 Bracket, Service

21 9761958 Block, Terminal

22 8274034 Back, Main

23 9757262 Switch, Door

24 3196701 Light Socket Assy

25 311255 Bulb, Oven Light

26 9757239 Rod, Door Switch

Rear Mount

27 8273902 Sensor, Oven

28 3196165 Screw

29 3196179 Screw

30 3196178 Screw

31 3400016 Screw

32 9758283 Cover, Box

33 3196172 Screw

W10031780

Screw

35 3196567 Screw

36 3196168 Screw

37 3196174 Screw

38 9758238 Retainer, Side (2)

39 9761490 Insulation

40 9761512 Clip, Mounting

41 9761013 Latch, Door

W10078380

Rod, Latch

W10107820

Latch Asy, Rear

44 9758701 Spacer, Door

45 3196169 Screw

46 3196560 Screw (2)

INSULATION

8272616 Insulation, Wrap

8272612 Insulation, Back

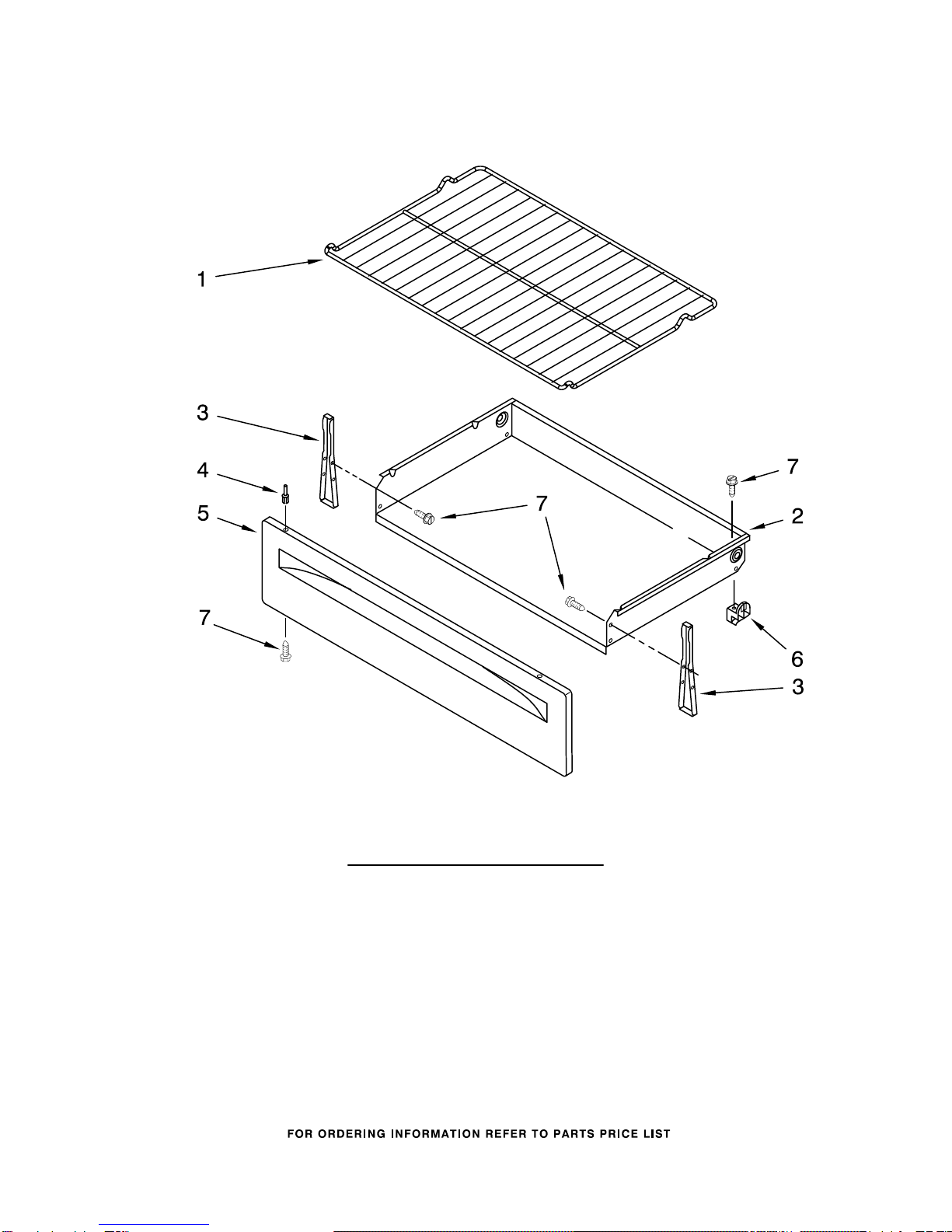

DRAWER & BROILER PARTS

For Models: RF264LXSQ2, RF264LXSB2

(Designer White) (Black)

W10174142

Illus. Part

No. No. DESCRIPTION

W10138079

Rack, Oven (2)

2 9761031 Drawer, Storage

3 9758200 Bracket, Drawer(2)

4 Rivet, Push (2)

3196814 White

3196813 Black

5 Panel, Drawer Frnt

8053339 White

8053341 Black

6 8053334 Glide, Drawer (2)

7 3196168 Screw

DOOR PARTS

For Models: RF264LXSQ2, RF264LXSB2

(Designer White) (Black)

W10174142

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Top

9762391 Black

9761975 White

2 3196164 Screw

3 Handle, Door

9761983 Black

9761982 White

4 9761344 Liner, Door

5 8522414 Seal, Window

6 9758162 Glass, Inner (2)

7 3186289 Frame, Glass

8 8272618 Insulation, Door

9 9761357 Retainer, Insul.

10 9761493 Hinge, Door (2)

11 Glass, Outer

W10075990

Black

W10075980

White

12 Trim, Side

8523171 Black Left Hand

8523165 Black Right Hand

8523166 White Left Hand

8523172 White Right Hand

13 3196160 Screw

14 Trim, Lower

8523177 Black

8523175 White

W10031790

Screw

W10031780

Screw

W10113759

Strap, Door

18 3196165 Screw

19 3195809 Bumper, Door (2)

20 3196794 Bracket, Window(2)

OPTIONAL PARTS (NOT INCLUDED)

For Models: RF264LXSQ2, RF264LXSB2

(Designer White) (Black)

W10174142

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

3184478 Cleaner, Glass

4396923 Broiler Pan Assy

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

W10114335

Harness, Wire

(Main)

W10084660

Harness, Wire

Door Switch/Sensor

9761476 Harness, Wire

(Surface Unit)

311227 Wire, Ground

3196154 Screw

313660 Clip, Wire Ground

3196173 Screw
