Whirlpool 4322453 User manual

ELECTRIC RANGES

4322453

WHIRLPOOL CORPORATION assumes no responsibility for

any repair made on our products by anyone other than qualified

TECH-CARE®Service Technicians.

Electrical Shock Hazard

Disconnect the range’s line cord plug from the wall receptacle before you service

any of the components inside the unit. Failure to do this could result in violent

electrical shock.

VOLTAGE CHECKS

When making voltage checks, be sure to observe the following precautions:

1. The floor must be dry. Water and dampness increase the chances of electrical

shock.

2. Set the voltmeter correctly for the voltage being measured.

3. Touch only the insulated parts of the meter probes.

4. Touch the component terminals, or wires, with the meter probe tips only.

5. Touch the meter probe tips only on the terminals being checked. Touching other

components could damage good parts.

PARTS QUALITY

An important step in the appliance repair procedure is the selection of FSP®

(FACTORY SPECIFICATION PARTS) as replacements. Use of “fits-all,” or “look

alike” parts could result in early parts failure, safety hazard, or substandard perfor-

mance of a WHIRLPOOL appliance. It could also result in an unnecessary repeat of

your repair efforts.

To be sure that the part(s) you purchase meet the exacting quality standards used to

build every new WHIRLPOOL appliance, be sure to ask for genuine FSP replacement

parts, as specified for your model. “FSP” is a registered trademark of WHIRLPOOL

CORPORATION.

You can buy your genuine FSP replacement parts from any authorized WHIRLPOOL

Parts Distributor.

iii

Table Of Contents

Section 1

Major Component Locations ...................................................................... Page 1

Section 2

Component Access & Testing .................................................................... Page 5

Section 3

Theory Of Operation ................................................................................ Page 26

Section 4

Wiring Diagram, Diagnosis Charts, & Error Codes .................................. Page 29

INTRODUCTION

This program is designed to teach the servicer basic skills in handling common

service procedures for electric ranges.This program does not cover the diagnosis and

repair of all range problems and components, (oven liner, wiring harness, etc.).

PROGRAM OBJECTIVE

Upon completion of this program, the participants will be able to identify the location

of major range components, as well as diagnose problems, and remove and repair

the components causing the problem.

INSTRUCTIONS

This program has the following sections:

• Major Component Locations

• Component Access & Testing

• Theory Of Operation

• Wiring Diagram, Diagnosis Charts, & Error Codes

Complete the “Major Component Locations” section, and have the instructor review

the “Performance Check” before continuing. If you have any questions, ask your

instructor.

Needle-Nose Pliers

Screwdriver:

• Phillips.

Special Tools:

• Volt-Ohmmeter.

TOOLS YOU WILL NEED

- 1 -

– Section 1 –

MAJOR COMPONENT LOCATIONS

OBJECTIVE:

To teach the student how to identify the location of each major component in an electric range.

These components are the:

• Surface Heating Indicator

• Electronic Oven Control

• Infinite Switch (Element Control)

• Oven Temperature Sensor

• Electrical Terminal Block

• Plug-in Surface Element & Terminal Block

• Broil Element

• Bake Element

• Panel Light Switch

• Door Light Switch

• Door Latch

• Door Latching Mechanism

- 2 -

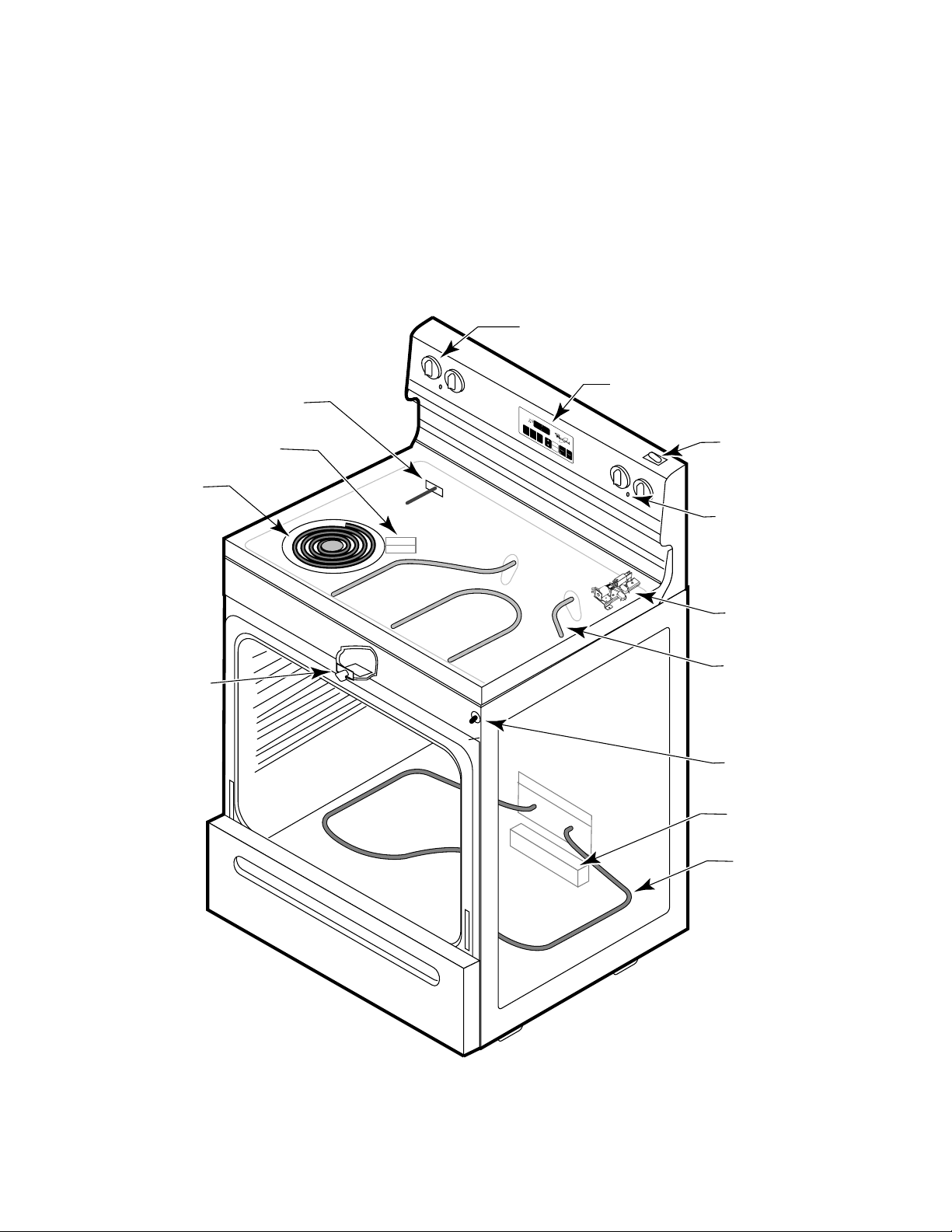

The illustration below shows the location of the major components in the electric range. Study the

illustration until you feel that you can mark the location of these components on a drawing. When

you are ready, proceed to the “Performance Check” on the next page.

Plug-In

Surface Element

(1 of 4)

Surface Element

Terminal Block

Broil Element

Electrical Terminal

Block

Electronic Oven Control

Infinite Switch

(Element Control)

(1 of 4)

Bake Element

Oven Temperature

Sensor

Door Light Switch

Door Latching

Mechanism

Door Latch

BAKE CUSTOM

BROIL AUTO

CLEAN

CLOCK

TIMER

..CANCEL

TEMP/

TIME

START

ENTER

5SEC

OFF

TIMER

CANCEL

88 88

BAKE

BROIL

HEAT

START?

Surface Heating

Indicator (1 of 2)

Panel

Light Switch

- 3 -

Performance Check

Locate the individual components in the illustration on the next page, and place the letter of each

component name next to the arrow. Do not refer back to the example on page 2.

When you are finished, take the book to the instructor, and have the results recorded. After you

are signed-off by the instructor, proceed to the next section.

You have four (4) minutes to complete this exercise.

- 4 -

G. Broil Element

H. Bake Element

K. Electrical Terminal Block

L. Door Latching Mechanism

M. Door Latch

N. Panel Light Switch

P. Door Light Switch

A. Surface Heating Indicator

B. Infinite Switch (Element Control)

C. Electronic Oven Control

D. Oven Temperature Sensor

E. Plug-in Surface Element

F. Surface Element Terminal Block

BAKE CUSTOM

BROIL AUTO

CLEAN

CLOCK

TIMER

..CANCEL

TEMP/

TIME

START

ENTER

5SEC

OFF

TIMER

CANCEL

88 88

BAKE

BROIL

HEAT

START?

- 5 -

–Section 2 –

COMPONENT ACCESS & TESTING

OBJECTIVES:

Given the customer complaint about an electric range problem, the student should be able to

properly diagnose the problem, and then remove and replace the defective component. The

service procedure for each of the following components is discussed in this section:

•Surface Heating Indicator

•Electronic Oven Control

•Infinite Switch (Element Control)

•Oven Temperature Sensor

•Electrical Terminal Block

•Plug-in Surface Element & Terminal Block

•Oven Door

•Broil Element

•Bake Element

•Oven Light Switches (door & panel )

•Door Latch

•Door Latching Mechanism

•Oven Vent

•Side Panel

- 6 -

MOVING THE RANGE AND REMOVING THE REAR PANEL

1. Unplug the range.

CAUTION: When you work on the range, be careful when handling the sheet metal parts. Sharp

edges may be present, and you can cut yourself if you are not careful.

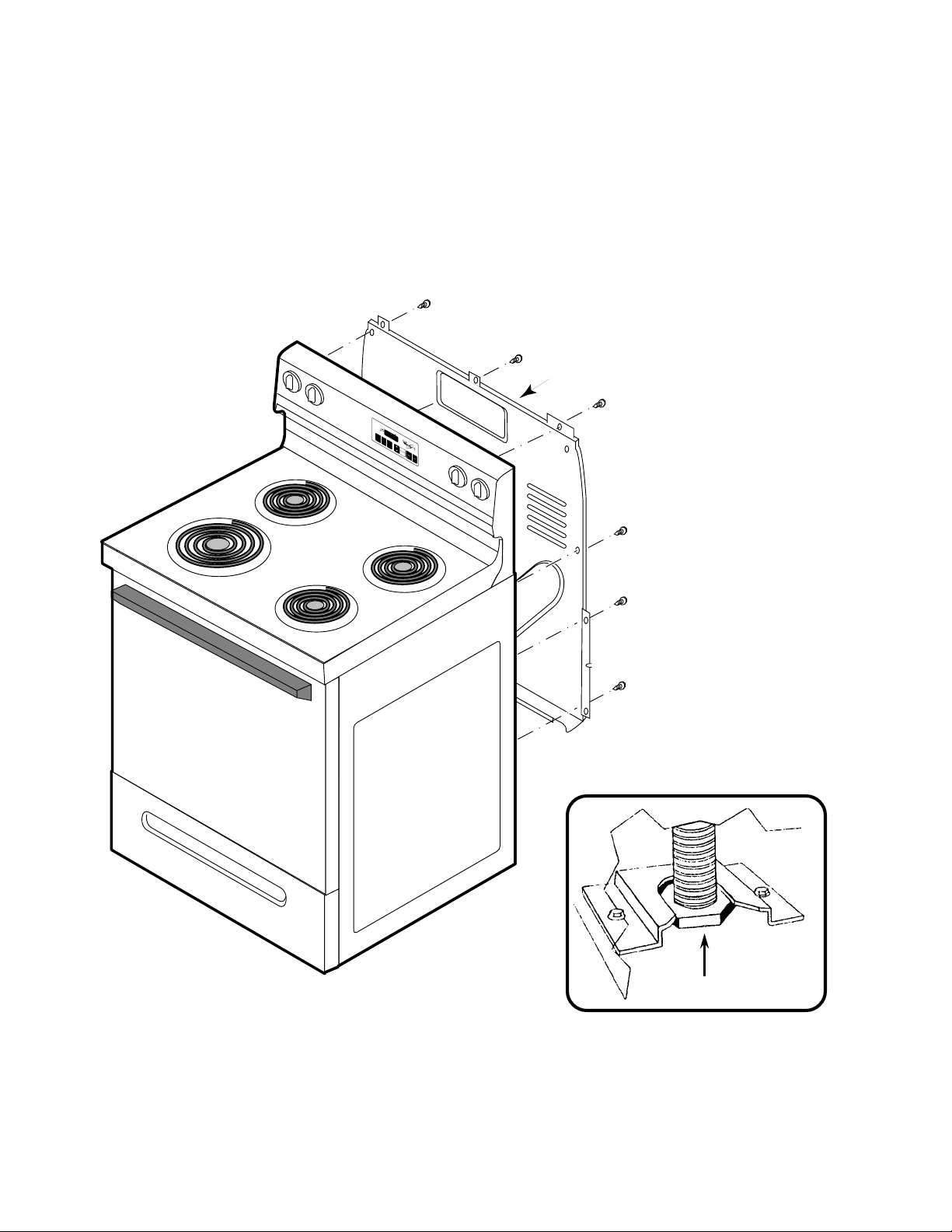

2. To access the rear panel, pull the range forward so that the rear foot disengages from the anti-

tip bracket.

3. Remove the rear panel from the range by removing the mounting screws.

Leg In Anti-Tip Bracket

REAR

PANEL

BAKE CUSTOM

BROIL AUTO

CLEAN

CLOCK

TIMER

..CANCEL

TEMP/

TIME

START

ENTER

5SEC

OFF

TIMER

CANCEL

88 88

BAKE

BROIL

HEAT

START?

IMPORTANT NOTE: When moving the range back into place, make sure that the

rear foot engages in the anti-tip bracket. Check to make sure that it is engaged

properly by pulling forward on the top of the range. The anti-tip bracket must be

installed. If parts are required to install a bracket, call the “

Whirlpool Consumer

Assistance Center

”at: 1-800-253-1301.
