Whirlpool RS696PXGB7 User manual

COOKTOP PARTS

For Models:RS696PXGB7, RS696PXGQ7

(Black) (Designer White)

2−01 Litho in U.S.A. (jac) Part No. 8185716

30" ELECTRIC

DROP−IN RANGE

SELF CLEANING

OVEN

COOKTOP PARTS

28185716

Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Literature Parts

LIT3191800

Installation

Instructions

LIT3191537

Use & Care Guide

LIT3192844

Tech Sheet

LIT3191638

Safe Cooking Tips

2 Cooktop, Glass

3191843 Black

3191189 White

3 3191310 Bracket, Switch

Mounting

4 Element, Surface

8272567 1200W RF−LR

8272566 1800W RR

8272565 2500W LF

5 3191791 Spring, Locator

246119 Screw (8)

7 Switch, Infinite

3191049 1200W RR−LR

(Silver Shaft)

3191050 1800W RR

(Yellow Shaft)

4454541 2500W LF

(Red Shaft)

311865 Screw

8 3183956 Seal, Switch Cover

10 Knob, Control (4)

3196231 Black

3196232 White

14 3182435 Seal, Switch (4)

15 3191515 Bracket, Support

Element

16 Trim Ring, Cooktop

3193228 Black

3193227 White

3196537 Screw

17 3192452 Frame, Cooktop

21 3191952 Lamp, Indicator

3191953 Bumper, Rubber

9750835 Bumper, Door

For Models:RS696PXGB7, RS696PXGQ7

(Black) (Designer White)

OVEN PARTS

8185716

For Models:RS696PXGB7, RS696PXGQ7

(Black) (Designer White)

OVEN PARTS

48185716

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Trim, Side

(Right Hand)

4450844 Black Model

4449747 Screw

4450845 White Model

(Left Hand)

4450847 Black Model

4449747 Screw

4450848 White Model

Screw

4449747 Black

4449041 Bright

3 Hinge Receiver

4455520 Left Hand

4455521 Right Hand

4 4448520 Bumper, Door

7 4455286 Top Chassis

4449809 Screw

9 4452158 Tube, Vent

4449154 Screw

10 4452165 Lens, Light

11 4452368 Oven Light Assy

12 4452166 Bulb, Light

14 4455612 Frame, Front

4449040 Screw

4450118 Nut

15 4455382 Gasket, Door

19 4451478 Support, Insulation

4449809 Screw

21 Rail, Side

4450579 Right Side

4450580 Left Side

4448444 Grommet

4449154 Screw

22 4451896 Latch Assy

23 4452224 Solenoid

24 4452312 Micro Switch N.C.

4449809 Screw

25 4455641 Side, Chassis

(R.H. & L.H.)

4449809 Screw

26 4452234 Back, Chassis

4449809 Screw

27 Liner, Oven

(Not serviceable)

28 4451426 Micro Switch

29 4455636 Sensor

4449154 Screw

30 4451537 Spring, Latch

37 4451442 Thermostat (TOD)

(Temp.) SPST

43 4455530 Base, Chassis

49 4448933 Retainer, Gasket

4449154 Screw

50 4451747 Cover, Back

4449809 Screw

53 4449845 Support, Bracket

4449809 Screw

55 Trim, Bottom

4448477 Black Model

4448478 White Model

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449316 Insulation, Wrap

4450365 Insulation, Back

For Models:RS696PXGB7, RS696PXGQ7

(Black) (Designer White)

CONTROL PANEL PARTS

8185716

Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Control Panel Assy.

W/Membrane Switch

4452844 Black Model

4452845 White Model

4449745 Screw

3400832 Screw

2 4451034 Gasket,

Control Panel

3 4452892 Microcomputer

4449745 Screw

For Models:RS696PXGB7, RS696PXGQ7

(Black) (Designer White)

OVEN DOOR PARTS

68185716

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 4451719 Door Liner

2 4455525 Hinge, Door

4449743 Screw

3 4449259 Glass, Inner

4 4451722 Insulation, Door

7 4449263 Glass, Inner

9 4451668 Retainer, Glass

4449809 Screw

13 Door Handle

4448854 Black Model

4448855 White Model

14 4450813 Bracket, Handle

4451040 Screw

15 Assy, Door Glass

4452065 Black Model

4452066 White Model

19 4450362 Shield, Heat

4449809 Screw

20 4451671 Retainer, Glass

4449809 Screw

21 4451674 Seal, Door Top

23 Retainer, Clip

4450863 Black Model

4450864 White Model

3400832 Screw

24 4455257 Glass, Inner

For Models:RS696PXGB7, RS696PXGQ7

(Black) (Designer White)

TOP VENTING PARTS

8185716

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 4451759 Vent, Exhaust

4449040 Screw

2 4455178 Elbow, Vent−Top

3 4455334 Blower

4455352 Bracket, Blower

4 4451758 Block, Foam

5 4455177 Elbow, Vent−Bottom

11 4449868 Block, Terminal

3400080 Screw

13 4448549 Vent,

(Control Panel)

4450038 Screw

14 Side, Control Compt.

4451535 Right

4451536 Left

4449809 Screw

15 4452244 Back, Control

4449809 Screw

20 3191842 Cover, Rear

21 4451407 Plate, Support

4452260 Spacer, Foam

For Models:RS696PXGB7, RS696PXGQ7

(Black) (Designer White)

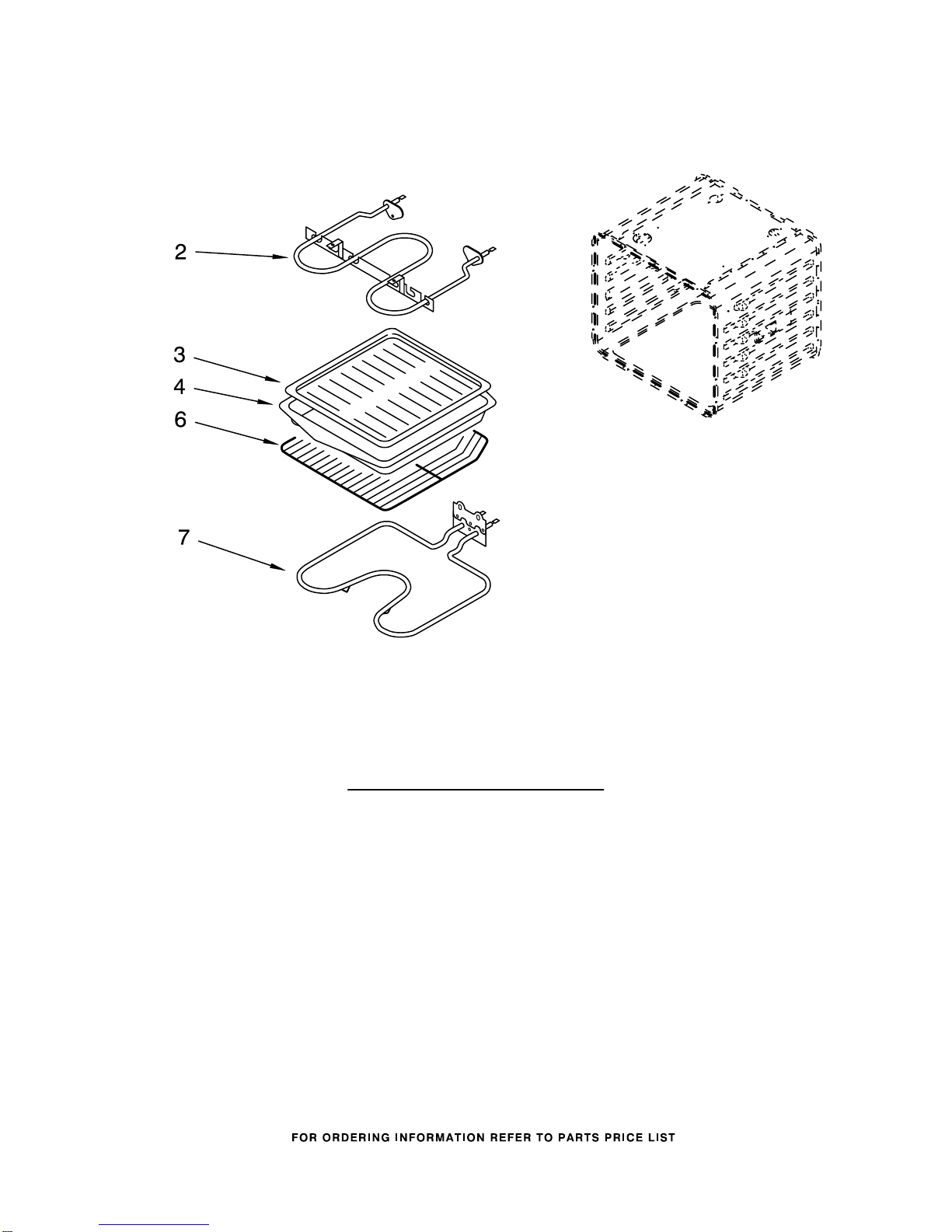

INTERNAL OVEN PARTS

88185716

Illus. Part

No. No. DESCRIPTION

2 4452154 Element, Broil

4449154 Screw

3 3147563 Grill, Broiler

4 3147845 Pan, Broiler

6 4448717 Rack, Oven

7 4452153 Element, Bake

4449154 Screw

For Models:RS696PXGB7, RS696PXGQ7

(Black) (Designer White)

OPTIONAL PARTS

8185716

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

4455733 Harness, Wire

(Main)

3191956 Harness, Wire

(Infinite Switch)

4455280 Harness, Wire

(Burners)

4451163 Conduit

4448664 Clamp

4449809 Screw

112432 Nut

4450800 Screw, Ground

4451761 Support, Wiring

4454842 Tie, Cable

4452222 Spacer, Harness

Miscellaneous

814381 Pin Hinge Kit

4448950 Screw, Install (4)

For Models:RS696PXGB7, RS696PXGQ7

(Black) (Designer White)
