Whirlpool RS675PXGB14 User manual
COOKTOP PARTS
1
For Models:RS675PXGB14, RS675PXGQ14, RS675PXGT14
(Black) (White) (Biscuit)
3−05 Litho in U.S.A. (cre) Part No. 8186250
30" DROP−IN
ELECTRIC OVEN
SELF CLEAN
Illus. Part
No. No. DESCRIPTION
1 Literaturre Parts
8300649 Installation
Instructiions
8300666 Use & Care Guide
8302072 Tech Sheet
3191638 Safe Cooking Tips
2 3192459 Burner Box
3 3192330 Bracket, Mounting
3177991 Screw
4 Cooktop
8284709 Biscuit
3191168 White
3191167 Black
5 3192575 Clip, Mtg. (4)
3400843 Screw
6 Panel, Control
8284707 Biscuit
3191229 White
3191228 Black
7 Switch, Infinite
3191471 Use W/6" Surface
(Blue Shaft)
3191473 Use W/8" Surface
(Red Shaft)
3400855 Screw, 8−32 x 1/4
8 4456181 Light, Indicator
11 Pan, Surface
3195208 6" Pan
3195209 8" Pan
12 Element, Surface
8053266 6" Burner
8053268 8" Burner
14 Knob, Control
3196232 White
8272506 Biscuit
3196231 Black
15 3183956 Seal, Switch
Shaft (4)
18 Trim, Extension
3192103 White
8300518 Biscuit
3192102 Black
19 3195917 Clip, Element
CONTROL PANEL PARTS
2
For Models:RS675PXGB14, RS675PXGQ14, RS675PXGT14
(Black) (White) (Biscuit)
8186250
Illus. Part
No. No. DESCRIPTION
1 Control Panel Assy.
4456311 White
4456309 Biscuit
4456312 Black
W/Membrane Switch
3400832 Screw
2 4451034 Gasket, Control
Panel
3 8301919 Assy, Control
4449745 Screw
OVEN PARTS
3
For Models:RS675PXGB14, RS675PXGQ14, RS675PXGT14
(Black) (White) (Biscuit)
8186250
OVEN PARTS
4
For Models:RS675PXGB14, RS675PXGQ14, RS675PXGT14
(Black) (White) (Biscuit)
8186250
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Trim, Side
(Right Hand)
4450845 White
4452120 Biscuit
4450844 Black
(Left Hand)
4450848 White
4452121 Biscuit
4450847 Black
8281236 Screw
3 Hinge Receiver
4455605 Left Hand
4455606 Right Hand
4 4448520 Bumper, Door
5 4452260 Spacer, Foam
7 4455865 Top Chassis
4449809 Screw
9 4452158 Tube, Vent
3196176 Screw
10 4452165 Lens, Light
11 4452368 Oven Light Assy
12 4452166 Bulb, Light
14 9759060 Frame, Front
4449040 Screw
4450118 Nut
15 4455382 Gasket, Door
19 4451478 Support, Insulation
4449809 Screw
21 Rail, Side
4450579 Right Side
4450580 Left Side
4448444 Grommet
4449154 Screw
22 8302157 Latch, Motorized
4449154 Screw
25 4455641 Side, Chassis
(R.H. & L.H.)
4449809 Screw
26 4452234 Back, Chassis
4449809 Screw
27 Liner, Oven
(Not serviceable)
29 4455636 Sensor
4449154 Screw
33 4457117 Deflector, Vent
37 9759243 Thermostat (TOD)
(Temp.) SPST
43 4455530 Base, Chassis
49 4448933 Retainer, Gasket
4449154 Screw
50 4451747 Cover, Back
4449809 Screw
53 4449845 Support, Bracket
4449809 Screw
4449809 Screw
55 Trim, Bottom
4448478 White
4452415 Biscuit
4448477 Black
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449316 Insulation, Wrap
4450365 Insulation, Back
OVEN DOOR PARTS
5
For Models:RS675PXGB14, RS675PXGQ14, RS675PXGT14
(Black) (White) (Biscuit)
8186250
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 4457127 Door Liner
2 Hinge, Door
8300571 R.Side
8300572 L.Side
4449743 Screw
3 4449259 Glass, Inner
4 4451722 Insulation, Door
7 9759225 Glass, Inner
13 Door Handle
4448855 White
4452860 Biscuit
4448854 Black
14 4450813 Bracket, Handle
4451040 Screw
15 Door Assembly,
Glass
8300899 White
8300894 Biscuit
8300903 Black
16 9759229 Bracket(2nd Glass)
17 9759230 Bracket(3rd Glass)
19 4457103 Shield, Heat
4449809 Screw
20 4457132 Retainer, Glass
4449809 Screw
21 8300820 Seal, Door Top
22 4457114 Shield, Heat (Btm)
23 Retainer, Clip
4450864 White
4452119 Biscuit
4450863 Black
24 9759228 Glass, Inner

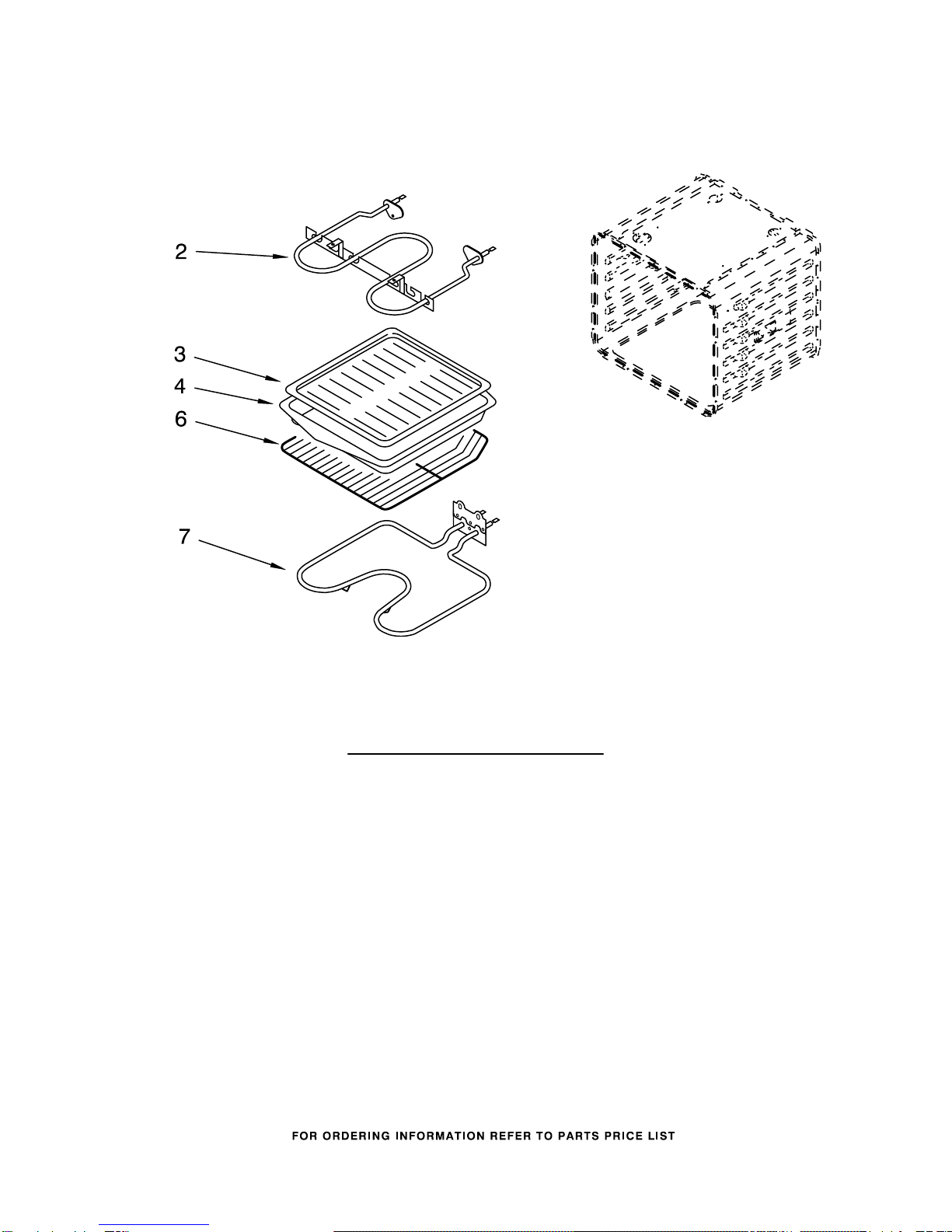

INTERNAL OVEN PARTS
6
For Models:RS675PXGB14, RS675PXGQ14, RS675PXGT14
(Black) (White) (Biscuit)
8186250
Illus. Part
No. No. DESCRIPTION
2 4456103 Element, Broil
4449154 Screw
3 4457277 Grill, Broiler
4 4457276 Pan, Broiler
6 4448717 Rack, Oven
9759322 Pad, Rack
7 4452153 Element, Bake
4449154 Screw
TOP VENTING PARTS
7
For Models:RS675PXGB14, RS675PXGQ14, RS675PXGT14
(Black) (White) (Biscuit)
8186250
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 4451759 Vent, Exhaust
4449040 Screw, 8−18 x 3/8
2 4455178 Elbow, Vent Top
3 4457289 Blower, 65MM
4 4451758 Block, Foam
5 4455177 Elbow, Vent Bottom
6 4451761 Plate, Service
10 4451985 Suppressor
11 4449868 Block, Terminal
3400080 Screw
13 4448549 Vent,
(Control Panel)
4450038 Screw
14 Side, Control Compt.
3191832 Right
3191833 Left
4449809 Screw
15 9759135 Back, Control
4449809 Screw
20 3191842 Cover, Rear
OPTIONAL PARTS
8
For Models:RS675PXGB14, RS675PXGQ14, RS675PXGT14
(Black) (White) (Biscuit)
8186250
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
261869 Cord Brown
72032 Black
PAINT, SPRAY
350930 White
261900 Citrine White
830864 Black
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242829 Wire (12 Ga.
150 c Red)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242826 Wire (14 Ga.
150 c White)
242827 Wire (14 Ga.
150 c Yellow)
242832 Wire (14 Ga.
200 c Yellow)
WIRING HARNESS PARTS
3191220 Harness, Wire
(Main)
8301876 Harness, Wire
FE02313 Bushing
(EDC)
4451163 Conduit
4448664 Clamp
4449809 Screw
112432 Nut
4450800 Screw, Ground
3192236 Harness, Wire
(Infinite Switch)
4455592 Harness, Wire
(Light)
4452222 Spacer, Harness
4454384 Ground, Wire
3400015 Screw, Ground
Miscellaneous
814381 Hinge Pin Kit
4448950 Screw, Install (4)
