Whirlpool GY396LXPB01 User manual

COOKTOP PARTS

For Models: GY396LXPB01, GY396LXPQ01, GY396LXPT01, GY396LXPS01

(Black) (White) (Biscuit) (S.Steel)

30" Slide−In

ELECTRIC OVEN

SELF CLEAN

Illus. Part

No. No. DESCRIPTION

1 Literaturre Parts

9762035 Installation

Instructiions

9762257 Use & Care Guide

9761388 Tech Sheet

9757680 Anti−Tip Instruct.

3191638 Safe Cooking Tips

9759133 Safe Cooking Tips

3 4454023 Bracket, Mounting

4 Cooktop

9756788BT

Biscuit

9756788WH

White

9762069BL

Black

5 4453764 Clip, Ceran (2)

6 Trim−CkTop, SI

9759531WH

White LH

9759531BT

Biscuit LH

9759531BL

Black LH

9759531SS

S.Steel LH

9759530WH

White RH

9759530BT

Biscuit RH

9759530BL

Black RH

9759530SS

S.Steel RH

7 Switch, Infinite

9750638 LR, RF

9750639 RR

9750641 LF

8 8523739 Light, Indicator

9 9759243 Thermostat (120c)

10 9756821 Support, Wiring

11 4449809 Screw (2)

12 Element, Surface

8523698 1200W LR,RF

8523696 1800W RR

8523692 2500W LF

13 9757800 Bracket, Front

Support

14 3196537 Screw

15 9759944 Thermostat (60c)

16 3196160 Screw (2)

17 9758799 Bracket, Ind. Lamp

18 Trim, Extension

9760520WH

White

9760520BT

Biscuit

9760520BL

Black

9760520SS

S.Steel

19 9759094 Spring, Locator

20 9759963 Bracket, Rear Sprt

21 8285962 Rail, Element (2)

22 246119 Screw

23 9759628 Cover, Cktp Rear

24 9756450 Gasket

Part No. 8186414 Rev.A

3−06 Litho in U.S.A. (cre)

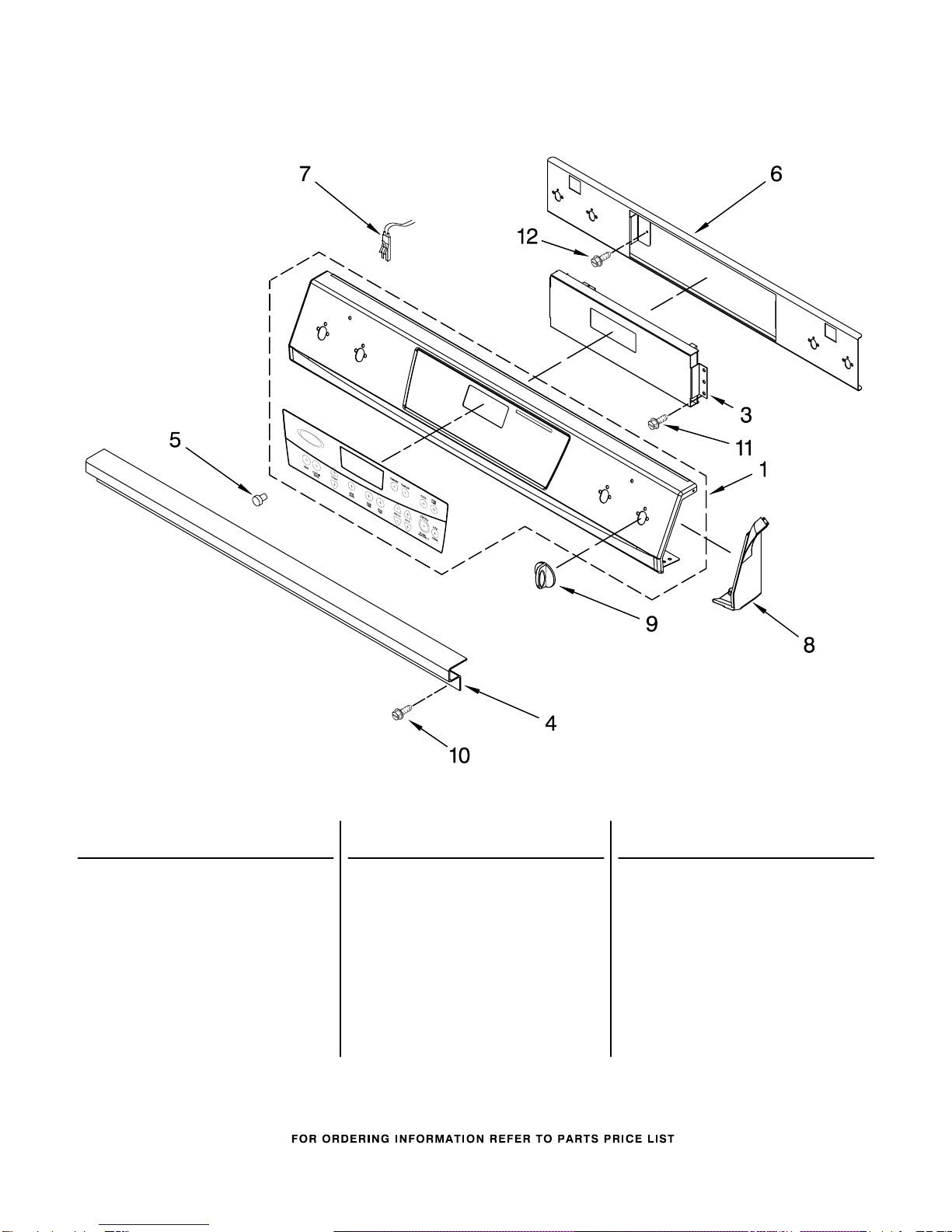

CONTROL PANEL PARTS

For Models: GY396LXPB01, GY396LXPQ01, GY396LXPT01, GY396LXPS01

(Black) (White) (Biscuit) (S.Steel)

8186414

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Control Panel

8191145 White

8191146 Biscuit

8191147 Black

8191148 S.Steel

3 9757476 Control, Migration

4 9757119 Bracket, Console

5 3196068 Lens, Ind. (2)

6 9757410 Bracket, Control

7 8523265 Housing, Ind. Lt.

8 Endcap

9756614BT

Biscuit LH

9756614WH

White LH

9756614BL

Black LH

9756611BT

Biscuit RH

9756611WH

White RH

9756611BL

Black RH

3196172 Screw

9 Knob

9756659BL

Black

9756659WH

White

9756659BT

Biscuit

10 3196537 Screw

11 9780271 Screw

12 311865 Screw

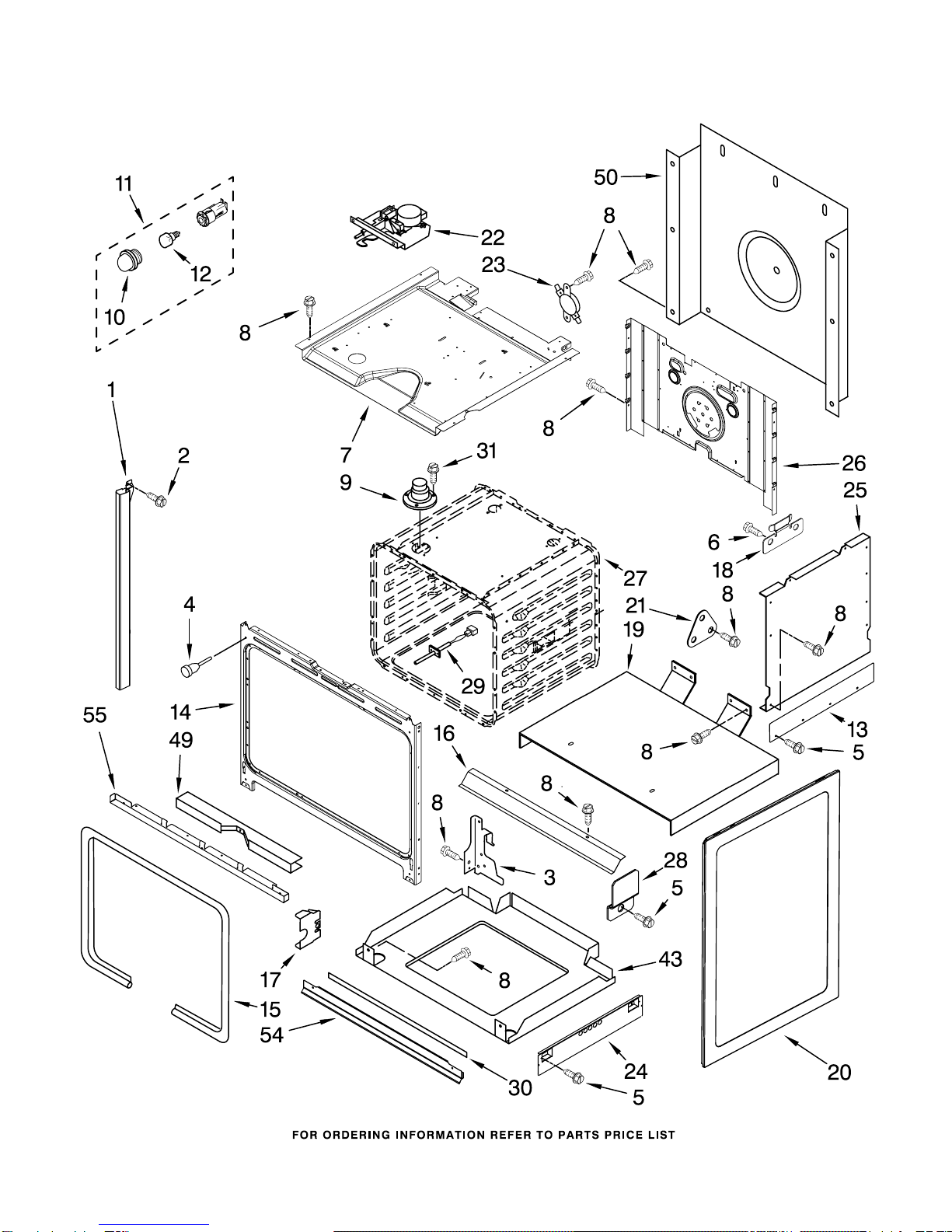

OVEN PARTS

For Models: GY396LXPB01, GY396LXPQ01, GY396LXPT01, GY396LXPS01

(Black) (White) (Biscuit) (S.Steel)

8186414

OVEN PARTS

For Models: GY396LXPB01, GY396LXPQ01, GY396LXPT01, GY396LXPS01

(Black) (White) (Biscuit) (S.Steel)

8186414

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Side

(Right Hand)

9757735WH

White

9757735BT

Biscuit

9757735BL

Black

9757735SS

S.Steel

(Left Hand)

9757734WH

White

9757734BT

Biscuit

9757734BL

Black

9757734SS

S.Steel

2 3400832 Screw

3 Hinge Receiver

4455605 Left Hand

4455606 Right Hand

4 4448520 Bumper, Door

5 3196537 Screw

6 3196160 Screw

7 8303099 Top Chassis

8 4449809 Screw

9 4452158 Tube, Vent

10 4452165 Lens, Light

11 4452368 Oven Light Assy

12 4452166 Bulb, Light

13 9757732 Shield, Heat

14 9759060 Frame, Front

15 4455382 Gasket, Door

16 4453951 Deflector, Vent

Bottom

17 4452152 Bracket, Mounting

18 9757685 Guide, Side Panel

19 4451478 Support, Insulation

20 Body. Side

9760723PB

Black

9760723PW

White

9760723PC

Biscuit

21 9757461 Bracket,Side Panel

22 9760888 Latch, Motorized

23 341196 Thermostat SPST

(205)

24 9757811 Brace, Side Panel

25 4455641 Side, Chassis

(R.H. & L.H.)

26 4452234 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 9759890 Clip, Side Panel

29 4455636 Sensor

30 9757717 Insulation

31 3196176 Screw

43 9759713 Base, Chassis

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

54 Vent, Bottom Upper

9756481WH

White

9756481BT

Biscuit

9756481BL

Black

9756481SS

S.Steel

55 Trim, Btm Vent

9756485WH

White

9756485BT

Biscuit

9756485BL

Black

9756485SS

S.Steel

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

9756817 Insulation, Wrap

9756470 Insulation, Back

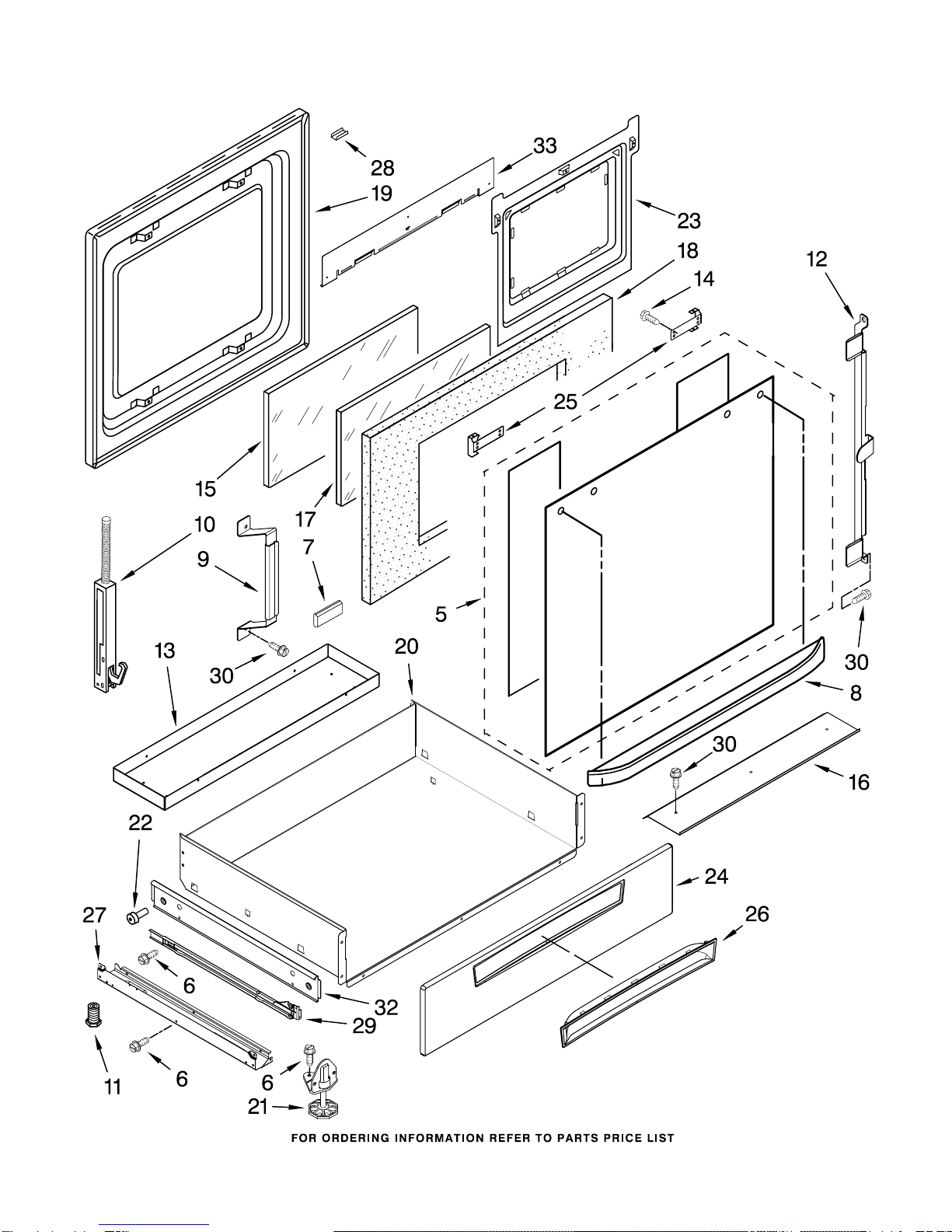

DOOR AND DRAWER PARTS

For Models: GY396LXPB01, GY396LXPQ01, GY396LXPT01, GY396LXPS01

(Black) (White) (Biscuit) (S.Steel)

8186414

DOOR AND DRAWER PARTS

For Models: GY396LXPB01, GY396LXPQ01, GY396LXPT01, GY396LXPS01

(Black) (White) (Biscuit) (S.Steel)

8186414

Illus. Part

No. No. DESCRIPTION

5 Glass, Door Front

9759641 Black

9759639 White

9759640 Biscuit

9759642 S.Steel

6 3196537 Screw

7 9759635 Spacer, Glass

8 Handle, Door

4448854 Black

4448855 White

4448856 Biscuit

9 8302094 Bracket, Central

10 Hinge, Door

9760571 White RH

9760572 White LH

11 9761935 Foot, Rear

12 8302092 Bracket, Side

13 9757798 Panel, Drawer

14 4451040 Screw

15 9757706 Glass, Inner

16 4457114 Shield, Heat Btm

17 4449263 Glass, Inner (2)

18 4451722 Insulation, Door

19 9759413 Liner, Door

20 9757806 Drawer & Roller

21 3196037 Foot, Front

22 422604 Roller, Drawer

23 4457132 Retainer, Glass

24 Front, Drawer

4453921WH

White

4453921BL

Black

4453921BT

Biscuit

4453921SS

S.Steel

25 4450813 Bracket, Handle

26 Handle, Drawer

9756674WH

White

9756674BT

Biscuit

9756674BL

Black

27 Side, Base

9759953 R.Side

9759954 L.Side

28 4450863 Retainer, Clip

29 Track, Drawer

9756837 R.Side

9756839 L.Side

30 4449809 Screw

32 9756673 Guide, Roller

33 9757707 Shield, Heat Top

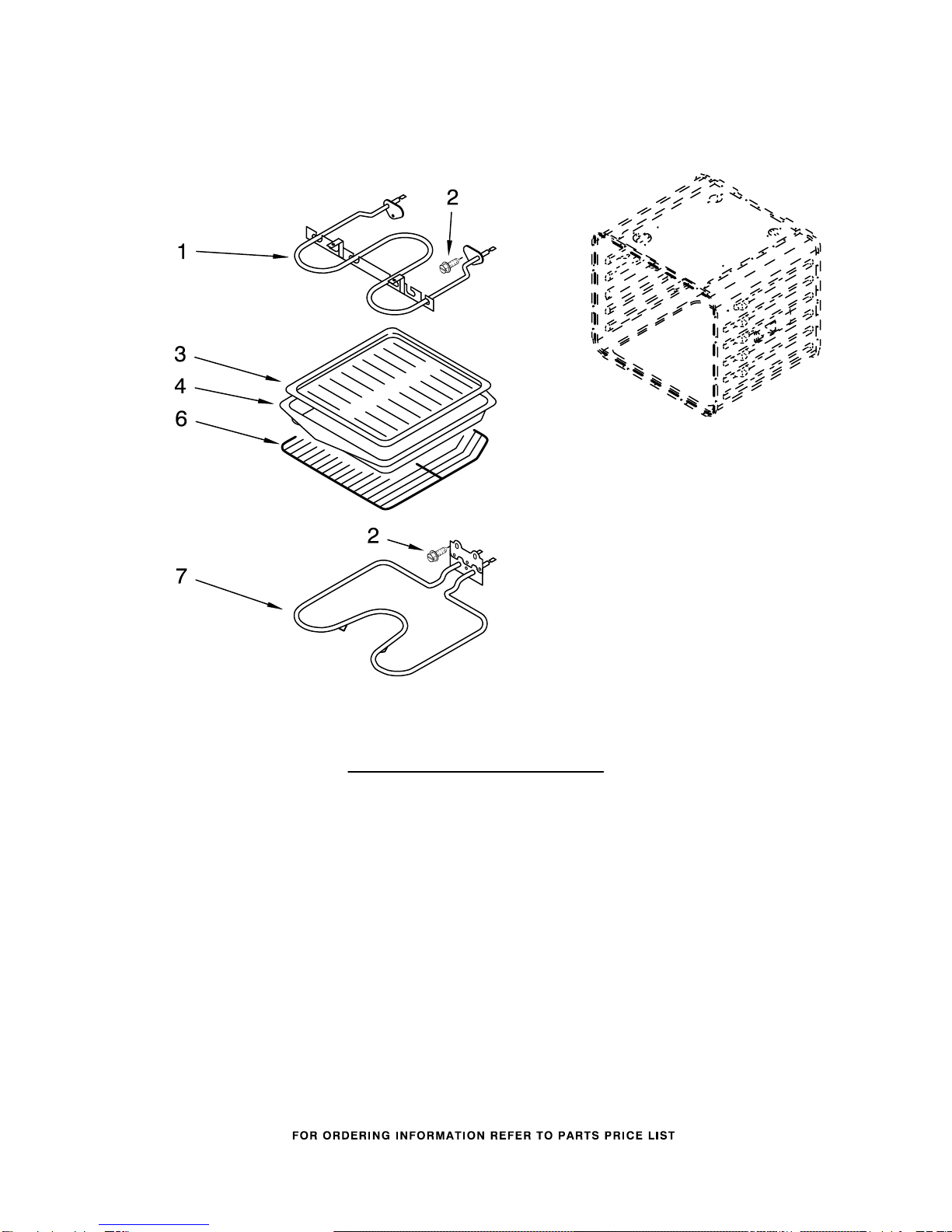

INTERNAL OVEN PARTS

For Models: GY396LXPB01, GY396LXPQ01, GY396LXPT01, GY396LXPS01

(Black) (White) (Biscuit) (S.Steel)

8186414

Illus. Part

No. No. DESCRIPTION

1 4456103 Element, Broil

2 4449154 Screw

3 4457277 Grill, Broiler

4 4457276 Pan, Broiler

6 4448717 Rack, Oven

7 4452153 Element, Bake

TOP VENTING PARTS

For Models: GY396LXPB01, GY396LXPQ01, GY396LXPT01, GY396LXPS01

(Black) (White) (Biscuit) (S.Steel)

8186414

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4455178 Elbow, Vent Top

3 9759320 Blower

4 4451758 Block, Foam

5 4455177 Elbow, Vent Bottom

6 9759938 Bracket, Term.Box

7 4449809 Screw (2)

8 9757404 Box, Terminal

9 9759721 Insulator,Term Box

10 9761958 Block, Terminal

11 4449868 Block, Terminal

12 9757405 Cover, Term Box

9757118BL

Vent,

(Control Panel)

14 3400080 Screw

15 3196160 Screw

16 4450038 Screw

17 4449040 Screw

OPTIONAL PARTS

For Models: GY396LXPB01, GY396LXPQ01, GY396LXPT01, GY396LXPS01

(Black) (White) (Biscuit) (S.Steel)

8186414

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

9759537 Harness, Wire

(Main)

9759702 Harness, Wire

(Cooktop Power)

9759701 Harness, Wire

(Cooktop Left)

9759703 Harness, Wire

(Cooktop Right)

9759715 Conduit

3196173 Screw (Conduit)

313660 Clip, Ground Wire

4448664 Clamp

4449809 Screw

112432 Nut

4450800 Screw, Ground

4452222 Spacer, Harness

3400015 Screw, Ground

Miscellaneous

814381 Hinge Pin Kit

4448950 Screw, Install (4)

9782676 Anit−Tip Assy

Filler,Counter Top

9757784WH

White

9757784BL

Black

9757784BT

Biscuit

9757784SS

S.Steel
