Whirlpool GSC308PRB01 User manual

OVEN PARTS

For Models:GSC308PRB01, GSC308PRQ01, GSC308PRT01, GSC308PRS01

(Black) (White) (Biscuit) (Black Stainless)

11−05 Litho in U.S.A. (cre) Part No. 8186473

30" BUILT−IN ELECTRIC

COMBO

SENSOR/SC

(GOLD LINE)

OVEN PARTS

For Models:GSC308PRB01, GSC308PRQ01, GSC308PRT01, GSC308PRS01

(Black) (White) (Biscuit) (Black Stainless)

8186473

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8303655 Installation

Instructions

Use & Care Guide

8304080 Microwave

8304079 Oven

Cooking Guide

(Label)

8300348 Oven

8300346 Microwave

8303851 Tech Sheet (Oven)

3191638 Safer Cooking Tips

9759133 Safer Cooking Tips

4449237 Cookbook

2 Trim, Side

8302927 RH Black

8302929 RH White

8302931 RH Biscuit

8303217 RH Stainless Steel

8302928 LH Black

8302930 LH White

8302932 LH Biscuit

8303218 LH Stainless Steel

3 Hinge, Receiver

4455605 Left Hand

4455606 Right Hand

4 4448520 Bumper, Door

5 4449809 Screw, 8−18 x 3/8

6 4449154 Screw, 8/32 x 7/16

7 8303099 Top, Chassis

8 4450038 Screw, 6−32 x 1/2

9 4452158 Tube, Vent

10 4452165 Lens, Light

11 4452368 Oven Light Assy

12 4452166 Bulb, Light

13 3400832 Screw, 8−18 x 3/8

14 9759060 Frame, Front

15 4455382 Gasket, Door

16 4452490 Spacer, Foam

17 4452337 Insulation,

Bottom Vent

19 4451478 Support, Insulation

21 Rail, Side

8303117 Right Side

8303118 Left Side

4448444 Grommet

22 3196176 Screw (3)

23 4449040 Screw

24 4450038 Screw

25 4455641 Side, Chassis

(R.H. & L.H.)

26 4452234 Back, Chassis

27 Liner, Oven

(Not Serviceable)

29 4455636 Sensor

30 4449845 Bracket, Support

33 9760677 Deflector, Vent

34 8302592 Vent, Center

35 4449906 Ext−Filler

37 9759243 Thermostat (TOD)

(Temp.) SPST

43 9759713 Base, Chassis

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

51 Trim, Bottom

8302947 Black

8302948 White

8302949 Biscuit

8302950 Stainless Steel

52 8303502 Vent, Control

53 4451756 Chassis, Back

4452152 Bracket, Mounting

Bottom Trim

54 4452492 Insulation, Top

55 4452491 Insulation, Grill

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449316 Insulation, Wrap

4450365 Insulation, Back

CONTROL PANEL PARTS

For Models:GSC308PRB01, GSC308PRQ01, GSC308PRT01, GSC308PRS01

(Black) (White) (Biscuit) (Black Stainless)

8186473

Illus. Part

No. No. DESCRIPTION

1 Control Panel

8302848 Black

8302877 Stainless Steel

8302849 White

8302850 Biscuit

2 Assy, Membrane

8303184 Black

8303226 White

8303232 Biscuit

3 3400832 Screw

4 4451592 Filter

5 4452260 Spacer, Foam

6 4451632 Bracket, Filter

7 8303491 Assy, Control

8 4449745 Screw

9 4449809 Screw, 8−18 x 3/8

10 8303119 Backer, Control

11 3400832 Screw, 8−18 x 3/8

12 8304164 Backer, Control

OVEN DOOR PARTS

For Models:GSC308PRB01, GSC308PRQ01, GSC308PRT01, GSC308PRS01

(Black) (White) (Biscuit) (Black Stainless)

8186473

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8303700 Door Liner

2 Hinge, Door

9760577 R.Side

9760578 L.Side

3 4449259 Glass, Inner

4 4451722 Insulation, Door

And Bottom Door

5 4457132 Retainer, Glass

6 4451040 Screw, 8−16 x 1/2

7 4449743 Screw

8 4449809 Screw, 8−18 x 3/8

10 9759225 Glass, Inner (2)

12 Door Glass

8303301 Black Model

8303307 White Model

8303289 Stainless Steel

8303311 Biscuit Model

13 Door Handle

8302813 Black

8302814 White

8302815 Biscuit

8303164 S.Steel

14 8303167 Bracket, Handle

15 9759229 Bracket(2nd Glass)

16 9759230 Bracket(3rd Glass)

18 8303810 Nameplate

19 4457103 Shield, Heat

22 4457114 Shield, Heat (Btm)

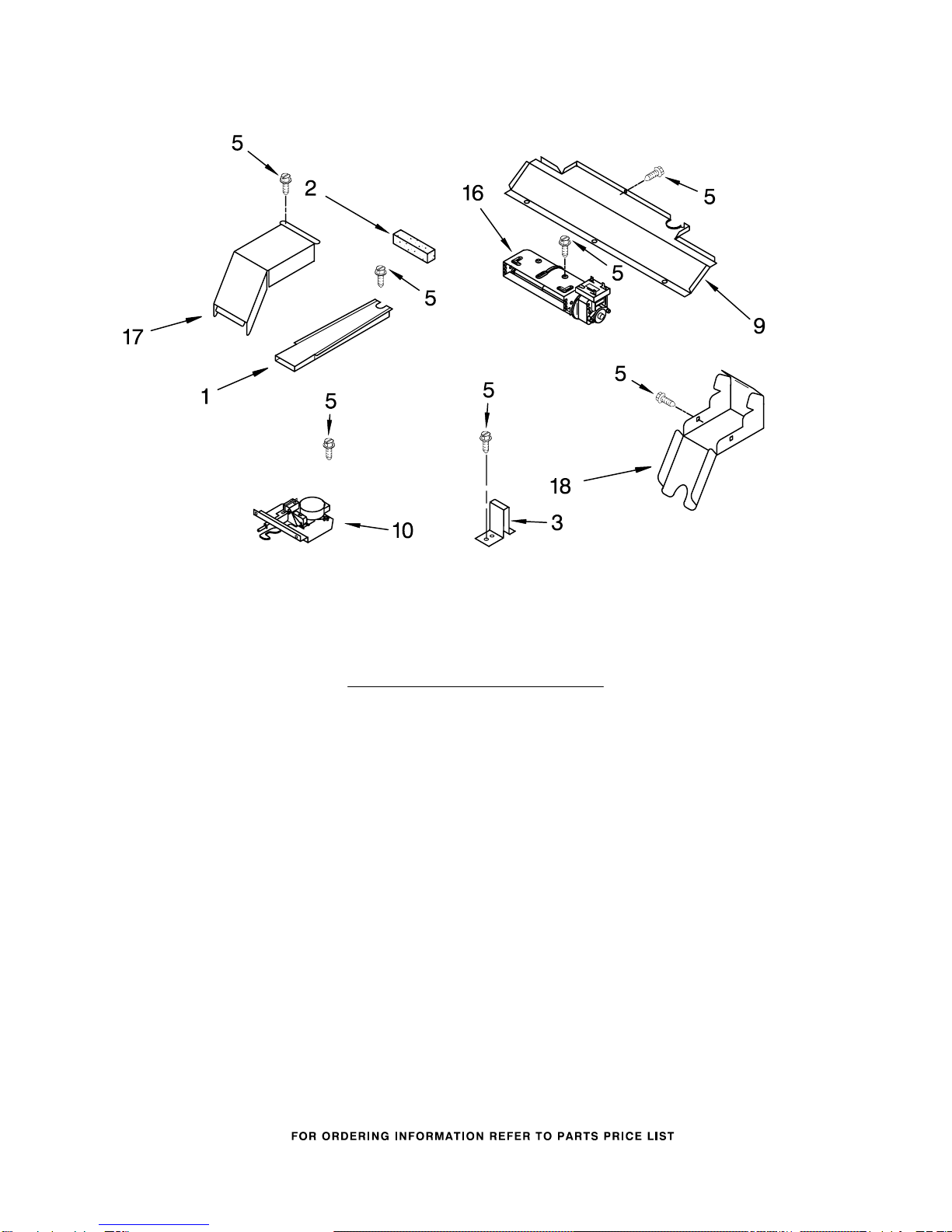

LATCH PARTS

For Models:GSC308PRB01, GSC308PRQ01, GSC308PRT01, GSC308PRS01

(Black) (White) (Biscuit) (Black Stainless)

8186473

Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4451758 Seal, Foam

3 8300791 Bracket, Combo

Chassis

5 4449809 Screw, 8−18 x 3/8

9 4450408 Baffle, Rear

10 9759525 Latch Assy.

16 4452003 Blower

17 4455178 Vent, Top

18 4455177 Vent, Bottom

INTERNAL OVEN PARTS

For Models:GSC308PRB01, GSC308PRQ01, GSC308PRT01, GSC308PRS01

(Black) (White) (Biscuit) (Black Stainless)

8186473

Illus. Part

No. No. DESCRIPTION

1 4448988 Cover, Fan

2 4456103 Element, Broil

3 4457277 Grill, Broiler

4 4457276 Pan, Broiler

5 4449154 screw

6 4448717 Rack, Oven

9759322 Pad, Rack

7 4452153 Element, Bake

8 4452227 Nut

9 4451583 Convection Motor

10 4452226 Fan Blade

11 3181534 Rack, Roasting

CABINET AND STIRRER PARTS

For Models:GSC308PRB01, GSC308PRQ01, GSC308PRT01, GSC308PRS01

(Black) (White) (Biscuit) (Black Stainless)

8186473

CABINET AND STIRRER PARTS

For Models:GSC308PRB01, GSC308PRQ01, GSC308PRT01, GSC308PRS01

(Black) (White) (Biscuit) (Black Stainless)

8186473

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4375299 Bracket, Capacitor

3 4375037 Rubber Ring

4 4375038 Screw

5 4375314 Air Duct,

Magnetron

11 4375315 Damper

12 4375260 Duct, Inlet

13 4375316 Insulation, Switch

14 4375322 Fan Wheel

15 4375317 Duct, Air

16 4375264 Block, Side

17 4375248 Cover Plate, Upper

19 4375318 Lens, Lamp

20 4375319 Spring

21 4375320 Reflector

25 4375020 Capacitor

26 4375072 Magnetron

27 4375321 Fuse

28 4375231 Block, Fuse

29 4375278 Motor, Blower

30 4375279 Thermostat

31 4375079 Thermostat

34 4375286 Transformer

35 Hinge, Door

4375323 Left

4375324 Right

36 4451009 Torison Spring

4452396 Black Stainless

Model

37 Bracket, Hinge

4375327 Left

4375328 Right

38 4375329 Inlet

39 4375330 Door Strap

40 4375333 Fan Cap

41 4375334 Fan Cap Bottom

42 Switch Holder

4375335 Left

4375336 Right

43 4375337 Isolation Plate

44 4375338 Cover Plate

45 4375339 Door Plate

46 4375340 Inner Frame

47 Side Plate

4375341 Left

4375342 Right

48 4455915 Turntable

49 4375344 Ring Assembly

50 4375345 Shaft

51 4375346 Switch

52 4375347 Motor, Turntable

53 4375348 Lamp

54 4375349 Rectifier

55 4375350 Cable

56 4375351 Lamp Holder

57 4452220 Rack, Convection

Microwave

MICROWAVE COMPARTMENT PARTS

For Models:GSC308PRB01, GSC308PRQ01, GSC308PRT01, GSC308PRS01

(Black) (White) (Biscuit) (Black Stainless)

8186473

Illus. Part

No. No. DESCRIPTION

5 Support Rails

4452551 Right Side

4452552 Left Side

6 4449809 Screw, 8−18 x3/8

11 4452548 Rear Channel

MICROWAVE DOOR PARTS

For Models:GSC308PRB01, GSC308PRQ01, GSC308PRT01, GSC308PRS01

(Black) (White) (Biscuit) (Black Stainless)

8186473

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

9 4448937 Glass, Middle

10 8303556 Frame, Door

11 4450038 Screw

12 4449809 Screw, 8−18 x 3/8

13 4451040 Screw, 8−16 x 1/2

14 Bracket, Mounting

4449141 Right Side

4449142 Left Side

15 Filler, Side

4449083 Right Side

4449086 Left Side

16 Handle, Door

8302813 Black

8302814 White

8302815 Biscuit

8303164 S.Steel

17 Glass, Outer

8303265 Black

8303273 White

8303279 Biscuit

8303249 Stainless Steel

18 8303810 Nameplate

24 8303169 Bracket, Handle
