Whirlpool AKP 620/WH User manual

SERVICE Whirlpool Europe

Customer Services AKP 620/WH

This documentation is only intended for qualiﬁed technicians who are aware of the respec-

tive safety regulations.

Date: 09.03.1998 Subject to modiﬁcation

Document-No.: 4812 715 18021

Model AKP 620/WH

Version 8577 620 42000 Page

Technical data 2

Spare part list 3

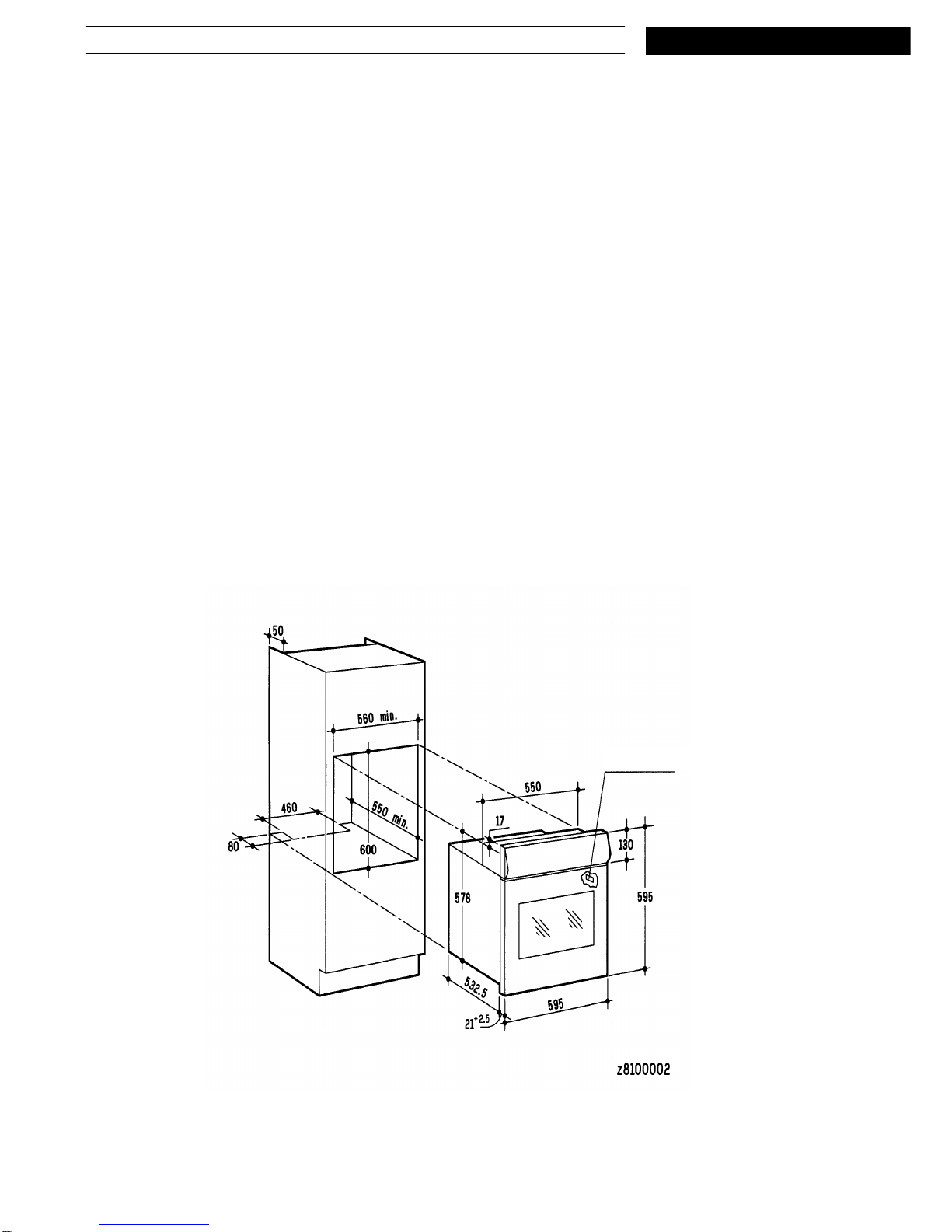

Exploded view 4

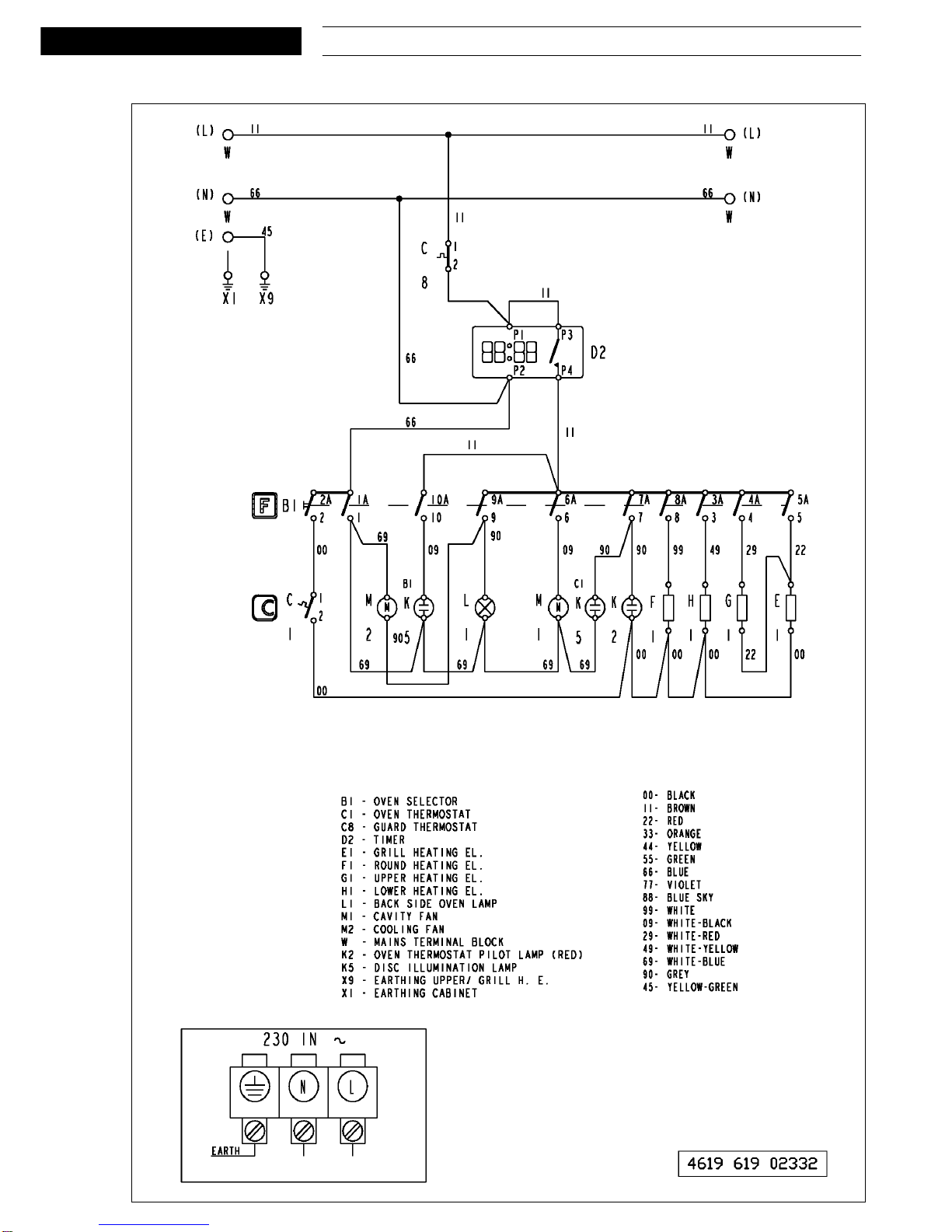

Wiring diagram 5

Service Manual

Built-in oven

AKP 620/WH

SERVICE

09.03.1998 / Page 2 AKP620/WH Whirlpool Europe

Doc. No: 4812 715 18021 8577 620 42000 Customer Service

Technical data

Electrical connection

Rated voltage 230V ~

Main connection 400V 3N~ 50 Hz

400V 2N~ 50 Hz

230V 1N~ 50 Hz

Power usable contemporaneously 2550 W

Upper heating element 900 W

Lower heating element 1000 W

Forced air 2000 W

Grill heating element 2450 W

Electrical components

Hob control POLINO

Accessories

Fat pan enameled 375 x 445.5 mm

Grid chrome 446.5 x 340 mm

Service sticker

SERVICE Whirlpool Europe AKP620/WH 09.03.1998 / Page 3

Customer Service 8577 620 42000 Doc. No: 4812 715 18021

Spare part list

Model AKP620/WH

Service No. 857762042000

Version 857762042000

Pos. No. 12NC Code Description from to

025 1 4819 460 78468 Trim, side right

025 2 4819 460 78469 Trim, side left

040 0 4819 417 19458 Hinge

047 0 4819 466 89197 Hinge run.mech.

110 0 4819 498 78042 Handle,door

121 0 4819 442 38333 Innerdoor,oven

141 0 4819 450 69863 Oven glass

143 0 4819 459 28301 Frame

191 0 4819 468 18109 Gasket

201 0 4819 442 38093 Plate

232 0 4819 460 89445 Trim

245 0 4819 458 19991 Oven shelf

247 0 4819 418 38367 Tray,leak

256 0 4819 466 89268 Protector sheet

256 3 4819 458 68011 Grid

261 0 4819 458 19999 Inset grid left

261 1 4819 458 19998 Inset grid right

301 3 4819 460 78628 Trim, lower

320 0 4819 453 58506 Control panel

332 0 4819 410 28709 Button,push

334 0 4819 411 29199 Knob

341 1 4819 413 79197 Indication disc thermostat

341 2 4819 413 79155 Indication disc oven selector switch

344 9 4819 532 28269 Ring

351 0 4812 134 48021 Pilot lamp

354 0 4819 381 18076 Lens red

440 0 4819 361 78242 Motor

441 0 4819 361 18427 Motor cooling fan

441 1 4819 468 18099 Gasket

443 0 4819 515 48065 Fan wheel

451 0 4819 259 28822 Heating element circulation

452 0 4819 259 28838 Heating element

456 0 4819 259 28791 Heating element lower

491 0 4819 290 68363 Terminal block

500 0 4819 282 18726 Autotimer

554 0 4819 271 29039 Thermostat

562 0 4819 282 28697 Thermostat

620 0 4819 273 28404 Hex.code switch

651 0 4819 134 88153 Lamp,oven

652 0 4819 255 18237 Holder,lamp

652 1 4819 450 69844 Lamp screen

653 0 4819 134 88189 Lamp

914 0 4819 505 18323 Nut

915 0 4819 505 18145 Nut

932 0 4819 492 68714 Spring

993 0 4819 310 39087 Mounting kit

SERVICE

09.03.1998 / Page 4 AKP620/WH Whirlpool Europe

Doc. No: 4812 715 18021 8577 620 42000 Customer Service

Exploded view

SERVICE Whirlpool Europe AKP620/WH 09.03.1998 / Page 5

Customer Service 8577 620 42000 Doc. No: 4812 715 18021

Wiring diagram
