Whirlpool AKG 659/IX Operating and installation instructions

SERVICE Whirlpool EMEA

Customer Services AKG 659/IX

Service Information

Built-in Oven

AKG 659/IX

8535 659 53000

Last Modiﬁcation: 06/07/08

Creation Date: 06/07/08

Spare Part List 2

Technical Data 3

Exploded View 4

Wiring Diagram 5

This document is only intended for qualiﬁed technicans who are aware of the

respective safety regulations.

Subject to modiﬁcations

SERVICE Whirlpool EMEA

Customer Services

8535 659 53000, 06/07/08

page 2 of 5

Spare Part List

Pos 12NC Description

022 0 4812 440 10554 Side panel oven right

022 1 4812 440 10555 Side panel oven left

025 0 4812 460 98035 Trim upper IX

025 1 4812 464 18074 Trim oven left

025 2 4812 460 79017 Trim outer support

025 3 4812 464 18075 Trim oven lower

040 0 4812 417 19046 Hinge oven door

047 0 4812 417 58385 Hinge support

110 0 4812 462 68083 Handle WP S/Steel

110 1 4812 404 48682 Holder door

121 0 4812 464 18073 Door inner skin

141 0 4812 450 58573 Door oven IX

142 0 4812 442 69257 Door glass inner

191 0 4812 468 18111 Gasket oven

191 5 4812 468 18113 Gasket door upper

192 0 4812 468 18236 Seal inner oven door

201 0 4812 445 28016 Fan difusser

245 0 4812 458 19083 Grid oven

247 0 4812 418 38077 Fat pan fat pan

248 0 4812 535 78062 Rotary spit

248 1 4812 404 78486 Support spit

261 0 4812 462 38122 Guide shelf

261 2 4812 404 18118 Bracket

301 1 4812 404 78567 Support control panel

320 0 4812 453 59436 Control panel glass BL

334 0 4812 411 28802 Knob WP S/Steel

341 1 4812 413 78665 Collar thermostat

341 2 4812 413 78663 Collar oven selector

341 8 4812 413 78664 Collar end cooking

351 0 4812 134 28063 Pilot lamp yellow

351 1 4812 134 48284 Pilot lamp green

354 0 4812 381 18286 Cover orange light

354 1 4812 217 78107 Lens lens (yellow)

354 2 4812 381 18279 Lens green

354 4 4812 134 28081 Lamp illumination neon

400 0 4812 361 78016 Motor spit

440 0 4812 028 58331 Motor fan fan

441 0 4812 361 58343 Motor fan rad. twin line

451 0 4812 259 28839 Heating element circular 2500W

452 0 4812 259 28838 Heating element grill/top 1050/2500W

456 0 4812 259 28841 Heating element lower 1550W

491 0 4812 290 88088 Terminal Board

500 0 4812 282 19209 Timer stop-cooking 120

554 0 4812 282 38095 Thermostat 2 bulbs ego 55.19

562 0 4812 215 38001 Thermostat safety T115

620 0 4812 276 18383 Switch selector

652 0 4812 255 18243 Lamp oven 50HZ 25W

900 2 4812 281 58002 Flange ﬁxing S/Steel

SERVICE Whirlpool EMEA

Customer Services

8535 659 53000, 06/07/08

page 3 of 5

Technical Data

Dimensions + Weight

Cavity dimensions

Height ..............................................................................................480mm

Width ...............................................................................................563mm

Depth ...............................................................................................898 mm

Electrical base data

Voltage ...........................................................................................220V-230V

Frequency ........................................................................................50 Hz - 60 Hz

Power Consumption

Totalconnectedload ...................................................................................2700W

Power Consumption

Upperheatingelement/Grill ......................................................................1050/ 2500 W

Forced air ..............................................................................................2500 W

Lower heating element .................................................................................1550W

Oven light .................................................................................................25 W

SERVICE Whirlpool EMEA

Customer Services

8535 659 53000, 06/07/08

page 4 of 5

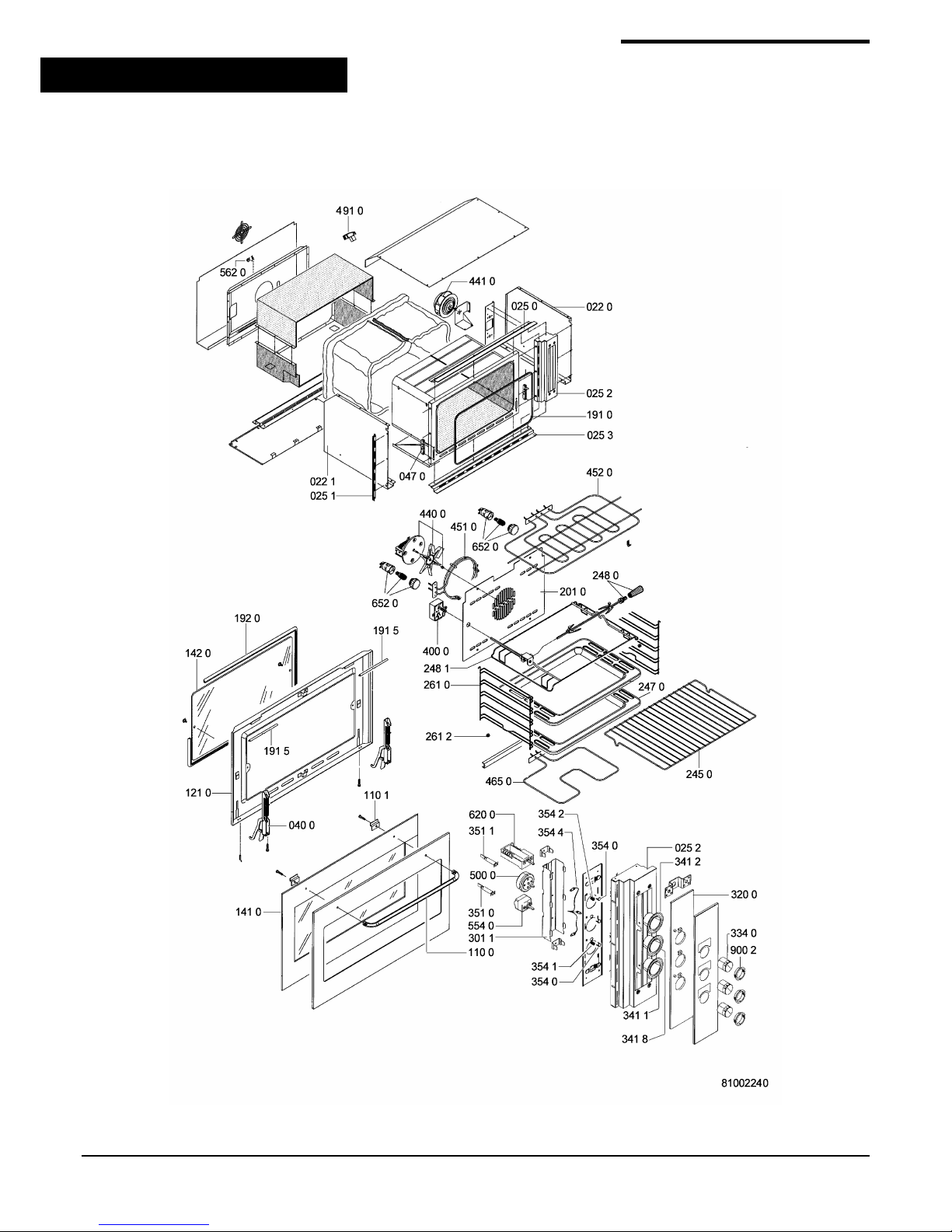

Exploded View

SERVICE Whirlpool EMEA

Customer Services

8535 659 53000, 06/07/08

page 5 of 5

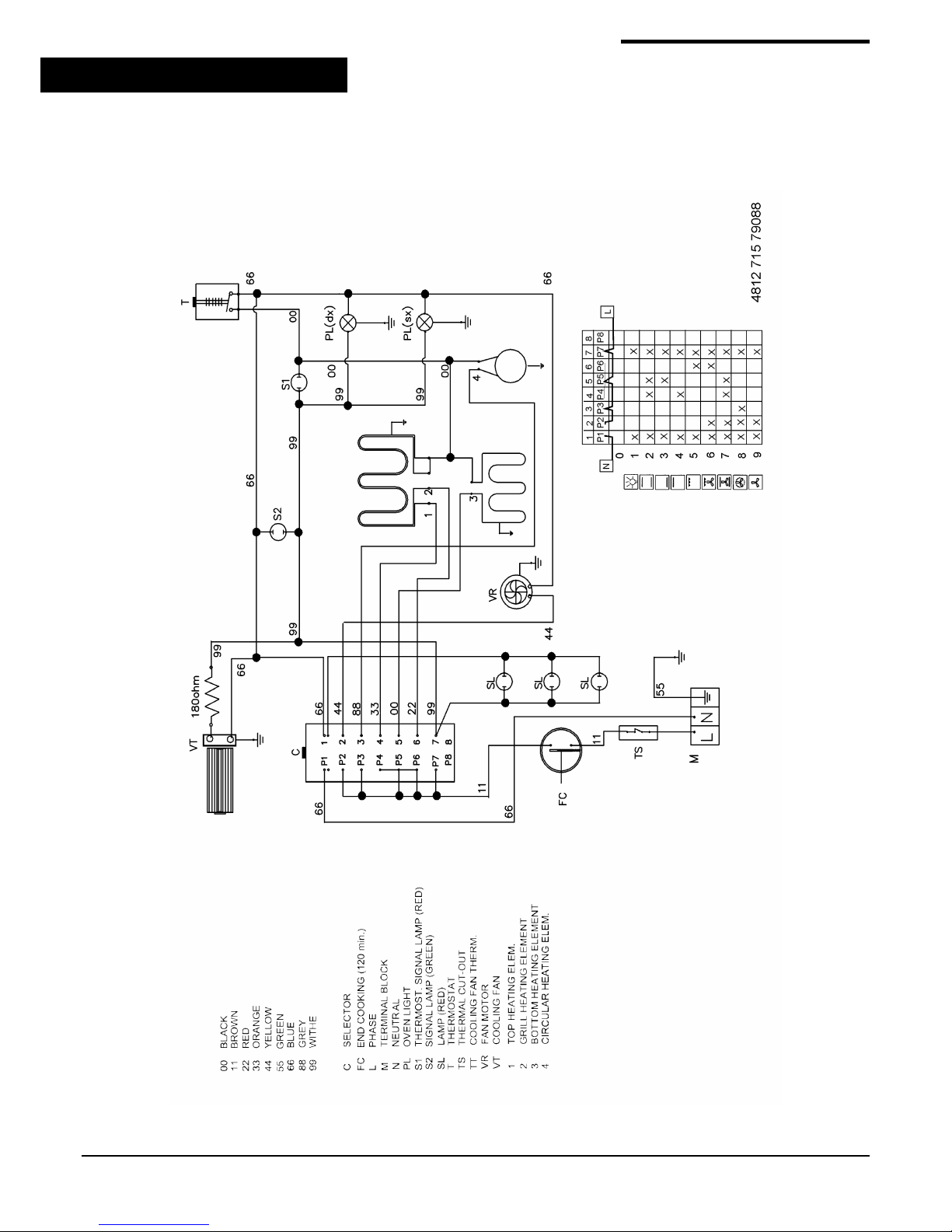

Wiring Diagram
