Whirlpool MH660XV-1 User manual

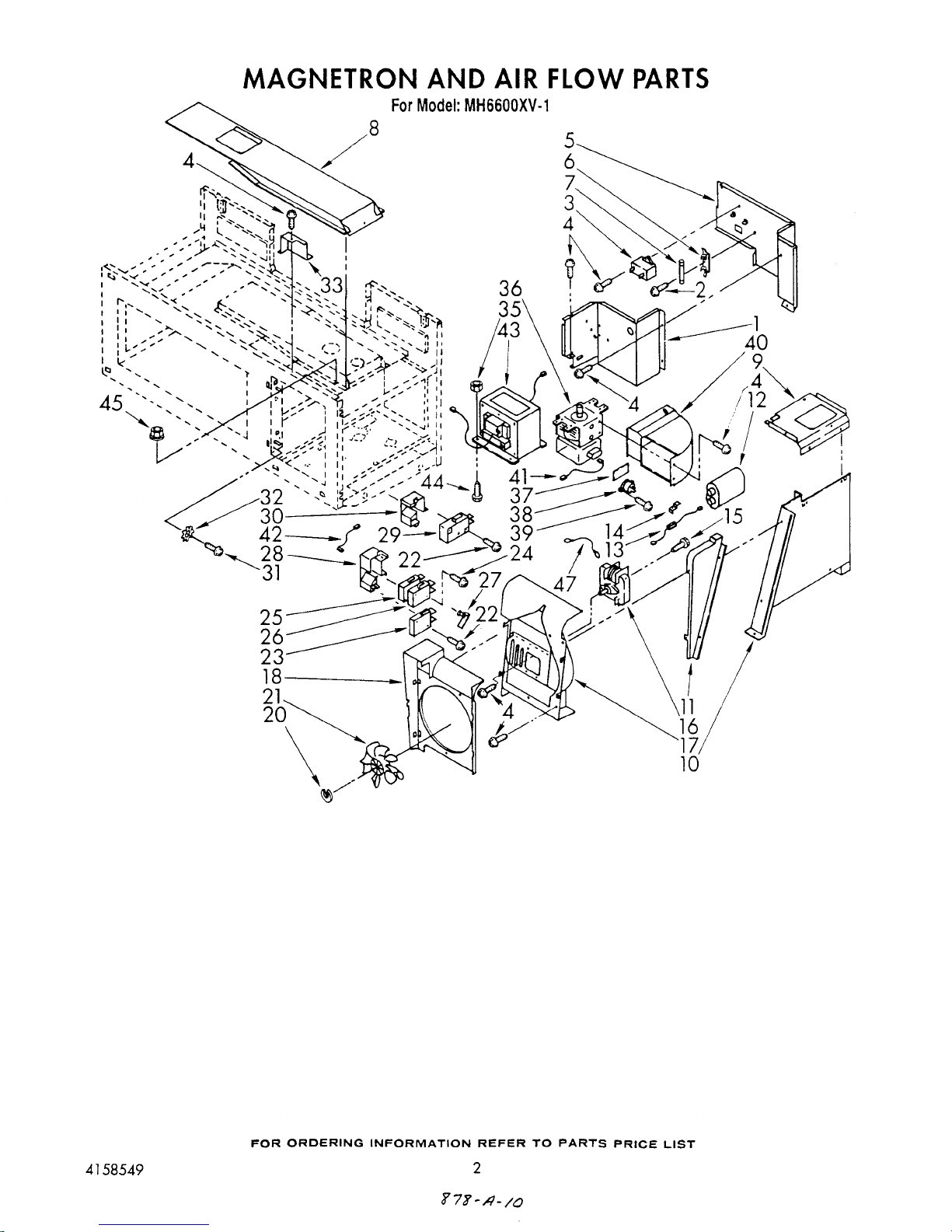

1 4158375 Vent Duct

2 4158072 Screw (3)

3 4158376 Fuse, Thermal

4 4158076 Screw (21)

5 4158377 Air Guide

6 4158059 Fuse Holder

7 4158378 Fuse

8 4158379 Motor Base

9 4158380 Air Guide

10 4158381 Air Guide

11 4158382 Fan Cover Bracket

12 4158507 Capacitor

13 4158045 Diode

14 4158384 Capacitor Bracket

15 4158189 Screw (2)

16 4158385 Fan Motor

17 4158386 Fan Cover

18 4158387 Fan Cover Back

20 4158063 E-Ring

21 4158389 Propeller

22 4158187 Screw (2)

23 4158197 Micro Switch (Secondary)

24 4158208 Screw

25 4158067 Micro Switch (Monitor)

26 4158102 Micro Switch (Light)

27 4158390 Switch Lever

28 4158391 Latch Board

29 4158195 Micro Switch (Primary)

30 4158392 Latch Board

31 4158307 Special Screw (2)

32 4158393 Toothed Washer

33 4158394 Fan Guide

35 4158053 Nut (2)

36 4158395 Magnetron

37 4158396 Thermo Insulator

38 4158539 Thermostat

39 4158082 Screw (2)

40 4158398 Air Duct

41 4158399 Cable Assy.

42 4153400 Cable Assy.

43 4158401 Transformer

44 4158402 Screw (2)

45 4158403 Magnetron Nut (4)

47 4158405 Lead Wire

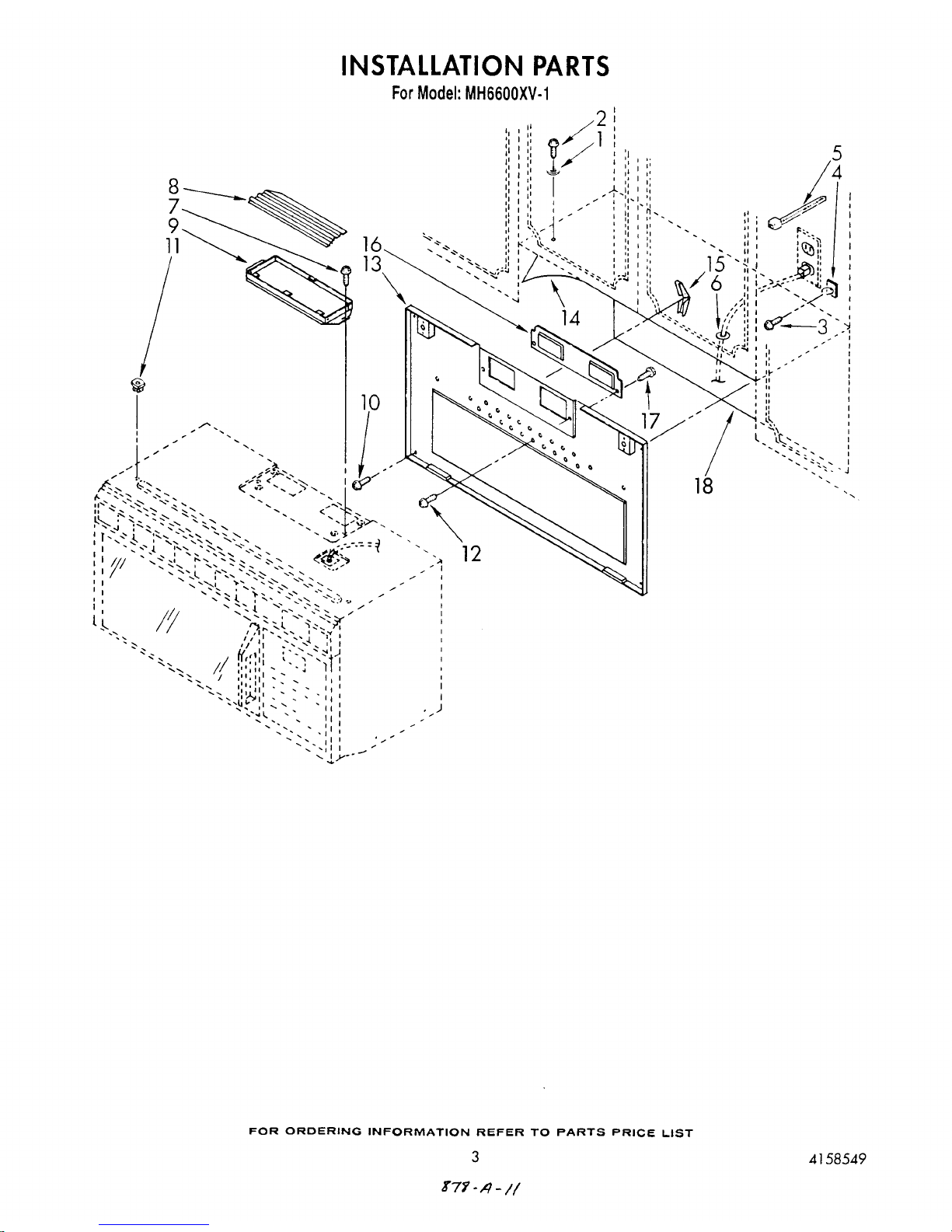

1 4158314 Washer (2)

2 4158315 Cabinet Bolt (2)

3 4158084 Screw (2)

4 4158316 Retainer Holder (2)

5 4158317 Cord Retainer (2)

6 4158318 Cord Bushing

7 4158079 Screw (2)

8 4158319 Exhaust Damper

9 4158541 Exhaust Adapter

10 4158321 Screw (4)

11 4158322 Top Cabinet Nut (2)

12 4158323 Screw (4)

13 4158324 Mounting Plate Assy.

14 4158293 Top Cabinet Template

15 4158326 Toggle Wing (4)

16 4158327 Vent Cover

17 4158076 Screw (2)

18 4158291 Wall Template

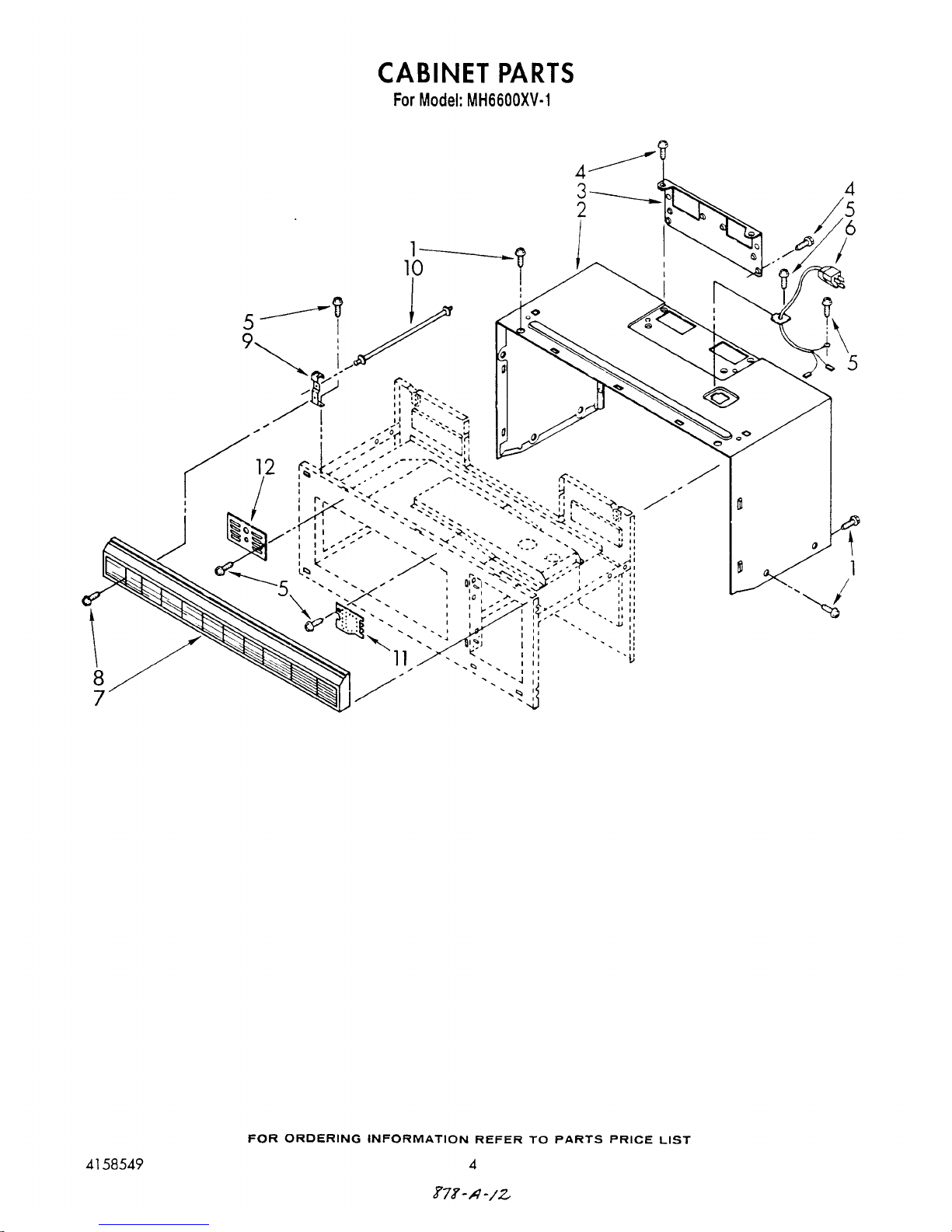

1 4158084 Screw (12)

2 4158420 Outer Case

3 4158421 Vent Fan Mounting Bracket

4 4158353 Screw (8)

5 4158076 Screw (6)

6 4158542 Power Cord Assy.

7 4158424 Vent Grille

8 4158425 Screw (3)

9 4158426 Front Bracket

10 4158427 Mounting Rod

11 4158428 Sealed Plate-R.H.

12 4158422 Sealed Plate-L.H.

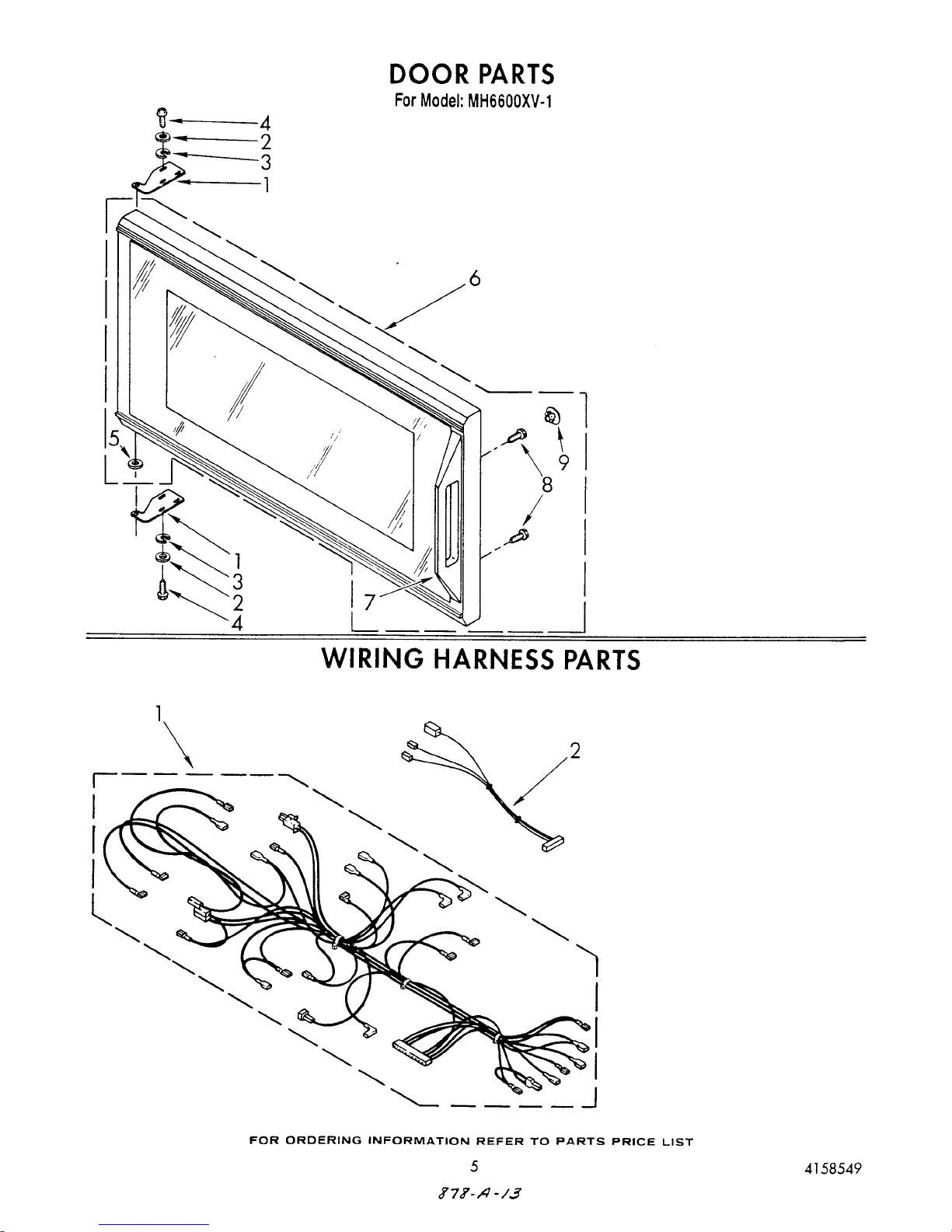

1 4158415 Hinge Plate

2 4158087 Plain Washer

3 4158416 Spring Washer

4 4158417 Tapping Screw

5 4158117 Hinge Washer

6 4158444 Complete Door

7 4158511 Door Handle

8 4158072 Tapping Screw (2)

9 4158487 Plug Button

1 4158388 Main Wiring Harness

2 4158404 Harness

OPTIONAL PARTS NOT INCLUDED

Following Parts Not Illustrated

SEALER482338 Sealer, Silastic (3 Oz.)

ACCESSORY PARTS

4158264 Filler Kit

LITERATURE PARTS

LIT4158266 Guide, Use & Care

LIT4158268 Instructions, Installation

LIT4158273 Tech Sheet

LIT4158272 Cookbook

LIT4158549 List, Repair Parts
