Whirlpool MH3184XPB5 User manual

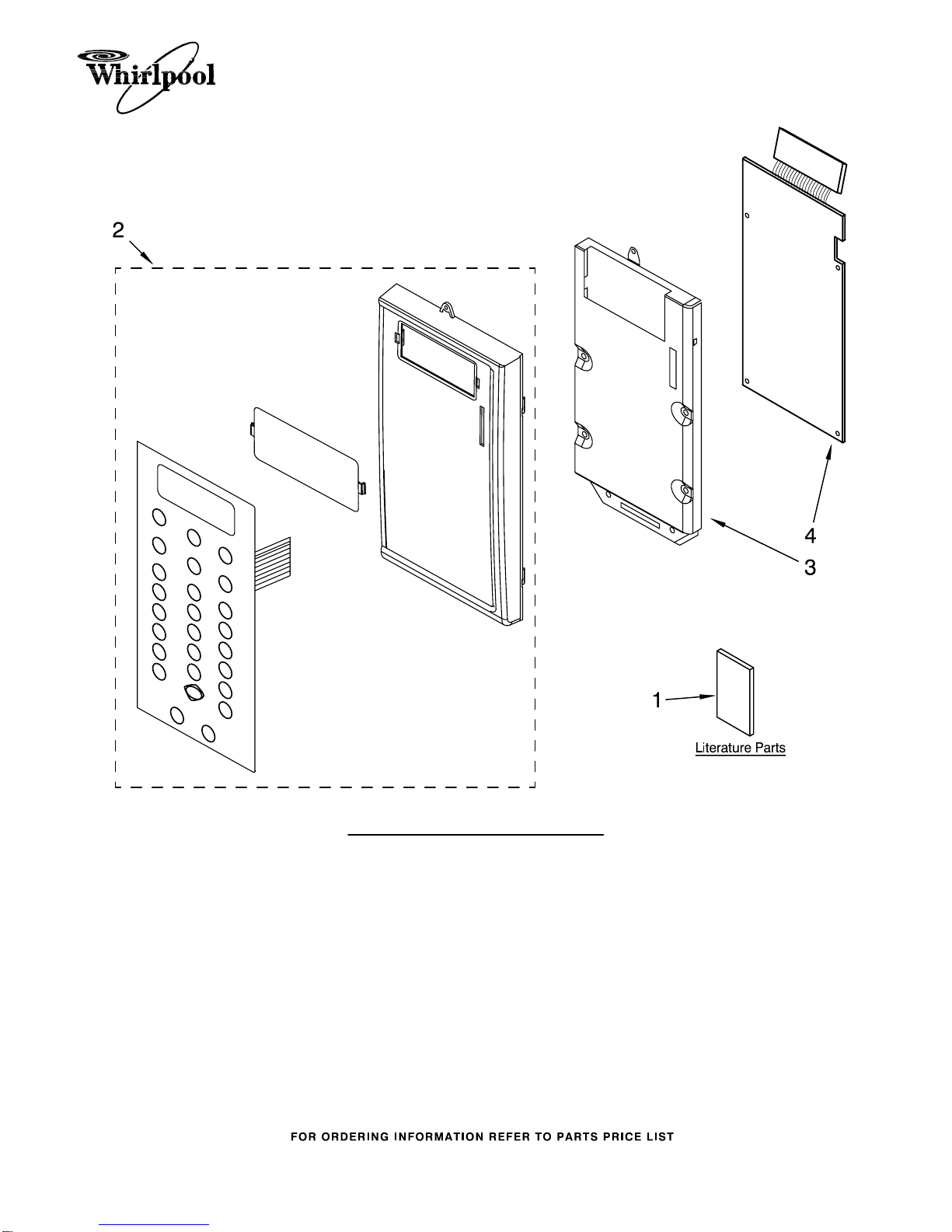

CONTROL PANEL PARTS
1
For Models: MH3184XPQ5, MH3184XPB5, MH3184XPS5, MH3184XPY5
(White) (Black) (Stainless) (Universal Silver)
02−09 Litho in U.S.A. (MMS) (psw) Part No. W10258473 Rev. A
Microwave Oven
1.8 Cu. Ft.
Illus. Part
No. No. DESCRIPTION
1 Literature
W10170440
U & C Guide
W10132021
Tech Sheet
8205810 Cook Guide Label
2 Panel Asy, Control
Includes Lens and
Membrane Switch
8205374 White
8205376 Black
8205375 Stainless
3
W10114256
Bracket, Control
4
W10233386
Microcomputer

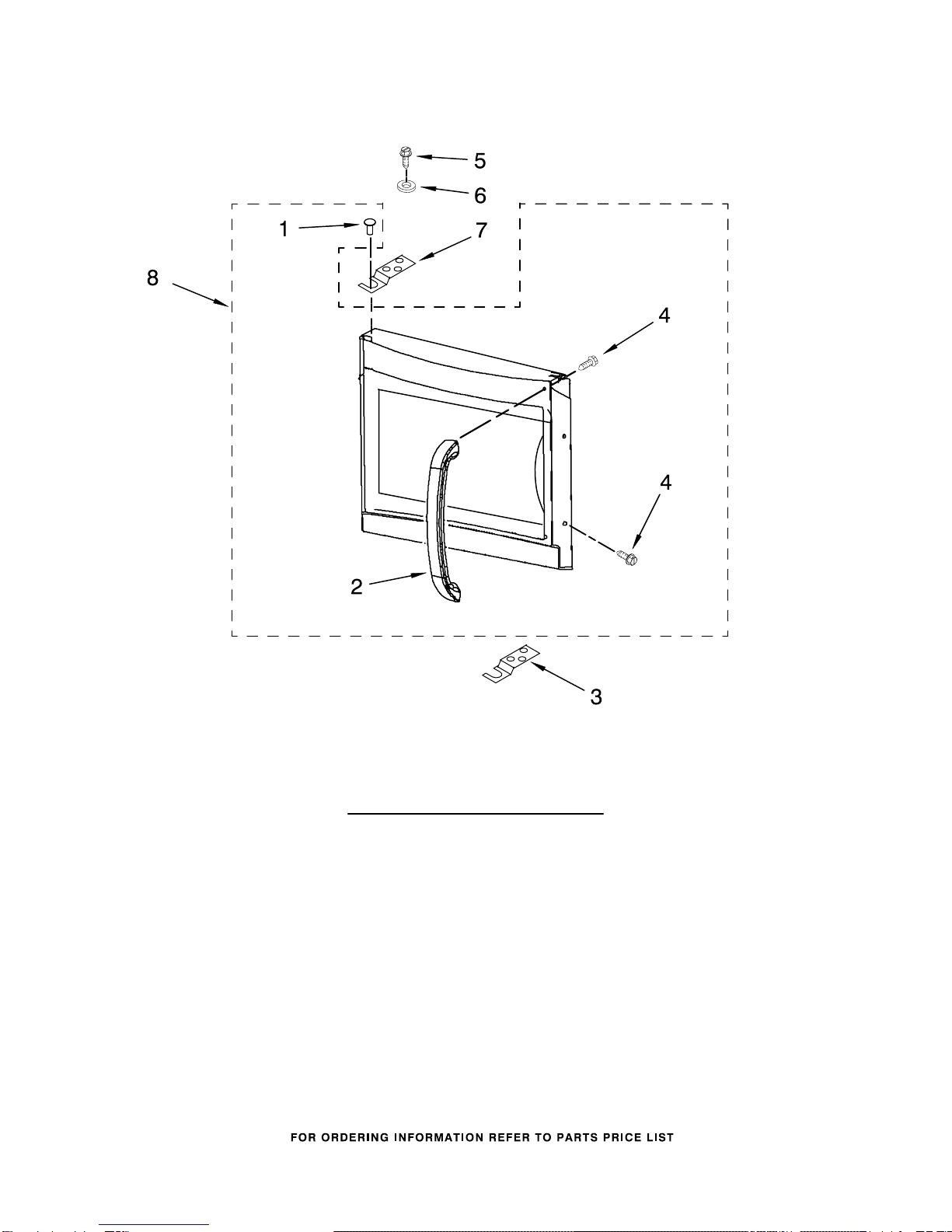

DOOR PARTS
2
For Models: MH3184XPQ5, MH3184XPB5, MH3184XPS5, MH3184XPY5
(White) (Black) (Stainless) (Universal Silver)
W10258473
Illus. Part
No. No. DESCRIPTION
1 8184922 Pivot, Door
2 Handle, Door
W10113945
White
8206176 Stainless
8205829 Black
3
W10256901
Lower Hinge
4 8169479 Screw
5 8204690 Screw
6 8204691 Washer
7
W10256902
Upper Hinge
8 Complete Door
8205370 White
8205371 Stainless
8206194 Universal Silver
8205372 Black

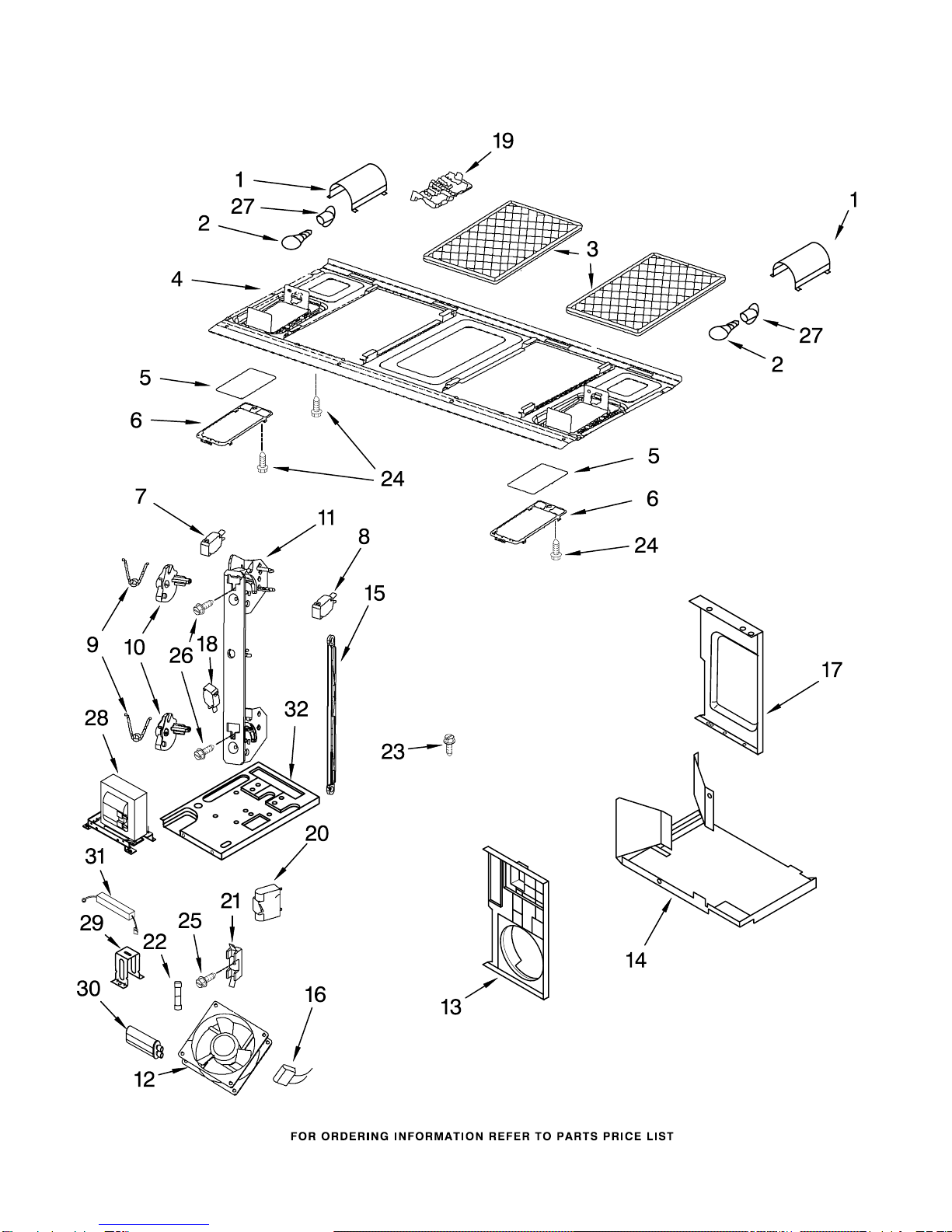

INTERIOR AND VENTILATION PARTS
3
For Models: MH3184XPQ5, MH3184XPB5, MH3184XPS5, MH3184XPY5
(White) (Black) (Stainless) (Universal Silver)
W10258473
INTERIOR AND VENTILATION PARTS
4
For Models: MH3184XPQ5, MH3184XPB5, MH3184XPS5, MH3184XPY5
(White) (Black) (Stainless) (Universal Silver)
W10258473
Illus. Part
No. No. DESCRIPTION
1 8205096 Reflector, Lamp
2 8183993 Lamp
3 8184001 Filter, Grease
4
W10244597
Plate, Bottom
5 8184141 Glass, Lamp
6 8184889 Holder, Glass
7
W10211972
Switch, Micro
Primary/Secondary
8
W10211974
Switch, Micro
9 8169438 Spring, Interlock
10 8205211 Plate, Cam
11 8185189 Support, Interlock
12
W10239608
Fan, DC 12 Volt
13 8205364 Housing, Fan
14 8205357 Diffuser, Housing
15 8185190 Rod−Locking Link
16 8184091 Capacitor, 125 V
17 8206455 Plate, Side
18
W10211973
Switch, Micro
19 8184202 Cover, Terminal
20 8184091 Motor, Capacitor
21
W10117908
Holder, Fuse
22
W10138793
Fuse
23 8184199 Screw
24 4393835 Screw
25 8184200 Screw
26 8169477 Screw
27
W10210878
Holder, Lamp
28 8206456 Transformer, H.V.
29 8206457 Bracket, Capacitor
30
W10258597
Capacitor, H.V.
31
W10163432
Diode, H.V.
32 8206567 Chassis

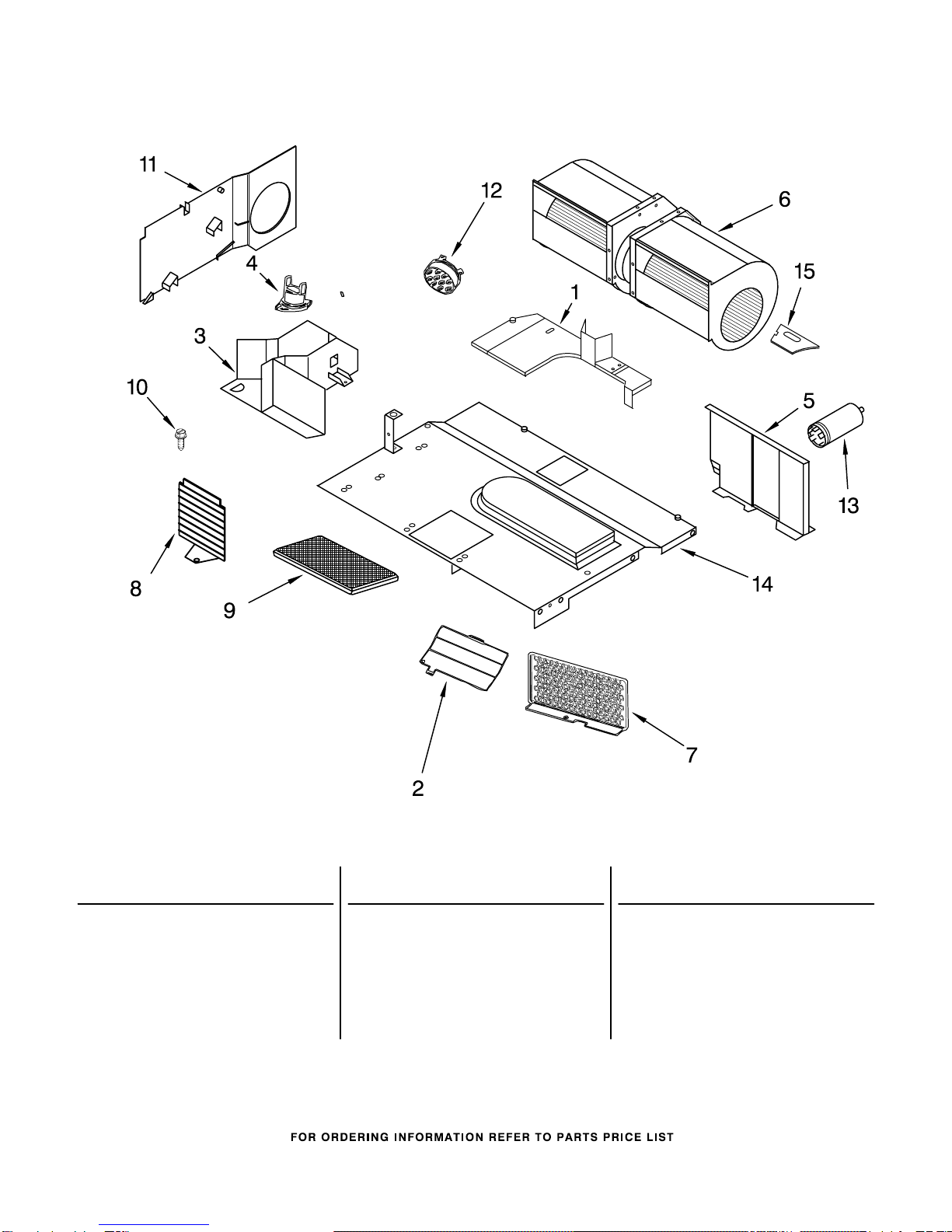

AIR FLOW PARTS
5
For Models: MH3184XPQ5, MH3184XPB5, MH3184XPS5, MH3184XPY5
(White) (Black) (Stainless) (Universal Silver)
W10258473
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
W10258595
Deflector, Air
2 8206453 Cover, Lamp
3 8205368 Duct, Air
4 8183703 Thermostat
5 8205354 Air Guide, Back
6
W10117942
Motor, Fan Assy
7 8205355 Shield
8 8206460 Shield
9 8205146 Filter, Charcoal
10 8169474 Screw
11 Air Guide
8205367 Left
8205352 Right
12 8206446 Humidity, Sensor
13 8206624 Filter
14 8205351 Base Plate,
Air Guide
15
W10139750
Socket, Motor Wire

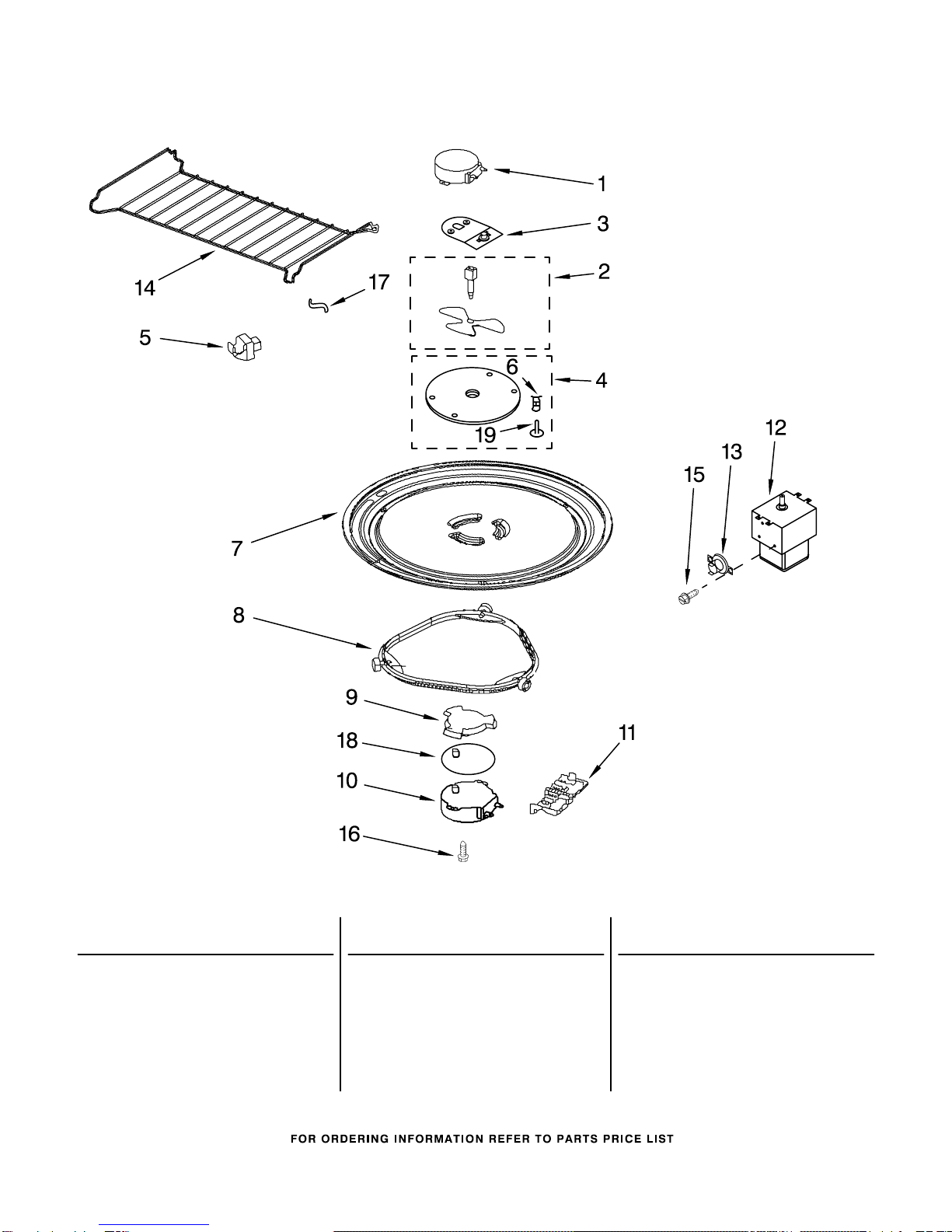

MAGNETRON AND TURNTABLE PARTS
6
For Models: MH3184XPQ5, MH3184XPB5, MH3184XPS5, MH3184XPY5
(White) (Black) (Stainless) (Universal Silver)
W10258473
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8205044 Motor, Stirrer
2 8205202 Stirrer
Shaft/Blade
3 8206454 Thermostat/Bracket
4 8184476 Cover, Inlet
Includes Nails
and Bushings
5 8206118 Hook, Rack (4)
6 8204659 Bushings
(4 of each)
7 4393799 Turntable
8 8206227 Ring, Turntable
9 8206228 Driver, Turntable
10
W10210848
Motor, Turntable
11
W10253653
Cover, Terminal
12
W10222507
Magnetron
13 8184951 Thermostat
14 8205549 Rack
15 4393838 Screw
16 4393832 Screw
17
W10107780
Spacer (4)
18 8184109 Washer
19 8204660 Nail, Plastic

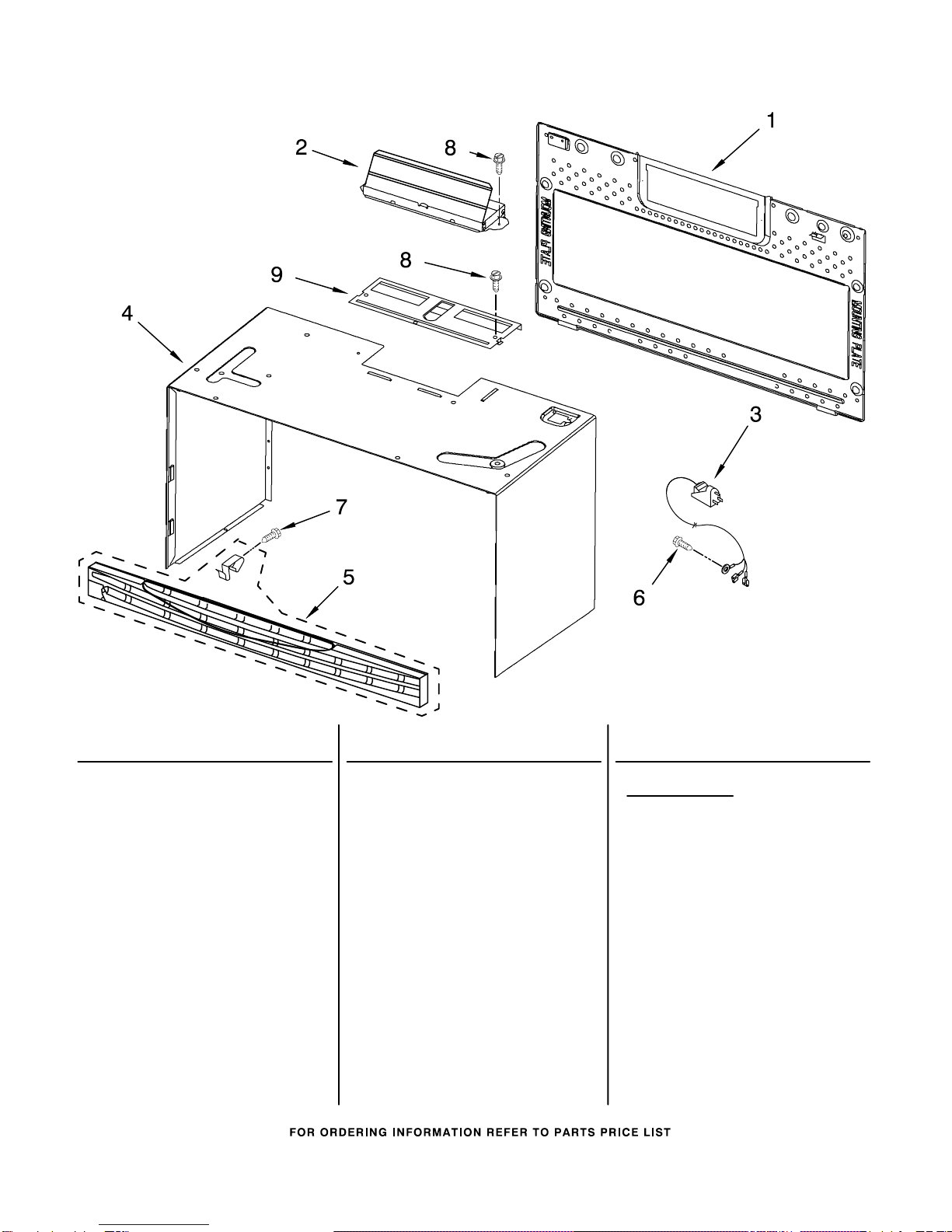

CABINET AND INSTALLATION PARTS
7
For Models: MH3184XPQ5, MH3184XPB5, MH3184XPS5, MH3184XPY5
(White) (Black) (Stainless) (Universal Silver)
W10258473
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8206315 Plate, Mounting
2 8206442 Damper Assembly
3 8205808 Cord, Power
4 Case, Outer
W10258593
White
W10258594
Black
5 Grille, Vent
8205214 White
8205215 Black
8206193 Universal Silver
6 4393836 Screw
7 8169475 Screw
8 4393472 Screw
9 8206452 Cover, Fan Mtr
Miscellaneous
8205948 Installation,
Hardware
8184731 Template, Upper
8169704 Screw, Top Mountng
W10258600
Main Harness
W10114360
Harns−Wire, Grill
W10110600
H.V. Wire Assy
W10114361
Wire, Stirrer
W10114263
Inverter, Grnd
8206185 Wire−Grnd Hum Snsr
W10110601
PCBA
8205022 P4 to CN151
8205014 P2 to 1100W Inv
8205021 P27 to CN153
W10114264
Cavity Thrmst 1−2
W10114265
Cavity Thrmst 2−3
W10256914
Socket−Lmp
W10259142
Harns−Wire
(Main Filter)
