Whirlpool MH1160XSD1 User manual

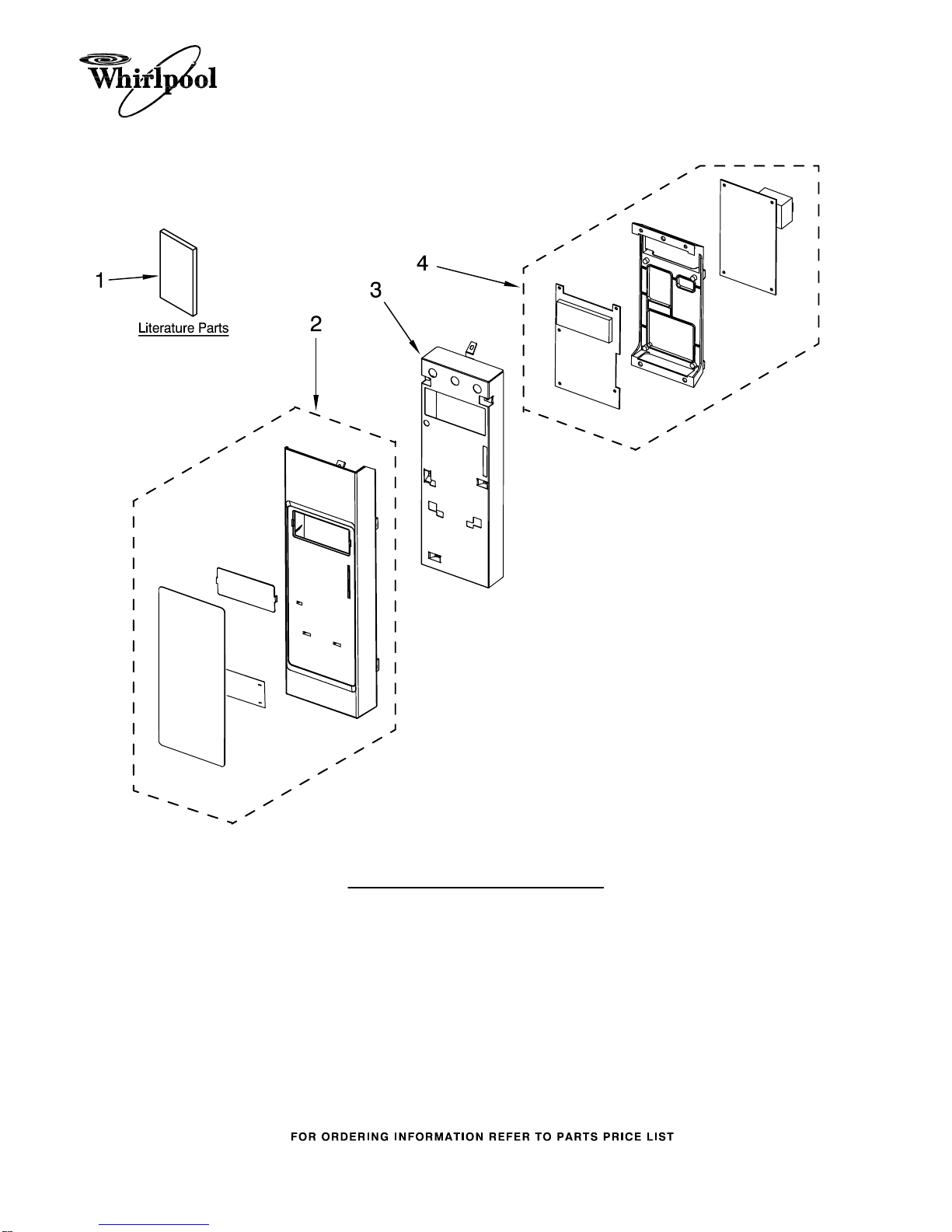

CONTROL PANEL PARTS

For Models: MH1160XSS1,MH1160XSY1,MH1160XSD1

(Stainless) (Designer Universal Silver) (Universal Silver)

9−07 Litho in U.S.A. (rek) Part No. W10165273 Rev.A

Microwave Oven

1.7 Cu. Ft.

Illus. Part

No. No. DESCRIPTION

1 Literature

W10110881

U & C Guide

W10132038

Tech Sheet

8205879 Cook Guide Label

8206587 Install,Instruct.

2 Panel Asy, Control

Includes Lens and

Membrane Switch

W10164600

SS & SY Models

W10164606

SD Model

W10156814

Bracket, Control

W10164590

Microcomputer

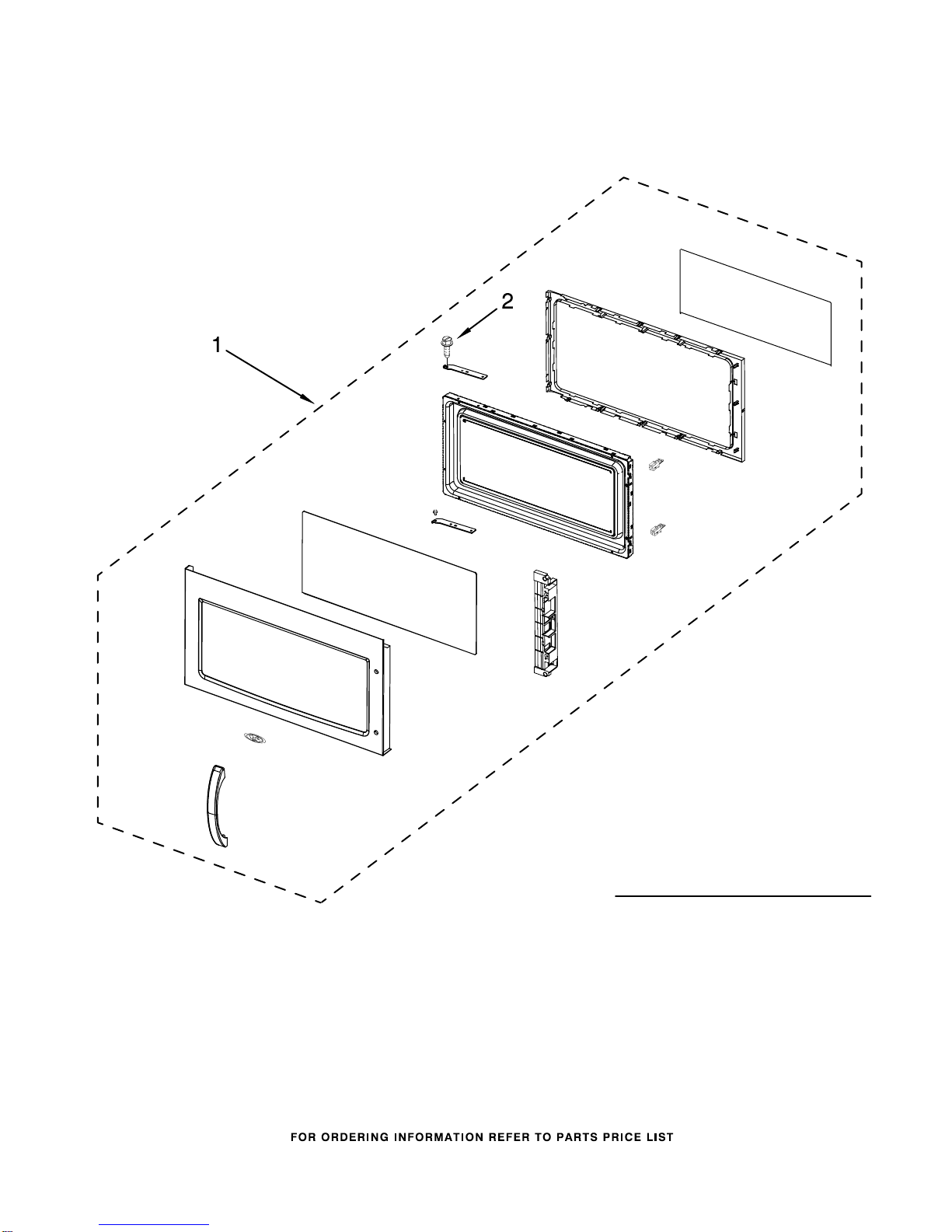

DOOR PARTS

For Models: MH1160XSS1,MH1160XSY1,MH1160XSD1

(Stainless) (Designer Universal Silver) (Universal Silver)

W10165273

Illus. Part

No. No. DESCRIPTION

1 COMPLETE DOOR

8206396 SS Model

8206398 SY Model

W10138803

SD Model

W10138802

Screw

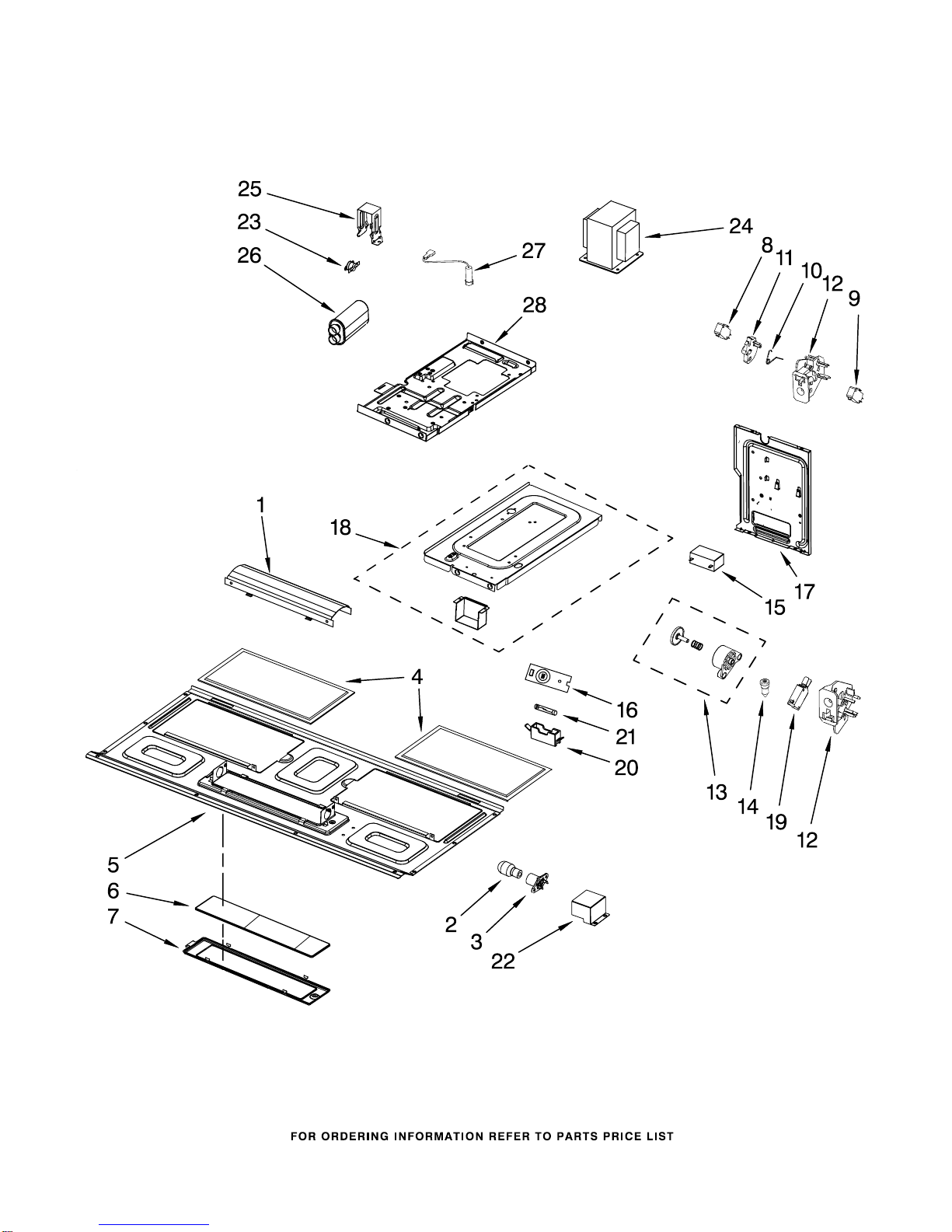

INTERIOR AND VENTILATION PARTS

For Models: MH1160XSS1,MH1160XSY1,MH1160XSD1

(Stainless) (Designer Universal Silver) (Universal Silver)

W10165273

INTERIOR AND VENTILATION PARTS

For Models: MH1160XSS1,MH1160XSY1,MH1160XSD1

(Stainless) (Designer Universal Silver) (Universal Silver)

W10165273

Illus. Part

No. No. DESCRIPTION

1 8206387 Reflector, Lamp

2 8206232 Lamp

3 8206374 Holder, Lamp

4 8206229 Filter, Grease

5 8206386 Plate, Bottom

6 8206376 Glass, Lamp

7 8206375 Holder, Glass

8 8206345 Switch, Micro

V5P010CG3

9 8206347 Switch, Micro

V5P020CG3

W10156812

Spring, Interlock

W10156811

Plate, Cam

12 Support, Interlock

8206419 Top

W10156813

Bottom

13 8206558 Piston Assembly

14 8206180 Screw

15 8206357 Capacitor, 125 V

W10163422

Thermistor (PCBA)

W10163421

Plate, Side

W10163423

Chassis Assembly

19 8206352 Switch, Micro

V5P030CG3

20 8184312 Holder, Fuse

W10138793

Fuse

22 8206359 Terminal Cvr,Lamp

23 8206379 Thermostat

24 8206343 Transformer, H.V.

W10156817

Bracket, Capacitor

W10138798

Capacitor, H.V.

W10163432

Diode, H.V.

W10163420

Chassis

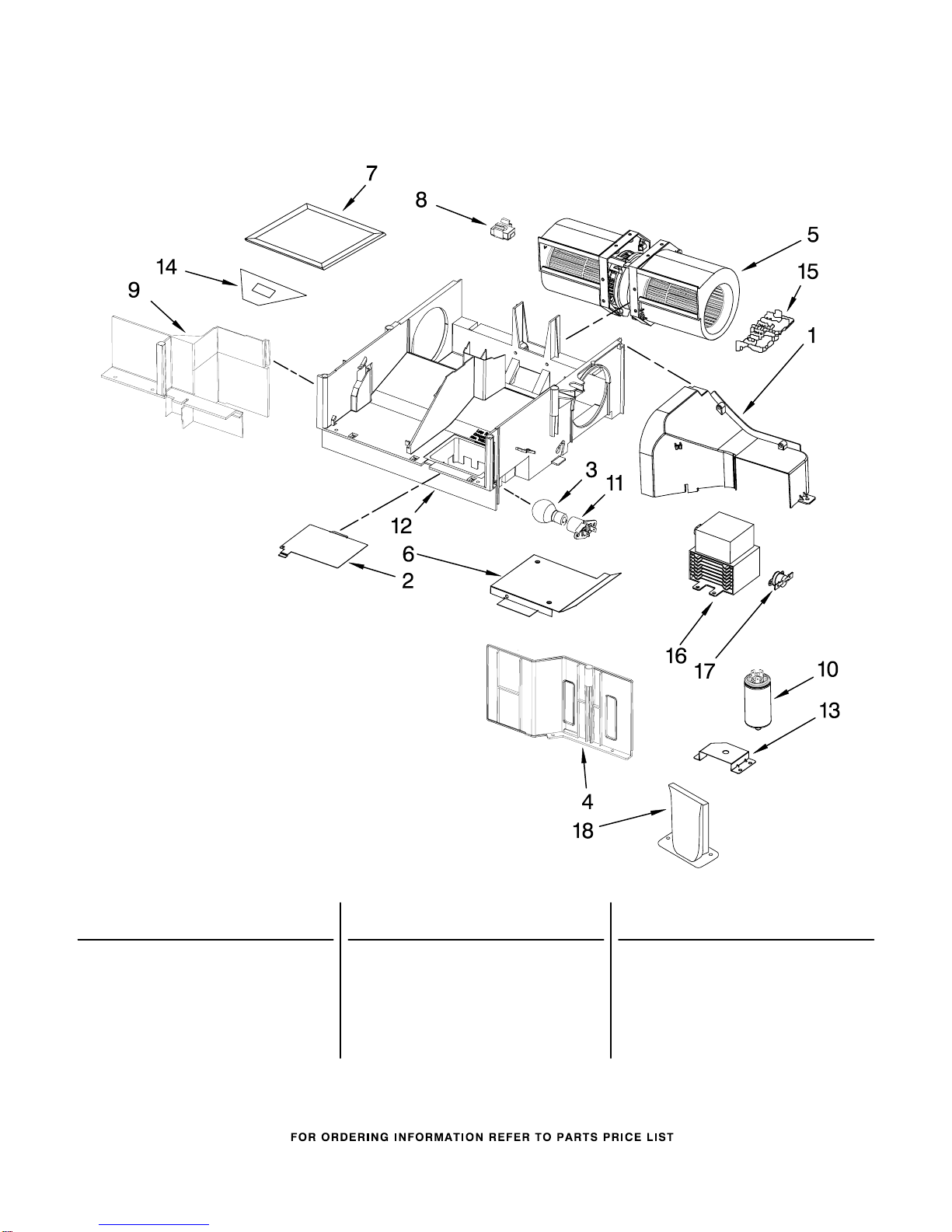

AIR FLOW PARTS

For Models: MH1160XSS1,MH1160XSY1,MH1160XSD1

(Stainless) (Designer Universal Silver) (Universal Silver)

W10165273

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8206340 Deflector, Air

2 8206382 Cover, Lamp

3 4393681 Lamp

W10163433

Cover, Side Inlet

W10114550

Motor, Fan Assy

W10138797

Air Guide

7 8206230 Filter, Charcoal

W10110862

Mounting, Nut (2)

W10138800

Air Guide

10 8206624 Filter

11 8169539 Holder, Lamp

W10138799

Base Plate,

Air Guide

13 8206368 Brkt−Mntg,Filter

W10117846

Socket, Motor Wire

W10110598

Cover, Terminal

16 8206341 Magnetron

17 8206342 Thermostat

W10164716

Plate, Water Proof

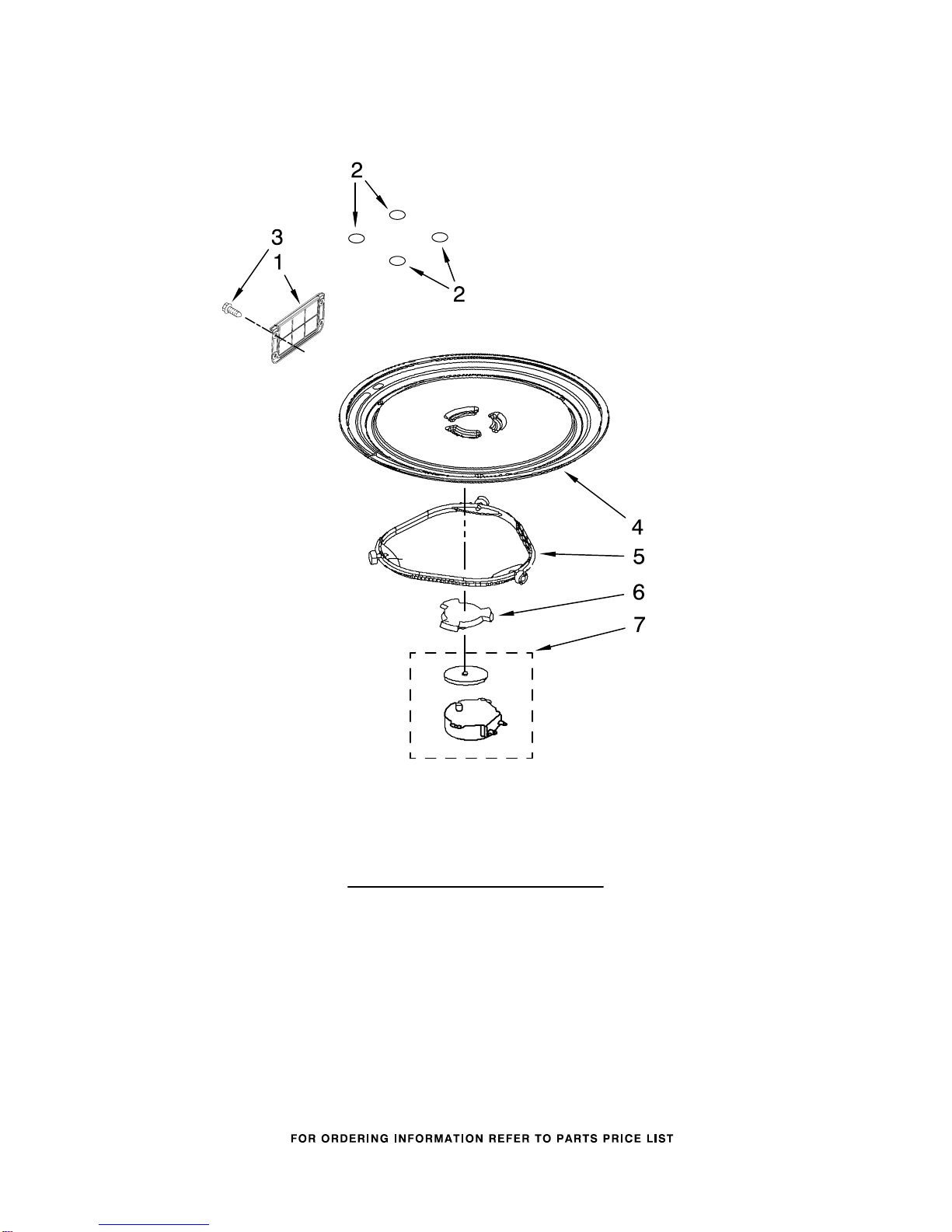

TURNTABLE PARTS

For Models: MH1160XSS1,MH1160XSY1,MH1160XSD1

(Stainless) (Designer Universal Silver) (Universal Silver)

W10165273

Illus. Part

No. No. DESCRIPTION

1 8206389 Cover, Inlet

Includes Nails

and Bushings

W10108800

Cavity Plugs

W10138801

Plastic Rivets (4)

4 4393799 Turntable

5 8206227 Ring, Turntable

6 8206228 Driver, Turntable

7 8183953 Motor, Turntable

CABINET AND INSTALLATION PARTS

For Models: MH1160XSS1,MH1160XSY1,MH1160XSD1

(Stainless) (Designer Universal Silver) (Universal Silver)

W10165273

Illus. Part

No. No. DESCRIPTION

1 8206315 Plate, Mounting

2 8206385 Support, Wire Clip

3 8206442 Damper Assembly

4 8206388 Cord, Power

W10163418

Case, Outer

6 Grille, Vent

8206391 SS & SD Models

8206393 SY Model

7 8206336 Plate, Damper

Miscellaneous

8206614 Installation,

Hardware

8205871 Template, Upper

W10138802

Screw, Top Mountng

W10163434

Main Harness

W10163438

Ground Wire Assy

8206415 H.V. Wire Assy

W10107760

Grnd Wire, Filter

W10163435

Hdlmp/TT Wire Assy

W10163436

HV Trnsfmr Wr Assy

W10163439

Harness Wire, NTC
