Whirlpool GT4175SPB0 User manual

DOOR PARTS

For Models: GT4175SPB0, GT4175SPQ0, GT4175SPS0, GT4175SPT0

(BLACK)(DESIGNER WHITE)(STAINLESS STEEL)(BISCUIT)

5−05 Litho in U.S.A. (dmm) Part No. 8205136

MICROWAVE OVEN

1.7 CUBIC FOOT

Illus. Part

No. No. DESCRIPTION

1 Literature

8205088 Use & Care Guide

8205086 Cook Guide Label

8205087 Tech Sheet

6 8184263 Latch

7 8205503 Spring, Latch

10 Door Assembly

8205514 White

8205502 Black

8205523 Stainless

8205518 Biscuit

CONTROL PANEL PARTS

For Models: GT4175SPB0, GT4175SPQ0, GT4175SPS0, GT4175SPT0

(BLACK)(DESIGNER WHITE)(STAINLESS STEEL)(BISCUIT)

8205136

Illus. Part

No. No. DESCRIPTION

2 Release Button

8205516 White

8205506 Black

8205525 Stainless

8205521 Biscuit

3 8184272 Spring, Button

4 Key Membrane

8205515 White

8205504 Black

Stainless

(Included in #5)

8205519 Biscuit

5 Control Panel

8205528 White

8205505 Black

8205524 Stainless

(Includes #4)

8205520 Biscuit

6 8205507 P.C.B Sub Assembly

7 8205451 Lever, Release

10 4358883 Screw

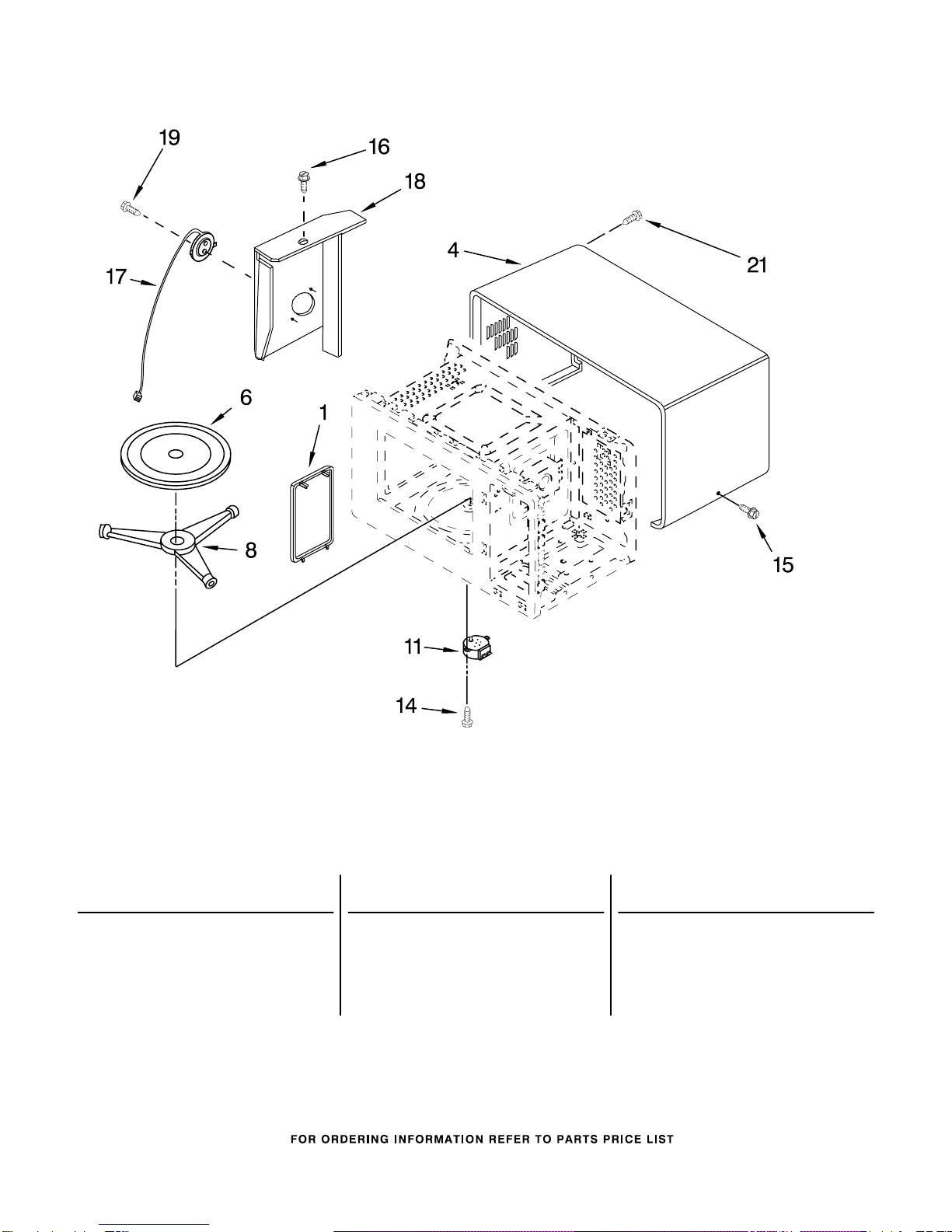

OVEN CAVITY PARTS

For Models: GT4175SPB0, GT4175SPQ0, GT4175SPS0, GT4175SPT0

(BLACK)(DESIGNER WHITE)(STAINLESS STEEL)(BISCUIT)

8205136

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8184278 Canopy

4 Outer Case

8205517 White

8205508 Black

8205522 Biscuit

6 8205150 Tray, Glass

8 8205151 Turntable Support

11 8184375 Motor, Synchronous

14 4358188 Screw

15 Screw

4358362 White

4358829 Black

16 4358192 Screw

17 8183514 Sensor, Humidity

18 8205510 Guide, Sensor

19 4358376 Screw

21 8171862 Screw

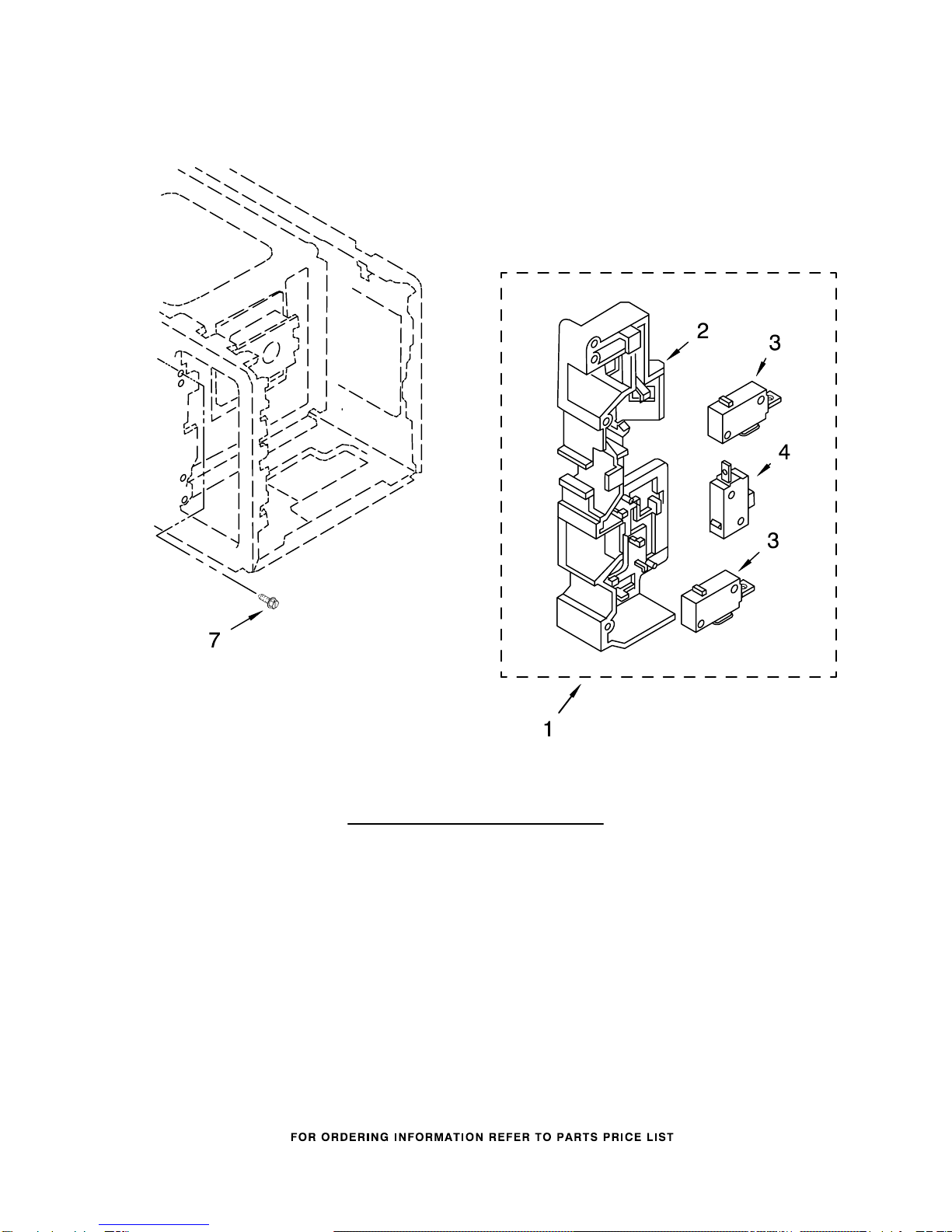

LATCH BOARD PARTS

For Models: GT4175SPB0, GT4175SPQ0, GT4175SPS0, GT4175SPT0

(BLACK)(DESIGNER WHITE)(STAINLESS STEEL)(BISCUIT)

8205136

Illus. Part

No. No. DESCRIPTION

1 Latch Board Assembly

(Non−Serviceable)

2 8185271 Latch Board

3 4392027 Switch Micro

Primary

4 8183562 Switch, Micro

Monitor

7 4358271 Screw

OVEN INTERIOR PARTS

For Models: GT4175SPB0, GT4175SPQ0, GT4175SPS0, GT4175SPT0

(BLACK)(DESIGNER WHITE)(STAINLESS STEEL)(BISCUIT)

8205136

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8205458 Blade, Fan

2 8205456 Guide, Suction

3 8205462 Motor, Fan

4 8185272 H.V. Capacitor

5 8184288 H.V.C Bracket

6 8205463 Leadwire Assembly

7 4359794 Holder, Wire

8 8205489 H.V. Diode Cable

9 8205461 Power Cord

10 8185274 Thermostat

11 8171810 Lamp, Baseless

12 8205483 Cap, Fuse

13 8171901 Magnetron

14 8205509 Bracket

15 8204900 Duct, Air

16 8205511 Bracket, Support

17 815174 Fuse

21 4358381 Screw

22 4358489 Screw

24 4358190 Screw

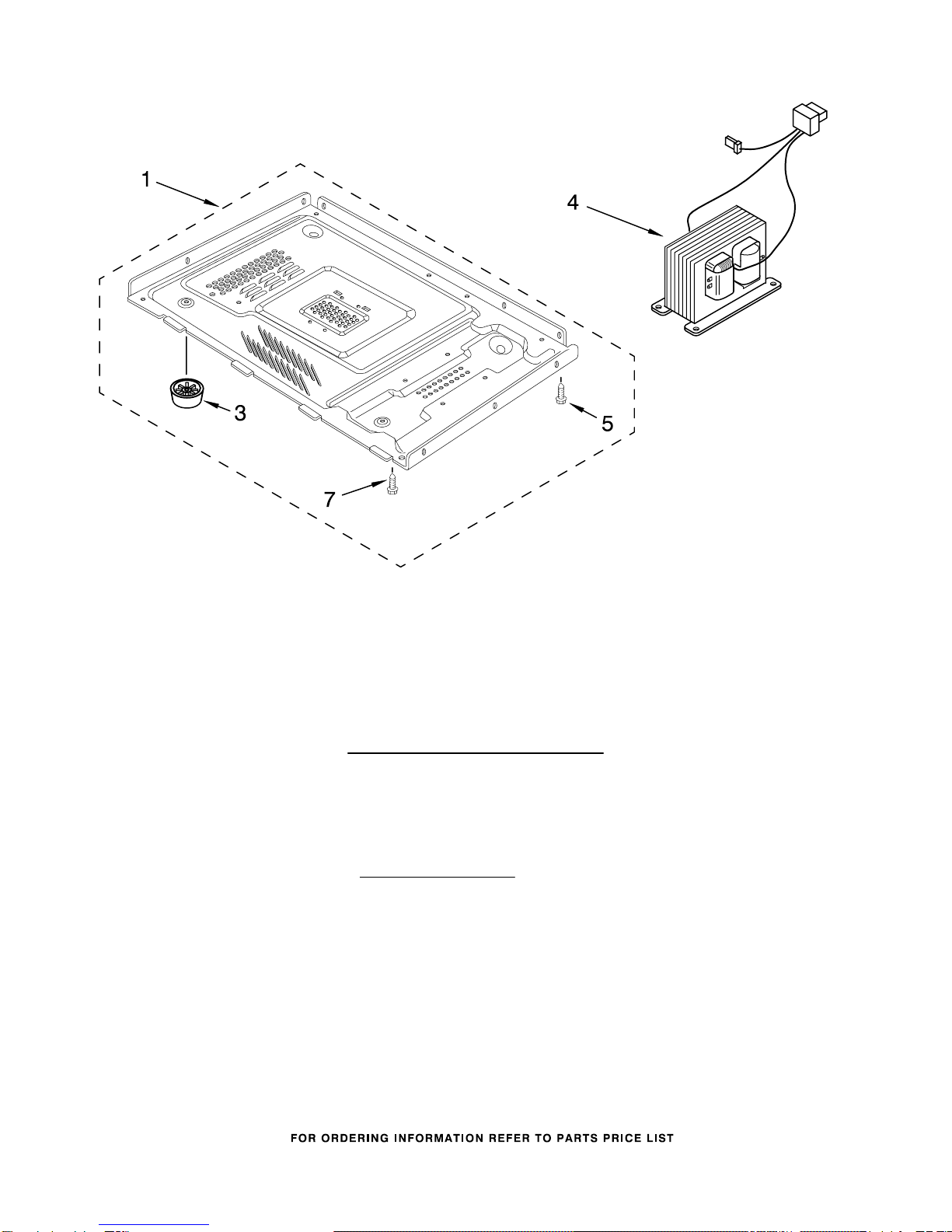

BASE PLATE PARTS

For Models: GT4175SPB0, GT4175SPQ0, GT4175SPS0, GT4175SPT0

(BLACK)(DESIGNER WHITE)(STAINLESS STEEL)(BISCUIT)

8205136

Illus. Part

No. No. DESCRIPTION

1 8205513 Base Plate Assy

3 8184385 Leg

4 8205512 Transformer

5 4358192 Screw

7 4358489 Screw

ACCESSORY PARTS

Trim Kits

MK1177SPQ

27" White

MK1177SPB

27" Black

MK1177SPS

27" Stainless

MK1177SPT

27" Biscuit

MK1170SPQ

30" White

MK1170SPB

30" Black

MK1170SPS

30" Stainless

MK1170SPT

30" Biscuit
