Whirlpool GH5184XPB0 User manual
CONTROL PANEL PARTS
1
ForModels: GH5184XPQ0, GH5184XPB0, GH5184XPT0, GH5184XPS0
(WHITE) (BLACK) (BISCUIT) (STAINLESS)
3−06 Litho In U.S.A. (dmm) Part No. 8205165
Microwave Oven
1.8 Cu. Ft.
Illus. Part
No. No. DESCRIPTION
1 Literature
8204922 U & C Guide
8204911 Tech Sheet
8184059 Instructn, Install
8204933 Cook Guide Label
3 Panel Asy, Control
Includes Lens and
Membrane Switch
8205417 White
8205419 Black
8205418 Biscuit
8205420 Stainless
4 8205378 Bracket, Control
6 8205421 Microcomputer
DOOR PARTS
2
Illus. Part
No. No. DESCRIPTION
ForModels: GH5184XPQ0, GH5184XPB0, GH5184XPT0, GH5184XPS0
(WHITE) (BLACK) (BISCUIT) (STAINLESS)
8205165
6 8184922 Pivot, Door
7 Handle, Door
8205224 White
8205227 Stainless
8205226 Black
8205225 Biscuit
8 8204678 Lower Hinge
9 8169479 Screw
11 8204690 Screw
12 8204691 Washer
13 8204679 Upper Hinge
14 Complete Door
8205413 White
8205416 Stainless
8205415 Biscuit
8205414 Black
INTERIOR AND VENTILATION PARTS
3
ForModels: GH5184XPQ0, GH5184XPB0, GH5184XPT0, GH5184XPS0
(WHITE) (BLACK) (BISCUIT) (STAINLESS)
8205165
INTERIOR AND VENTILATION PARTS
4
ForModels: GH5184XPQ0, GH5184XPB0, GH5184XPT0, GH5184XPS0
(WHITE) (BLACK) (BISCUIT) (STAINLESS)
8205165
Illus. Part
No. No. DESCRIPTION
1 8205096 Reflector, Lamp
2 8183993 Lamp
3 8184002 Filter, Charcoal
4 8184003 Filter, Grease
5 8205412 Plate, Bottom
6 8184141 Glass, Lamp
7 8184889 Holder, Glass
8 4393599 Switch, Micro
Primary/Secondary
9 8184124 Cover, Inverter
10 4393697 Switch, Micro
11 8169438 Spring, Interlock
12 8205211 Plate, Cam
13 8185189 Support, Interlock
14 8184875 Fan, DC 12 Volt
15 8184894 Housing, Fan
17 8185032 Bracket, Holder
18 8184670 Holder, Inverter
19 8185190 Rod−Locking Link
20 8184093 Capacitor, 125 V
21 8205093 Inverter 1100 W
22 8185031 Plate, Side
23 8184926 Holder, Lamp
24 8184887 Cable
25 8184202 Cover, Terminal
26 8184204 Capacitor
27 8184312 Holder, Fuse
28 4393308 Fuse
29 8183998 Thermostat
30 8184199 Screw
31 4393835 Screw
32 8184200 Screw
33 8205014 Ribbon Cable
(P2 to CN701 on
1100 W Inverter)
34 8169477 Screw
36 8184203 Foil, Lamp
AIR FLOW PARTS
5
ForModels: GH5184XPQ0, GH5184XPB0, GH5184XPT0, GH5184XPS0
(WHITE) (BLACK) (BISCUIT) (STAINLESS)
8205165
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8184667 Deflector, Air
2 8184925 Cover, Lamp
3 8185350 Duct, Air
4 8204789 Bracket, Thermostat
5 8183999 Thermostat
6 8204676 Cover
7 8183993 Lamp
8 8184884 Cover, Fan
9 8184876 Motor, Fan Assy
10 8204754 Shield
11 8204790 Shield
12 8190268 Filter, Fan Hood
13 4393834 Screw
14 8184198 Screw
15 8169474 Screw
17 4393808 Humidity, Sensor
19 8184926 Holder, Lamp
21 8184129 Spacer−Copper Pipe
22 8204674 Plate, Damper
23 8169635 Cushion, Mtr

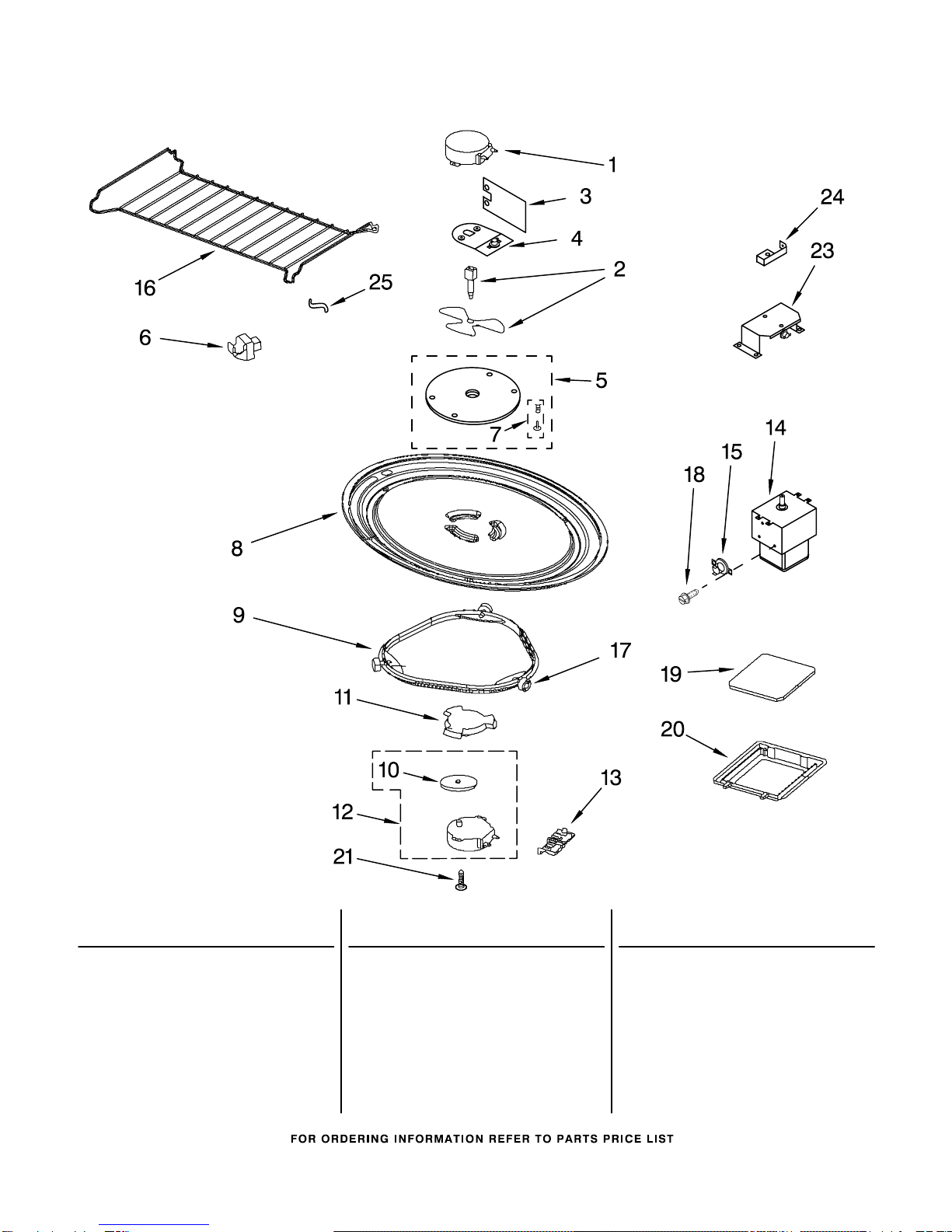

MAGNETRON AND TURNTABLE PARTS
6
ForModels: GH5184XPQ0, GH5184XPB0, GH5184XPT0, GH5184XPS0
(WHITE) (BLACK) (BISCUIT) (STAINLESS)
8205165
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8205044 Motor, Stirrer
2 8205202 Stirrer
Shaft/Blade
3 8184485 Shield, Nomex
4 8184585 Thermostat/Bracket
5 8184604 Cover, Inlet
Includes Nails
and Bushings
6 8204662 Hook, Rack (4)
7 8184549 Nails/Bushings
(5 of each)
8 4393799 Turntable
9 8184102 Ring, Turntable
10 8184109 Spacer, Waterproof
11 8183949 Driver, Turntable
12 8183953 Motor, Turntable
13 4393756 Cover, Terminal
14 8184139 Magnetron
15 8183994 Thermostat
16 8184052 Rack
17 4393861 Wheel (3)
18 4393838 Screw
19 8169499 Glass, Lamp
20 8169646 Frame, Glass
21 4393832 Screw
23 8184586 Thermostat/Bracket
24 8184669 Bracket, Plug
25 8205039 Spacer (4)
CABINET AND INSTALLATION PARTS
7
ForModels: GH5184XPQ0, GH5184XPB0, GH5184XPT0, GH5184XPS0
(WHITE) (BLACK) (BISCUIT) (STAINLESS)
8205165
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8184106 Plate, Mounting
3 4393713 Door, Damper
4 8184897 Lid, Power Cord
5 8183858 Frame, Damper
6 8184898 Cord, Power
7 Case, Outer
8205207 White
8205212 Black
8205213 Biscuit
8 Grille, Vent
8205214 White
8205215 Black
8205216 Biscuit
8205217 Stainless
9 8184190 Clip, Grille
10 4393836 Screw
11 8169475 Screw
12 4393472 Screw
13 8184135 Rod
14 8169319 Latch Pivot
15 8169320 E−Ring
16 8169321 Catch
17 8169374 Spring
18 8169697 Plate, Damper
Miscellaneous
8169659 Installation,
Hardware
8184781 Template, Upper
8183987 Template, Wall
8169704 Screw, Top Mountng
