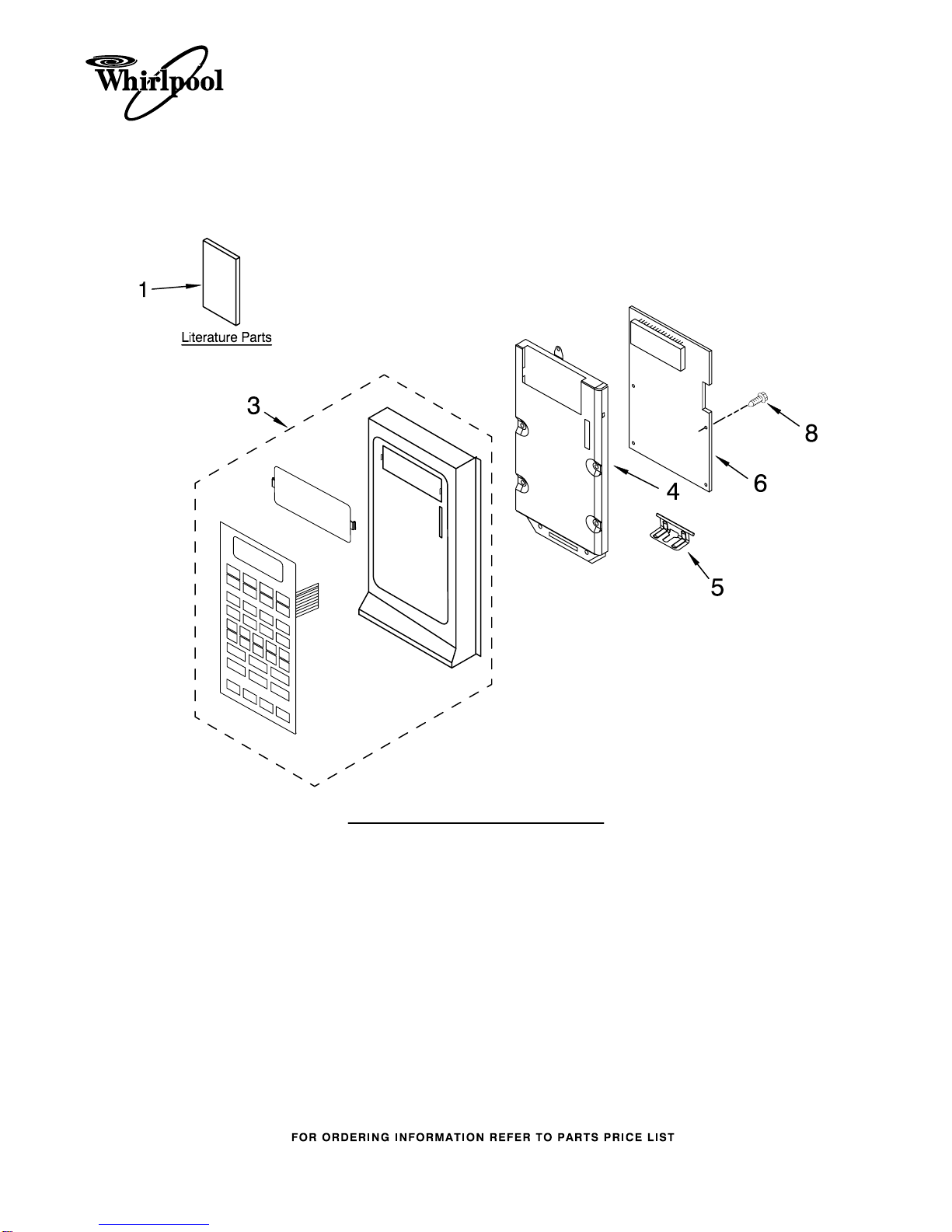

CONTROL PANEL PARTS
1
For Models: GH4155XPQ0, GH4155XPB0, GH4155XPT0
(White) (Black) (Biscuit)
6−04 Litho In U.S.A. (jac) Part No. 8205163
MICROWAVE
HOOD
COMBINATION
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8204919 Use & Care Guide
8183731 Installation
Instructions
8204908 Tech Sheet
8204929 Guide, Cooking
(Label)
3 Panel, Control
8205330 White
8205331 Black
8205332 Biscuit
4 8183821 Bracket, Control
5 4393744 Plate, Hinge
6 8183726 Microcomputer
8 4393346 Screw

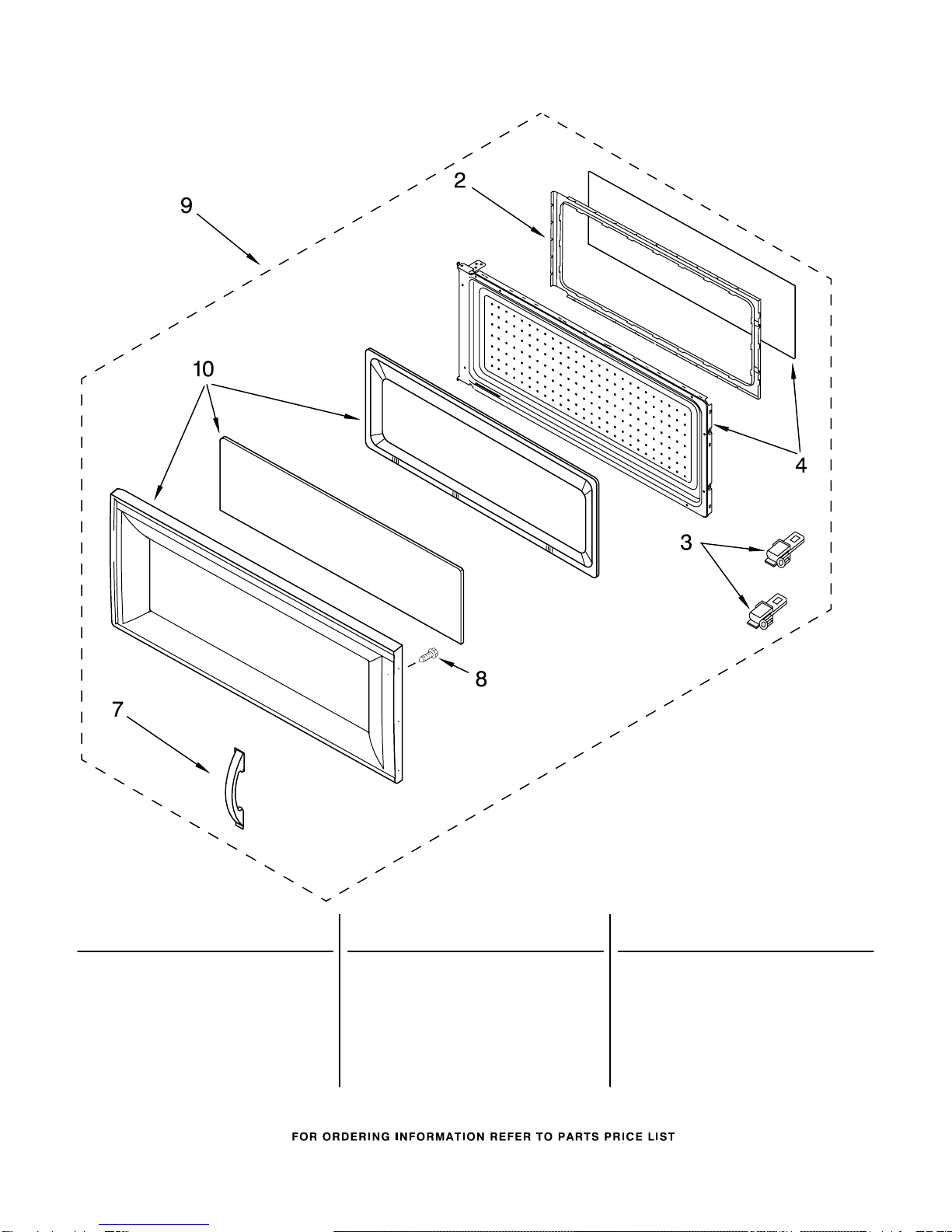

DOOR PARTS
2
For Models: GH4155XPQ0, GH4155XPB0, GH4155XPT0
(White) (Black) (Biscuit)
8205163
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
2 8169545 Frame, Inner
3 4393913 Latch, Door
4 Body, Door
8185107 White
8185109 Black
8185108 Biscuit
7 Handle, Door
4393777 White
4393782 Black
8169642 Biscuit
8 4393833 Screw
9 Door, Complete
8205327 White
8205328 Black
8205329 Biscuit
10 Frame, Outer
8205324 White
8205325 Black
8205326 Biscuit
INTERIOR AND VENTILATION PARTS
3
For Models: GH4155XPQ0, GH4155XPB0, GH4155XPT0
(White) (Black) (Biscuit)
8205163

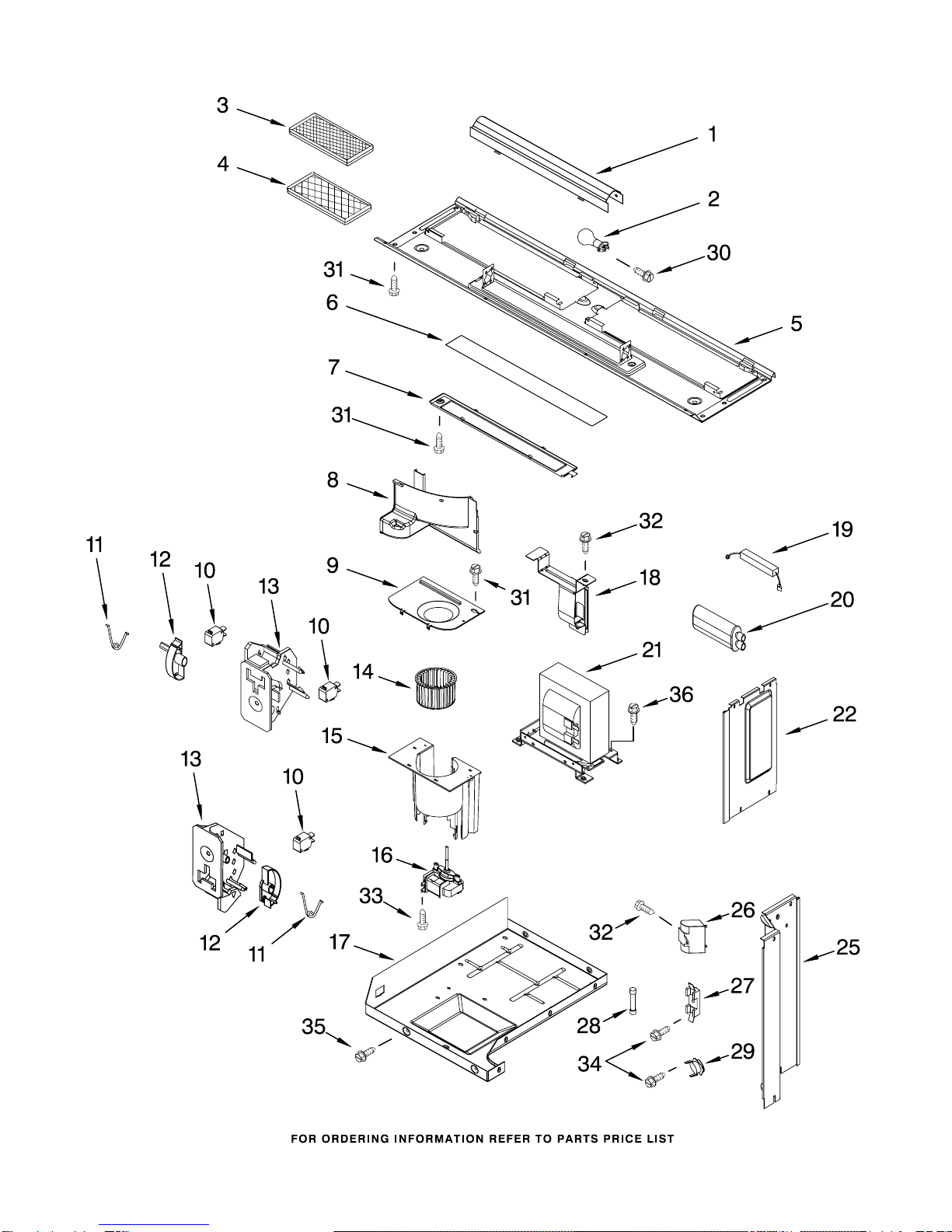

INTERIOR AND VENTILATION PARTS
4
For Models: GH4155XPQ0, GH4155XPB0, GH4155XPT0
(White) (Black) (Biscuit)
8205163
Illus. Part
No. No. DESCRIPTION
1 4393688 Reflector, Lamp
2 4393681 Lamp (2)
3 8169645 Filter, Charcoal
4 8169758 Filter, Grease
5 8185105 Plate, Bottom
6 8185210 Glass, Lamp
7 8184308 Holder, Glass
8 8205045 Guide, Air
(Magnetron)
9 8183823 Cover, Fan
10 8204656 Switch, Micro (3)
11 8169438 Spring, Interlock (2)
12 8183824 Plate, Cam (2)
13 4393595 Support, Interlock (2)
14 8183825 Wheel, Fan
15 8184310 Housing, Fan
16 8185211 Motor, Fan
17 8185212 Chassis
18 8184311 Holder, Capacitor
19 8184664 Diode, H.V.
20 8169501 Capacitor, H.V.
21 8204844 Transformer, H.V.
22 8204657 Plate, Side (R)
25 8204658 Plate, Side (L)
26 4393709 Capacitor
27 8184312 Holder, Fuse
28 4393308 Fuse
29 8183703 Thermostat
30 8169474 Screw
31 4393835 Screw
32 4393472 Screw
33 4393833 Screw
34 8169478 Screw
35 8169479 Screw
36 4393839 Screw

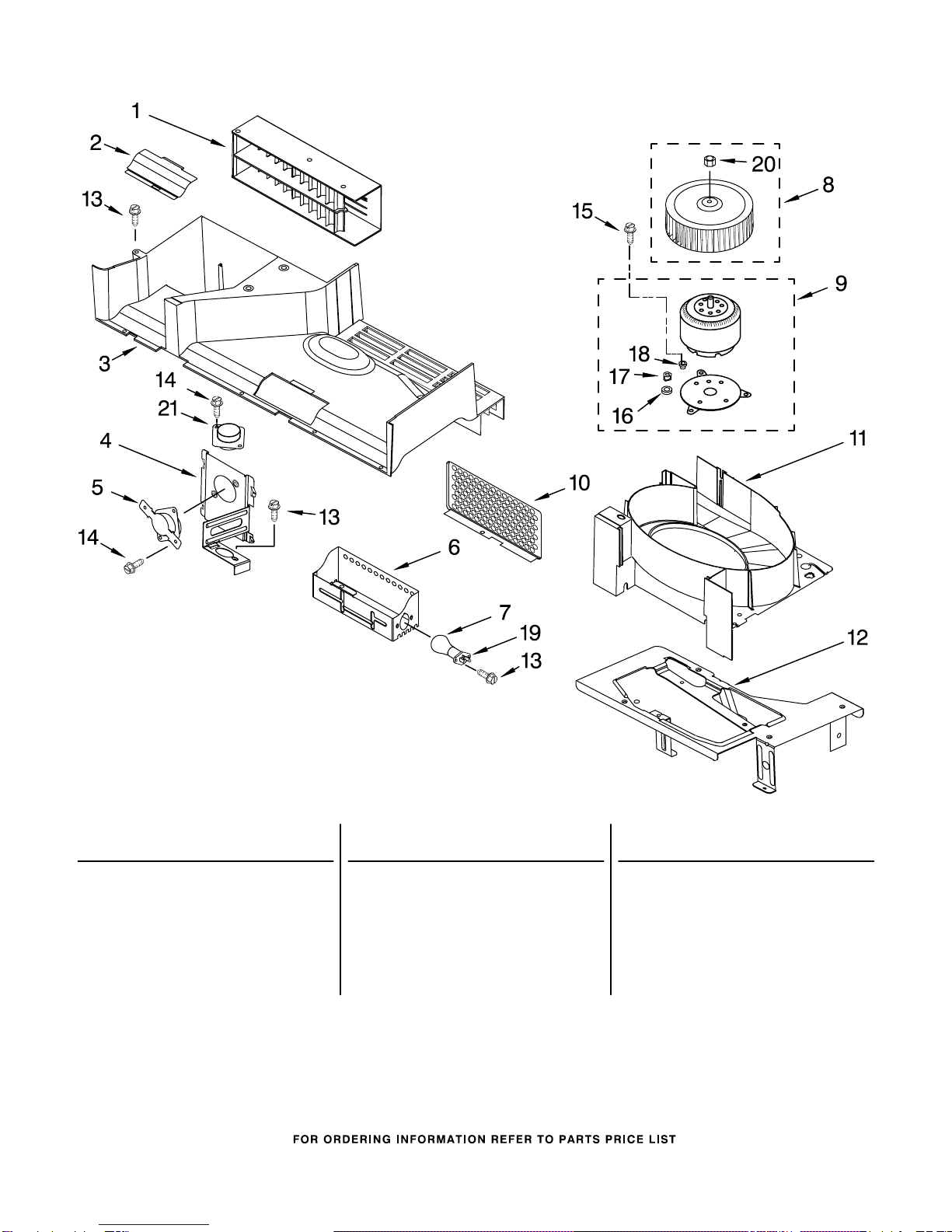

AIR FLOW PARTS
5
For Models: GH4155XPQ0, GH4155XPB0, GH4155XPT0
(White) (Black) (Biscuit)
8205163
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8184638 Deflector, Air
2 8169557 Reflector, Air
3 8185083 Duct, Air
4 8204653 Bracket, Thermostat
5 8183697 Thermostat
6 8184745 Housing, Lamp
7 4393681 Lamp
8 8204694 Wheel, Fan
9 8204751 Motor, Fan
10 8204754 Shield
11 8184624 Housing, Fan
12 Bracket, Fan
(Not Serviced)
13 8169474 Screw
14 8169478 Screw
15 4393830 Screw
16 4393874 Plate. Damper
17 8184129 Spacer,Copper Pipe
18 8169635 Cushion, Mtr
19 8169539 Holder, Lamp
20 8184404 Nut
21 4393808 Sensor, Humidity

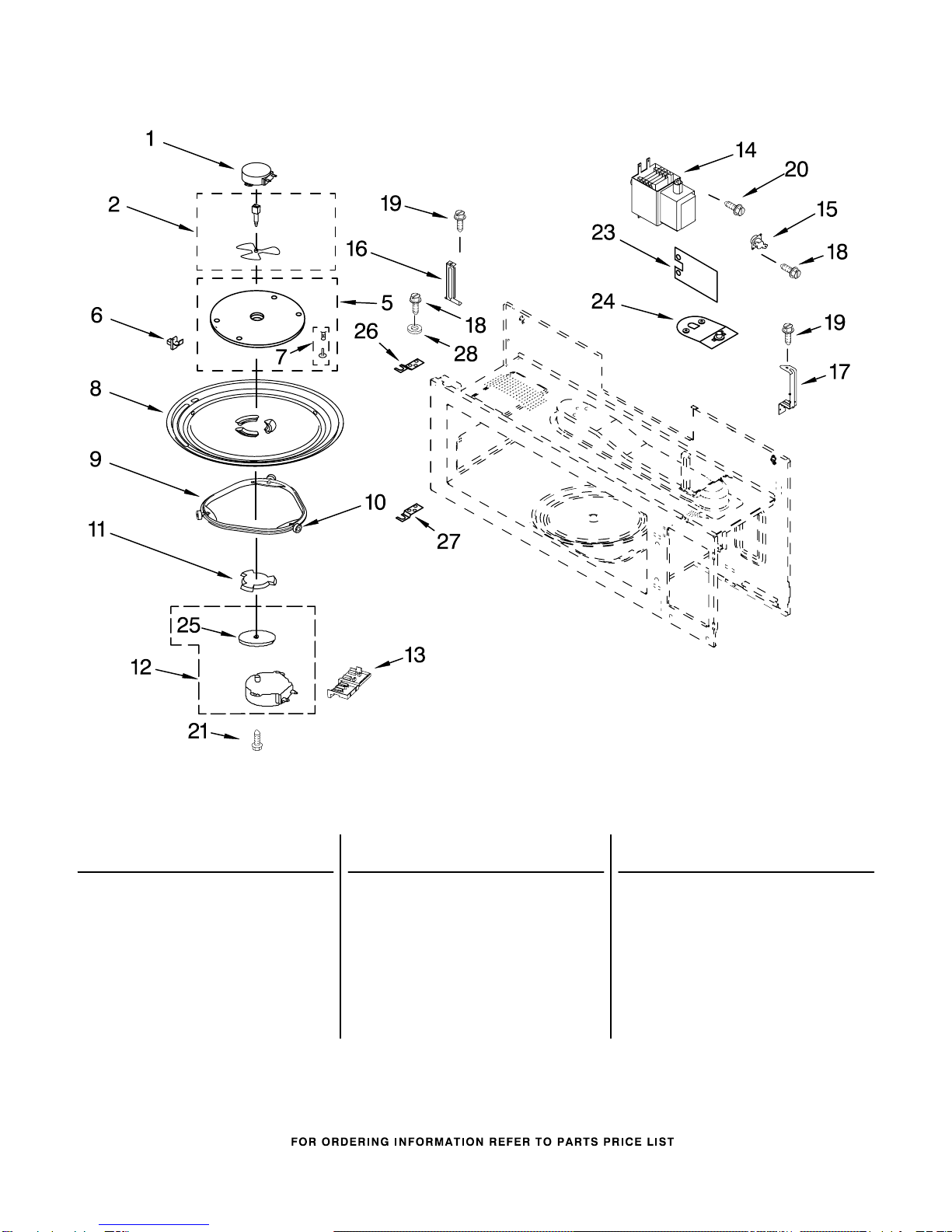

MAGNETRON AND TURNTABLE PARTS
6
For Models: GH4155XPQ0, GH4155XPB0, GH4155XPT0
(White) (Black) (Biscuit)
8205163
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8205044 Motor, Stirrer
2 8205315 Stirrer
Shaft/Blade
5 8184476 Cover, Inlet
6 8204662 Hook, Rack (4)
7 8184549 Nails/Bushings
(5 of Each)
8 4393799 Turntable
9 8184102 Ring, Turntable
10 4393861 Wheel, Plastic
11 8183949 Driver, Turntable
12 8183953 Motor, Turntable
13 4393756 Cover, Terminal
14 8184306 Magnetron
15 8183698 Thermostat
16 8169540 Holder, Connector (L)
17 8169705 Holder, Connector (R)
18 4393838 Screw
19 8169474 Screw
20 4393831 Screw
21 4393832 Screw
23 8184485 Shield
24 8184585 Thermostat And
Bracket
25 8184109 Spacer
26 8183741 Hinge, Upper
27 8183742 Hinge, Lower
28 8204691 Washer

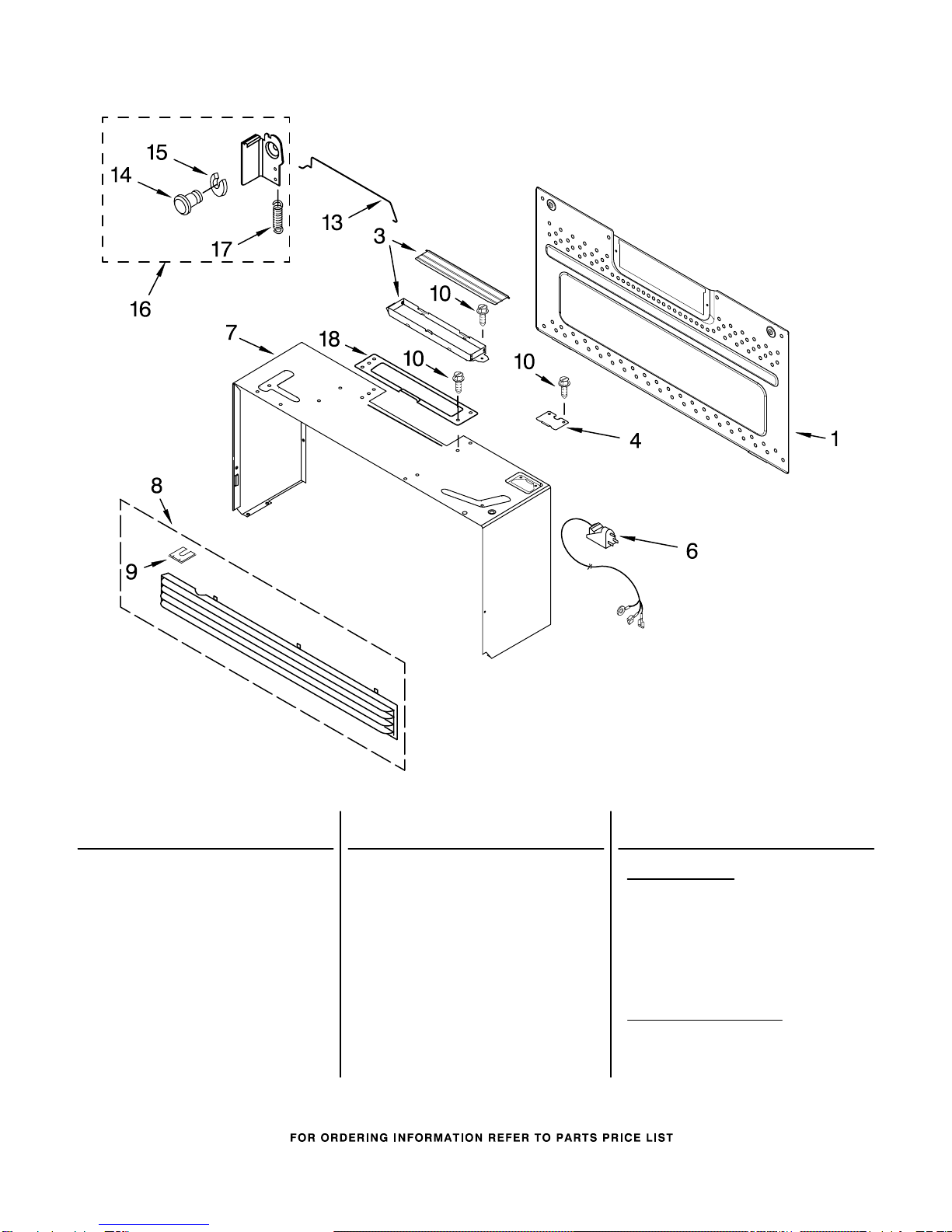

CABINET AND INSTALLATION PARTS
7
For Models: GH4155XPQ0, GH4155XPB0, GH4155XPT0
(White) (Black) (Biscuit)
8205163
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8205317 Plate, Mounting
3 8183858 Door, Damper
4 8184313 Lid, Power Cord
6 8184898 Cord, Power
7 Case, Outer
8169660 White
8169661 Black
8169664 Biscuit
8 Grille, Vent
8183948 White
8183851 Black
8183852 Biscuit
9 4393795 Grille, Holder
10 4393833 Screw
13 8169318 Rod
14 8169319 Latch Pivot
15 8169320 E−Ring
16 8185033 Catch
17 8169374 Spring
18 8169697 Plate, Damper
Miscellaneous
8169659 Hardware,
Installation
8169704 Screw, Top Mountng
8184781 Upper Template
8183743 Wall Template
8204725 Rack
ACCESSORY PARTS
8171337 Filler Kit (Black)
8171336 Filler Kit (White)
8171338 Filler Kit(Biscut)
