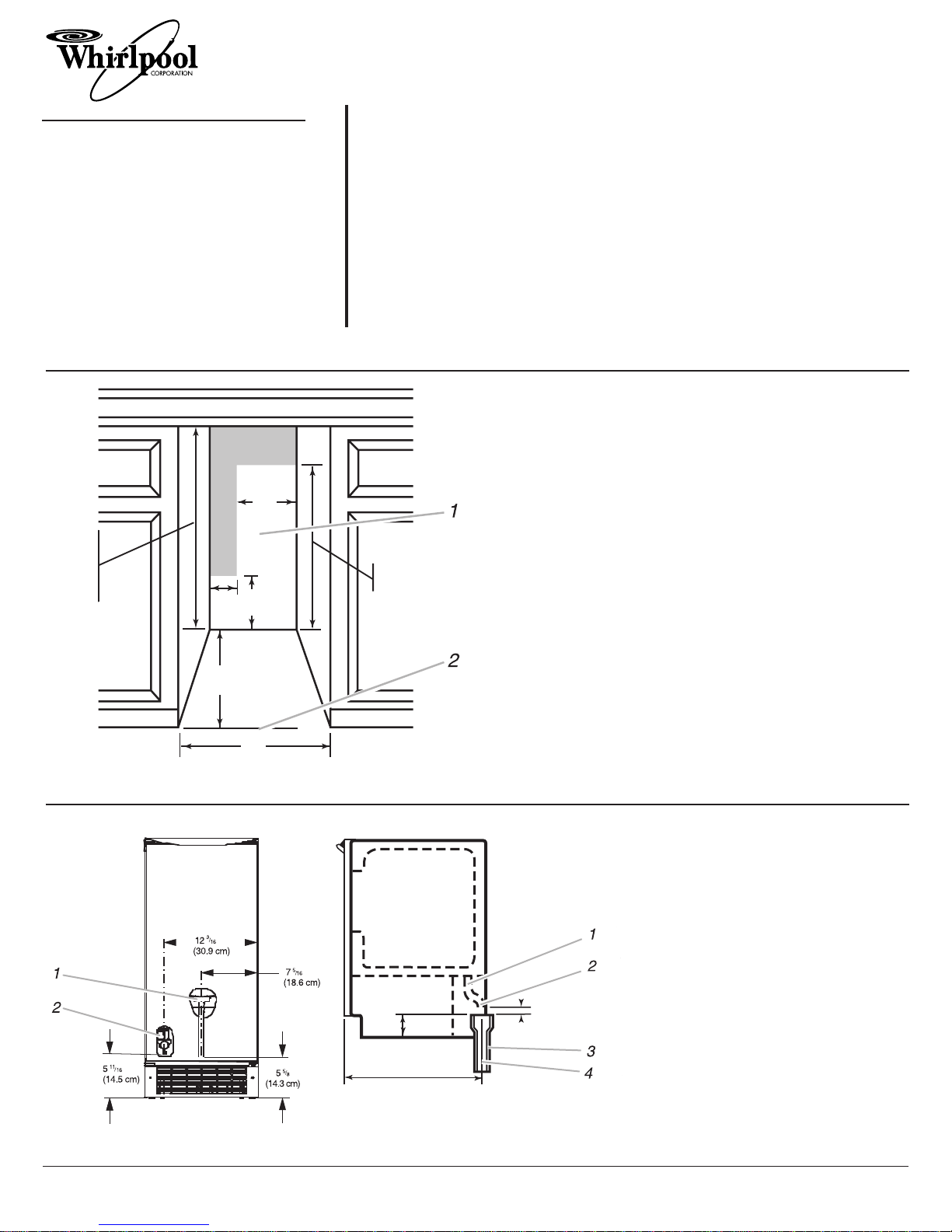

Whirlpool GI1500XH User instructions

Ice Maker

PRODUCT MODEL NUMBERS

CABINET OPENING DIMENSIONS

DRAIN REQUIREMENTS

GI1500PH

GI1500XH

Electrical: 115-volt, 60 Hz, AC-only, 15 amp

grounded circuit is required. A time-delay fuse or

circuit breaker and separate circuit is

recommended.

Water: A cold water supply using 1/4 in. O.D. soft

copper tubing with shutoff valve.

Drain: Either a gravity-drain system or

condensate pump to carry water to an existing

drain.

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. 2217406

04-29-04

1/2

(29.2 cm)

15"

(38.1 cm)

24"

(60.1 cm)

(22.9 cm)

1/2

(72.4 cm)

34"

(86.4 cm)

Min.

1/2

(87.6 cm)

Max.

1/2

(8.9 cm)

1. Recommended location for

electrical and plumbing fixtures.

2. Floor level

35/8"

(9.2 cm)

23"

(58.4 cm)

2" - 1 1/2"

(5 cm - 3.8 cm)

1"(2.5 cm)

Drain lines must have a minimum of 5⁄8 in.

(15.88 mm) inside diameter.

Drain lines must have a 1 in. drop per 48 in.

(2.54 cm drop per 122 cm) of run or 1⁄4 in. drop

per 12 in. (6.35 mm per 30.48 cm) and must not

have low points where water can settle.

The ideal installation has a standpipe with a

1-1⁄2 in. (3.81 cm) to 2 in. (5.08 cm) PVC drain

reducer installed directly below the outlet of the

drain tube as shown. You must maintain a 1 in.

(2.54 cm) air gap between the drain pump hose

and the standpipe.

You must maintain a 1 in. (2.54 cm) air gap

between the drain pump hose and the standpipe.

1.Water Pan

Drain

2.Water Valve

1. Drain Hose

2. 1 in. (2.54 cm) Air Gap

3. PVC Drain Reducer

4. Center of drain should be 23 in. (58.4 cm)

from front of door (with or without 3/4 in.

(1.91 cm) panel on door.

Front View Side View

To ensure proper ventilation for your ice maker, the front

side must be completely unobstructed. The unit may be

closed-in on the top and 3 sides, but the installation

should allow the ice maker to be pulled froward for

servicing if necessary.
