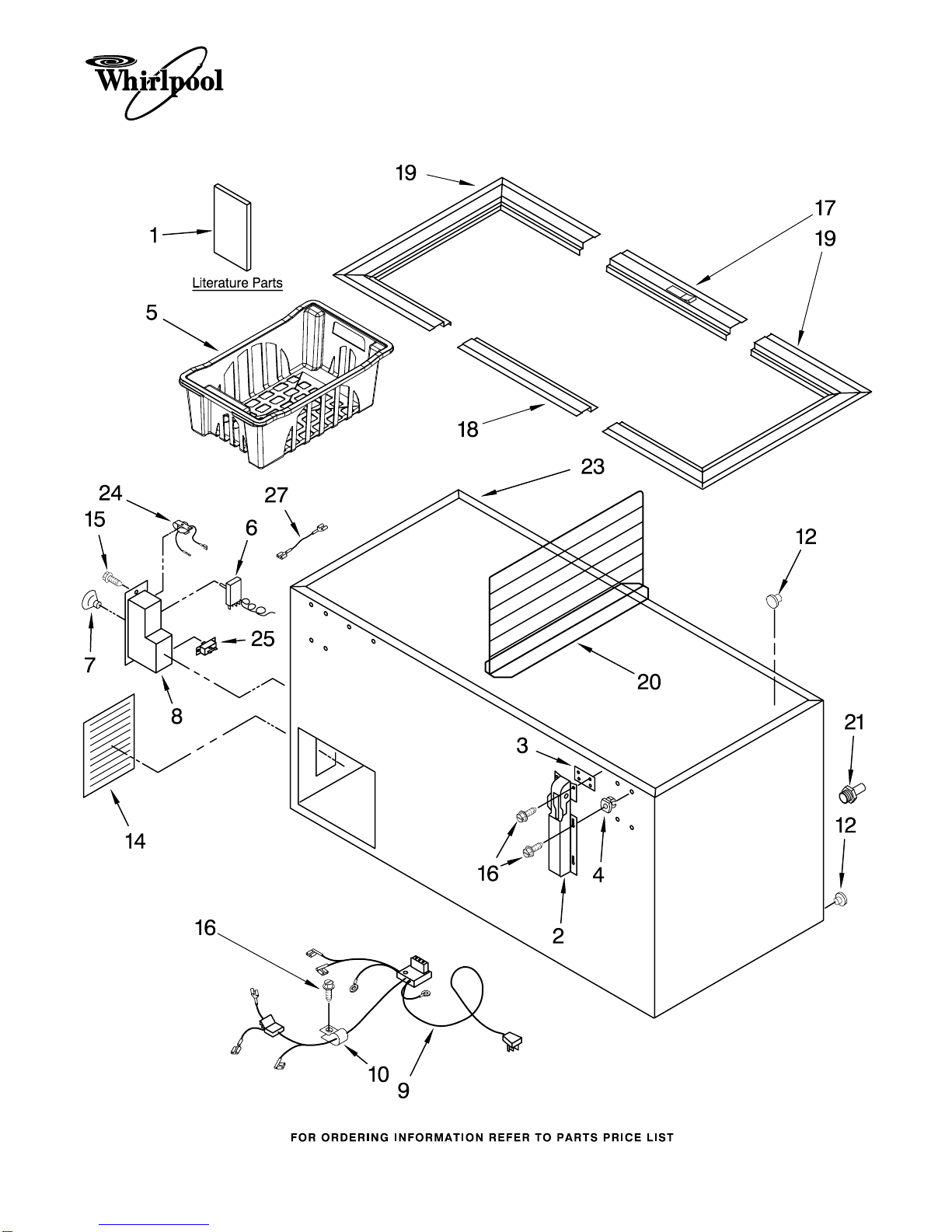

CABINET PARTS

For Model: EH221FXRQ00

(White)

5−06 Litho in U.S.A. (tpm) Part No. 8214759

CHEST FREEZER

CABINET PARTS

For Model: EH221FXRQ00

(White)

8214759

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8210431 Owners Manual

8210232 Energy Guide/Tag

2 4356504 Hinge, Assembly

3 4356463 Spacer, Hinge

4 4356321 Plastic, Grommet

5 Basket

8210317 Upper (2)

8210318 Lower (2)

6 8210320 Thermostat

7 4356769 Knob, Thermostat

8 8210319 Control Box

9 8210325 Harness, Wiring

10 4356643 Plastic, Clip

12 4356456 Drain, Plug

14 4356622 Access Panel

15 4356583 Screw

16 4356491 Screw

17 4356641 Front, Breaker

Strip

18 4356642 Rear, Breaker

Strip

19 4356635 End, Breaker

Strip (2)

20 4356477 Divider

(Optional)

21 4356481 Adapter, Drain

23 Cabinet (Not A

Serviceable Part)

24 8210321 Alarm (Buzzer)

25 8210323 Switch, Alarm

27 8210324 Wire, Lead

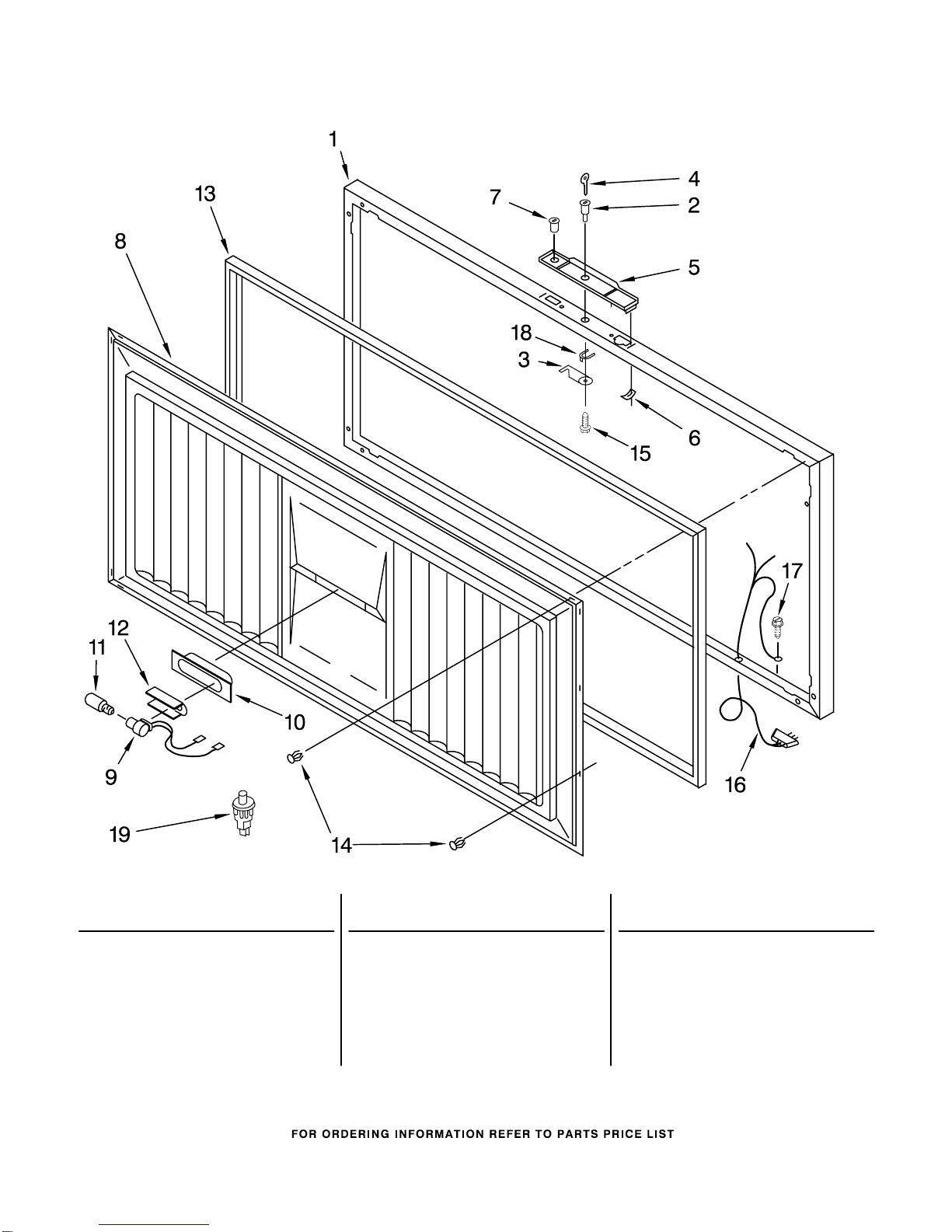

DOOR PARTS

For Model: EH221FXRQ00

(White)

8214759

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4390903 Exterior Door

Panel

2 4356759 Lock Kit

3 4356608 Hook Bolt,

Lock

4 4356304 Key

5 4356702 Handle

6 4356306 Clip, Oblong

7 4356453 Signal Light

8 4390658 Interior Door

Panel

9 4356874 Lamp Socket

10 4356500 Reflector,

Light

11 4356311 Light Bulb

12 4356704 Heat Shield

13 4356697 Gasket

14 4356703 Clip, Gasket

15 4356609 Screw

16 4356768 Harness, Wiring

(Lid)

17 488787 Screw

18 4356493 Clip, Spring

19 4356796 Switch, Light

UNIT PARTS

For Model: EH221FXRQ00

(White)

8214759

Illus. Part

No. No. DESCRIPTION

1 4356775 Compressor

(Includes Items 2,

3, 4, 5, 6 & 8)

2 4356738 Relay

3 4356776 Overload

4 4357299 Drier

5 4356335 Compressor,

Mounting Grommet

6 4356336 Compressor,

Hitch Pin

7 4356590 Compressor Base

8 4356777 Cover

10 4356498 Capacitor

11 4356672 Brace

REFRIGERANT CHARGE

4.8 oz.

(R−134A)

OPTIONAL PARTS (NOT INCLUDED)

For Model: EH221FXRQ00

(White)

8214759

Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

Customer Touch−Up Material

350956 Enamel, Almond

(13 Oz. Spray Can)

72107 Brush Touch−Up Kit

(Almond)

978883 Enamel, Almond

(1 Qt. Uncut)

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

4356703 Clip, Gasket

(Kit Of 60)
