Whirlpool GJC3654RB00 User manual

COOKTOP PARTS

36" ELECTRIC

CERAN COOKTOP

For Models: GJC3654RB00, GJC3654RS00, GJC3654RC00, GJC3654RP00

(Black) (S.Steel) (Pure Biscuit) (Pure White)

1−07 Litho in U.S.A. (cre) Part No. 8186326 Rev.A

36" ELECTRIC

CERAN COOKTOP

COOKTOP PARTS

28186326

For Models: GJC3654RB00, GJC3654RS00, GJC3654RC00, GJC3654RP00

(Black) (S.Steel) (Pure Biscuit) (Pure White)

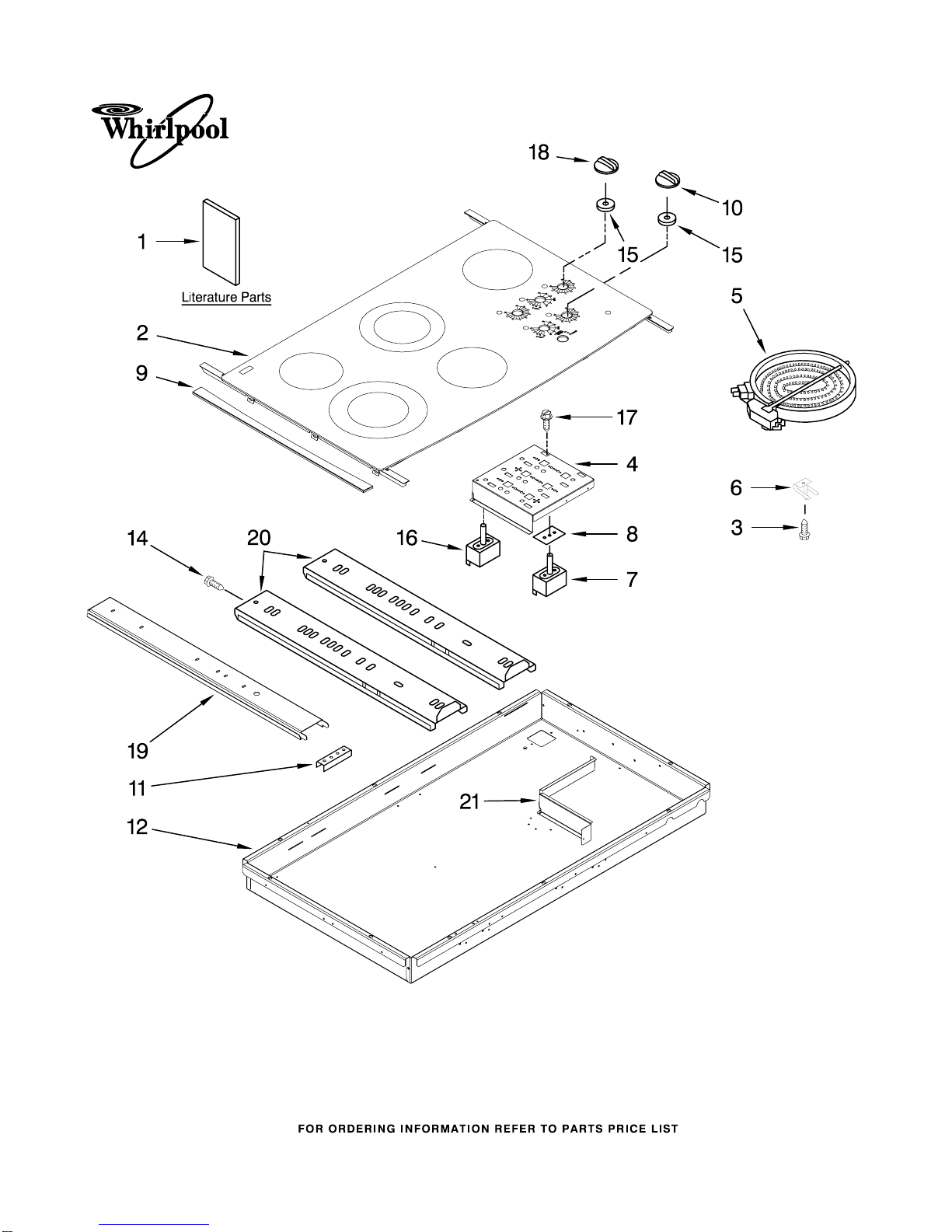

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8286066 Installation

Instructions

8286288 Use & Care Guide

8286340 Wiring Diagram

3191638 Safer Cooking Tips

2 Cooktop & Bracket

Assembly

8285975 Black

8286032 S.Steel

8286030 Pure White

8286031 Pure Biscuit

3 246119 Screw (8)

4 8285929 Bracket, Switch

Mounting

5 Element, Surface

8523698 1200W − RR

8523697 1500W − CF

8285937 2000/1000W − CR

4453909 2500/1200W − LF

8523700 100W (Warm Elem)

6 9759094 Spring,Locator (8)

7 Switch, Infinite

9759474 LF & CR Burner

3191049 RR & CF Burner

8286517 Warm Zone

8 3192439 Seal, Switch Cover

9 Trim, Cooktop

(S.Steel Mdl Only)

8285990 LH

8285991 RH

10 Knob, Control (4)

8286043BL

Black

8286043WH

White

8286043BT

Biscuit

11 4455917 Bracket, Mounting

3400093 Screw

12 8286556 Box, Burner

14 3196537 Screw

15 8285469 Seal, Switch

Shaft (4)

16 8285139 Switch, Rotary

(Accusimer)

17 311865 Screw

18 Knob, Accusimer

8286044BL

Black

8286044WH

White

8286044BT

Biscuit

19 8286345 Rail, Element

20 8285962 Rail, Element

21 8285950 Shield, Heat

Control

3191839 Seal

3196537 Screw

Following Parts Not Illustrated

3172515 Mtg. Hardware Kit

4455364 Bracket,

Support (6)

OPTIONAL PARTS

8186326

For Models: GJC3654RB00, GJC3654RS00, GJC3654RC00, GJC3654RP00

(Black) (S.Steel) (Pure Biscuit) (Pure White)

Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 C

242820 Wire, Black

14 Ga. 150 C

242822 Wire, Blue

14 Ga. 150 C

242830 Wire, Brown

14 Ga. 200 C

242823 Wire, Green

14 Ga. 150 C

242824 Wire, Orange

14 Ga. 150 C

242829 Wire, Red

12 Ga. 150 C

242825 Wire, Red

14 Ga. 150 C

242831 Wire, Red

14 Ga. 200 C

242826 Wire, White

14 Ga. 150 C

242827 Wire, Yellow

14 Ga. 150 C

242832 Wire, Yellow

14 Ga. 200 C

ACCESSORY PARTS

3191048 Cleaner

WIRING HARNESS PARTS

8285955 Wiring Harness

Surface Unit

8285989 Harness, Conduit

8286348 Harness, Light

3400015 Screw, 10−32 x 3/8
