Westinghouse WSFS1808BK User manual

18” Orbit Oscillating Stand Fan

Ventilateur sur pied oscillant Orbite 18’’

Instruction Manual / Manual d’instructions

WSFS1808BK

WSFS1808BK_18 Oribit Oscillating Fan_2L.indd 1 5/12/2019 18:27:17

WSFS1808BK_18 Oribit Oscillating Fan_2L.indd 2 5/12/2019 18:27:17

CONTENT

SAFETY INFORMATION

IMPORTANT SAFEGUARDS....................................................................... 4

POLARIZED PLUG......................................................................................... 5

HOW TO USE

PARTS DESCRIPTIONS................................................................................ 6

OPERATING INSTRUCTIONS..................................................................... 7

CLEANING INSTRUCTIONS................................................................ 8

DISPOSAL............................................................................................... 9

INFORMATION AND SERVICE........................................................... 9

WSFS1808BK_18 Oribit Oscillating Fan_2L.indd 3 5/12/2019 18:27:17

SAFETY INFORMATION

WARNING: To reduce the risk of an electric shock and injury to

personsor injury, do not use the fan in a window.

WARNING: To reduce the risk of a fire or electrical hazards, do not

use this fan with any solid state speed control device.

1. Use this fan only as described in this manual. Using the fan for

other purposes may cause a fire, hazards or an electric shock.

2. This product is intended for household use. It is designed for

indoor, non-commercial, non-industrial and general domestic

use in cooling rooms and is not intended for use in windows.

Do not use the product outdoors or for any other purpose.

3. To prevent the risk of electrical shock, always use the fan on a

dry, level surface. Do not place the fan in a window, immerse

the unit, plug or cord in water, or spray with liquids.

4. Close supervision must be provided when the appliance is used

by or near children.

5. Unplug the unit from the mains outlet when left unattended or

not in use, when moving the fan from one location to another,

and before cleaning.

6. Never submerge the unit in water.

7. Do not operate the unit in the presence of explosive and/or

flammable fumes.

8. Do not place the unit or any parts near open flames or next to

cooking or other heating appliances.

9. Never insert fingers or any other objects through the fan

guards. Never drop or insert objects into any opening of the

product.

10. Never plug the unit in with wet hands or a wet cord.

IMPORTANT SAFEGUARDS

DANGER

DANGER – Immediate hazards

which WILL result in severe

personal injury or death

WARNING

WARNING – Hazards or unsafe

practices which COULD result in

severe personal injury or death

WARNING

When using electrical appliances, basic safety precautions

should always be followed, including the following

CAUTION

CAUTION – Hazards or unsafe

practices which COULD result in

minor personal injury

WSFS1808BK_18 Oribit Oscillating Fan_2L.indd 4 5/12/2019 18:27:17

SAVE THESE INSTRUCTIONS

HOUSEHOLD USE ONLY

SAFETY INFORMATION

11. Do not operate the unit with a damaged cord or plug. If the

cord or plug is damaged, discard the fan or return it to an

authorized service facility for examination and/or repair.

12. Avoid contact with moving fan parts.

13. To disconnect the fan from the power supply, grip the plug and

pull it from the outlet. Do not pull on the cord.

14. Do not operate if the fan housing has been removed or

damaged.

15. To prolong the lifespan of the product, do not use the fan

continuously for 24 hours a day.

16. Do not the run cord under carpets. Do not cover the cord with

throw rugs, runners, or other similar objects. Do not route the

cord under furniture or appliances. Place the cord away from

people where it will not present a trip hazard.

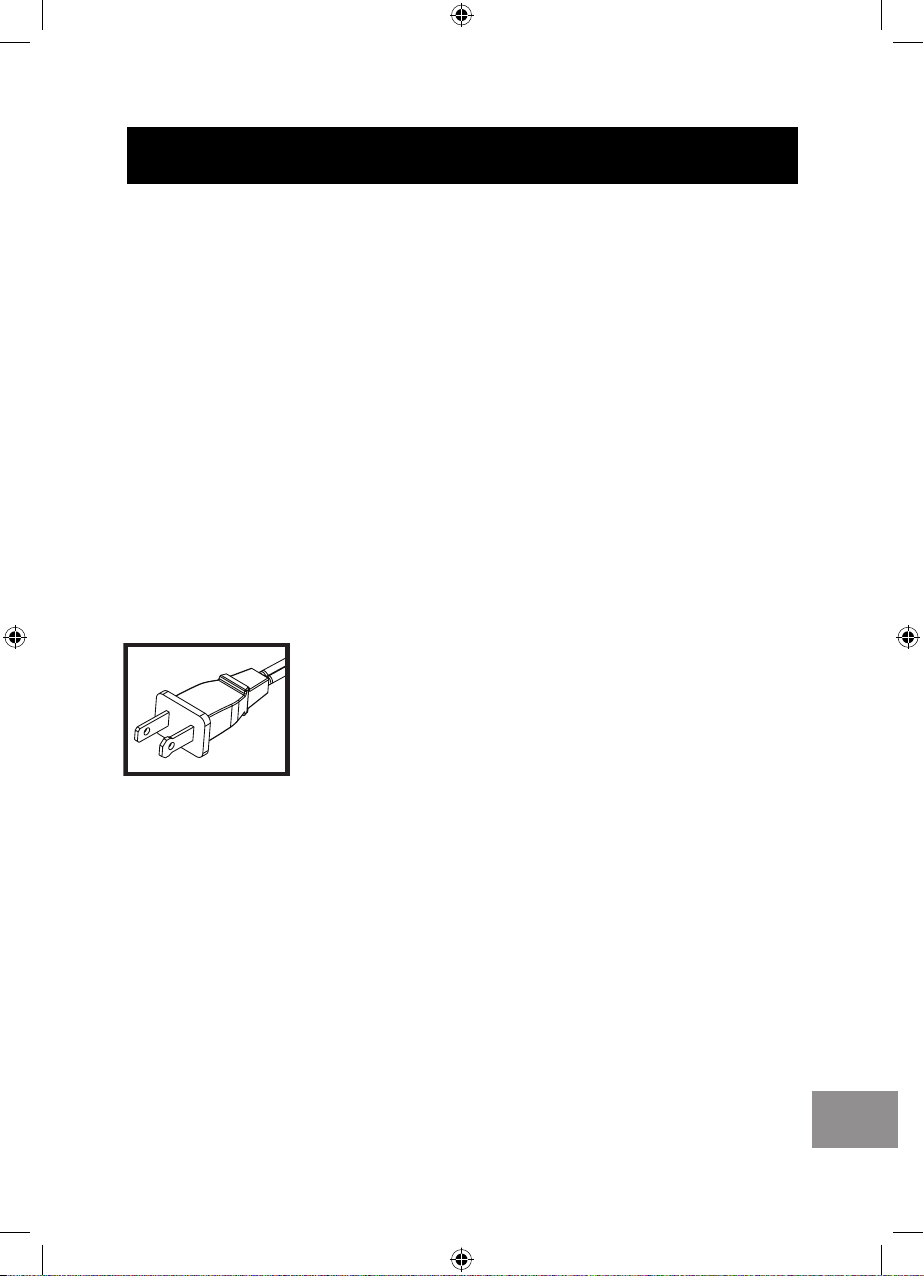

POLARIZED PLUG

This appliance has a polarized plug (one blade

is wider than the other). To reduce the risk of

electric shock, this plug is intended to fit in a

polarized outlet only one way. If the plug does

not fit fully in the outlet, reverse the plug, if it

still does not fit, contact a qualified electrician.

Do not modify the plug in any way.

DO NOT ATTEMPT TO MODIFY THIS PLUG OR DEFEAT THIS

SAFETY FEATURE IN ANY WAY.

WSFS1808BK_18 Oribit Oscillating Fan_2L.indd 5 5/12/2019 18:27:17

HOW TO USE

PARTS DESCRIPTIONS

1 Front grille 9 Screw

2 Blade 10 Inner Tube

3 Screw 11 Height adjustment knob

4 Locking nut 12 Cover ring

5 Rear grill 13 Outer tube

6 Rotary switch 14 Screw

7 Oscillation knob 15 Base

8 Motor

WSFS1808BK_18 Oribit Oscillating Fan_2L.indd 6 5/12/2019 18:27:17

1. Attach the outer tube (13) to the base (15) with the 4 screws

(14) as shown.

2. Loosen the knob (11) on the outer tube and extend the inner

tube (10) to the desired height.

3. Slide the cover ring (12) down the outer tube to rest on top of

the base.

Caution: The knob must be fully tightened before assembling the

fan head to the inner tube.

4. Tighten the small screw (9) which is pre-screwed into the small

hole of the inner tube.

5. Position the rear grille (5) over the motor (8) shaft, ensuring

that the notches are correctly aligned, and then secure with the

locking nut (4).

6. Align the fan blade (2) with the flat part of the motor (8) shaft,

and secure by tightening the fan blade screw (3) fully. The

screw should be positioned on the flat part of the motor shaft.

7. Position the front grille (1) against the rear grille (5) and push

the guard ring in place so that it holds both grilles together.

OPERATING INSTRUCTIONS

1. Place the fan on a dry, level surface.

2. Make sure the rotary switch is at the “0” (OFF) position. Plug

the unit into a 120V AC, 60 Hz outlet.

3. Adjust the fan head vertically to the desired angle.

4. To turn on the unit, turn the rotary switch to the “1” (LOW), “2”

(MEDIUM) or “3” (HIGH) position.

5. To stop the unit, turn the rotary switch to the “0” (OFF)

position, and then unplug the unit from power outlet.

6. Unplug the product from the electrical outlet when it is not in

use or is left unattended.

HOW TO USE

WSFS1808BK_18 Oribit Oscillating Fan_2L.indd 7 5/12/2019 18:27:17

CLEANING INSTRUCTIONS

WARNING: To avoid the risk of electrical shock, always make

sure the product is unplugged from the electrical outlet before

disassembling, cleaning, servicing or relocating.

1. The product should be cleaned and checked on a regular basis.

Make sure the fan blade is clean at all times to prevent the fan

blade from damage and fading.

The fan can be cleaned in two ways:

a) Vacuum the fan blades or use a can of compressed air, or

b) Remove the front guard by removing the 3 screws securing

the grille to the fan (be sure to use a screwdriver with a

magnetic tip).

2. To clean the front guard, turn counterclockwise to loosen the

screw and pull off the guard. To place back on, match the shape

of the shaft to the inside groove of the guard and push inwards.

Screw the fastener on clockwise to tighten.

3. Take the guard off and wipe it with a cloth or use a can of

compressed air. Make sure the front guard is completely dry

before securing it back onto the fan.

4. Wipe the fan blades (do not remove) with a damp cloth dipped

in a light solution of water and mild detergent.

5. Make sure that water does not get into the motor while

cleaning.

6. The blade and rear guard (not removable) must be completely

dry when re-securing the guard in place.

7. Do not use any chemical cleaners such as acid or alcohol to

clean the fan.

CARE AND MAINTENANCE

WARNING: Do not attempt to open any part of the motor housing,

as this may cause an electrical shock. This product has been

permanently lubricated at the factory and will not require further

lubrication for the entire product lifespan. Additional lubrication of

electric motor parts could create a fire hazard.

1. The product must be placed in its original packaging and

stored in a room with low humidity.

2. Make sure the product is completely dry before use.

NOTE: If you experience a problem, please return the fan to the

retailer. Do not attempt to open the motor housing yourself, as

doing so may cause damage to the fan or personal injury.

WSFS1808BK_18 Oribit Oscillating Fan_2L.indd 8 5/12/2019 18:27:17

DISPOSAL

Proper disposal of this product.

This symbol indicates that this appliance may not be treated

as household waste. Instead, it should be taken to the

appropriate collection point for recycling electrical and

electronic equipment.

Please use the return or collections services available in your

community or contact the retailer where you purchased this

product.

INFORMATION AND SERVICE

If you have questions or concerns about your product, please visit

our website: www.westinghousehomeware.com, or contact our

overseas offices/agents.

In line with our policy of continuous product development,

we reserve the right to change the product, packaging and

documentation specifications without prior notice.

Model: WSFS1808BK

120VAC 60Hz 61W

WSFS1808BK_18 Oribit Oscillating Fan_2L.indd 9 5/12/2019 18:27:17

TABLE DES MATIÈRES

CONSIGNES DE SÉCURITÉ

PRÉCAUTIONS DE SÉCURITÉ IMPORTANTES................................... 11

PRISE POLARISÉE......................................................................................... 13

UTILISATION

DESCRIPTON DES PIÈCES......................................................................... 14

INSTRUCTIONS DE FONCTIONNEMENT ............................................. 15

INSTRUCTIONS DE NETTOYAGE ..................................................... 16

MISE AU REBUT .................................................................................... 18

INFORMATIONS ET SERVICE APRÈS-VENTE ............................... 18
